• Ergotron TM Tilting Wall Mount For Large Display or TV Mount | 61-142-003

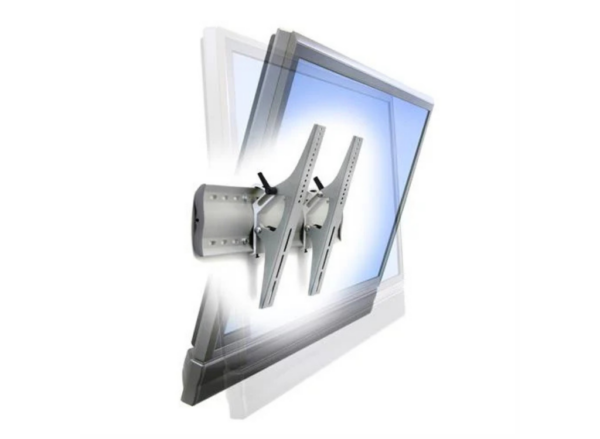

  Tilt your screen with just a light touch or use the integrated tilt lock-down feature to hold it in position

  Simple three-step installation

  Protect your investment: Integrated security fasteners hold display in place and deter others from removing your display

  View in comfort: Cut glare while improving sight lines

  Fits most displays up to 175 lbs (79 kg)

  Includes fasteners for mounting to wood studs or concrete walls

• Attribute	Details
  GTIN	00698833041217
  Part Number	61-143-003
  Product Weight	5.1 kg
  Shipping Weight	6.1 kg
  Shipping Dimensions	34.6″W x 12.9″H x 4.3″D (88 x 33 x 11 cm)
  Description	TM Tilting Wall Mount (silver)

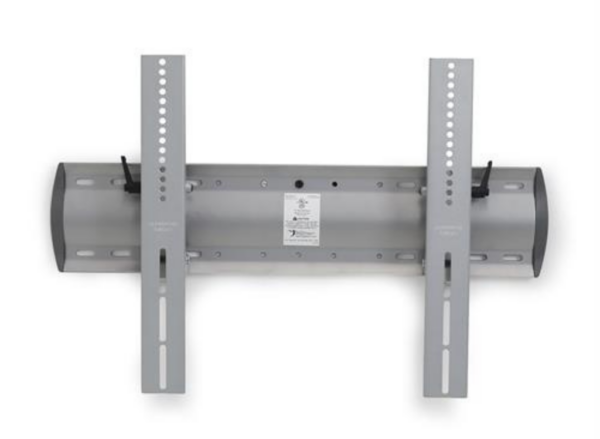

  Includes	Wall plate, two display brackets with tilt-lock levers, hardware fastener kit
  Installation Options	Attaches to vertical surfaces; hardware included for wood studs (16″ centered) or concrete walls
  Special Installation Note	For 24″ centered studs or larger displays, order XL version (pt. # 61-142-003)

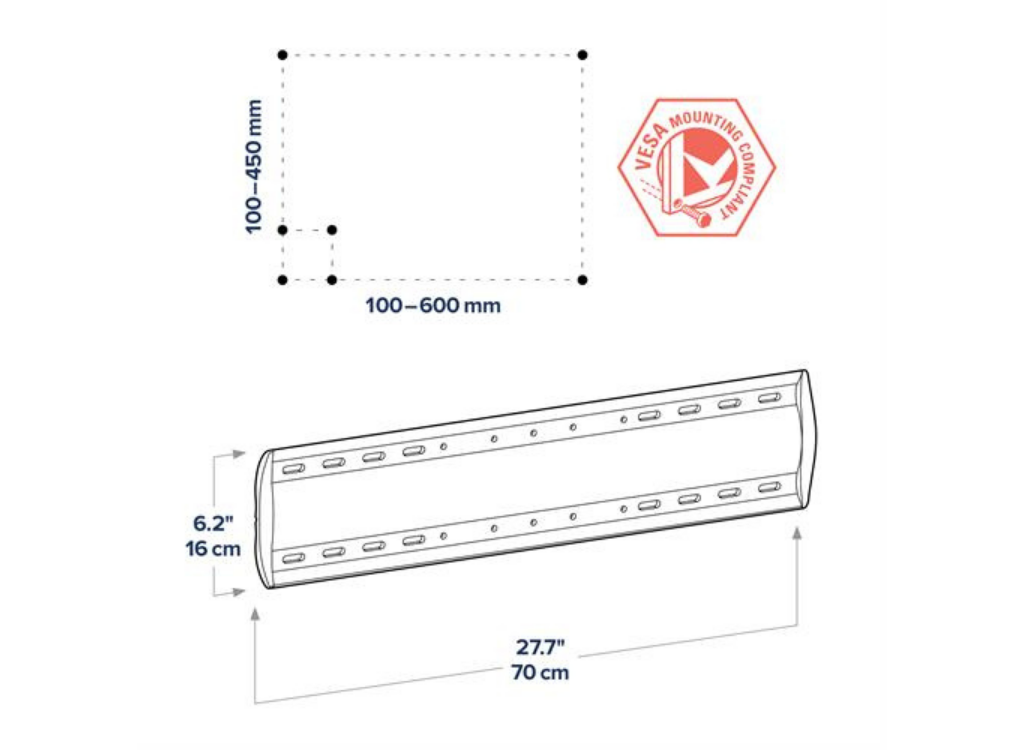

  Mounting Holes Range	Horizontal: 100 mm (min.) to 600 mm (max.); Vertical: 100 mm (min.) to 450 mm (max.)
  Display Compatibility	Fits most screens 32″; Wall plate may be visible with smaller screens
  Premium Construction	Composed of extruded aluminum and steel
  Profile Off Wall	3.5″ (89 mm)
  Certification	UL certified and tested to UL Standard 2442; holds four times maximum load capacity
  Warranty	Five years
