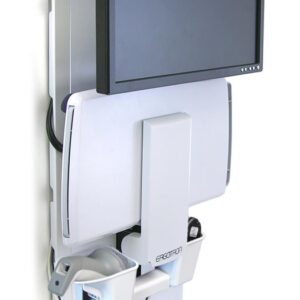

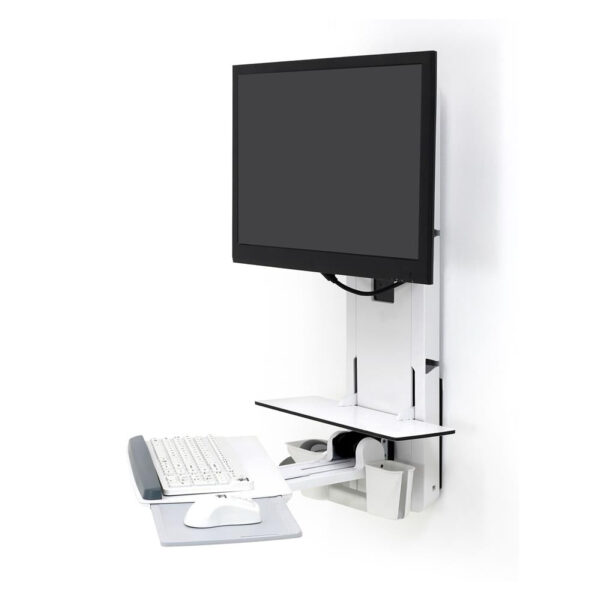

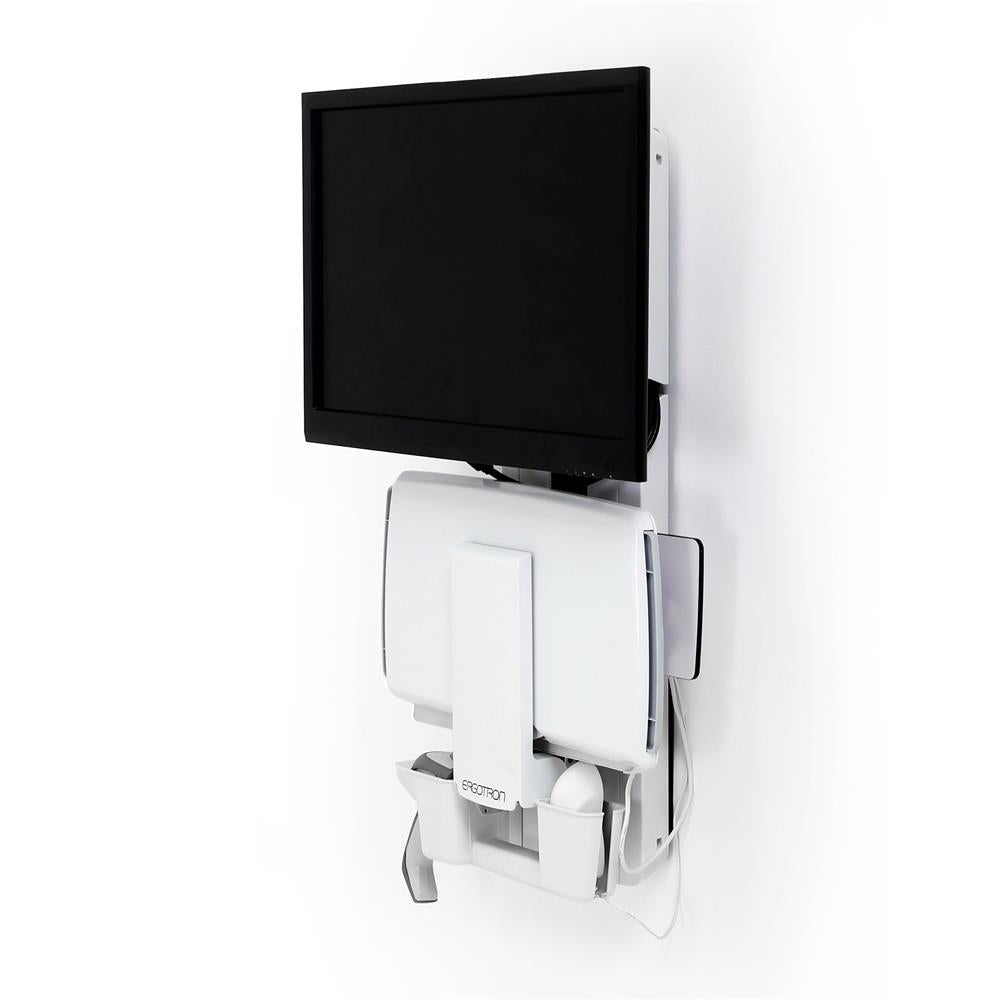

Ergotron StyleView® Sit-Stand Vertical Lift Patient Room White
A very low-profile workstation that adjusts between sitting and standing working heights: With a storage depth of just 6″ (15 cm), it is the perfect solution for space-constrained patient rooms. Move the entire system monitor, keyboard, mouse and scanner in a single motion. The slide-out, back-tilt keyboard enhances user comfort, while the monitor and keyboard pan capability promotes patient-caregiver interaction.
Side-to-side pan of keyboard and display promotes patient-caregiver interaction while accessing data
Sit-stand height adjustment improves working comfort and ergonomics; easily accommodates the heights of multiple users
With the keyboard folded up, total system depth is as little as 6″ (15 cm)
Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry
Patented CF™ lift technology provides smooth adjustment while maintaining touch-screen stability
High-quality construction for long-lasting durability
Cable management system conceals and organizes cords and makes cleaning a snap -
Feature Details GTIN 00698833039047 Part Number 61-080-062 Product Weight 13.8 kg Shipping Weight 16.7 kg Description StyleView Sit-Stand Vertical Lift, Patient Room Included Accessories Sit-stand lift chassis, monitor pivot, covers, shelf, retractable keyboard tray, slide-out mouse tray, wrist rest, mouse pouch, scanner holder Weight Capacity* Total load, including both the monitor and contents of keyboard tray. Maximum monitor weight = 25 lbs (11.3 kg); monitor thickness greater than 3″ (7.6 cm) may decrease capacity Mounting Standards VESA FDMI MIS-D, 100/75 (hole pattern: 100 x 100 mm & 75 x 75 mm) Monitor Pan Left/right 45° (varies by size of monitor) Keyboard Tray Pan Left/right 120° Keyboard Tray Extension Extends out up to 5″ (12.7 cm) when in use Back-tilt Keyboard Tray Adjustable (0 to -10 degrees) Cable Management Integrated cable management system can be configured on either side of chassis Exterior Material Easy-to-clean exterior Shipping Dimensions 31.5″ x 15.75″ x 7.25″ (80 x 40 x 18.5 cm) Warranty Five years - Ergotron StyleView® Sit-Stand Vertical Lift Patient Room Product Sheet Downloads
Ergotron StyleView® Sit-Stand Vertical Lift Patient Room Dimensional Illustrations Downloads
Ergotron StyleView® Sit-Stand Vertical Lift Patient Room Installation Manual Downloads
