• Ergotron Neo-Flex® Mobile MediaCenter LD – Capacity 11.3–22.7 kg | 24-190-085

  This flat panel cart stretches your investment by serving a variety of presentation needs. Features include portrait-to-landscape rotation, 20″ (51 cm) effortless height adjustment and 20° independent display tilt. Get optimal positioning for both seated and standing audiences, in any application, in any part of your facility.


  Benefits
  Move digital content to where you need it

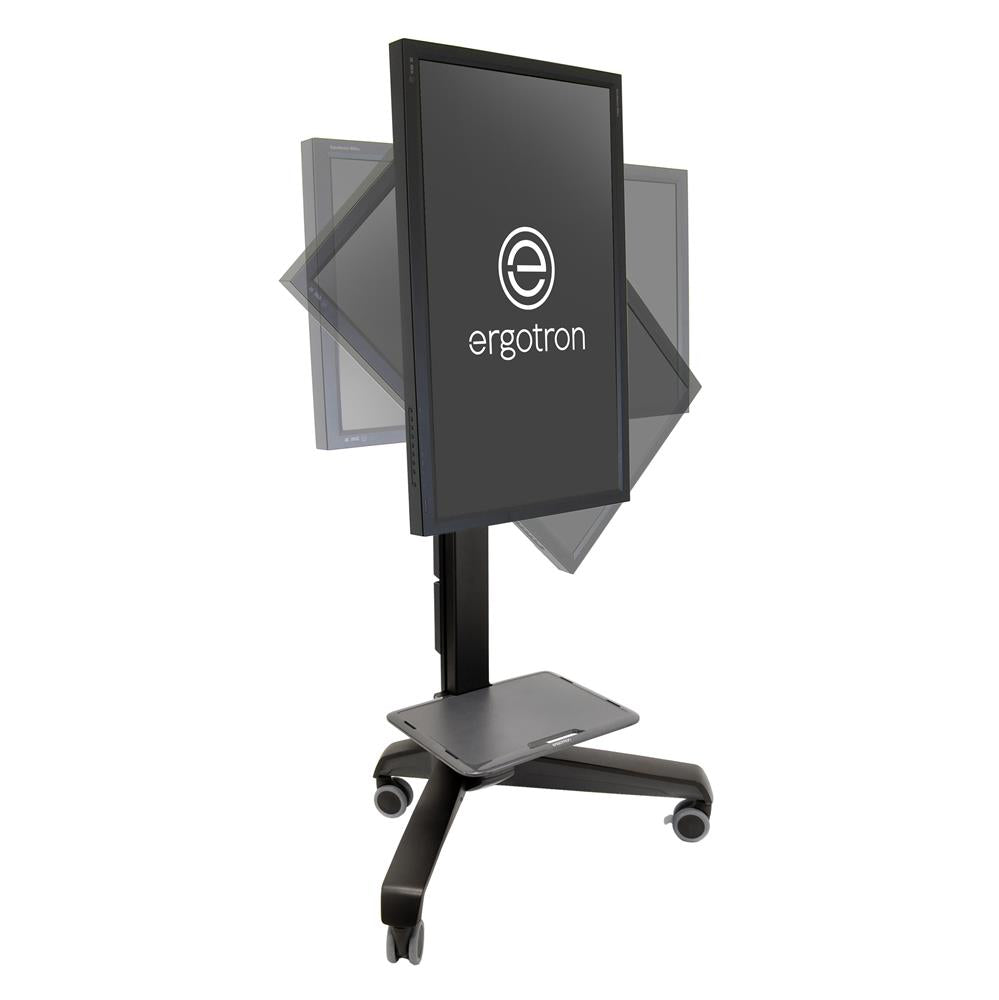

  Rotate your display to portrait or landscape orientation: no need to reinstall display

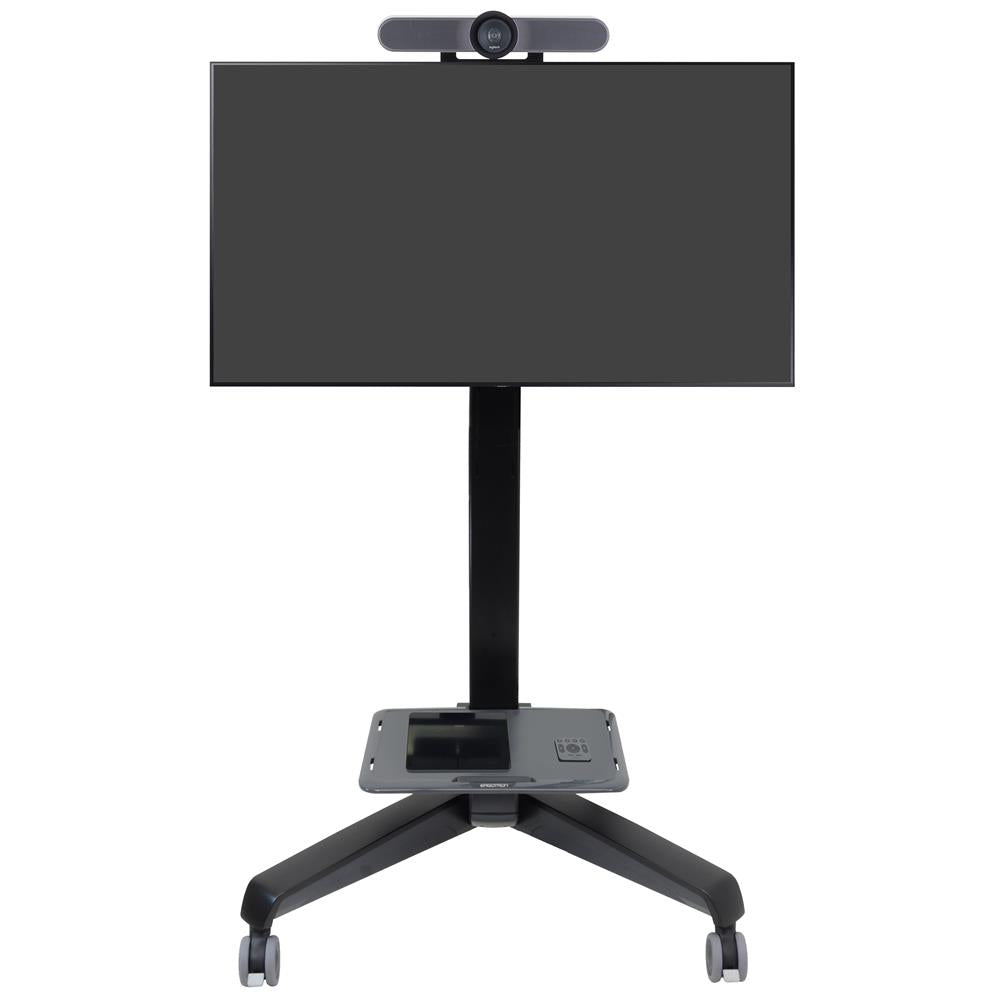

  Optional camera shelf accessory converts any space into a video-conference center

  Easily roll cart through standard-size doorways and over thresholds

  Narrow footprint allows presenter to move closer to the display; easily tucks into corners or nests with other carts for space-saving storage

  Constant Force™ technology enables smooth, effortless portrait-to-landscape rotation, tilt and height adjustment. Adjusts with just a touch: no knobs or levers

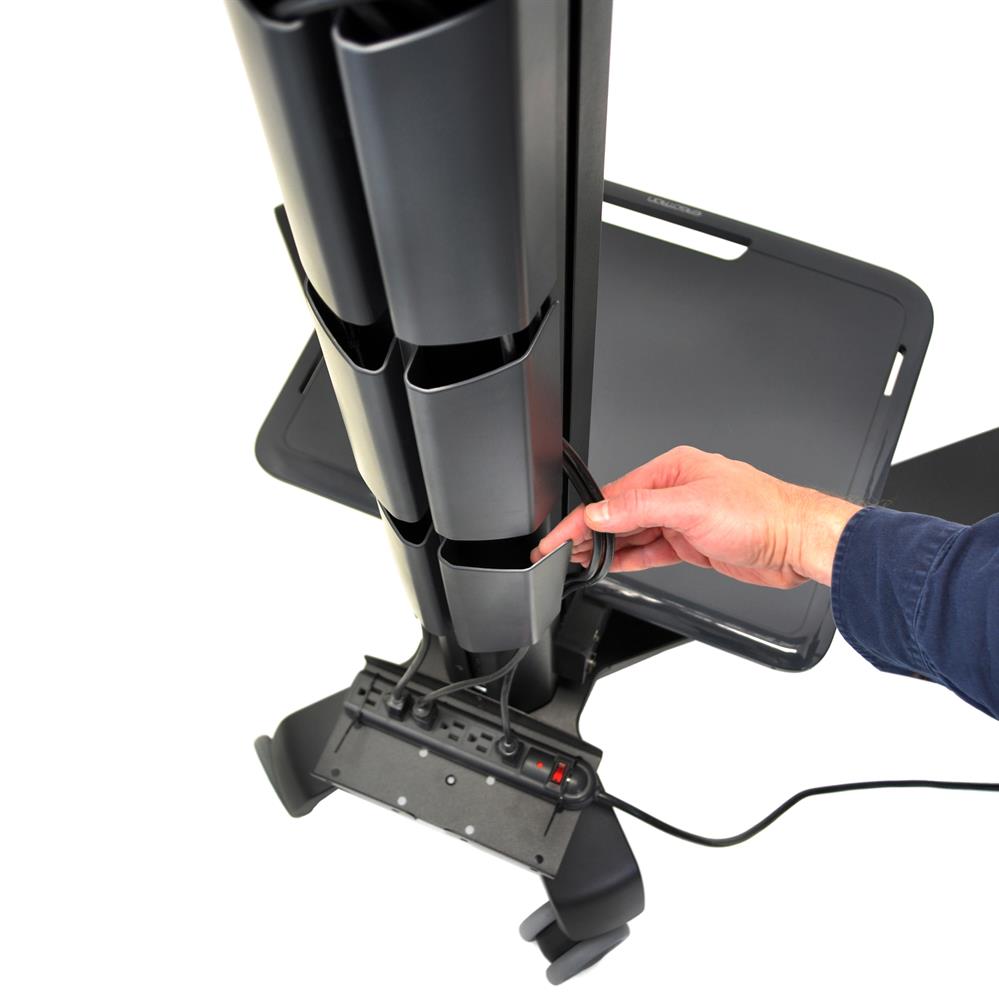

  Modular cable management channels conceal and organize cables

  Maximize your technology investment by sharing a large display over multiple rooms

  Second-generation design and 47 separate quality tests ensure reliability and optimum performance

  Speedy assembly and installation

• Feature	Specification
  GTIN	00698833016130
  Part Number	24-190-085
  Product Weight	36.9 kg
  Shipping Weight	45.2 kg
  Shipping Dimensions	66″L x 20″H x 14″D (168 x 50 x 33.5 cm)
  Description	Neo-Flex Mobile MediaCenter LD, Light Duty (black)
  Includes	Cart, display assembly, lower main shelf, 4-inch casters (two locking), rear cable shelf, cable channel kit
  Compliance	UL Tip Standards 1667 and 1678
  Features	Rugged plastic-composite shelf, Modular cable channel system, Adaptable for various wiring configurations
  Additional Options	MMC Camera Shelf Kit, Universal CPU Holder (ordered separately)
  Compatibility	CPU sizes from 12″ H x 3″ D to 18″ H x 8.5″ D (30 x 8 cm to 46 x 22 cm)
  Weight Capacity	Display: 25–50 lbs (11.4–22.7 kg) or 25–36 lbs (11.3–16 kg) with smaller VESA; Main shelf: 30 lbs (13.6 kg); Cable shelf: 5 lbs (2.2 kg)
  Mounting Hole Patterns (larger VESA)	Horizontal: 100, 200, 300, 400, 500, 600 mm; Vertical: 100, 200, 225 to 400 mm
  Mounting Hole Patterns (smaller VESA)	75 x 75 mm, 100 x 100 mm, 200 x 100 mm, 100 x 200 mm, 200 x 200 mm
  Tilt Range	30° with smaller VESA interface, 20° with larger VESA interface
  Warranty	Three years
