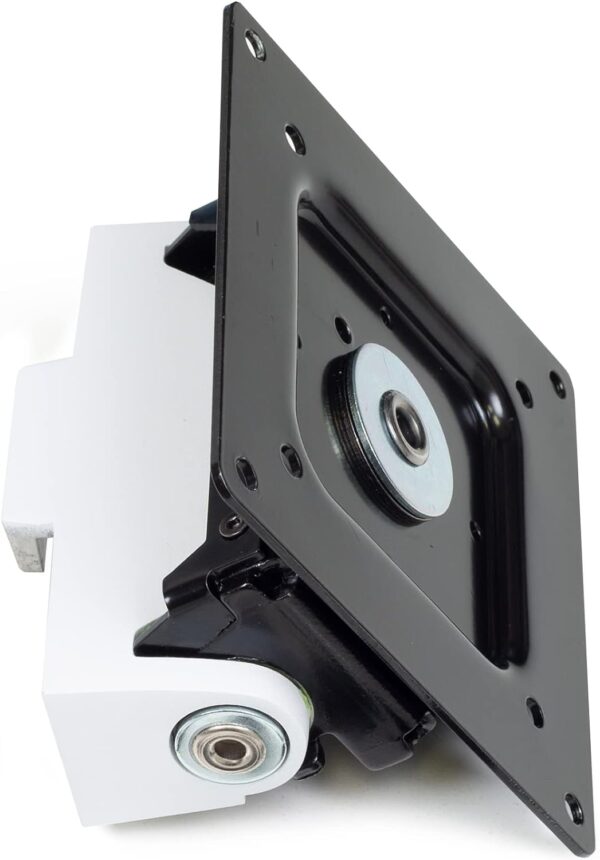

Ergotron HX Heavy-Duty Tilt Pivot – 98-540-216

Ergotron HX Heavy-Duty Tilt Pivot – 98-540-216

• Description
• Specifications
• Downloads

• Ergotron HX Heavy-Duty Tilt Pivot – 98-540-216

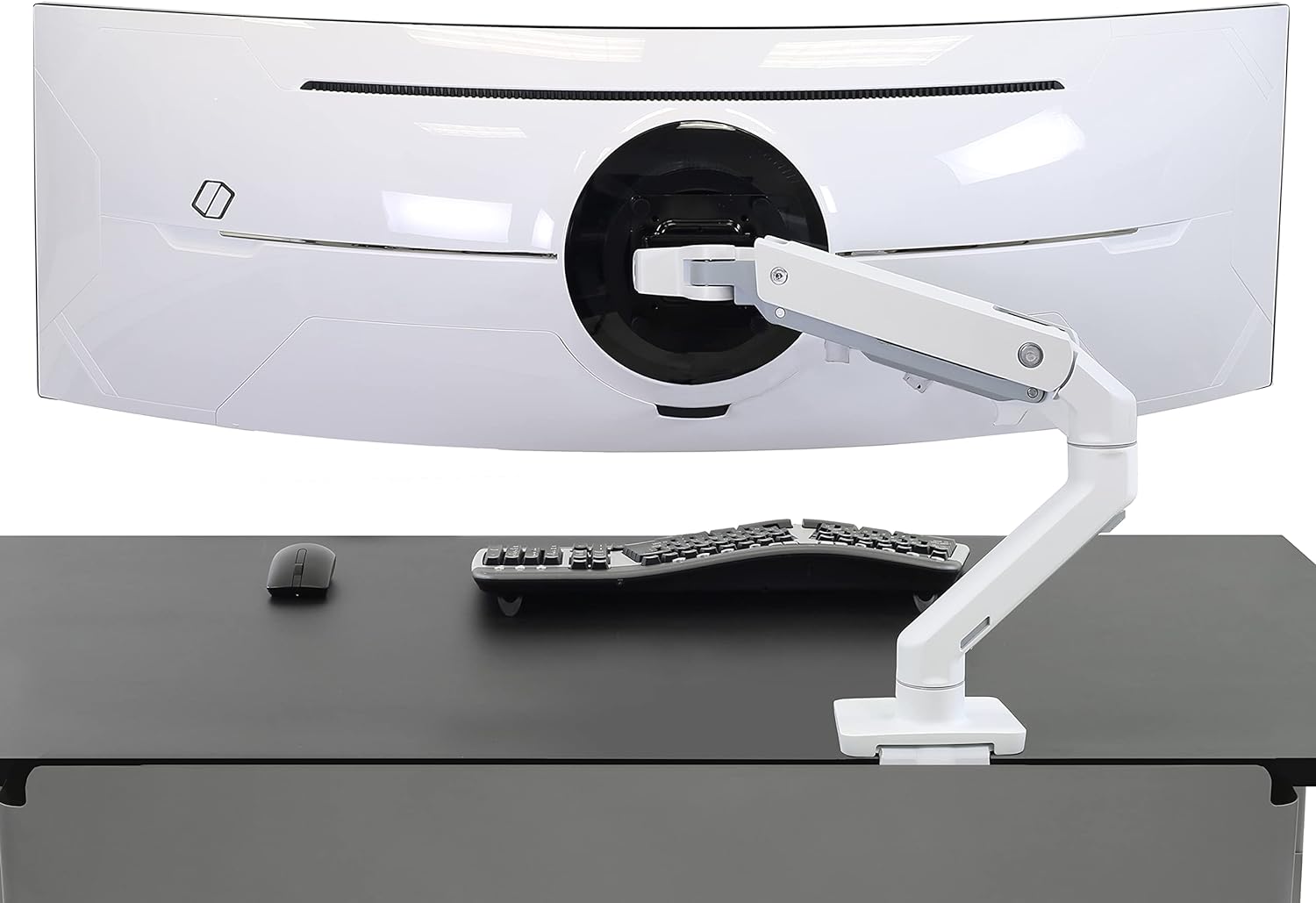

  Enable immersive viewing experiences with a professional-grade HX Desk or Wall Monitor Arm. When added to an HX, this heavy-duty pivot gives gamers or office professionals the freedom to move and position ultra-wide curved displays that have a depth of 6″–12″ (15–30 cm), such as the Samsung® 49″ Odyssey G9.

  Sturdy fit
  Tilts +15/-5° to work or play comfortably

  Protect your investment
  Quality design securely supports large monitors

  Quick install

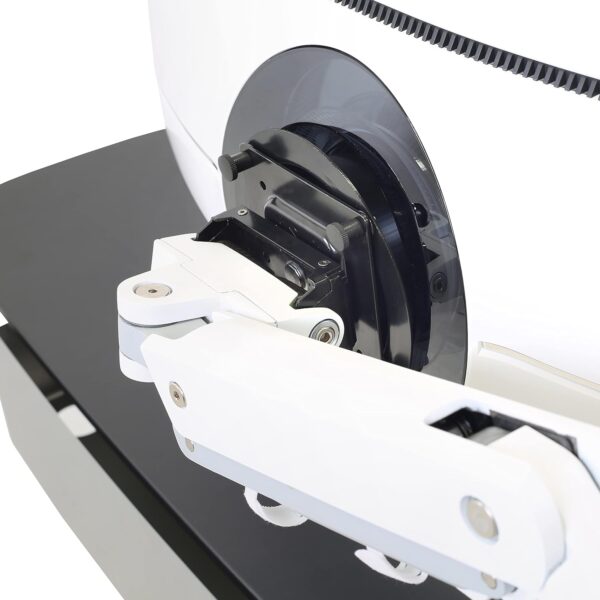

  Just replace the existing HX pivot for easy attachment of an ultra-wide display

  Guaranteed compatible
  Works with the Samsung 49″ Odyssey G9 Monitor

  Reclaim desk space
  Skip the standard monitor base lift your screen above the desktop

  Simple adjustability
  A wide range of motion enables precise screen positioning

• Attribute	Details
  GTIN	00698833085204
  Part Number	98-540-216
  Product Weight	2.0 lbs
  Shipping Weight	2.7 lbs
  Description	HX Heavy-Duty Tilt Pivot (white)
  Included Components	Tilt pivot, attachment hardware
  Compatibility	Specifically designed for use with Samsung 49″ Odyssey G9 (C49G97T and C49G95T Series)
  Compatibility Note	Suitable for monitors weighing 28–42 lbs (12.7–19.1 kg) with a depth of 6″–12″ (15–30 cm) without stand. For displays outside these specifications, this pivot is not necessary
  Tilt Range	15° backward, 5° forward
  Mounting Standard	VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm)
  Recommended Worksurface Thickness	≥ 1.0″ (2.5 cm) to minimize vibration
  Shipping Dimensions	8″ x 6.9″ x 4.1″ (20.5 x 17.5 x 10.5 cm)
  Warranty	Ten years
