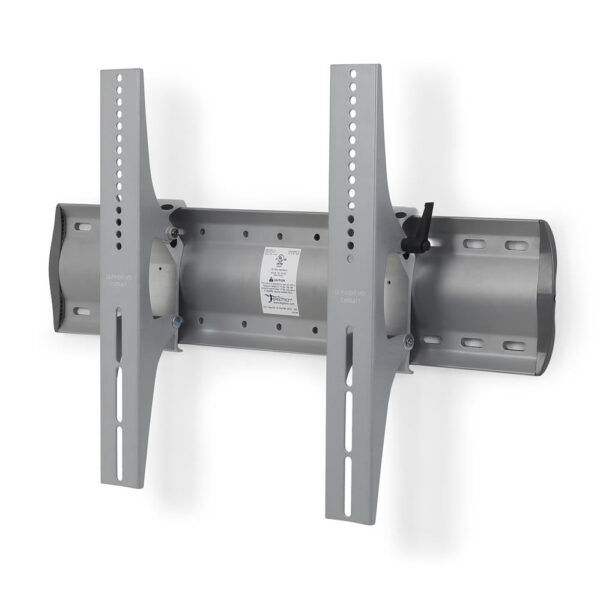

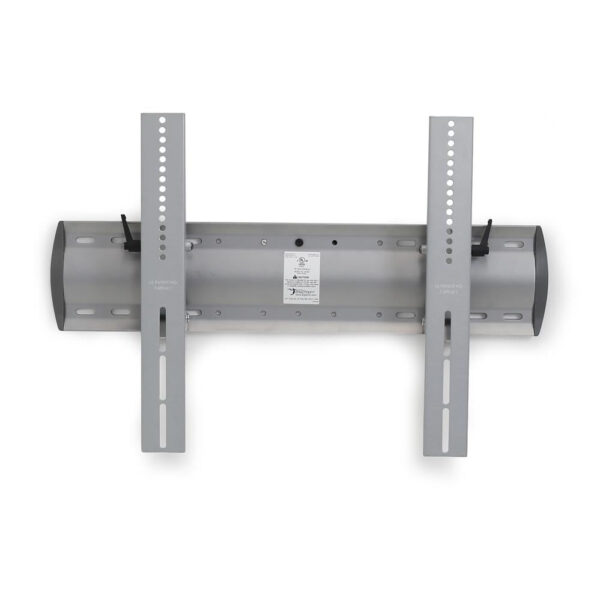

Ergotron Display Tilting Wall Mount
The TM is the perfect accessory for large displays or TVs weighing up to 175 lbs (79 kg). Attaching your valuable flat panel investment to a wall can be nerve-racking. So we took our engineering know-how and created an extremely stable TV wall mount solution that’s easy to install. With its integrated CF™ motion technology, anyone can effortlessly tilt the screen to the perfect angle.

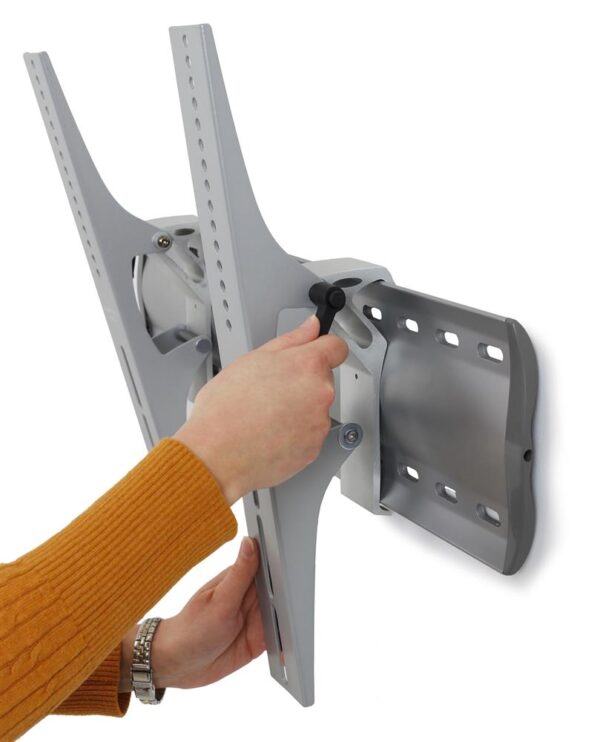

Tilt your screen with just a light touch or use the integrated tilt lock-down feature to hold it in position
Simple three-step installation
Protect your investment: Integrated security fasteners hold display in place and deter others from removing your display
View in comfort: Cut glare while improving sight lines
Fits most displays up to 175 lbs (79 kg)
Includes fasteners for mounting to wood studs or concrete walls -
Specification Details GTIN 00698833041217 Part Number 61-143-003 Product Weight 11.2 lbs (5.08 kg) Shipping Weight 13.4 lbs (6.08 kg) Description TM Tilting Wall Mount (silver) Installation Options Wall plate attaches to vertical surfaces. Includes hardware for wood studs or concrete walls. If mounting to 24″ centered studs, order XL version. Mounting Holes Spacing Horizontal: 100 mm (min.) to 600 mm (max.); Vertical: 100 mm (min.) to 450 mm (max.) Fits Screen Size Most screens ≥ 32″. If used with screens < 32″, wall plate may be visible Profile off the Wall 3.5″ (89 mm) Material Extruded aluminum and steel Certification UL certified and listed to UL Standard 2442. Tested to hold four times its maximum load capacity. Warranty Five years Shipping Dimensions 34.6″W x 12.9″H x 4.3″D (88 x 33 x 11 cm) - Ergotron Display Tilting Wall Mount Product Sheet Downloads
Ergotron Display Tilting Wall Mount Dimensional Illustrations
Downloads
Ergotron Display Tilting Wall Mount Installation Manual Downloads
