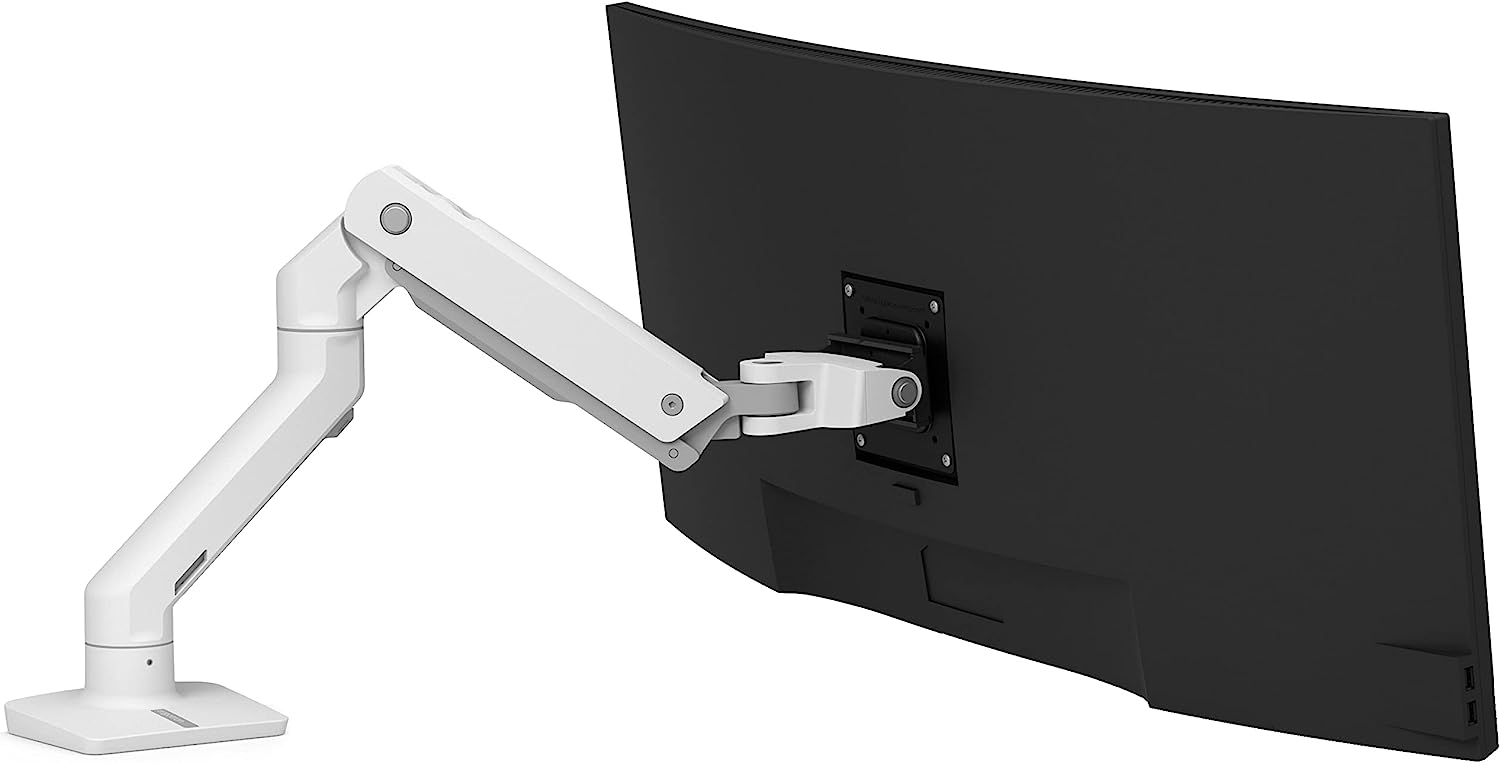

• Ergotron 42″ HX LCD Arm Sit-Stand Desk Mount White

  Choose a monitor arm that’s as adaptable as you. With the HX Desk Monitor Arm, you can easily reposition large monitors weighing 20 to 42 lbs (9.1 to 19.1 kg) using patented Constant Force™ Technology. It enhances your workspace with a sleek design, and an optional dual or triple monitor bow kit ups your screen count and productivity. It’s BIFMA level® 2 certified based on the arm’s low environmental and social impact.

  Comfortable fit
  Offers ergonomic monitor positioning using patented Constant Force™ Technology

  Rotation stop
  Avoid hitting cube walls with a rotation-stop on the base

  Saves space
  Places screen in the best view to tackle each to-do

  Sleek build
  Cables stay hidden under the arm and through the extension

  Sustainable choice
  BIFMA level® 2 certified for a low environmental and social impact

  Quality design
  Built for thousands of movements by passing 10,000-cycle test

• Attribute	Details
  GTIN	00698833054491
  Part Number	45-475-216
  Product Weight	6.9 kg
  Shipping Weight	8.4 kg
  Description	HX Desk Monitor Arm
  	Includes arm, extension, monitor pivot, desk clamp, grommet mount, mounting hardware
  	Arm folds back over the base into a compact retracted position
  	Portrait/landscape rotation with lockout
  	Streamlined cable management routes cables under arm and within extension
  	Desk clamp attaches to surface edge 0.4″ to 2.6″ (1 to 6.6 cm) thick
  	Grommet mount attaches through surface holes

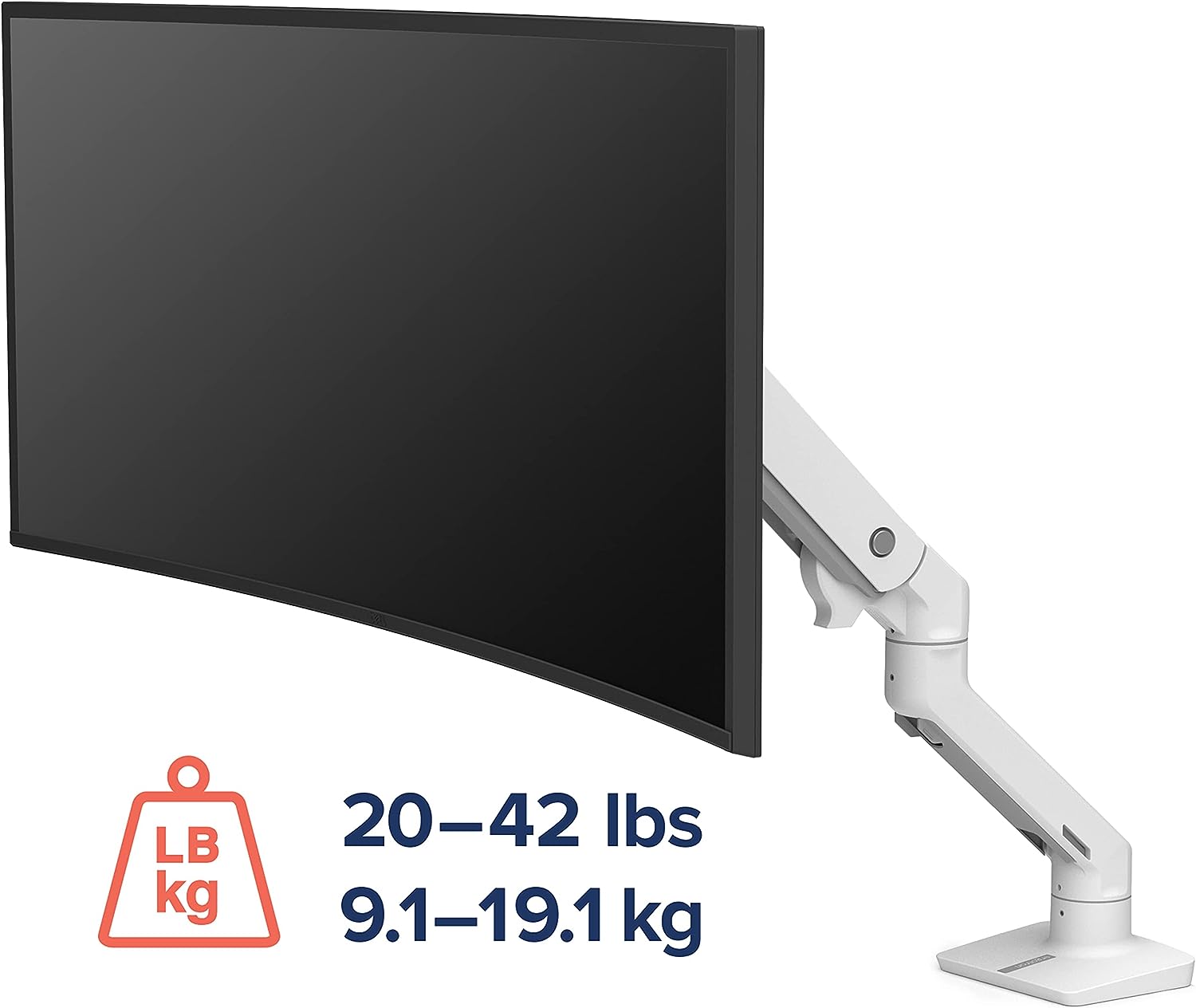

  	Weight Capacity: 20–42 lbs (9.1–19.1 kg). Note: Display depth > 6″ (15 cm) may affect the arm’s weight capacity
  	Tilt Range: 70° backward, 5° forward
  	Mounting Standards: VESA MIS-D, 75/100, MIS-E, MIS-F
  	Shipping Dimensions: 18.5″ x 11.5″ x 6.5″ (47 x 29 x 16 cm)
  Warranty	Ten years

• Description	Downloads
  Ergotron 42″ HX LCD Arm Sit-Stand Desk Mount White Product Sheet	Downloads
  Ergotron 42″ HX LCD Arm Sit-Stand Desk Mount White Recycling Guide	Downloads
  Ergotron 42″ HX LCD Arm Sit-Stand Desk Mount White Dimensional Illustrations	Downloads
  Ergotron 42″ HX LCD Arm Sit-Stand Desk Mount White Installation Manual	Downloads
  Ergotron 42″ HX LCD Arm Sit-Stand Desk Mount White Case Study	Downloads
