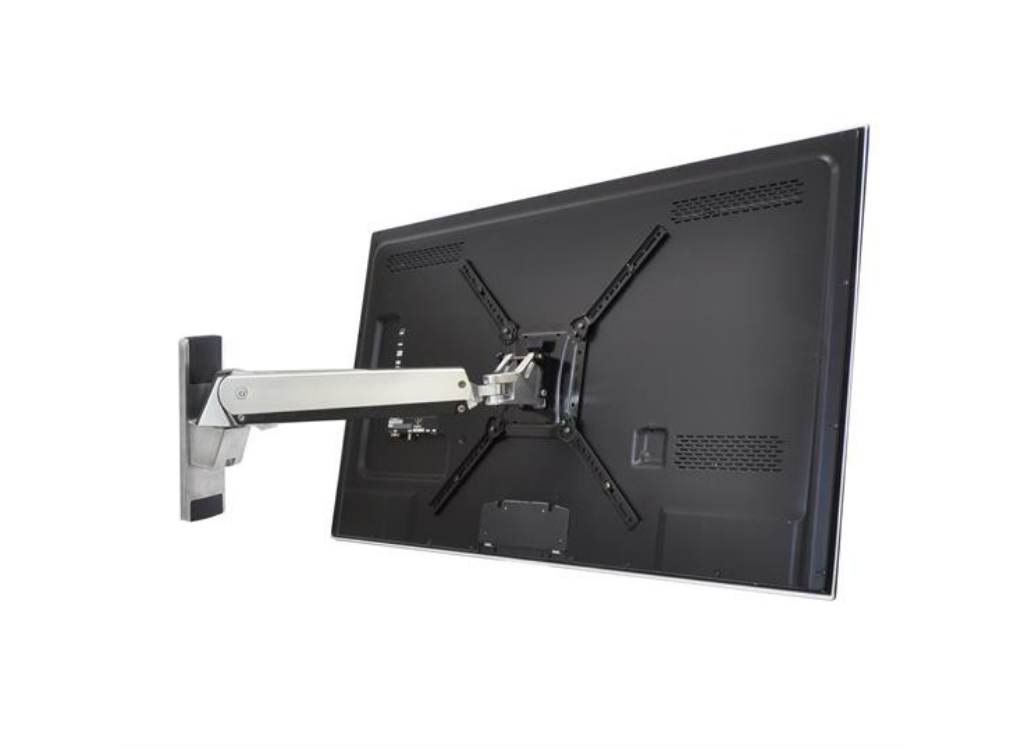

Ergotron 40″ – 63″ Interactive Arm Display Wall Mount | 45-304-026

• Description
• Specifications
• Downloads

• Ergotron 40″ – 63″ Interactive Arm Display Wall Mount | 45-304-026

  Constant Force™ technology enables light-touch adjustments

  Gravity pivot enables tilting capabilities without the need of knobs or levers

  Improves ergonomic viewing for heavy displays mounted high on the wall

  Constructed from polished aluminum and black trim for maximum strength and bold aesthetics

  Tilt and pan for maximum viewing flexibility

  Cable management clips on the underside of the arm to route and hide cords

  Passes Ergotron’s 7,500-cycle motion test, ensuring years of trouble-free height adjustment

• Attribute	Details
  GTIN	00698833021905
  Part Number	45-304-026
  Product Weight	12.2 kg
  Shipping Weight	13.5 kg
  Shipping Dimensions	30.5″ x 13″ x 8″ (77.5 x 33 x 20 cm)
  Description	Interactive Arm, VHD, Very Heavy Duty
  Included Components	Arm, wall mount bracket, VESA adapter brackets, complete hardware kit
  Tilt Forward	15°
  Tilt Back	10°
  Lock-down Knob	Yes, for fixing tilt position
  Rotation	+/-5° for leveling adjustment
  Mounting Standards	VESA FDMI MIS-E (200 x 100 mm); VESA FDMI MIS-F (200–600 mm by 200–400 mm)
  Extension	28″ (71 cm) from wall
  Retracted Size	6.5″ (17 cm) when not in use
  Warranty	Five years

• Description	Link
  Dimensional Illustrations	Downloads
  Installation Manual	Downloads
