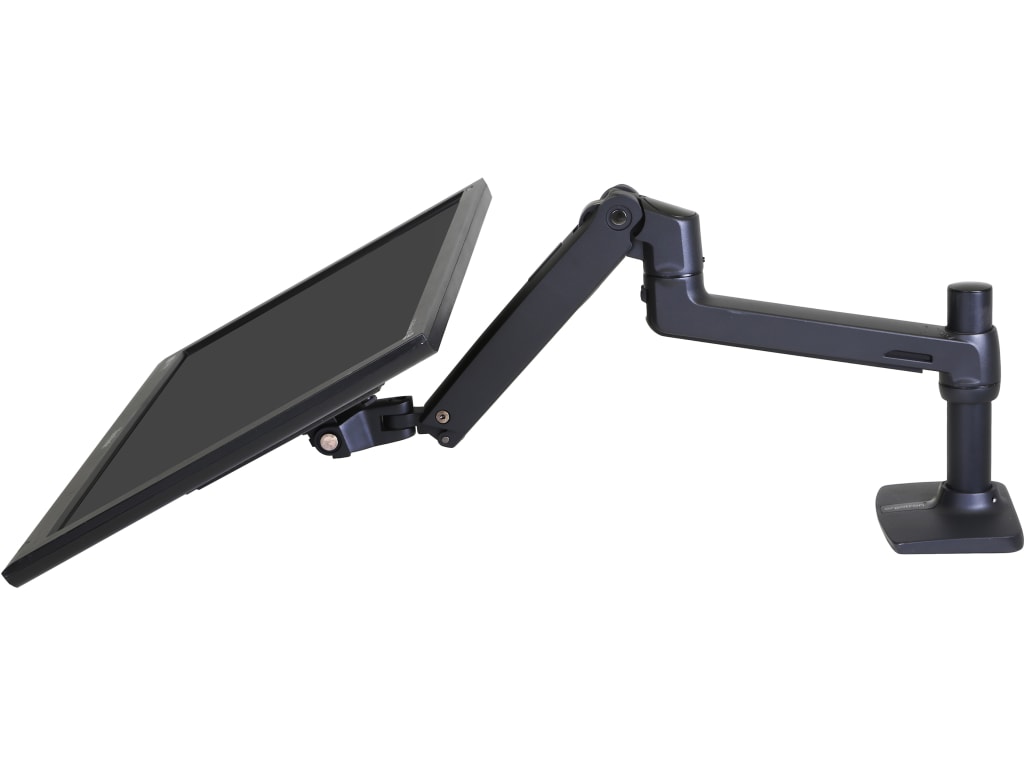

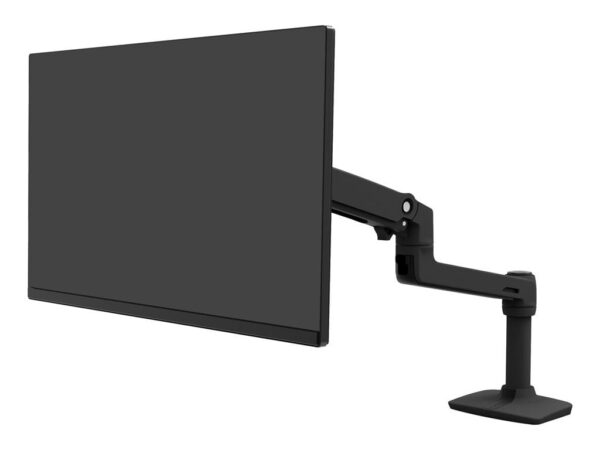

• Ergotron 34″ LX Desk Mount LCD Monitor Arm Black


  Find your best view, save desk space and discover your most productive self, thanks to the LX monitor arm. Place your screen where you need it with patented Constant Force™ Technology, and then reclaim a space full of opportunities by folding the arm and pushing it aside during a much-needed screen break. 

  Comfortable fit
  Offers ergonomic monitor positioning using patented Constant Force™ Technology

  More motion
  Luxury arm easily adjusts monitors up to 34″ in size

  Saves space
  Places screen in the best view to tackle each to-do

  Sleek build
  Streamlined look enhances your work area

  Easy storage
  Folds to fit under storage shelves or cabinets

  Quality design
  Built for years of use by passing our 10,000-cycle motion test

• Attribute	Details
  GTIN	00698833073829
  Part Number	45-241-224
  Product Weight	7.8 lbs
  Shipping Weight	10.3 lbs
  Description	LX Desk Mount LCD Monitor Arm
  Includes	Arm, extension, base, 2-piece clamp, grommet mount, 8″ pole, attachment hardware
  Configurations	Can hold a laptop instead of an LCD display. Also order the Notebook Tray (50-193-200)
  Quality Tested	10,000-cycle test applied to lift mechanism for years of trouble-free height adjustment
  Construction Material	Aluminum
  Compact Design	Arm folds back over the base into a compact retracted position, perfect for space-constrained areas
  Cable Management	Routes cables under the arm
  Mounting Standards	VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
  Weight Capacity	7 to 25 lbs (3.2 to 11.3 kg). Vertical range may be reduced with heavier monitors.
  Tilt Range	70° backward, 5° forward
  Certification	Certified in compliance with indoor air quality standards defined by ANSI/BIFMA
  Desk Clamp	Attaches to surface edge 0.4″ to 2.4″ (10 to 60 mm) thick
  Grommet Mount	Attaches through surface hole 0.31″ to 2″ (8 to 50 mm) wide and up to 2.25″ (57 mm) thick
  Shipping Dimensions	22.6″ x 9.1″ x 5.9″ (57 x 23 x 15 cm)
  Warranty	Ten years

• Description	Downloads
  Ergotron 34″ LX Desk Mount LCD Monitor Arm Product Sheet	Downloads
  Ergotron 34″ LX Desk Mount LCD Monitor Arm Case Study	Downloads
  Ergotron 34″ LX Desk Mount LCD Monitor Arm Recycling Guide	Downloads
  Ergotron 34″ LX Desk Mount LCD Monitor Arm Dimensional Illustrations	Downloads
  Ergotron 34″ LX Desk Mount LCD Monitor Arm Installation Manual	Downloads
