Ergotron 25″ LX Dual/Multi LCD Direct Arm Desk Mount White | 45-489-216

Ergotron 25″ LX Dual/Multi LCD Direct Arm Desk Mount White | 45-489-216

• Description
• Specifications
• Downloads

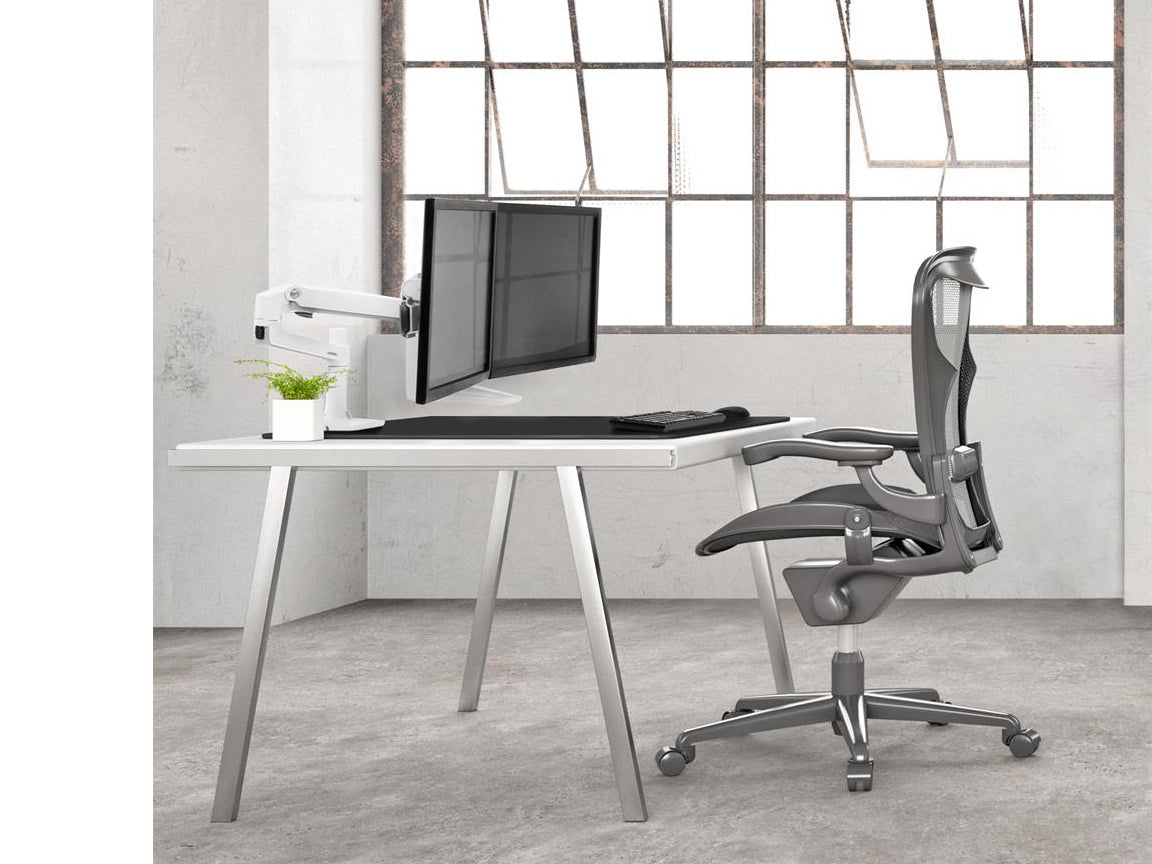

• Ergotron 25″ LX Dual/Multi LCD Direct Arm Desk Mount White

  Find your best view, save desk space and discover your most productive self, thanks to the LX Desk Dual Direct Arm. The low-profile monitor cross-bar uses a compact range of motion to keep your space, your space. Project wrapped up? Reclaim a space full of opportunities by folding the arms and pushing them aside during a much-needed screen break.

  Comfortable fit
  Moves two monitors in one easy motion

  Dual purpose
  Supports two screens up to 25″ in size

  Maximize space
  Adjusts monitors in a compact range of motion

  More workspace
  Free up your desktop for office essentials

  Sleek build
  Streamlined look enhances your work area

  Quality design
  Built for years of use by passing our 10,000-cycle motion test

• Attribute	Details
  GTIN	00698833058208
  Part Number	45-489-216
  Product Weight	11.2 lbs
  Shipping Weight	14.9 lbs
  Description	LX Dual Direct Arm with 2-Piece Desk Clamp, Desk Mount
  	Includes LX Arm, extension, base, 2-piece clamp, dual bow, two monitor pivots, 8″ pole, mounting hardware
  	Handle available as an accessory
  	** Maximum outside width of display is 25.1″ (63.8 cm) when displays are 1.8″ (4.8 cm) thick; 24.8″ (63 cm) wide when monitor is 2.6″ (6.6 cm) thick. Accommodates most displays with screen–size up to 25″ as well as some displays with screens as large as 27″. Actual allowable width of displays will vary slightly depending on display thickness
  Weight Capacity	Maximum individual LCD weight = 2–11 lbs (.9–5 kg) per monitor. Total weight capacity = 4–22 lbs (1.8–9.9 kg). Monitor depth greater than 3″ (7.5 cm) may diminish capacity
  	‡ 13″ (33 cm) vertical height adjustment with total monitor weight less than 17 lbs (7.7 kg). If total monitor weight greater than 17 lbs (7.7 kg), the vertical range of motion may be reduced up to 4.5″ (11 cm) for a total height range of 8.5″ (22 cm)
  	† Tilt Range: 13° backward, 17° forward. Each monitor tilts individually
  	Arm extends out up to 24.3″ (61.7 cm) extended reach
  Mounting Standards	VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
  2-Piece Clamp	Attaches to surface edge .4″ to 2.4″ (10 to 60 mm) thick
  Grommet Mount	A grommet mount accessory (98-034) is available to attach the arm through a hole in the desktop
  Cable Management	Streamline cable management that routes cables under arm and within extension
  Portrait/Landscape Rotation	With lockout
  Shipping Dimensions	32.8″ x 13″ x 7″ (83 x 33 x 18 cm)
  Warranty	Ten years

• Description	Downloads
  Ergotron 25″ LX Dual/Multi LCD Direct Arm Desk Mount Product Sheet	Downloads
  Ergotron 25″ LX Dual/Multi LCD Direct Arm Desk Mount Recycling Guide	Downloads
  Ergotron 25″ LX Dual/Multi LCD Direct Arm Desk Mount Dimensional Illustrations	Downloads
  Ergotron 25″ LX Dual/Multi LCD Direct Arm Desk Mount Installation Manual	Downloads
