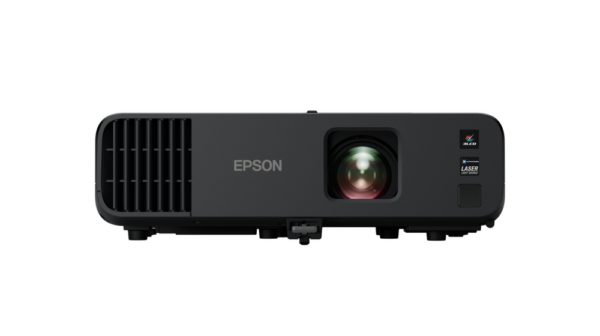

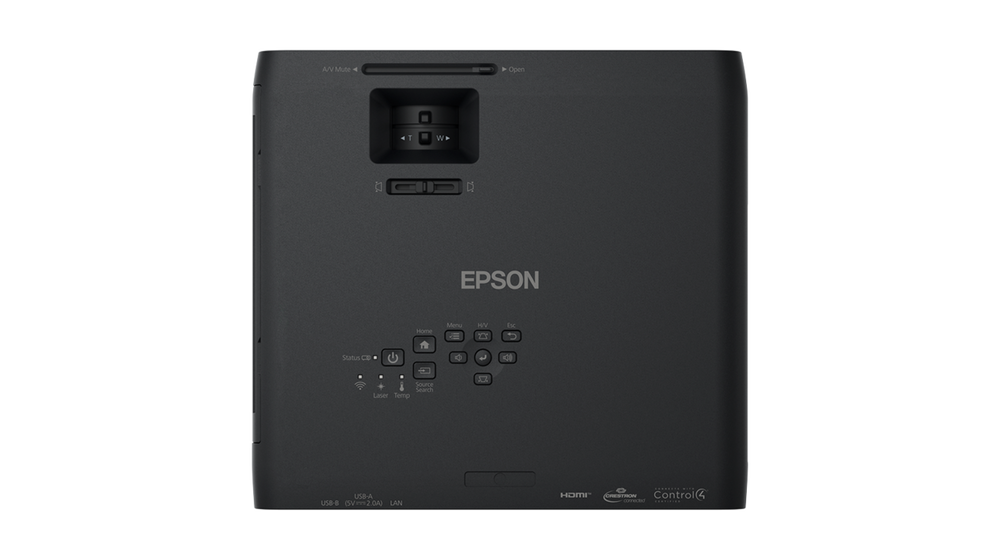

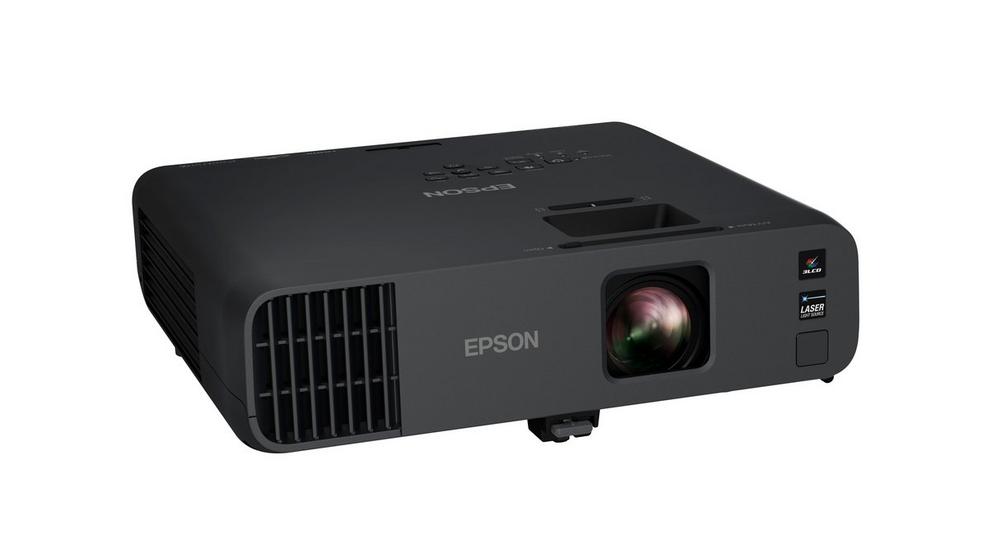

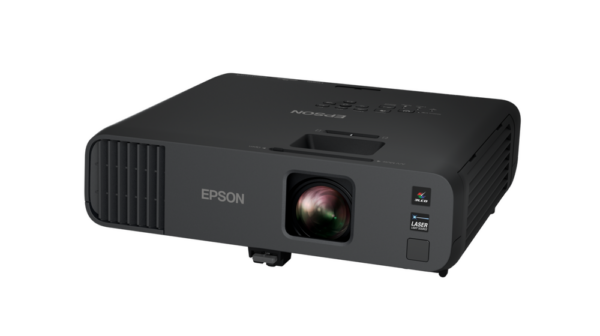

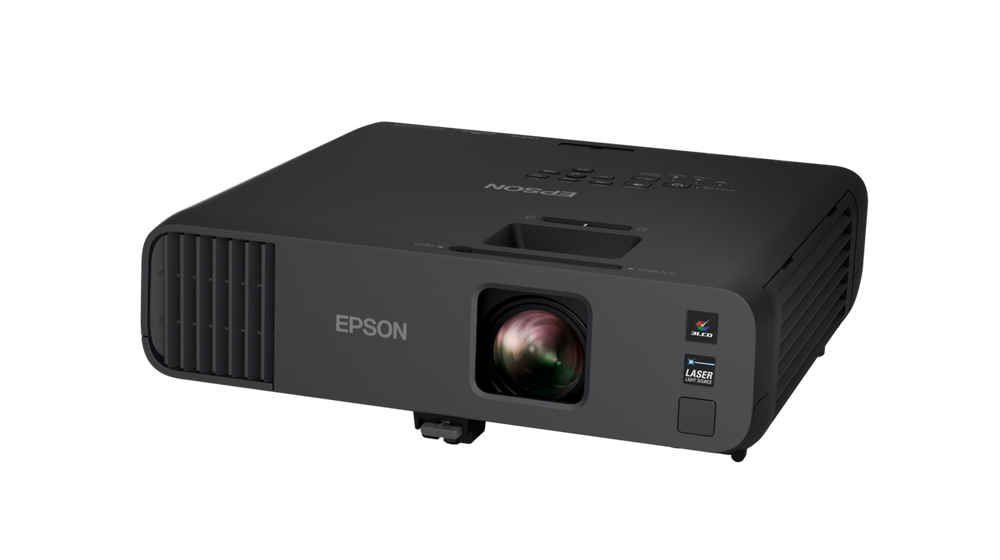

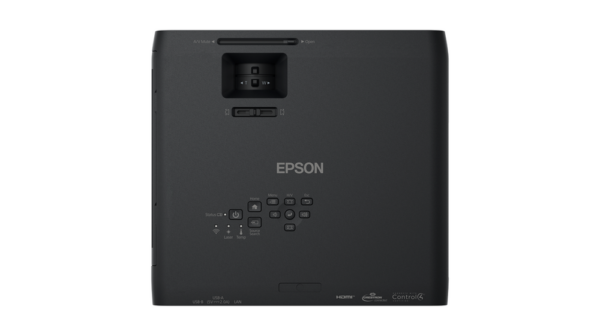

• Epson V11HA72180/EB-L265F Digital Signage Projector – 4600 Lumens


  Digital signage projector
  Experiential signage solution Large, bright display for signage, or project onto 3D objects

  Up to 310-inch display Full HD resolution, 4,600 lumen brightness and 3LCD technology

  Installation flexibility Wall, ceiling, floor, or lighting track, with 360 degree rotation

  Cost effective 20,000 hours maintenance free – 5 year warranty

  Flexible playback Play content directly from USB stick or Miracast

  Innovative and cost effective

  Epson’s advanced laser technology is bright, robust and reliable for a flexible and easy to use digital signage solution. It offers bright and vivid colours in a cost-effective solution capable of creating large displays or even projecting onto 3D objects.

  Flexible display options

  The EB-L265F enables scalable display sizes of up to 310 inches with a single projector – even larger when edge-blending 2 units. Full HD, 4,600 lumen brightness and 3LCD technology offer bright colours and high quality – perfect for creating engaging and informative displays, even in bright spaces.

  It can be mounted wherever needed – wall, floor or ceiling (inc.on a lighting track) with optional accessories. A white model is also available (EB-L260F) to ensure the projector is as discrete as possible.

  Create dynamic content

  Epson offers free apps for content creation (Epson Creative Projection & Epson Projector Content Management). Content can be played directly from USB (including playlists, videos, and signage content) using the built-in playback feature. Users can even upload and playback content wirelessly with built-in Wi-Fi and Miracast functionality.

  Low maintenance and high reliability

  Up to 20,000 hours maintenance-free use using a laser light source with a 5 year warranty make this a cost-effective fit-and-forget display solution you can rely on.

• Technology	Projection System
  LCD Panel	0.62 inch with C2 Fine
  Color Light Output	4,600 Lumen- 3,200 Lumen (economy) In accordance with IDMS15.4
  White Light Output	4,600 Lumen – 3,200 Lumen (economy) In accordance with ISO 21118:2020
  Resolution	1080p
  High Definition	Full HD
  Aspect Ratio	16:9
  Contrast Ratio	2,500,000 : 1
  Light source	Laser
  Laser Light source	20,000 hours Durability High, 30,000 hours Durability Eco
  Keystone Correction	Auto vertical: ± 30 °, Manual horizontal ± 30 °
  Colour Video Processing	10 Bits
  2D Vertical Refresh Rate	192 Hz – 240 Hz
  Colour Reproduction	Upto 1.07 billion colours
  Optical
  Throw Ratio	1.32 – 2.12:1
  Zoom	Manual, Factor: 1 – 1.62
  Lens	Optical
  Screen Size	31 inches – 310 inches
  Projection Lens F Number	1.51 – 1.77
  Projection Lens Focal Length	18.2 mm – 29.1 mm
  Projection Lens Focus	Manual
  Offset	10 : 1
  Connectivity
  Interfaces	USB 2.0-A, USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, Composite in, Miracast, Jack plug out, Jack plug in (2x), HDMI (HDCP 2.3) (2x)
  Epson iProjection App	Ad-Hoc / Infrastructure
  Network Protocol	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
  Advanced Features
  Security	Kensington lock, Security bar, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
  Other features	A/V mute, Arc Correction, Auto Power On, Auto source search, Automatic keystone correction, Built-in speaker, CEC compatible, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, Long light source life, OSD copy function, PC Free, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Super resolution, Web Control, Web Remote, Wireless LAN capable, iProjection App
  Video Color Modes	Blackboard, Cinema, Dynamic, Presentation, sRGB, Multi Projection
  Projector control	via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
  General
  Power consumption	199 Watt – On mode power consumption (Normal)
  Heat Dissipation	884 BTU/hour (max)
  Supply Voltage	AC 220 V – 240 V, 50 Hz – 60 Hz
  Product weight	4.2 kg
  Noise Level	Normal: 37 dB (A) – Economy: 27 dB (A)
  Supported Temperature	Storage -10° C – 60° C
  Supported Humidity	Operation 20% – 80%, Storage 10% – 90%
  Included Software	Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management
  Options	Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, WP System – ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter – ELPWT01
  Loudspeaker	16 Watt
  What’s in the box	Cable cover, HDMI Cable 1.8m, Power cable, Quick Start Guide, Remote control incl. batteries, Warranty document
  Room Type / Application	Projection Mapping, Signage / Retail, Visitor Attraction
  Positioning	Ceiling Mounted, Desktop, Floor, Lighting Track, Wall Mounted
  Colour	Black
  Warranty	60 months Carry in or 12,000 h
