Epson V11HA66840/EBPU2220B Laser Projector – 20000 Lumens

• Description
• Specifications
• Downloads

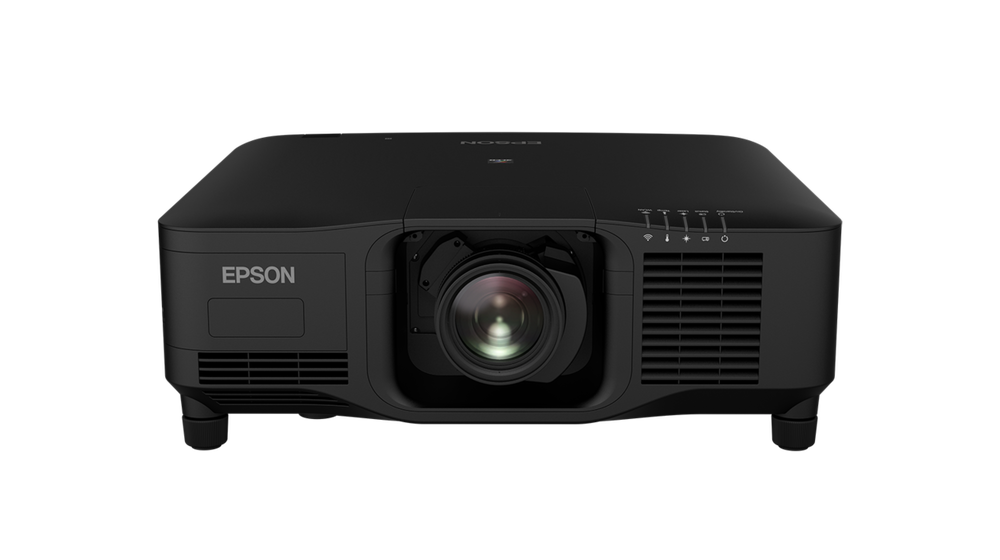

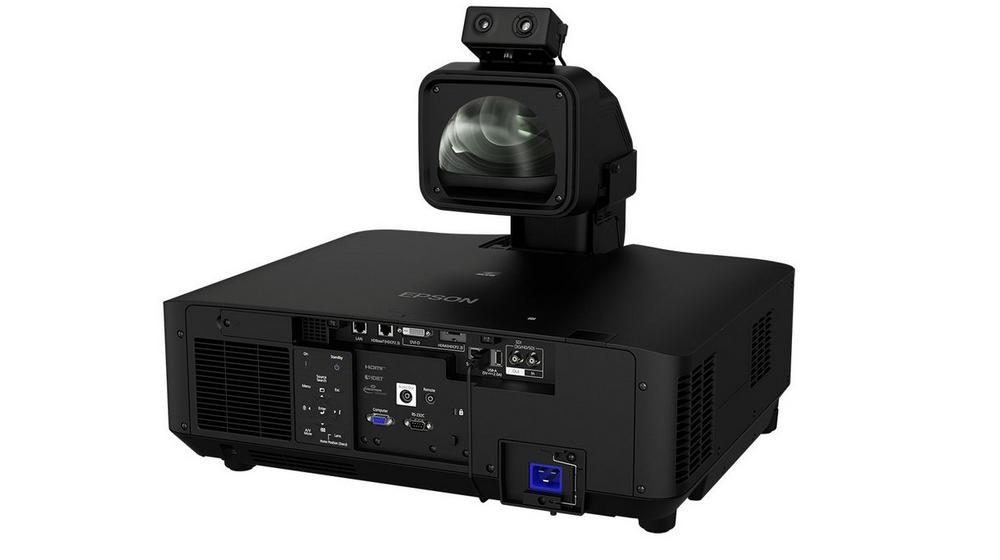

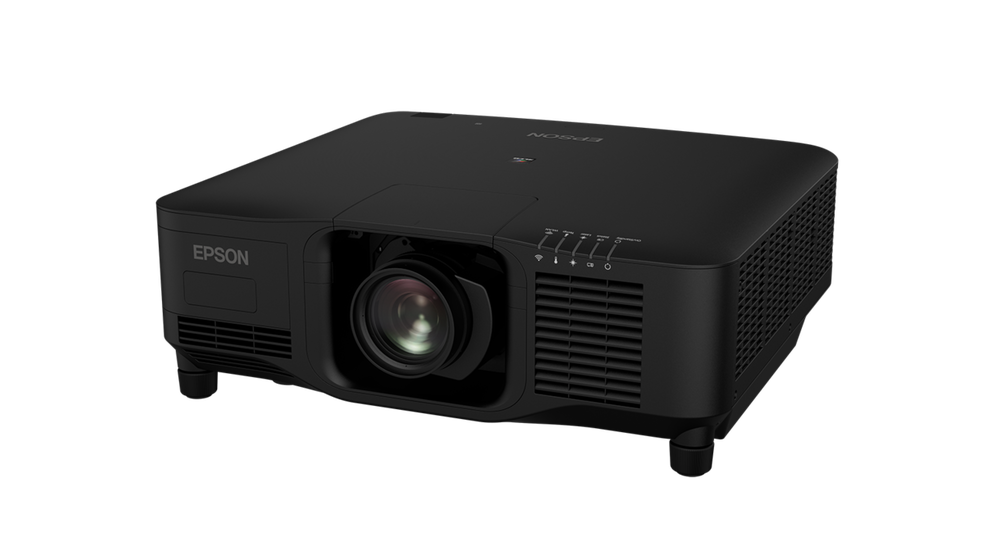

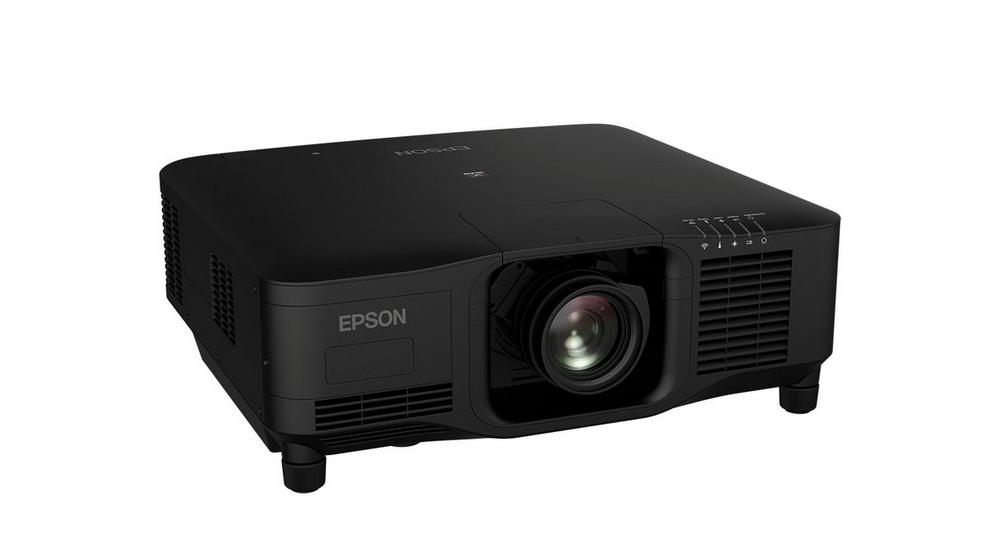

• Epson V11HA66840/EBPU2220B Laser Projector – 20000 Lumens


  20,000lm laser projector
  Ultra-lightweight and compact The world’s smallest 20,000lm projector1

  Stunning image displays 20,000lm, 4K Enhancement technology, WUXGA resolution

  Easy to use Simple installation, stacking, lens flexibility and control

  Fit-and-forget reliability Enhanced dust resistant construction – IP5X certified

  Environmental benefits Lower power consumption, reduced packaging, reduced weight

  Compact and lightweight
  The EB-PU2220B is around 60% smaller and 50% lighter than its predecessor, the EB-L20000U. The reduced weight and size means the projector is easier to store, transport and install, saving on warehouse space as well as labour and delivery costs.

  Outstanding image quality
  This high lumens, 3LCD projector offers WUXGA resolution with 4K enhancement and HDR for rich textures and sharper images.

  Flexibility
  The EB-PU2220B enables simple installation, stacking, lens flexibility and control. It includes in-built processing for PC-free stacking which means two supported projectors can be stacked to double the brightness without the need for external computerware.

  Reliability
  Includes outstanding dust resistance as the hermetically sealed optical engine, and laser light source unit, ensure stable brightness output over long periods, even in high dust environments.

• Technology
  Projection System	3LCD Technology
  LCD Panel	1.03 inch with C2 Fine
  Color Light Output	20,000 Lumen – 14,000 Lumen (economy)
  White Light Output	20,000 Lumen – 14,000 Lumen (economy)
  Resolution	WUXGA
  High Definition	4K enhancement
  Aspect Ratio	16:10
  Contrast Ratio	Over 2,500,000:1
  Native Contrast	2,000:1
  Light source
  Laser	Laser Light source
  Laser Light source durability	20,000 hours Durability High, 30,000 hours Durability Eco
  Optical
  Throw Ratio	0.35 – 7.41:1
  Zoom	Motorized, Factor: 1 – 1.6
  Lens	Varies by lens
  Lens Shift	Motorized – Vertical ± 60%, horizontal ± 18%, varies by lens
  Lens position memory	10 positions
  Screen Size	60 inches – 1,000 inches, varies by lens
  Projection Distance
  Projection Distance Wide	)varies by lens
  Projection Distance Tele	)varies by lens
  Projection Lens
  Projection Lens F Number	Varies by lens
  Projection Lens Focal Length	Varies by lens
  Projection Lens Focus	Motorized
  Interchangeable Lens	Yes
  Standard Lens	Not included
  Mechanical shutter	Yes
  Connectivity
  Interfaces	USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), VGA in, DVI in, HDMI in, HDBaseT, Jack plug out, 3G-SDI Input, 3G-SDI Output, Wireless LAN IEEE 802.11a/b/g/n (optional), Near Field Communication (NFC), USB content playback, Remote
  Network Protocol	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
  Advanced Features
  Security	Kensington lock, Security bar, Password lock, Wireless LAN unit lock, Wireless LAN security, Password protection
  Other features	21:9 aspect ratio support, 4K enhancement, Auto Power On, Auto source search, Direct Power on/off, Edge Blending, Lens position memory, Long light source life, OSD copy function, Point correction, Power on button, Quick Corner, Schedule Function, Split-Screen-Function, Super resolution, Web Control, Web Remote, iProjection App
  Video Color Modes	Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
  Projector control	via: AMX, Crestron, Extron
  Sealed Light Source Module	Yes, IP5X rated
  Sealed Optical Engine	Yes, IP5X rated
  General
  Power consumption	1,143 Watt – On mode power consumption (Normal)
  Heat Dissipation	4,423 BTU/hour (max)
  Supply Voltage	AC 200 V – 240 V, 50 Hz – 60 Hz
  Product dimensions	586‎ x 492 x 218 mm (Width x Depth x Height)
  Product weight	24.4 kg
  Noise Level	Normal: 45 dB (A) – Economy: 37 dB (A)
  Supported Temperature	Storage -10° C – 60° C
  Supported Humidity	Operation 20% – 80%, Storage 10% – 90%
  Included Software	Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool
  Options	Camera module, Ceiling mount, Wireless LAN unit
  What’s in the box	Cable cover, Lens connector cap, Power cable, Remote control incl. batteries, User manual, Warranty document
  Positioning	Ceiling Mounted, Desktop, Flying Frame
  Colour	Black
  Warranty	36 months Carry in
