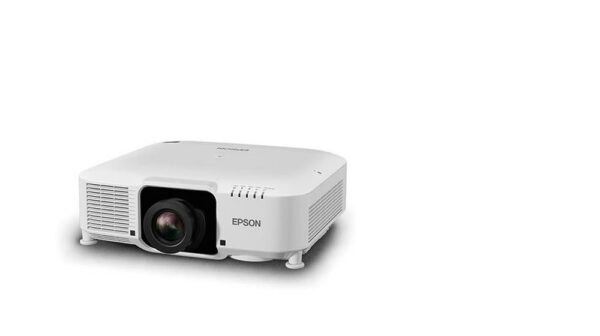

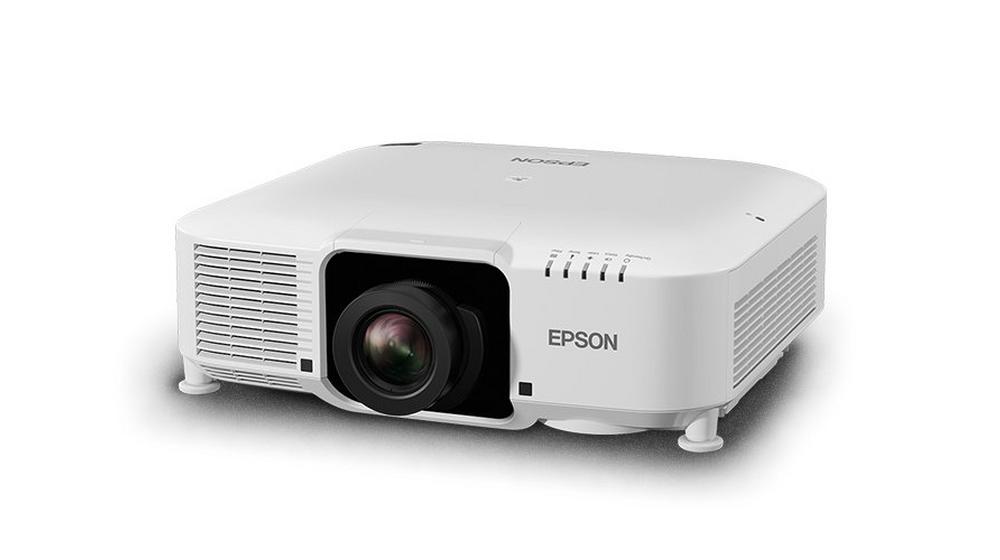

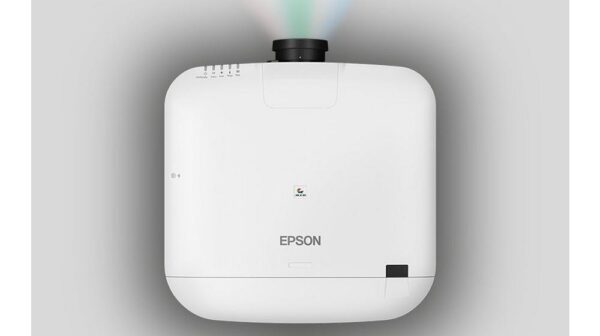

• Epson V11HA35940/EB-PU1006W Installation Projector – 6000 Lumens


  3LCD installation projector
  Compact and lightweight Unobtrusive and easier to transport

  Lens support Supports a wide selection of Epson interchangeable lenses

  Enhanced design Clean, simple, and discreet design.

  Image quality 6,000 lumens, 3LCD, WUXGA resolution with 4K enhancement

  Advanced installation tools A range of free software tools and an optional external camera module

  Produce vivid, engaging images
  Captivate customers and audiences with projections that will live long in the memory. The 6,000 lumens EB-PU1006W projects clear whites, vivid colour detail, deep blacks, defined shadows and high contrast imagery – thanks to HDR and 3LCD technology. Exceptional image detail and clarity is achieved with 4K Enhancement.

  Build your perfect projection solution
  The EB-PU1006W accommodates different lenses to suit your most challenging projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as ‘body only’, without a lens, which puts the power to build the right projection solution, for the right application, in your hands.

  Transport and store with ease
  As it’s lightweight and compact, this installation projector is transportable and will save on valuable storage space, providing size and cost advantages to projector fleets. The projector’s unobtrusive design also allows it to blend seamlessly into your chosen environment.

  Discover installation agility
  Produce large-scale, extremely bright displays, even as part of multi-projector
  installations where edge blending, stacking and lens flexibility is key. Epson
  Projector Professional Tool makes advanced installation techniques easy, such
  as projection mapping, while the optional external camera module (ELPEC01)
  uses built-in processing for PC-free geometry correction for stacking. The EB-PU1006W also features NFC for multi-projector set up, making diagnostics and installations easier using the Epson Projector Config Tool.

  Enjoy the benefits of PC-free stacking
  The ELPEC01 is an optional external camera module that can be easily integrated with EB-PU Series projectors and ELPLX Series lenses. It enables the use of in-built processing for PC-free stacking, which means two supported projectors can be stacked to double the brightness, without using external computerware. This reduces the need for additional external equipment and their associated costs.

  Take control of your projected images
  Achieve greater levels of image manipulation and control with Epson Projector Professional Tool software. Advanced features such as edge blending, stacking, projection mapping and multi-projector control are simplified thanks to this free and intuitive tool.

  Create customised content
  The EB-PU1006W includes a built-in media player with network content upload capability. This allows playlists to be loaded onto a USB storage device and played directly from the projector². Create customised content with your smartphone or tablet using the Epson Creative Projection App, or create and schedule playlists using Epson Projector Content Manager software.

  Trust in the world’s No.1 projectors manufacturer¹
  Epson has been the world’s No.1 projector manufacturer¹ since 2001. Our commitment to product quality, technology and relationships, is backed by unparalleled service and support.

• Technology
  Projection System	3LCD Technology, RGB liquid crystal shutter
  LCD Panel	0.76 inch with C2 Fine
  Color Light Output	6,000 Lumen- 4,200 Lumen (economy)
  White Light Output	6,000 Lumen – 4,200 Lumen (economy)
  Portrait Colour Light Output	6,000 lm
  Portrait White Light Output	6,000 lm
  Resolution	WUXGA
  High Definition	4K enhancement
  Aspect Ratio	16:10
  Contrast Ratio	Over 2,500,000 : 1
  Native Contrast	2,000 : 1
  Light source
  Laser	Laser
  Laser Light source	20,000 hours Durability High, 30,000 hours Durability Eco
  Keystone Correction
  Manual vertical	± 45 °
  Manual horizontal	± 30 °
  Colour Video Processing
  10 Bits
  Colour Reproduction
  Up to 1.07 billion colours
  HDR support
  HDR10, HLG
  Optical
  Throw Ratio	0.35 – 10.11:1
  Zoom	Motorized
  Lens	Optical
  Lens Shift	Varies by lens
  Screen Size	Varies by lens
  Projection Distance Wide	Varies by lens
  Projection Distance Tele	Varies by lens
  Projection Distance Wide/Tele	Varies by lens
  Projection Lens F Number	Varies by lens
  Projection Lens Focal Length	Varies by lens
  Projection Lens Focus	Motorized
  Offset	Varies by lens
  Interchangeable Lens	Yes
  Standard Lens	Not included
  Connectivity
  Interfaces	USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n (optional), VGA in, DVI in, HDBaseT, Jack plug out, HDMI (HDCP 2.3), Near Field Communication (NFC), USB content playback, Remote
  Network Protocol	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
  Advanced Features
  Security	Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
  Other features	21:9 aspect ratio support, 4K enhancement, A/V mute, Auto Power On, Auto source search, Direct Power on/off, Edge Blending, Long light source life, OSD copy function, Point correction, Power on button, Quick Corner, Schedule Function, Super resolution, Web Control, Web Remote, iProjection App
  Video Color Modes	Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
  Projector control	via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery
  General
  Power consumption	295 Watt – On mode power consumption (Normal)
  	367 Watt (Peak), 310 Watt (Eco), 0.5 Watt (Energy saving standby)
  Heat Dissipation	1,247.8 BTU/hour (max)
  Supply Voltage	AC 100 V – 240 V, 50 Hz – 60 Hz
  Product dimensions	545‎ x 436 x 189 mm (Width x Depth x Height)
  Product weight	15.4 kg
  Noise Level	Normal: 30 dB (A) – Economy: 28 dB (A)
  Supported Temperature	Storage -10° C – 60° C
  Supported Humidity	Operation 20% – 80%, Storage 10% – 90%
  Included Software	Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool
  Options	Camera module, Ceiling mount, Wireless LAN unit
  What’s in the box	Cable cover, Lens connector cap, Power cable, Remote control incl. batteries, User’s Manual Set, Warranty Documents
  Room Type / Application	Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction
  Positioning	Ceiling Mounted, Desktop, Flying Frame
  Colour	White
  Other	Warranty 36 months Carry in
