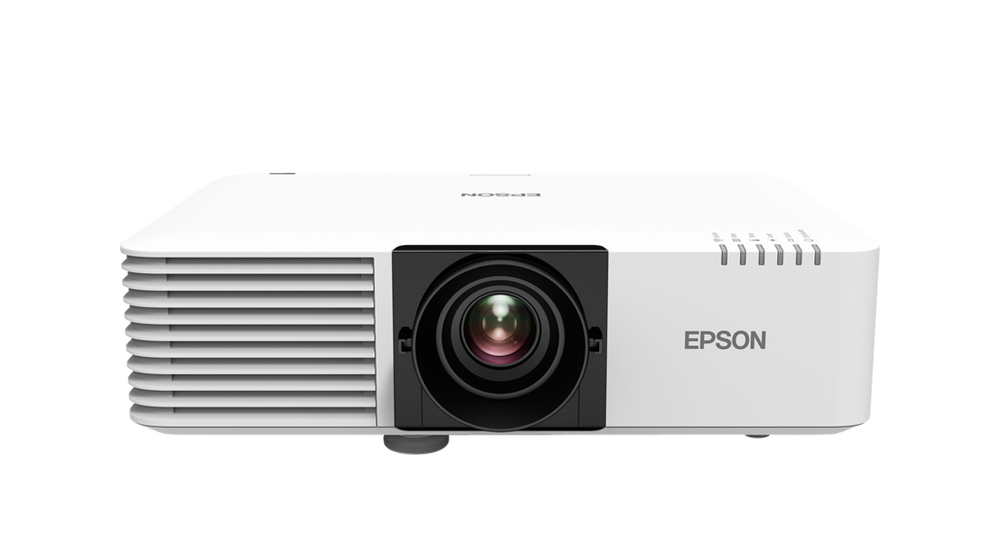

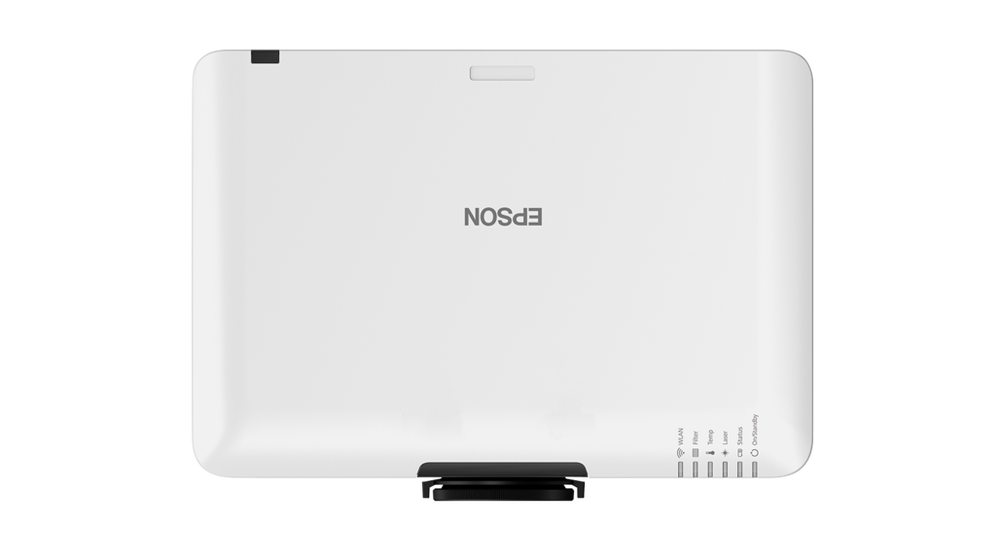

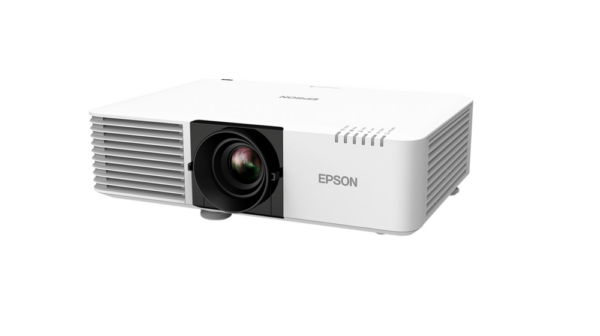

Epson V11HA30040/EBL520U WUXGA Laser Display Projector – 5200 Lumens

• Description
• Specifications
• Downloads

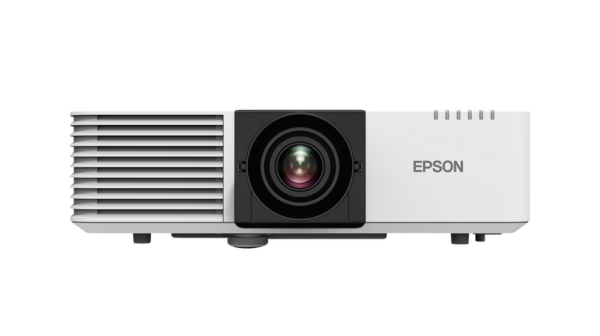

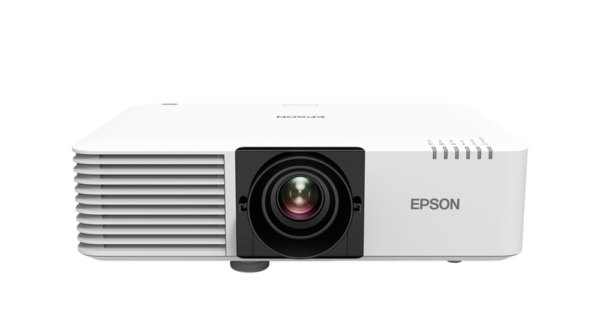

• Epson V11HA30040/EBL520U WUXGA Laser Display Projector – 5200 Lumens

  WUXGA laser display
  High brightness, scalable size Provides 5,200 lumens high-brightness display at up to 500″

  Premium display features Full HD, supports 4K input, edge-blending and geometric correction

  Unrestricted viewing Free from pixilation, glare, fingerprints and a central bevel

  Social distancing support Scalable display meets the needs of every audience configuration

  Plug, click and collaborate Collaborate using Epson’s wireless presentation system – ELPWP10

  Featuring 5,200 lumens high-brightness capability, along with Full HD, WUXGA, 16:6 wide screen, support for 4K input and detail enhancement technology, it gives users brighter, more vivid displays of up to 500”.

  Providing more premium features than you would typically expect to find in this display class, the EB-L520U delivers edge-blending and geometric correction to achieve one seamless large-format display. And for multimedia content, you can playback content without any lagging, and create playlists and set schedules directly from USB memory, all thanks to H.264 advanced video coding and the Epson Content Manager.

  Flexibility is another hallmark of this display solution – a split-screen function allows two or four images from different sources to be combined in one large display; wired or optional wireless1 with support for Miracast1 makes connectivity simple and straightforward; and HDBaseT content can be shared and distributed without compromising on quality.

  Thanks to the renowned market leading2 reliability of Epson laser displays, this fit and forget solution eliminates the need for regular maintenance. And for added confidence the EB-L520U comes with a standard 3-year warranty to provide lasting peace of mind.

• Technology	Projection System
  Projection System	3LCD Technology, RGB liquid crystal shutter
  LCD Panel	0.67 inch with C2 Fine
  Image	Color Light Output
  	5,200 Lumen – 3,640 Lumen (economy)
  	In accordance with IDMS15.4
  White Light Output	5,200 Lumen – 3,640 Lumen (economy)
  	In accordance with ISO 21118:2020
  Resolution	WUXGA
  High Definition	Full HD
  Aspect Ratio	16:10
  Contrast Ratio	2,500,000 : 1
  Light source	Laser
  Laser Light source	20,000 hours Durability High, 30,000 hours Durability Eco
  Keystone Correction	Manual vertical: ± 30 °, Manual horizontal ± 30 °
  Colour Video Processing	10 Bits
  2D Vertical Refresh Rate	192 Hz – 240 Hz
  Colour Reproduction	Up to 1.07 billion colours
  Optical	Throw Ratio
  	1.35 – 2.20:1
  Zoom	Manual, Factor: 1 – 1.6
  Projection Lens Zoom Ratio	1.35 – 2.2 : 1
  Lens	Optical
  Screen Size	50 inches – 500 inches
  Projection Lens F Number	1.5 – 1.7
  Projection Lens Focal Length	20 mm – 31.8 mm
  Projection Lens Focus	Manual
  Offset	27 : 1
  Connectivity	Interfaces
  	RS-232C, Wireless LAN a/n (5GHz) (optional), VGA in (2x), VGA out, HDMI in (2x), HDBaseT, Miracast (optional), Jack plug out, Jack plug in (2x), USB 2.0-A, USB 2.0, Ethernet interface (100 Base-TX / 10 Base-T)
  Epson iProjection App	Ad-Hoc / Infrastructure
  Advanced Features	Security
  	Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock
  2D Colour Modes	Dynamic, Cinema, Presentation, sRGB, DICOM SIM
  Other features	21:9 aspect ratio support, A/V mute, Arc Correction, Built-in speaker, CEC compatible, Easy OSD pre-setting, Edge Blending, Long light source life, PC Free, Quick Corner, Screen share, Source function, Ultra-wide display (16:6), iProjection App
  Video Color Modes	Cinema, Dynamic, Presentation, sRGB, DICOM SIM
  Projector control	via: AMX, Crestron, Control4, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
  General	Power consumption
  	234 Watt – On mode power consumption (Normal)
  	293 Watt (Peak), 223 Watt (Eco), 0.3 Watt (Energy saving standby)
  Supply Voltage	AC 100 V – 240 V, 50 Hz – 60 Hz
  Product dimensions	440‎ x 122 x 304 mm (Width x Depth x Height)
  Product weight	7.7 kg
  Noise Level	Normal: 31 dB (A) – Economy: 23 dB (A)
  Supported Temperature	Storage -10° C – 60° C
  Supported Humidity	Operation 20% – 80%, Storage 10% – 90%
  Included Software	EasyMP Multi PC Projection
  Options	Air filter, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System – ELPWP10, Wireless LAN unit, Wireless transmitter – ELPWT01
  Loudspeaker	10 Watt
  What’s in the box	Power cable, Remote control incl. batteries, User guide, Warranty Documents
  Room Type / Application	Boardroom, Home Cinema, Home Office, Large Meeting Room / Auditorium, Meeting room / Classroom, Signage / Retail, Visitor Attraction
  Positioning	Ceiling Mounted, Desktop, Floor, Wall Mounted
  Colour	White
  Other	Warranty
  	36 months Carry in
