• Epson V11HA25140/EB-L735U Laser Display Projector – 7000 Lumens

  Laser display solution
  7,000-lumen brightness Crisp images and bright colours, even in well-lit rooms

  WUXGA resolution Sharp Full HD images for excellent clarity

  Futureproofed connectivity options 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring

  Easy, flexible installation Lightweight and compact design with wide lens shift

  Support social distancing Scalable display size of up to 500 inches

  Experience brighter and bolder displays
  The EB-L735U produces more engaging and impactful displays even in brightly lit environments. It offers impressive 7,000-lumen brightness and WUXGA Full HD resolution at an affordable price. This means you can upgrade to laser performance and reliability, with reduced power consumption. It also features: 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments. The EB-L735U is capable of up to 500-inch displays, without any reduction in clarity or vivid detail.

  Install with ease
  The EB-L735U includes many professional features which make installation simple, even when producing more advanced displays. This stylish and compact projector offers 360-degree installation, without compromising the display quality, and supports 16:6 ultra-widescreen, which means you can maximise the visible display space available. Also, with split-screen capability you can display two or four images from different sources simultaneously; and geometric correction and edge blending help create one large, seamless image using multiple displays. Also available in white.

  Scale to suit your environment
  Unlike a flat-panel display, there’s no glare, fingerprints or wasted wall space. The image can be scaled to fit the required display size, from 50 to 500 inches. Whether it’s for education, corporate, retail or visitor attractions, the viewing experience can be unrestricted and more engaging for the audience.

  Connect and control
  The EB-L735U offers many ways to connect, show multiple sources simulateneously and present wirelessly. The future-proofed connectivity options include: HDMI (input and output) and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, built-in media player, built-in Miracast and support for Epson’s ELPWP10 wireless presentation system. It is also easy to set up and navigate thanks to the intuitive on-screen user guide.

  Create customised content for signage
  Featuring a built-in media player with network content upload, The EB-L735U allows playlists to be loaded onto a USB storage device and played directly from the projector². Create customised content with your smartphone or tablet using the Epson Creative Projection App or create and schedule playlists using Epson Projector Content Manager software.

  Plug, click and collaborate
  Collaboration is made easy with Epson’s wireless presentation system, the ELPWP10. Achieve cost-saving and contemporary wireless connectivity. No cables – just plug-and-play!

  Take control of your projected images
  Achieve greater levels of image manipulation and control with Epson Projector Professional Tool software. Advanced features such as edge blending, projection mapping and multi-projector control are simplified thanks to this free and intuitive tool.

  Support social distancing
  Where social distancing remains both a requirement and responsible consideration, the scalable display size of up to 500 inches allows the content to be viewed from any position.

• Technology	Projection System
  Projection System	3LCD Technology, RGB liquid crystal shutter
  LCD Panel	0.67 inch with C2 Fine
  Color Light Output	7,000 Lumen – 4,900 Lumen (economy)
  White Light Output	7,000 Lumen – 4,900 Lumen (economy)
  Resolution	WUXGA
  High Definition	Full HD
  Aspect Ratio	16:10
  Contrast Ratio	Over 2,500,000 : 1
  Light source	Laser
  Laser Light source	20,000 hours Durability High, 30,000 hours Durability Eco
  Keystone Correction	Manual vertical: ± 30 °, Manual horizontal ± 30 °
  Colour Video Processing	10 Bits
  Colour Reproduction	Up to 1.07 billion colors
  Optical
  Throw Ratio	1.35 – 2.20:1
  Zoom	Manual, Factor: 1 – 1.6
  Projection Lens Zoom Ratio	1.35 – 2.2 : 1
  Lens	Optical
  Lens Shift	Manual – Vertical ± 50 %, horizontal ± 20 %
  Screen Size	50 inches – 500 inches
  Projection Distance Wide	1.4 m – 14.8 m
  Projection Distance Tele	2.4 m – 23.8 m
  Projection Distance Wide/Tele	1.44 m – 23.84 m
  Projection Lens F Number	1.5 – 1.7
  Projection Lens Focal Length	20 mm – 31.8 mm
  Projection Lens Focus	Manual
  Connectivity

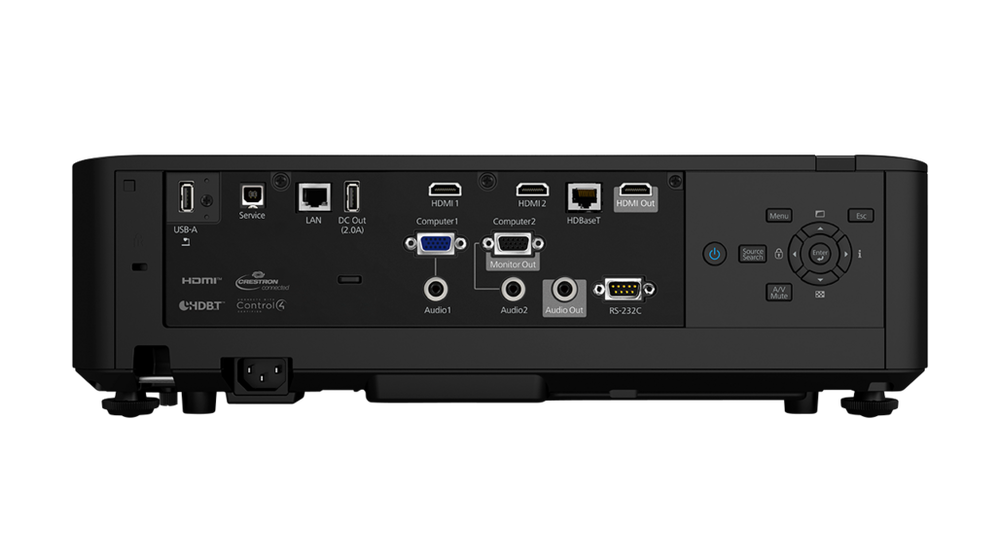

  Interfaces	USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN b/g/g 25GHz, Wireless LAN a/n (5GHz), VGA in (2x), VGA out, HDMI out, HDBaseT, Miracast, Jack plug out, Jack plug in (2x), HDMI (HDCP 2.3) (2x), USB 2 Type A playback
  Epson iProjection App	Ad-Hoc / Infrastructure
  Network Protocol	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
  Advanced Features
  Security	Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
  2D Colour Modes	Dynamic, Cinema, Presentation, sRGB, DICOM SIM
  Other features	21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, JPEG Viewer, Long light source life, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Super resolution, Ultra-wide display (16:6), Volume control, Web Control, Web Remote, Wireless LAN capable, iProjection App
  Video Color Modes	Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
  Projector control	via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
  General
  Power consumption	287 Watt – On mode power consumption (Normal)
  	345 Watt (Peak), 258 Watt (Eco), 0.3 Watt (Energy saving standby)
  Supply Voltage	AC 100 V – 240 V, 50 Hz – 60 Hz
  Product dimensions	440‎ x 339 x 136 mm (Width x Depth x Height)
  Product weight	8.4 kg
  Noise Level	Normal: 38 dB (A) – Economy: 27 dB (A)
  Supported Temperature	Storage -10° C – 60° C
  Supported Humidity	Operation 20% – 80%, Storage 10% – 90%
  Options
  Connection and control box	Document camera, External Speaker, HDBaseT Transmitter, MB22 ceiling mount, Wireless LAN unit
  Loudspeaker	10 Watt
  What’s in the box	Cable cover, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty Documents
  Room Type / Application	Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction
  Positioning	Ceiling Mounted, Desktop
  Colour	Black
  Other	Warranty: 36 months Carry in
