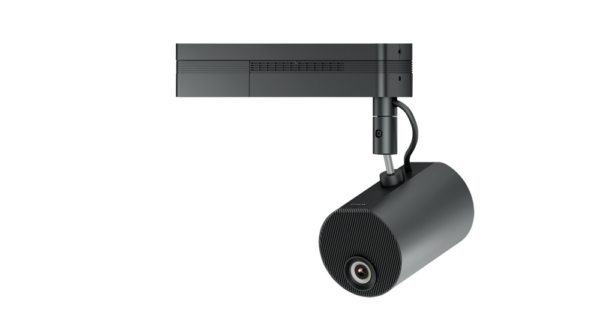

Epson V11HA22140/EV-115 Digital Lighting Projector – 2200 Lumens

• Description
• Specifications
• Downloads

• Epson V11HA22140/EV-115 Digital Lighting Projector – 2200 Lumens


  Digital lighting projector
  Experiential projection Create borderless content, lighting effects and blended displays with ease

  Sensor-based content GPI function for simple sensor-based experiences

  Flexible installation Can be ceiling-mounted, freestanding or attached to a lighting track

  Signage-ready Built-in media player and simple CMS integration

  Fit and forget reliability Durable Epson laser technology supported by a five-year warranty

  Minimalist design – maximum impact
  The LightScene EV-115 allows users to unlock their creativity and project instantly appealing visuals, with sharp WXGA resolution and 2,200 lumens brightness. Thanks to its discreet design, it can be used where a traditional projector may stand out. A white version is also available.

  Simple, flexible implementation
  A lightweight, adaptable design means the EV-115 can be installed in a variety of ways, from a traditional ceiling mount to a freestanding floor mount, or attached to a lighting track, including recessed lighting tracks.

  Signage-ready
  Featuring a built-in media player with wireless content upload, allowing playlists to be loaded onto an SD card and played directly from the projector1. The EV-115 also features HDMI connectivity for simple integration into content management systems without specialist installation.

  Advanced installations made easy
  The GPI function supports direct sensor connectivity for creating dynamic experiences that can adapt to situational changes without the need for costly external hardware. The EV-115 also uses advanced techniques such as edge blending to achieve stunning results in larger spaces that require multiple unit installations.

  Fit and forget reliability
  A five-year warranty, combined with Epson’s reliable laser light source technology and sealed optical engine, means that the EV-115 does not require regular maintenance.

• Technology	Projection System
  LCD Panel	0.59 inch with C2 Fine
  Color Light Output	2,200 Lumen- 1,100 Lumen (economy) In accordance with IDMS15.4
  White Light Output	2,200 Lumen – 1,100 Lumen (economy) In accordance with ISO 21118:2020
  Resolution	WXGA 2
  Aspect Ratio	16:10
  Contrast Ratio	2,500,000 : 1
  Native Contrast	2,000 : 1
  Light source	Laser
  Laser Light source	20,000 hours Durability High, 30,000 hours Durability Eco
  Keystone Correction	Manual vertical: ± 45 °, Manual horizontal ± 40 °
  Colour Reproduction	16.77 million colours
  Optical
  Throw Ratio	1.38 – 2.19:1
  Zoom	Motorized, Factor: 1 – 1.58
  Lens	Optical
  Screen Size	30 inches – 150 inches
  Projection Distance Wide	0.9 m – 4.5 m
  Projection Lens F Number	1.51 – 1.92
  Projection Lens Focal Length	18.2 mm – 28.4 mm
  Projection Lens Focus	Motorized
  Connectivity
  Interfaces	USB 2.0-A, USB 2.0 Type B (Service Only), Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN b/g/g 25GHz, HDMI in, Jack plug out, SD Card Slot, SD Card playback, Wireless LAN a/n (5GHz)
  Network Protocol	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
  Advanced Features
  Security	Wireless LAN security, Password protection
  Other features	A/V mute, Auto Power On, Digital zoom, Edge Blending, Horizontal and vertical keystone correction, Image Shift, Long light source life, Quick Corner, Web Control, Web Remote
  Video Color Modes	Dynamic, Normal
  Projector control	via: Crestron, Crestron Integrated Partner, Crestron RoomView
  General
  Power consumption	124 Watt – On mode power consumption (Normal)
  Supply Voltage	AC 100 V – 240 V, 50 Hz – 60 Hz
  Product dimensions (default position)	530‎ x 470 x 250 mm (Width x Depth x Height)
  Dimensions: Projection Unit	Ø175‎ x 260 mm (Depth)
  Dimensions: Power Supply	361‎ x 110 x 65 mm (Width x Depth x Height)
  Product weight	5 kg
  Noise Level	Normal: 34 dB (A) – Economy: 22 dB (A)
  Supported Temperature	Operation 5° C – 40° C, Storage -10° C – 60° C
  Supported Humidity	Operation 20% – 80%, Storage 10% – 90%
  Included Software	Epson Creative Projection, Epson Projector Content Manager
  Options	Floor stand, Lighting track mount
  What’s in the box	Cable cover, Direct mount unit, HDMI Cable Clamp, Hexagon wrench, Power cable, Remote control incl. batteries, Safety wire set, User’s Manual Set
  Room Type / Application	Projection Mapping, Signage / Retail, Visitor Attraction
  Positioning	Ceiling Mounted, Floor, Lighting Track, Wall Mounted
  Colour	Black
  Warranty	60 months Carry in or 12,000 h
