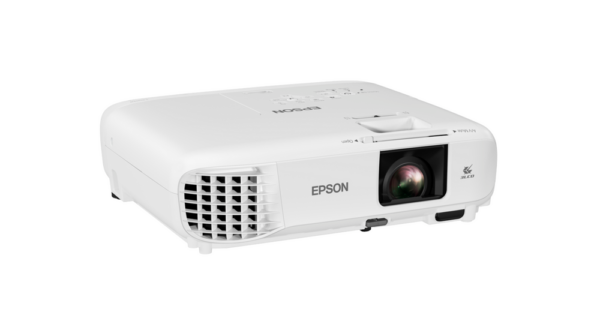

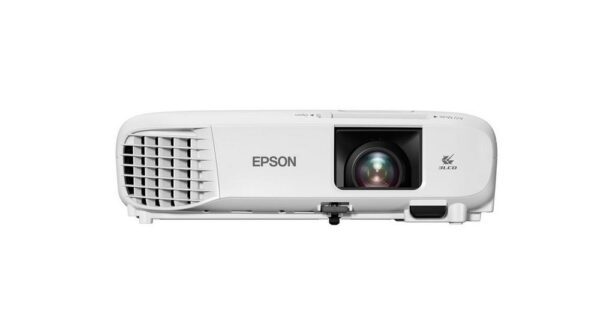

Epson V11H983040/EB-W49 Projector – 3800 Lumens

• Description
• Specifications
• Downloads

• Epson V11H983040/EB-W49 Projector – 3800 Lumens


  Flexible, HD-Ready WXGA display

  HD-Ready bright images 3LCD technology and equally high White and Colour Light Output

  Contrast ratio of 16,000:1 Deep, rich blacks and dense shadow areas

  Wide connectivity options Network-enabled and wireless capable

  Low total cost of ownership Lamp life up to 17,000 hours in Eco mode

  Versatile and flexible control Project from different sources with HDMI input and mobile connectivity

  Bright, vivid content on a large scalable screen
  Enjoy large scale presentations with crisp, clear text, as well as compelling imagery and video content on screen sizes up to 320 inches. 3,800-lumen performance combines with a high contrast ratio of 16,000:1 to offer outstanding visual performance, even in well-lit rooms.

  Years of uninterrupted meetings
  With a lamp life of up to 17,000 hours in Eco mode.

  Network and wireless (optional)
  Network capability (via RJ45) and optional wireless connectivity mean the EB-W49 can be added to a company network or upgraded for wireless device access at a later stage (optional accessory required).

  Installation and placement flexibility
  Automatic vertical and manual horizontal keystone correction provide greater flexibility as to where the projector can be placed in the room for distortion-free images and the wide optical zoom adds to the flexibility.

  High-quality sound
  This projector has a built-in 5W speaker to allow audio content to be heard clearly, without the need for additional external speakers.

• Technology	Projection System
  Projection System	3LCD Technology, RGB liquid crystal shutter
  LCD Panel	0.59 inch with C2 Fine
  Color Light Output	3,800 Lumen – 2,600 Lumen (economy)
  White Light Output	3,800 Lumen
  Resolution	WXGA 2
  Aspect Ratio	16:10
  Contrast Ratio	16,000 : 1
  Light source	Lamp
  Lamp	UHE, 210 W, 8,000 h durability, 17,000 h durability (economy mode)
  Keystone Correction	Auto vertical: ± 30 °, Manual horizontal ± 30 °
  Colour Video Processing	10 Bits
  2D Vertical Refresh Rate	100 Hz – 120 Hz
  Colour Reproduction	Up to 1.07 billion colours
  Optical
  Throw Ratio	1.30 – 1.56:1
  Zoom	Manual, Factor: 1 – 1.2
  Projection Lens Zoom Ratio	1 – 1.2 : 1
  Lens	Optical
  Screen Size	33 inches – 320 inches
  Projection Lens F Number	1.49 – 1.72
  Projection Lens Focal Length	16.9 mm – 20.28 mm
  Offset	10 : 1
  Connectivity
  USB Display Function	2 in 1: Image/ Sound
  Interfaces	USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN a/n (5GHz) (optional), VGA in (2x), VGA out, HDMI in (2x), Composite in, Jack plug out, Jack plug in (2x), Cinch audio out
  Epson iProjection App	Ad-Hoc / Infrastructure
  Network Protocol	PJLink
  Advanced Features
  Security	Kensington lock, Security cable hole, Wireless LAN unit lock
  2D Colour Modes	Dynamic, Cinema, Presentation, sRGB, Blackboard
  Other features	AV Mute Slide, Automatic keystone correction, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone correction, Network projection, OSD copy function, PC Free, Quick Corner, Split-Screen-Function, iProjection set-up by QR code
  Video Color Modes	Blackboard, Dynamic, Presentation, sRGB, Theatre
  Projector control	via: AMX, Crestron, Control4, Extron
  General
  Power consumption	286 Watt – On mode power consumption (Normal)
  	327 Watt (Peak), 225 Watt (Eco), 0.3 Watt (Energy saving standby)
  Supply Voltage	AC 100 V – 240 V, 50 Hz – 60 Hz
  Product dimensions	302‎ x 249 x 87 mm (Width x Depth x Height)
  Product weight	2.7 kg
  Noise Level	Normal: 37 dB (A) – Economy: 28 dB (A)
  Supported Temperature	Operation 5° C – 35° C, Storage -10° C – 60° C
  Supported Humidity	Operation 20% – 80%, Storage 10% – 90%
  Included Software	EasyMP Network Projection, Epson Projector Management
  Options	Air filter, Ceiling mount, Document camera, External Speaker, Safety wire set, Soft carry case, Suspension adapter, WP System – ELPWP20, Wireless LAN unit, Wireless transmitter – ELPWT01
  Noise	Operation: 37 dB (A)- Standby: 28 dB (A)
  Loudspeaker	5 Watt
  What’s in the box	HDMI Cable 1.8m, Power cable, Quick Setup Guide, Remote control incl. batteries, Warranty card
  Positioning	Ceiling Mounted, Desktop
  Colour	White
  Other	Warranty 36 months Carry in, Lamp: 36 months or 1,000 h
