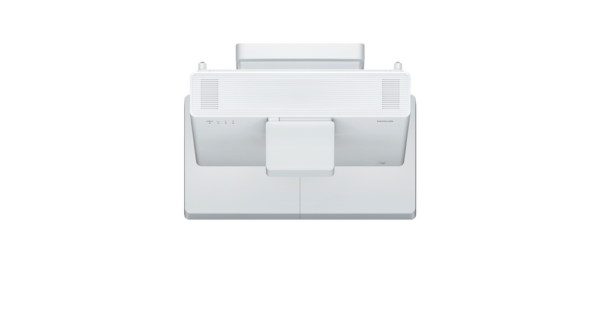

Epson V11H923540/EB-800F Digital Signage Solution Projector – 5000 Lumens

• Description
• Specifications
• Downloads

• Epson V11H923540/EB-800F Digital Signage Solution Projector – 5000 Lumens

  Digital signage solution
  Ultra-short-throw signage projector Compact, unobtrusive design.

  Up to 130-inch display Full HD resolution, 5,000 lumen brightness and 3LCD technology

  Fit and forget reliability Low maintenance laser projector with a 5 year warranty

  Easy installation 360 degree rotation with portrait projection support

  Flexible playback Play content directly from a USB stick

  Innovative and cost effective
  Epson’s advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that’s capable of large display sizes.

  Large and scalable images
  The EB-800F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.

  Versatile and easy to install
  This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A black version is also available.

  Flexible playback options
  Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously.

• Technology	Projection System
  3LCD Technology	LCD Panel
  LCD Panel	0.62 inch with C2 Fine
  Image	Color Light Output
  Color Light Output	5,000 Lumen – 3,500 Lumen (economy) In accordance with IDMS15.4
  White Light Output	5,000 Lumen – 3,500 Lumen (economy) In accordance with ISO 21118:2020
  Resolution	1080p
  Aspect Ratio	16:9
  Contrast Ratio	Over 2,500,000 : 1
  Light source	Laser
  Laser Light source	20,000 hours Durability High, 30,000 hours Durability Eco
  Keystone Correction	Manual vertical: ± 3 °, Manual horizontal ± 3 °
  Colour Video Processing	10 Bits
  2D Vertical Refresh Rate	192 Hz – 240 Hz
  Colour Reproduction	Up to 1.07 billion colors
  Optical	Throw Ratio
  Throw Ratio	0.27 – 0.37:1
  Zoom	Digital, Factor: 1 – 1.35
  Lens	Optical
  Screen Size	65 inches – 130 inches
  Projection Distance Wide	0.4 m (65 inch screen)
  Projection Distance Tele	0.8 m (130 inch screen)
  Projection Lens F Number	1.5
  Projection Lens Focal Length	3.9 mm
  Projection Lens Focus	Manual
  Offset	9 : 1
  Connectivity	USB Display Function
  USB Display Function	2 in 1: Image/ Sound
  Interfaces	USB 2.0-A (2x), USB 2.0, Powered USB, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac (optional), VGA in (2x), VGA out, HDMI in (3x), HDMI out, Composite in, HDBaseT, Miracast (optional), Jack plug out, Jack plug in (3x)
  Epson iProjection App	Ad-Hoc / Infrastructure
  Network Protocol	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
  Advanced Features	Security
  Security	Kensington lock, Password lock, Padlock, Security cable hole, Password protection
  Other features	A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Driverless installation, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network administration, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, iProjection App
  Video Color Modes	Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
  Projector control	via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
  General	Power consumption
  Power consumption	293 Watt – On mode power consumption (Normal)
  	366 Watt (Peak), 262 Watt (Eco), 0.5 Watt (Energy saving standby)
  Heat Dissipation	1,244 BTU/hour (max)
  Supply Voltage	AC 220 V – 240 V, 50 Hz – 60 Hz
  Product dimensions	458 x 375 x 210 mm (Width x Depth x Height)
  Product weight	9.4 kg
  Noise Level	Normal: 36 dB (A) – Economy: 27 dB (A)
  Supported Temperature	Storage -10° C – 60° C
  Supported Humidity	Operation 20% – 80%, Storage 10% – 90%
  Included Software	Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management
  Options	Wireless LAN unit
  Loudspeaker	8 Watt, Stereo: Stereo
  What’s in the box	CD Manual, Cable cover, Lens cap, Power cable, Remote control incl. batteries, Warranty document
  Room Type / Application	Signage / Retail, Visitor Attraction
  Positioning	Ceiling Mounted, Desktop, Wall Mounted
  Colour	White
  Other	Warranty
  Warranty	60 months Carry in or 12,000 h
