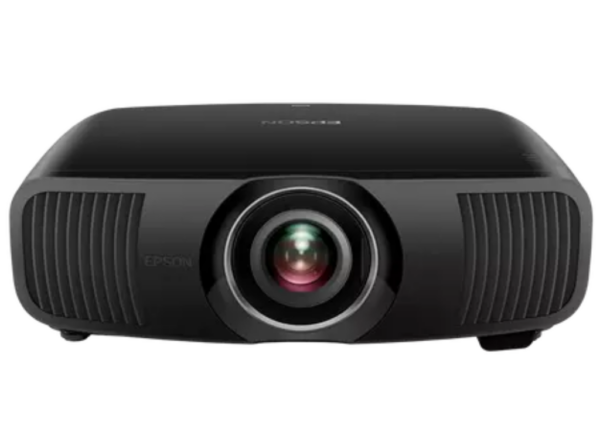

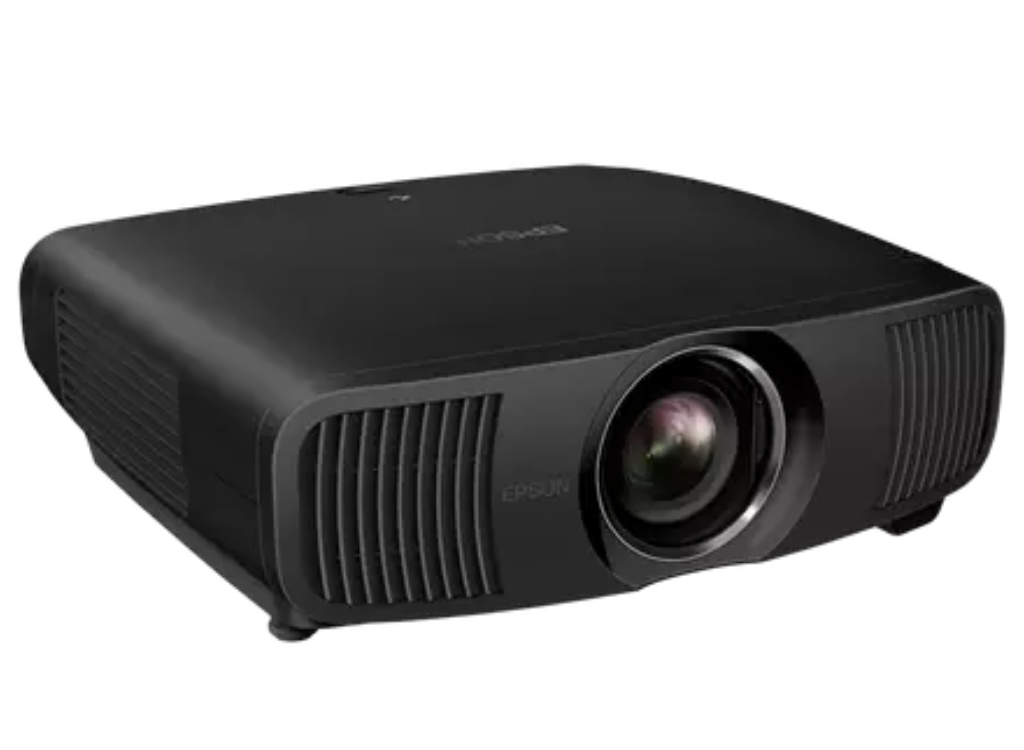

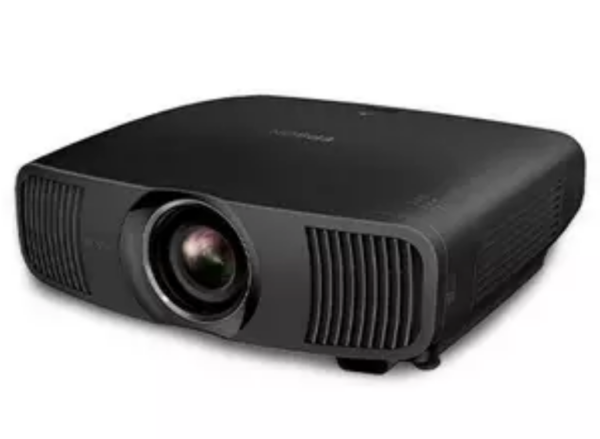

• Epson EH-LS12000B 4K Laser Projector – 2700 Lumens

  Laser projection at home
  As part of a manufacturing philosophy aiming to deliver uncompromising brightness, contrast, colour, and the highest image quality, the EH-LS12000B is equipped with a uniquely designed laser optical engine. With a highly efficient LD package, a newly developed panel, and the optical component optimization that only Epson can provide, it achieves 2,700lm brightness, high contrast, and superb colour reproduction¹.

  The laser engine’s long lifespan of up to 20,000 hours² provides virtually worry-free

  operation. And there’s no waiting for the projector to warm-up or cool down — the

  projector reaches maximum brightness and turns off almost immediately.

  Experience stunning 4K
  Make your home centre stage for all the action with advanced pixel-shifting technology that works in parallel with three individual high-definition LCD chips to produce an exceptionally sharp 4K (8.3million pixels) picture without sacrificing picture brightness.

  Optimum performance with up to 2,500,000:1 dynamic contrast ratio, 4K-enhancement technology, 3LCD technology, 4K frame interpolation, 4K super-resolution and HDR10+ support.

  Powered by the Epson ZX Picture Processor, Scene Adaptive Gamma allows the user to automatically adjust the picture quality based upon the scene information itself. This provides a simple way to get impressive colour and contrast, regardless of the content being displayed.

  The evolution of HDR tonal representation
  HDR is a key technology emphasized by filmmakers that helps convey the visual intent of a film more faithfully. Evolution in HDR technology means that now even subtle shadow tones can be displayed in fine detail.

  Bring images to life
  Super resolution defines and sharpens blurred images for standard and 4K content bringing incredible detail for true to life images.

  Fast-moving 4K video that’s clear and smooth
  As well as current frame interpolation technology, blurring reduction is now improved. Even watching fast-moving sports or when gaming, image contours stay clear, and motion is smooth to bring a fuller sense of realism and dynamism than ever to 4K video.


  Designed for extraordinary installation flexibility
  The wide-range powered lens shift (Vertical ± 96.3 %, horizontal ± 47.1 %) and zoom (x2.1) that only a high-end home model provides means the EH-LS12000B can be installed in living rooms as well as dedicated home cinemas.

  Users can operate the lens shift functions using the remote control, the projector control panel, or control commands.

  In addition to the same quietness (25dB/Light output 75%) as previous models, a reduction in high-frequency noise levels creates less distraction for a more immersive experience.

  Practical functionality, convenient connectivity
  eARC/ARC support

  Thanks to ARC, audio can be carried via the projector using an HDMI cable. In addition,

  eARC supports high-quality sound3, allowing you to enjoy a beautifully cohesive mix of video and sound in an easier installation.

  4K/120fps input support

  Optimised support for fast-moving game video output.

  Calman ready
  Professional quality colour calibration, trusted by colour professionals and filmmakers.

  What is in the box?
  Cable cover
  Main unit
  Power cable
  Remote control incl. batteries
  User guide

• Category	Feature	Specification
  Technology	Projection System	3LCD Technology, RGB liquid crystal shutter
  	LCD Panel	0.74 inch with C2 Fine
  Image	Color Light Output	2,700 Lumen IDMS15.4
  	White Light Output	2,700 Lumen ISO 21118:2020
  	Resolution	4K 3840 x 2160, 8.3m pixels
  	Resolution Enhancement	Full HD
  	Aspect Ratio	16:9
  	On-Screen Pixel Count	8,294,400
  	Contrast Ratio	2,500,000:1
  	Native Contrast	5,000:1
  	Light Source	Laser
  	Laser Light Source Durability	20,000 hours (High, Medium, Eco)
  	Keystone Correction	Manual vertical: ±30°, horizontal ±30°
  	Colour Video Processing	10 Bits
  	2D/3D Frequency Image	384 Hz / 480 Hz
  	2D Vertical Refresh Rate	384 Hz – 480 Hz
  	Colour Reproduction	Up to 1.07 billion colours
  	HDR Support	HDR10, HLG, HDR10+
  Optical	Throw Ratio	1.35 – 2.84:1
  	Zoom	Motorized, Factor:1 – 2.1
  	Lens Shift	Motorized – Vertical ±96.3%, horizontal ±47.1%
  	Lens Position Memory	10 positions
  	Screen Size	50 inches – 300 inches
  	Projection Distance Wide/Tele	3 m – 6.4 m (100 inch screen)
  	Projection Lens F Number	2 – 3
  	Projection Lens Focal Length	22.5 mm – 46.7 mm
  	Projection Lens Focus	Motorized

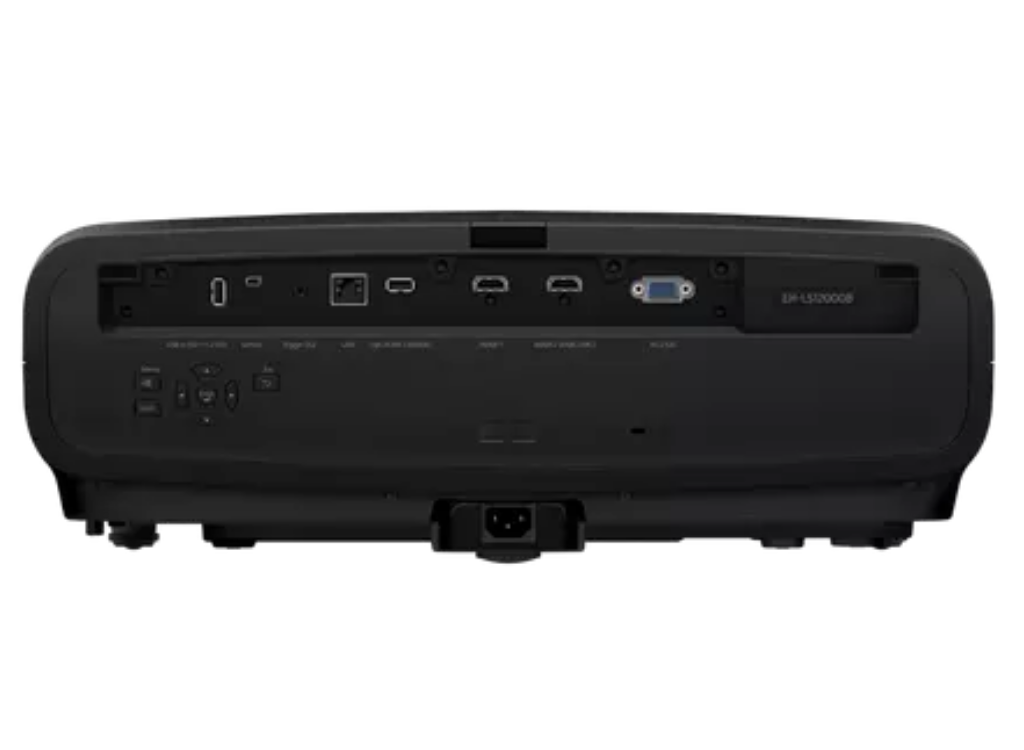

  Connectivity	Interfaces	USB 1.0-A (2x), USB 2.0 Mini-B, RS-232C, Ethernet, HDMI (2x), etc.
  Advanced Features	Security	Kensington lock
  	3D	No
  	2D Colour Modes	Dynamic, Natural, Cinema, Bright Cinema, Vivid
  	Other Features	4K enhancement, A/V mute, Digital zoom, Frame interpolation, etc.
  Video Color Modes		Cinema, Dynamic, Natural, Bright Cinema, Vivid
  Projector Control		Crestron, AMX, Control4
  General	Power Consumption	302 Watt (Normal), 198 Watt (Eco), 0.4 Watt (Standby)
  	Heat Dissipation	1,026.8 BTU/hour (max)
  	Supply Voltage	AC 100 V – 240 V, 50 Hz – 60 Hz
  	Product Dimensions	520 x 447 x 193 mm (Width x Depth x Height)
  	Product Weight	12.7 kg
  	Noise Level	Normal: 30 dB(A) – Economy: 22 dB(A)
  	Supported Temperature	Operation 5° C – 35° C, Storage -10° C – 60° C
  	Supported Humidity	Operation 20% – 80%, Storage 10% – 90%
  Room Type / Application		4K Gaming, Home Cinema, Sports
  Positioning		Ceiling Mounted, Desktop
  Colour		Black
  Other	Warranty	60 months Carry in or 12,000 hours
