Eaton Uninterruptible Power Supply (UPS) Line-Interactive 0.75 kVA 525 W 6 AC Outlet(s)

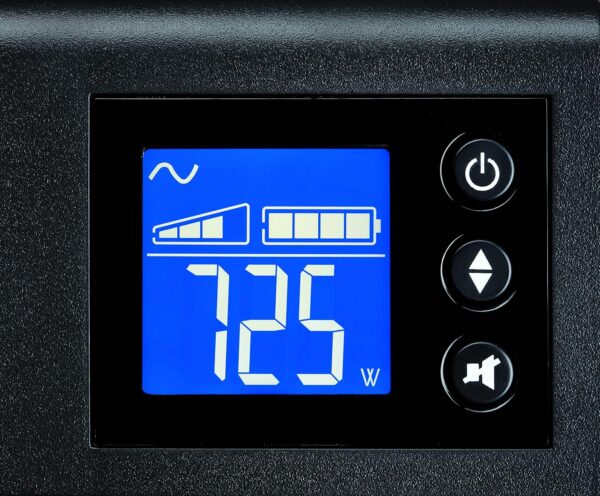

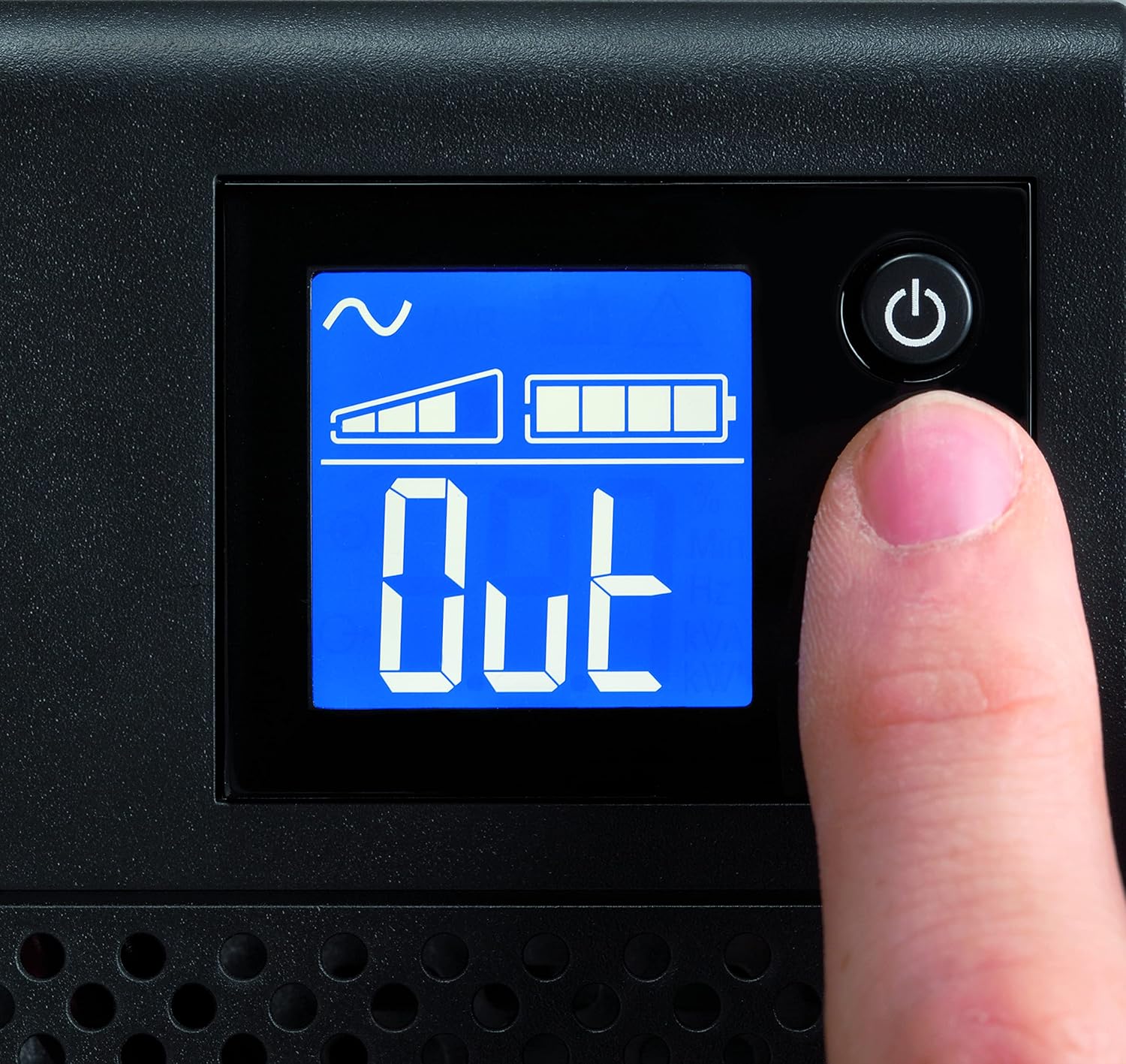

The Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business server in any kind of installation constraints. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, implements manageability solutions compatible with most of IT platforms and provides sinewave output for compatibility with most sensitive IT equipments.
-
Feature Description Product Name Eaton 5SC UPS Catalog Number 5SC750IBS Model Code Eaton 5SC 750i w/ BS Cord 10A EAN 3553340620409 Product Length/Depth 150 mm Product Height 210 mm Product Width 340 mm Product Weight 10.4 kg Compliances CE Marked, TUV Certifications cTUVus, IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, EAC Battery Type Lead-acid maintenance-free (replaceable) Battery Replacement User replaceable Battery Quantity 2 Battery Management ABM or constant voltage charging, automatic battery test, deep discharge protection Battery Rating 12 V / 7 Ah Extended Battery Capability No Receptacle (6) C13 Voltage 230V Wattage 525 W Output Power Factor 0.7 Output Voltage Range 230 V (+6%/-10%) Output Waveform Sine wave Output Nominal Voltage 230V default (220/230/240V) Feed Type 1 Topology Line-interactive VA Rating 750 VA Input Connection C14 Input Nominal Voltage 230V default (220/230/240V) Nominal Frequency 50-60 Hz Input Voltage Range 184-276 V Input Frequency Range 45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system) Includes Network Card No Communication USB port (HID compliant), Serial port (RS232) Ethernet Interface No User Interface LCD Display Potential Free Switch Contact No Expansion Slots No Software Compatibility Eaton Intelligent Power Protector Type of Interface Other Altitude 2000 m Noise Level <40 dB at 1 meter Temperature Range 0-90% non-condensing Relative Humidity 0-90% non-condensing Construction Type Free standing model Enclosure Black Package Contents USB cable, Serial cable, (2) IEC-IEC cables, Quickstart guide, Safety instructions, BS input cord Phase (Output) 1 Auto Shutdown Function Yes Color Black Efficiency 96 Rack Mounting Kit No Phase (Input) 1 -
Description Downloads Eaton Uninterruptible Power Supply (UPS) Line-Interactive 0.75 kVA 525 W 6 AC Outlet(s) | 5SC750IBS Spec Sheet Downloads
