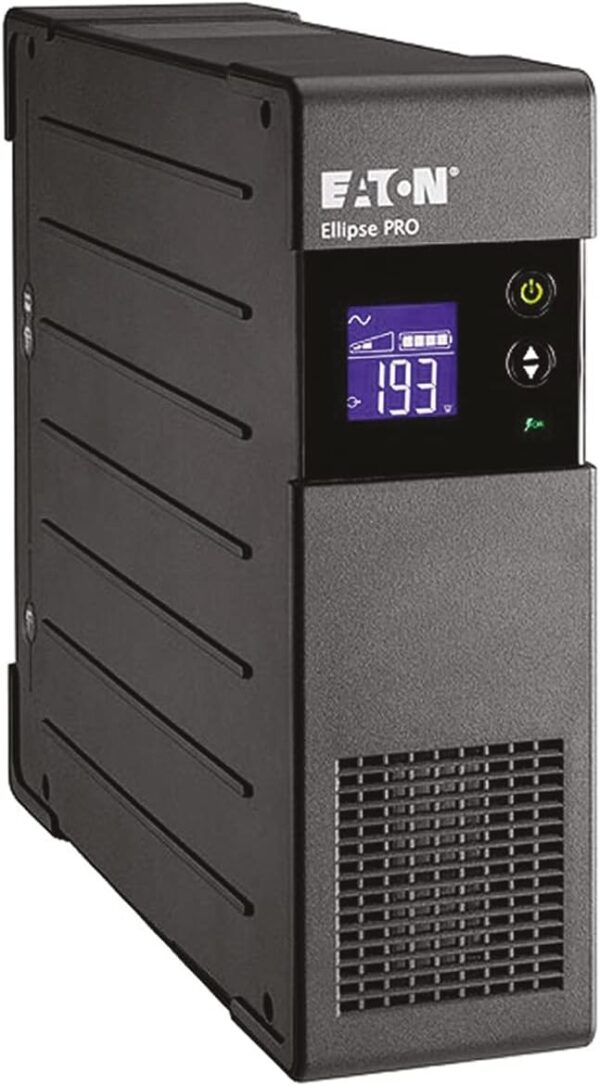

Eaton Ellipse PRO 650 IEC Uninterruptible Power Supply (UPS)
The Eaton Ellipse PRO 650-1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.
LCD display for real-time status and measurements.
Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost).
EcoControl function helps you save up to 20% energy compared to previous generation UPSs.
Includes a high performance surge-protection device which complies with IEC 61643-1 standard.
Up to 8 outlets to connect your PC & peripherals.
Convenient extra-flat design for easy installation in any office environment.
USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings.
Protects data connections such as Ethernet, internet and telephone lines. -

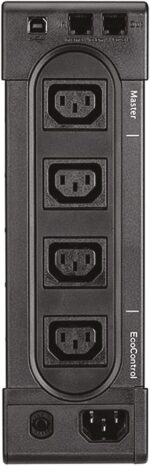

Description Details Product Name Eaton Ellipse PRO UPS Catalog Number ELP650IEC UPC 743172437334 Product Length/Depth 82 mm Product Height 260 mm Product Width 285 mm Product Weight 6.6 kg Warranty 3 years Compliances CE Marked Certifications IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC Battery Type Sealed, lead-acid Battery Rating 12 V / 7 Ah Battery Replacement User replaceable Battery Management Replaceable batteries, Automatic battery test, Deep-discharge protection, Cold-start capable Extended Battery Capability No Electrical Output (3) C13, (1) C13 surge only Voltage 230V Wattage 400W Output Power Factor 0.6 Output Voltage Range 176-284 V Output Nominal Voltage 230V default (220/230/240V) Feed Type 1 Topology Line-interactive VA Rating 650 VA Input Connection C14 Input Nominal Voltage 230V default (220/230/240V) Nominal Frequency 50/60 Hz Input Voltage Range 165-285 V (adjustable to 150-285 V) Input Frequency Range 46-70 Hz Communication USB port (HID compliant) Ethernet Interface No User Interface LCD (UPS status and measurements, configuration of UPS settings) Potential Free Switch Contact No Expansion Slots No Software Compatibility Eaton UPS Companion Type of Interface USB Altitude 2000 m Noise Level <25 dB at 1 meter Temperature Range 0° to 35°C (32° to 95°F) Relative Humidity 0-85% non-condensing Construction Type Free standing model Package Contents (2) IEC-IEC cables, USB cable, User manual, Safety instructions Phase (Output) 1 Auto Shutdown Function Yes Color Black Efficiency 97% Rack Mounting Kit No Phase (Input) 1 Surge Protection Yes -
Description Downloads Eaton Ellipse PRO 650 IEC Uninterruptible Power Supply (UPS) | ELP650IEC User Manual Downloads
