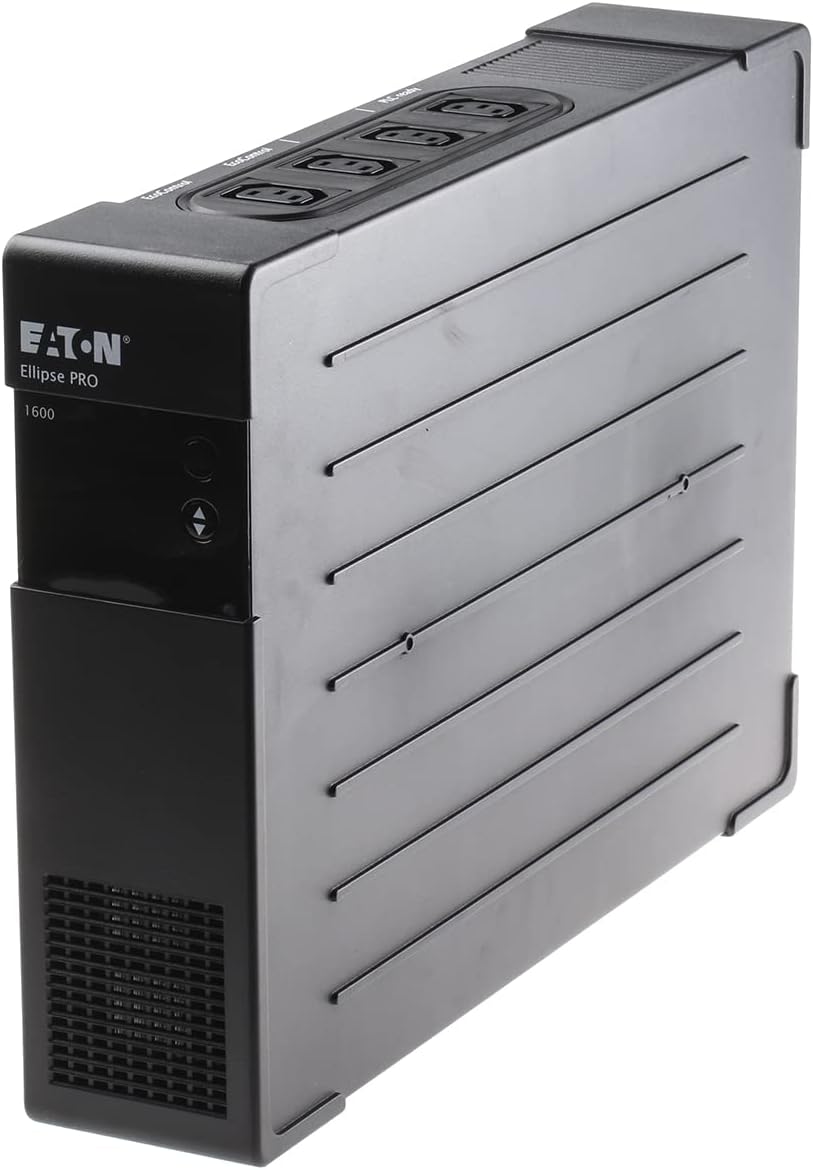

Eaton Ellipse PRO 1600 IEC Desktop/Rackmountable UPS Uninterruptible Power Supply
Inverter and surge protector power strip
Line Interactive Technology (Advanced Surge Reduction (ASR)
Thanks to its efficient electrical design and EcoControl function, the Ellipse PRO saves up to 20% energy compared to previous generation inverters.
It has a battery backup power supply that ensures your equipment will run smoothly in the event of a power failure.
The Eaton Ellipse PRO also provides effective protection against damage due to power surges.
It contains high-performance surge protection according to IEC 61643-1, which also protects Ethernet data connections, the Internet and telephone lines.Easy Integration

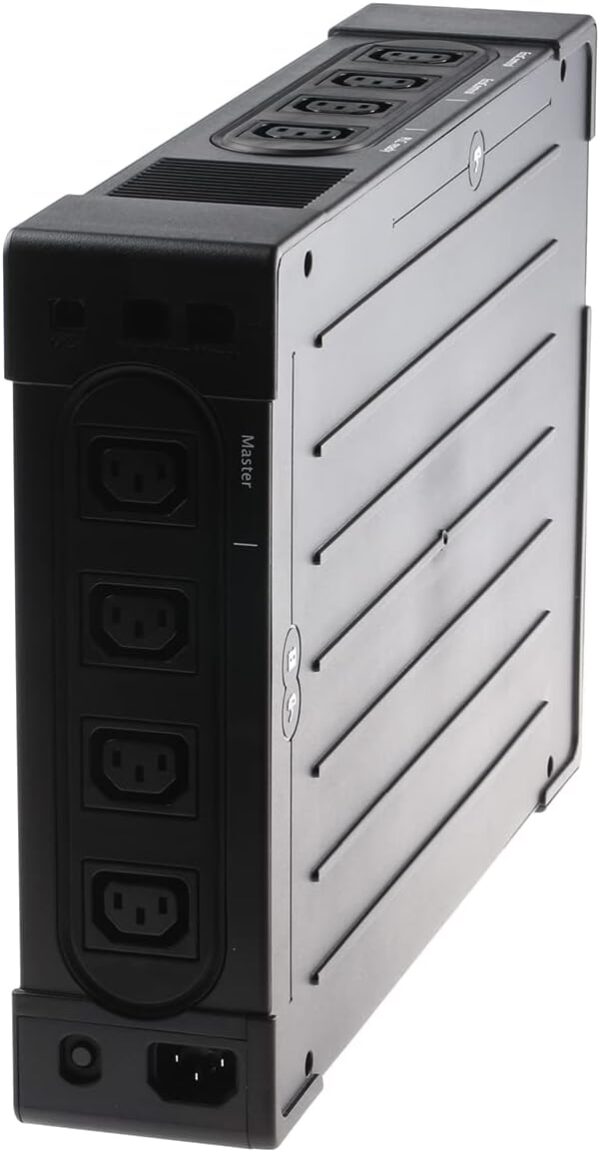

The Eaton Ellipse PRO UPS is equipped with four sockets (models 650/850 VA) or eight sockets (models 1200/1600 VA) in IEC format, which makes it easy to connect typical IT equipment, including peripherals.

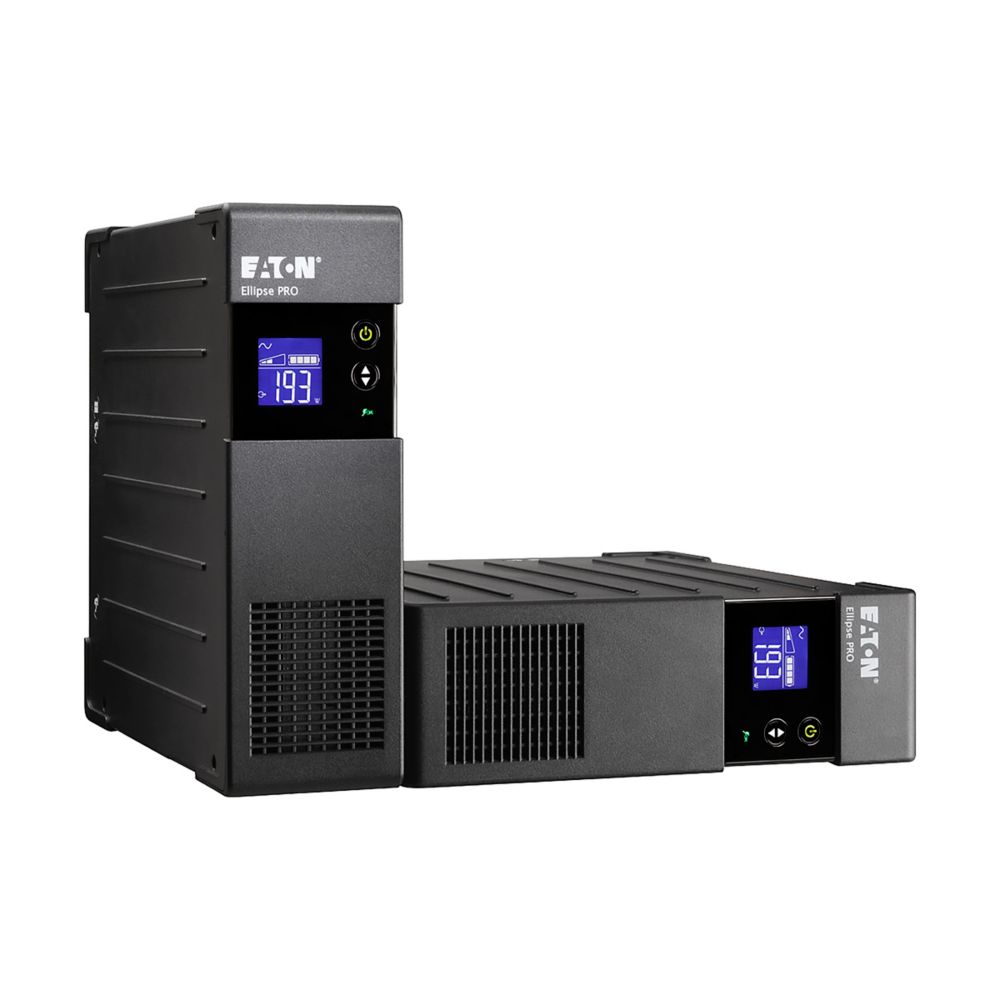

Thanks to its particularly FLAT DESIGN, the Ellipse PRO can be installed vertically under a desk, horizontally under a monitor, in a 19″ rack (optional 2U kit) or wall-mounted.
The Eco Control function is appreciated to automatically disable peripherals when the master device is turned off. This can save up to 20% of energy consumptionEasy Installation

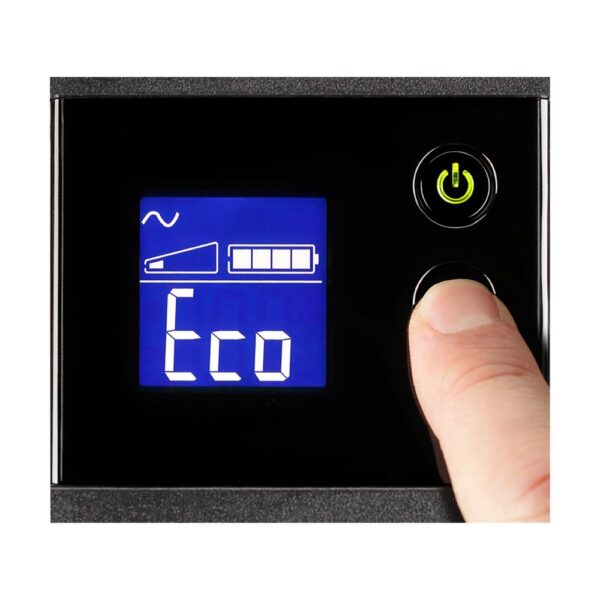

LSD display : LSD screen provides clear information on UPS status and measurements. It also allows easy configuration of UPS settings
Ellipse PRO comes with a USB port (usb cable included) and Eaton Companion software, which ensures the secure shutdown of the system, the recording of energy consumption, and the easy configuration of the parameters of the inverter.
The HID-compatible interface ensures compatibility with all common operating systems, even without additional drivers.Total Security
3 years warranty (battery included)
Unlimited warranty for connected IT equipment (only EU countries and in Norway)
The batteries are automatically tested at regular intervals to ensure quick detection when replacement is needed
Easily replaceable batteries to extend the life of the UPS
IEC 61643-1 standard UPS normWhat’s in the box
(2) IEC-IEC cables
USB cable
User manual
Safety instructions
Comes with Eaton UPS Companion software that enables safe system shutdown, energy usage, metering and easy configuration of UPS settings -
Category Details General Device Type UPS – external Height (Rack Units) 2U Rack Size 19″ Power Device UPS Technology Line interactive Input Voltage AC 230 V Input Voltage Range AC 165 – 285 V Input Voltage Range (Adjustable) AC 150 – 285 V Frequency Provided 50/60 Hz Frequency Required 50/60 Hz Input Connectors 1 x power IEC 60320 C14 Power Output Connectors Details 4 x power IEC 60320 C13 (UPS and surge) 4 x power IEC 60320 C13 (surge) Output Voltage AC 220/230/240 V + 15% / – 20% – 50/60 Hz Power Capacity 1000 Watt / 1600 VA Dataline Surge Protection Network/phone line – RJ-45/RJ-11 – 1 input line / 1 output line Surge Suppression Yes Circuit Protection Circuit breaker Battery Quantity 2 Technology Lead Acid Capacity 9 Ah Run Time (Up To) 9 min at half load 5 min at 70% load Networking Remote Management Interface USB Expansion / Connectivity Interfaces 1 x management (USB) – 4 pin USB Type B Miscellaneous Cables Included USB cable – external Rack Mounting Kit Optional Features Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets Compliant Standards CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2 Software / System Requirements Software Included Eaton UPS Companion Manufacturer Warranty Service & Support Limited warranty – 3 years Limited warranty – batteries – 3 years Environmental Parameters Min Operating Temperature 0 °C Max Operating Temperature 35 °C Humidity Range Operating 0 – 85% Dimensions & Weight Width 8.2 cm Depth 39 cm Height 27.5 cm Weight 11.3 kg - Eaton Ellipse PRO 1600 IEC Desktop/Rackmountable UPS Uninterruptible Power Supply DataSheet Downloads
