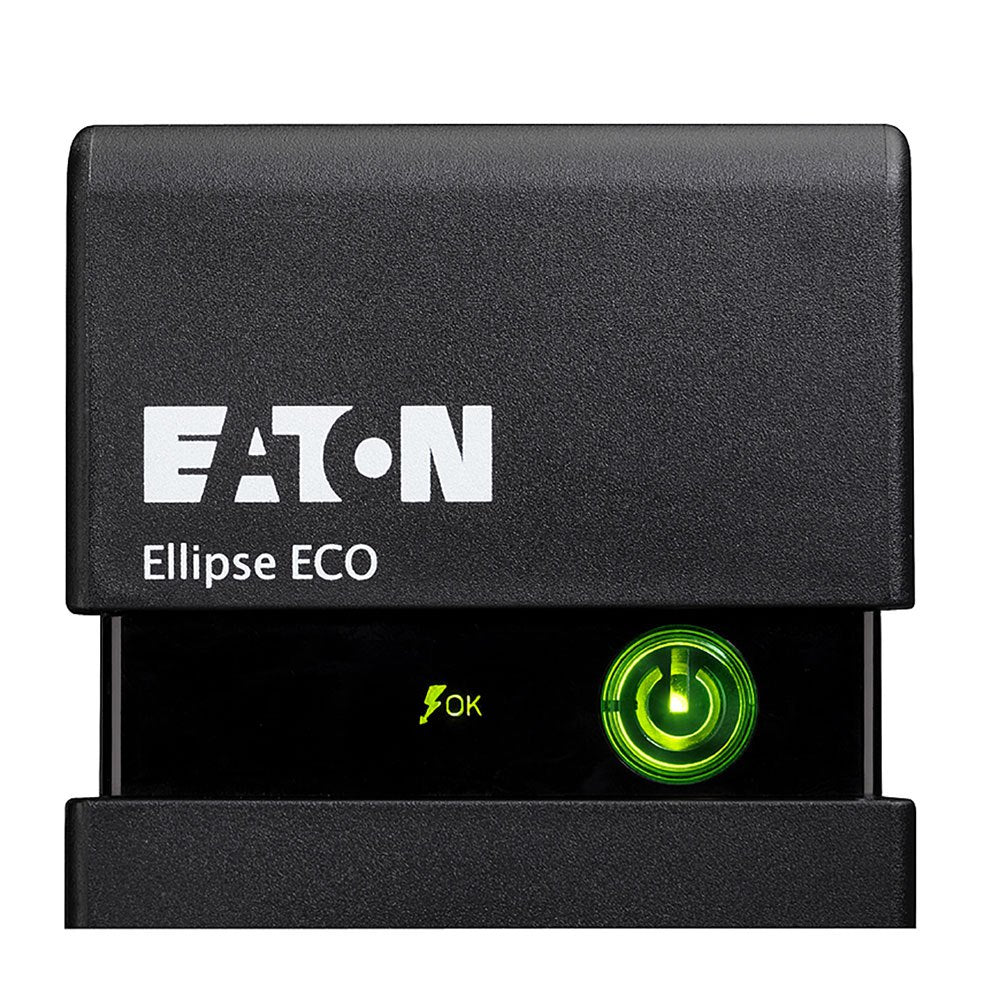

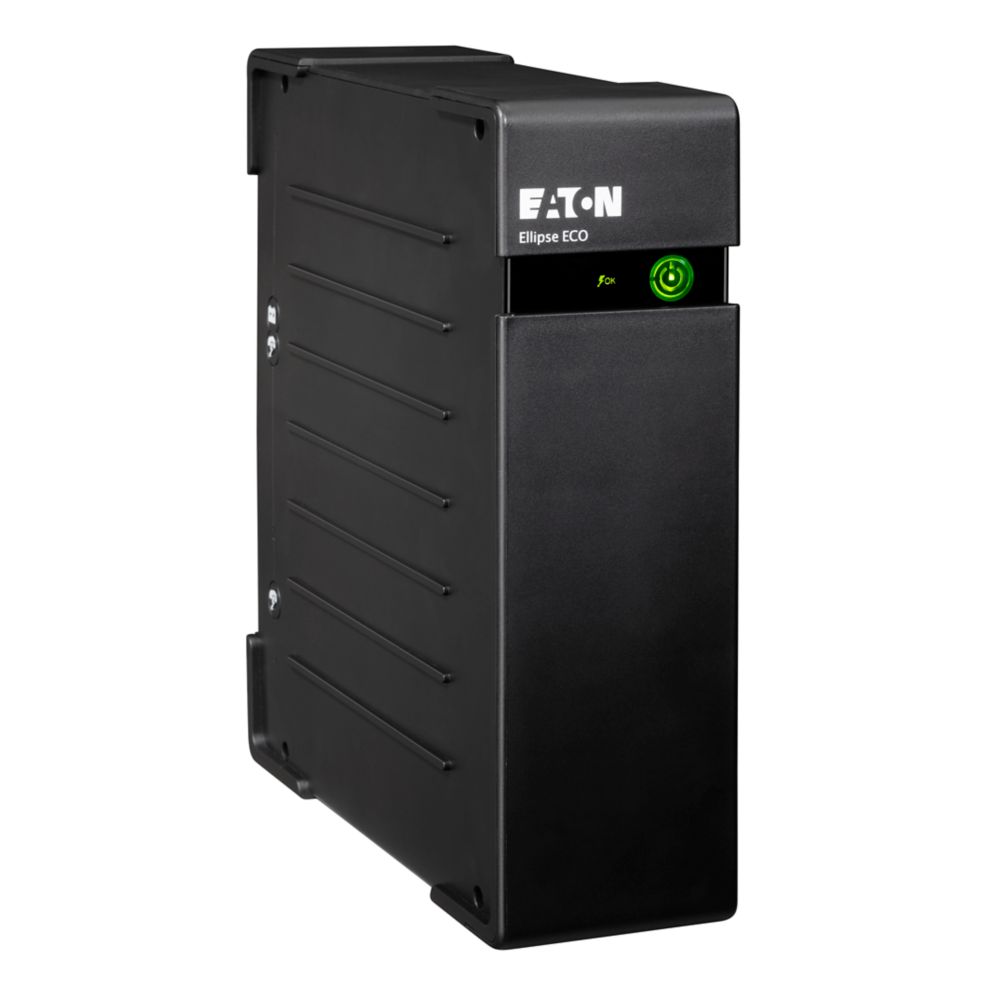

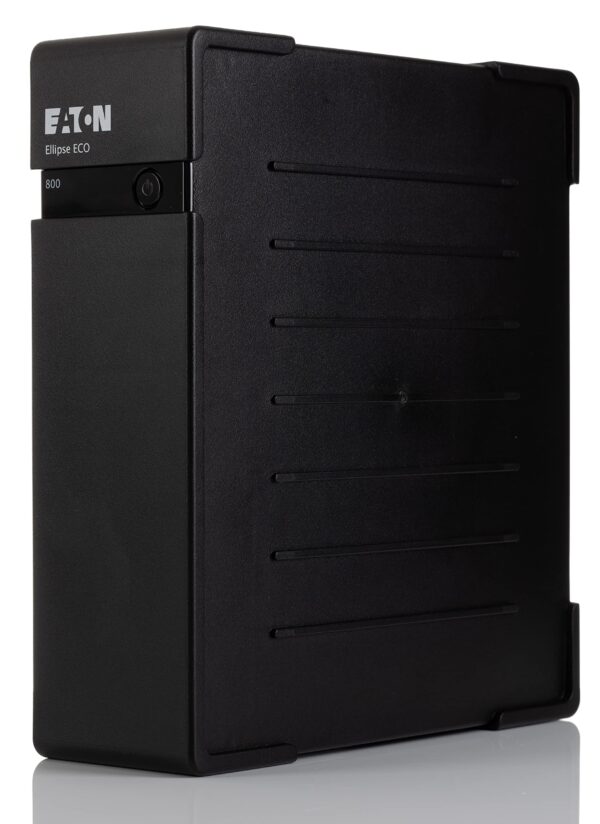

Eaton Ellipse ECO 500W/800VA Desktop UPS Uninterruptible Power Supply
Inverter and surge protector power strip
Off-line Technology
Thanks to its efficient electrical design and EcoControl function (on USB models only), the Ellipse ECO saves up to 25% energy compared to previous generation inverters.
It has a battery backup power supply that ensures your equipment will run smoothly in the event of a power failure.
The Eaton Ellipse ECO also provides effective protection against damage due to power surges.
It contains high-performance surge protection according to IEC 61643-1, which also protects Ethernet data connections, the Internet and telephone lines.Easy Integration
The Eaton Ellipse ECO UPS is equipped with four sockets (models 500/650/800) or eight sockets (models 1200/1600) in IEC format, which makes it easy to connect typical IT equipment, including peripherals.
Thanks to its particularly flat design, the Ellipse ECO can be installed vertically under a desk, horizontally under a monitor, in a 19″ rack (optional 2U kit) or wall-mounted.
Eco Control function (on USB models only) to automatically switch off peripherals and save up to 25% energy.Easy Installation
Unlimited guarantee for connected IT equipment (EU countries)
All USB models come with a USB cable and Eaton power management software (for Windows 10, Windows 8, Windows 7, Vista, XP, Linux and Mac OS) on CD.
The HID-compatible interface ensures compatibility with all common operating systems, even without additional drivers.What’s in the box
(2) IEC-IEC cables
USB cable
User manual
Safety instructions. -
General Device Type UPS – rack-mountable / external Height (Rack Units) 2U Rack Size 19″ Power Device UPS Technology Off-line Input Voltage AC 230 V Input Voltage Range AC 184 – 264 V Input Voltage Range (Adjustable) AC 161 – 284 V Frequency Provided 50/60 Hz Frequency Required 50/60 Hz Input Connectors 1 x power Power Output Connectors Details 3 x power IEC 60320 (UPS and surge) 1 x power IEC 60320 (surge) Output Voltage AC 220/230/240 V 50/60 Hz Power Capacity 500 Watt / 800 VA Dataline Surge Protection Network/phone line – RJ-45/RJ-11 Surge Suppression Yes Circuit Protection Circuit breaker Battery Technology Lead Acid Run Time (Up To) 11 min at half load 6 min at 70% load Networking Remote Management Interface USB Expansion / Connectivity Interfaces 1 x management (USB) – 4 pin USB Type B Miscellaneous Cables Included USB cable – external Rack Mounting Kit Optional Features Wall mountable, audible alarm, LED indicators, deep discharge protection, cold-start function, Eco-efficiency Compliant Standards CB, IEC 62040-1-1, IEC 62040-2, IEC 60950-1, IEC 61643-1 Software / System Requirements Software Included Intelligent Power Manager OS Required Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7 Manufacturer Warranty Service & Support Limited warranty – 2 years Dimensions & Weight Width 8.1 cm Depth 23.5 cm Height 26.3 cm Weight 4.1 kg - Eaton Ellipse ECO 500W/800VA Desktop UPS Uninterruptible Power Supply DataSheet Downloads
