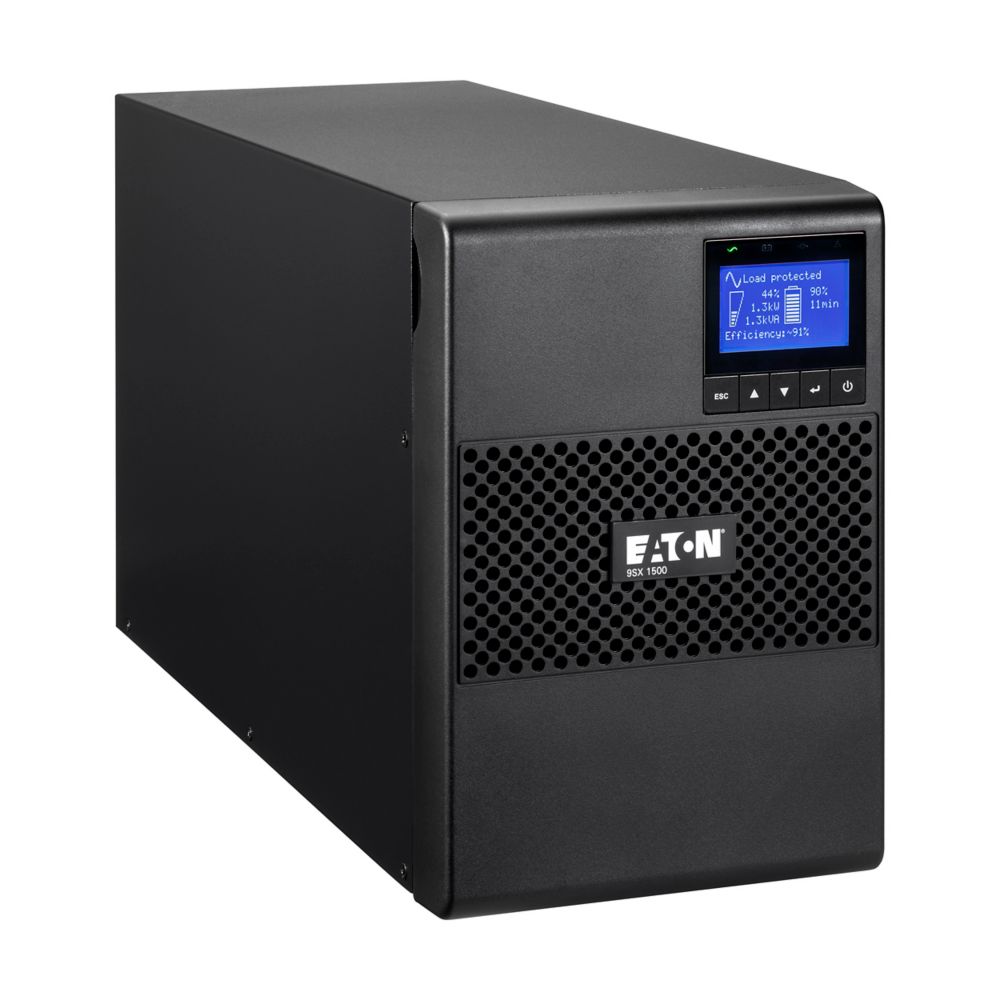

Eaton 9SX UPS Double-Conversion 1500 VA 1350 W 6 AC Outlet(s)
The Eaton 9SX uninterruptible power system (UPS) protects your sensitive electronic equipment from the most common power problems, including power failures, power sags, power surges, brownouts, line noise, high voltage spikes, frequency variations, switching transients, and harmonic distortion. Power outages can occur when you least expect it and power quality can be erratic. These power problems have the potential to corrupt critical data, destroy unsaved work sessions, and damage hardware – causing hours of lost productivity and expensive repairs.
True online double-conversion technology with high power density, utility frequency independence, and generator compatibility
ABM technology that uses advanced battery management to increase battery service life, optimize recharge time, and provide a warning before the end of useful battery life
Selectable high efficiency mode of operation
Firmware that is easily upgradable without a service call
Remote on/off control through Remote On/Off (ROO) and Remote Power Off (RPO) ports -

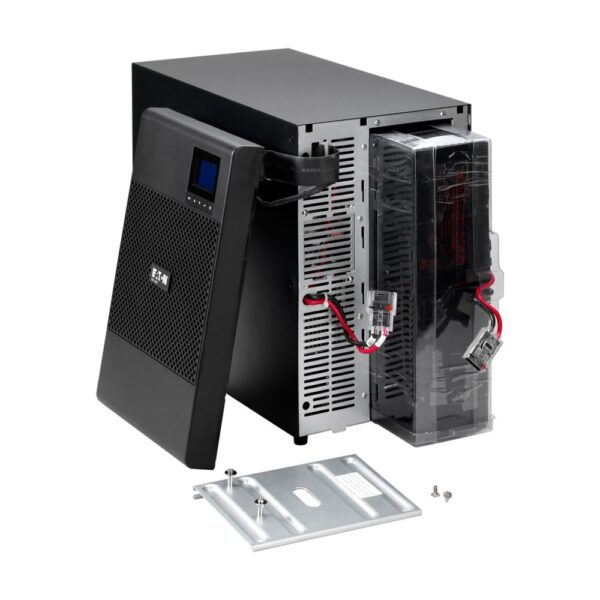

Description Details Product Name Eaton 9SX UPS Catalog Number 9SX1500IBS EAN 3553340620447 Product Length/Depth 437 mm Product Height 252 mm Product Width 160 mm Product Weight 18.5 kg Compliances CE Marked, TUV, cULus Listed, CSA 22.2, FCC part 15 Class B, CISPR22 Class B Certifications IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, EAC Battery Type Sealed, lead-acid Battery Replacement Hot-swappable internal batteries and extended battery modules (EBMs) Battery Quantity 4 Battery Management ABM & Temperature compensated charging method (user selectable), Automatic battery test, Deep discharge protection, Automatic recognition of external battery units Battery Rating 12 V / 9 Ah Extended Battery Capability Yes Receptacle (6) C13 Voltage 230V Wattage 1350 W Output Power Factor 0.9 Output Voltage Range 200/208/220/230/240 V +/- 2% Output Waveform Sine wave Output Nominal Voltage 230V default (200/208/220/230/240V) Voltage Distortion Output (Linear Load) – Max 3% Feed Type 1 Topology Online/Double-conversion VA Rating 1500 VA Input Connection C14 Input Nominal Voltage 230V default (200/208/220/230/240/250V) Nominal Frequency 50/60 Hz Input Power Factor >.99 Input Voltage Range 190-276 Vac without derating (up to 120-276 Vac with derating) Input Frequency Range 40-70 Hz Includes Network Card No Communication USB port (HID compliant), Serial port (RS232), Mini-terminal block for remote power off, Mini-terminal block for output relay, Dry contacts (2 outputs, 1 input, optocoupler, DB9) Ethernet Interface No User Interface Multilingual graphical LCD display Potential Free Switch Contact Yes Expansion Slots One slot for optional communication card Software Compatibility Eaton Intelligent Power Manager, Eaton Intelligent Power Protector Type of Interface Other Altitude 3000 m Noise Level <43 dB at 1 meter Temperature Range 0° to 40°C (32° to 104°F) Relative Humidity 0-96% non-condensing Construction Type Free standing model Package Contents UPS, (2) IEC-IEC output cables, USB cable, Serial cable, Safety instructions, Quickstart guide, BS input cord Phase (Output) 1 Internal Bypass Yes Auto Shutdown Function Yes Color Black Efficiency 91.8% Rack Mounting Kit No Phase (Input) 1 Hot Swap Power No -
