Eaton 9PX 2U 2200W/2200VA Desktop/Rackmount UPS Uninterruptible Power Supply
Eaton 9PX2200IRT2UBS 9PX 2U Desktop/Rackmount UPS

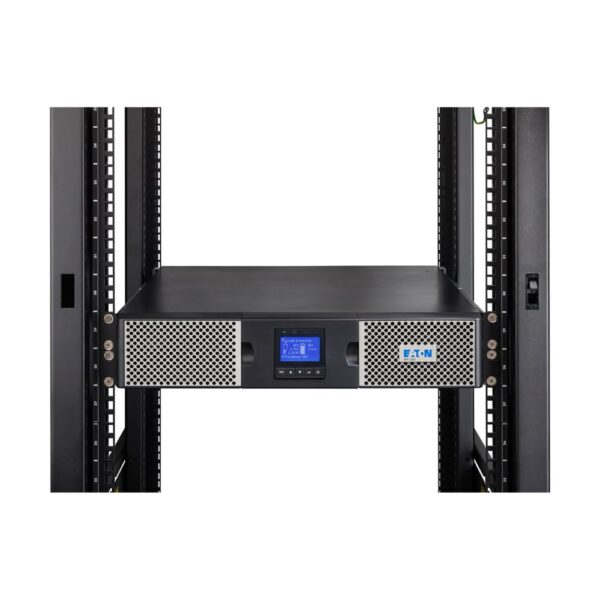

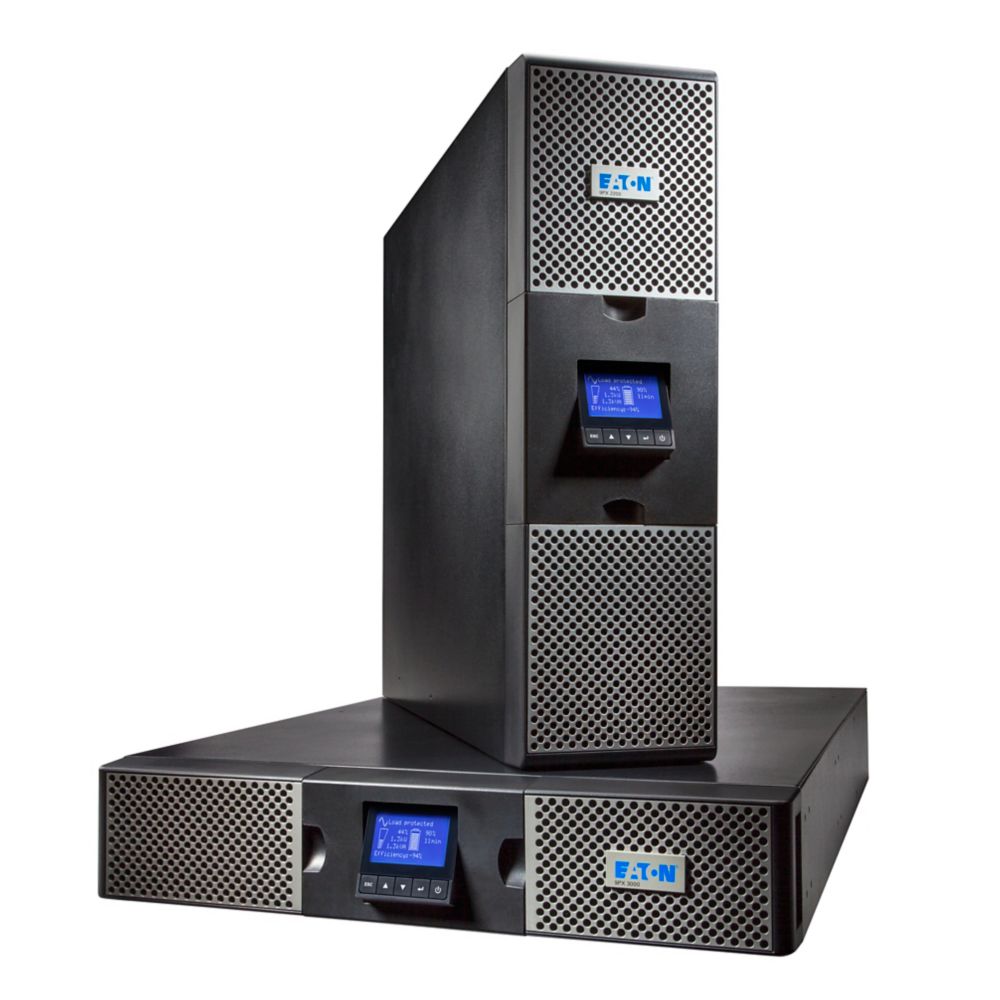

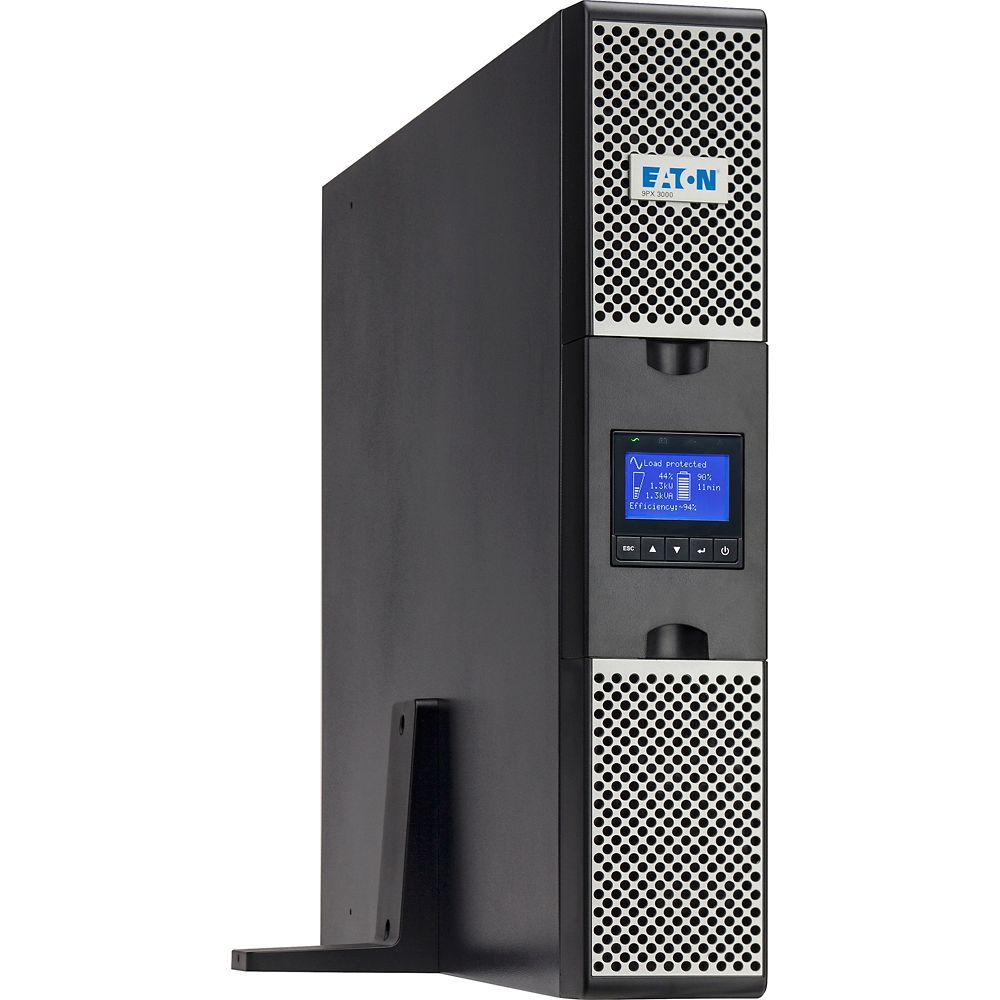

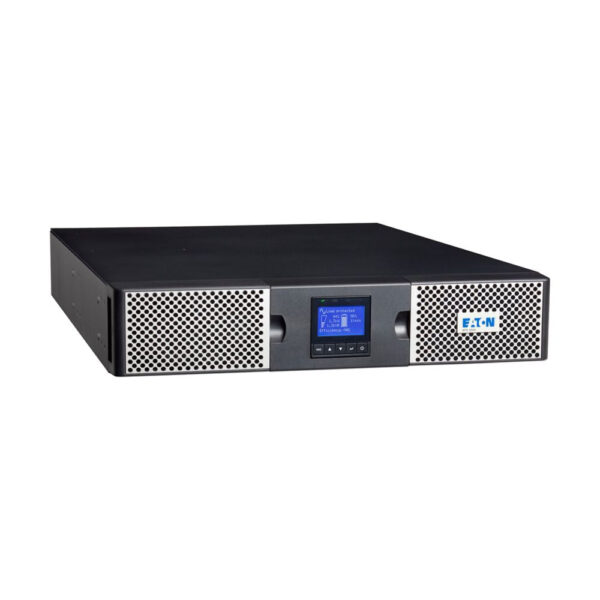

The Eaton 9PX2200IRT2UBS 9PX 2U Desktop/Rackmount Uninterruptible Power Supply provides Unity power factor (VA=W). It delivers 11% more power than any other UPS as well as powering more servers with equivalent VA ratings and lower power factors. Featuring double conversion topology, the Eaton 9PX2200IRT2UBS 9PX constantly monitors power conditions and regulates voltage and frequency. Additionally, with a versatile Rack/Tower form factor, the 9PX2200IRT2UBS is a compact solution delivering up to 2200W in only 2U.Key Features
Comes with rackmount kit.
Online double conversion with Power Factor Correction (PFC) system.
Graphical LCD display: Clear information on UPS status and measurements with enhanced configuration capabilities.
Panel for batteries replacement (hot swappable).
One (1) USB port, one (1) serial port, remote ON/OFF, remote power OFF and relay output.
External battery (EBM) connector (external batteries sold separately).
Eight (8) C13 outlets and two (2) C19 outlets.Manageability
The graphical LCD display provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.
The 9PX2200IRT2UBS can meter energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
Load segment control enables prioritised shutdowns of non-essential equipment to maximise battery runtime for critical devices.
The 9PX2200IRT2UBS offers Serial and USB connectivity, plus an extra slot for an optional communication card (sold separately, see accessories tab). Eaton’s Intelligent Power Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.Availability and Flexibility
The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available for easy replacement of the UPS.
Stronger, longer battery life: Eaton ABM battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%.
More runtime can be added with up to four (4) external hot-swappable battery modules (sold separately), able to run systems for hours if necessary. -
Category Details General Device Type UPS – Power Factor Correction (PFC) – rack-mountable / external Height (Rack Units) 2U Rack Size 19″ Colour Black/silver Power Device UPS Technology On-line Input Voltage AC 200/208/220/230/240 V Input Voltage Range AC 176 – 276 V Frequency Provided 50/60 Hz Input Wiring 1-phase Frequency Required 40 – 70 Hz Input Connectors 1 x power IEC 60320 C14 Power Output Connectors Details 8 x power IEC 60320 C13 10A<br>2 x power IEC 60320 C19 16A Output Voltage AC 200/208/220/230/240 V ± 1% – 50/60 Hz Power Capacity 2200 Watt / 2200 VA Output Waveform Sinewave Efficiency 93.5%, 98% hi-efficiency mode Power Factor (PF) 0.99 Battery Quantity 6 Technology Lead Acid Voltage Provided 12 V Capacity 7 Ah Networking Remote Management Interface RS-232, USB Expansion / Connectivity Interfaces 1 x management (USB)<br>1 x management (RS-232)<br>1 x remote power (on/off) – terminal block<br>1 x relay output – terminal block<br>3 x dry contact output<br>1 x dry contact input Expansion Slots 1 (total) / 1 (free) x Expansion Slot Miscellaneous Included Accessories 2 mounting brackets, BS input cord Cables Included 2 x power cable (IEC) – external<br>USB cable – external<br>Serial cable – external Rack Mounting Kit Included Features LCD display, internal bypass, automatic shut down Compliant Standards FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1 Software / System Requirements Software Included Intelligent Power Manager, Eaton Intelligent Power Protector Environmental Standards ENERGY STAR Yes Manufacturer Warranty Service & Support Limited warranty – 3 years<br>Limited warranty – batteries – 2 years Environmental Parameters Min Operating Temperature 0 °C Max Operating Temperature 40 °C Humidity Range Operating 0 – 95% (non-condensing) Sound Emission 40 dB Dimensions & Weight Width 44 cm Depth 60.5 cm Height 8.65 cm Weight 25 kg - Eaton 9PX 2U 2200W/2200VA Desktop/Rackmount UPS Uninterruptible Power Supply DataSheet Downloads
