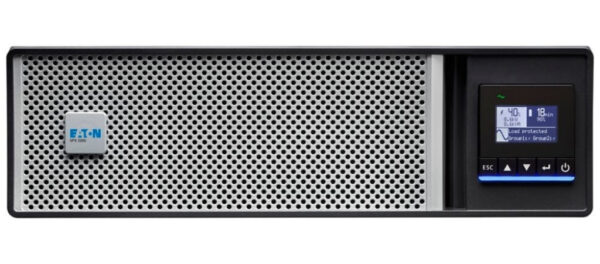

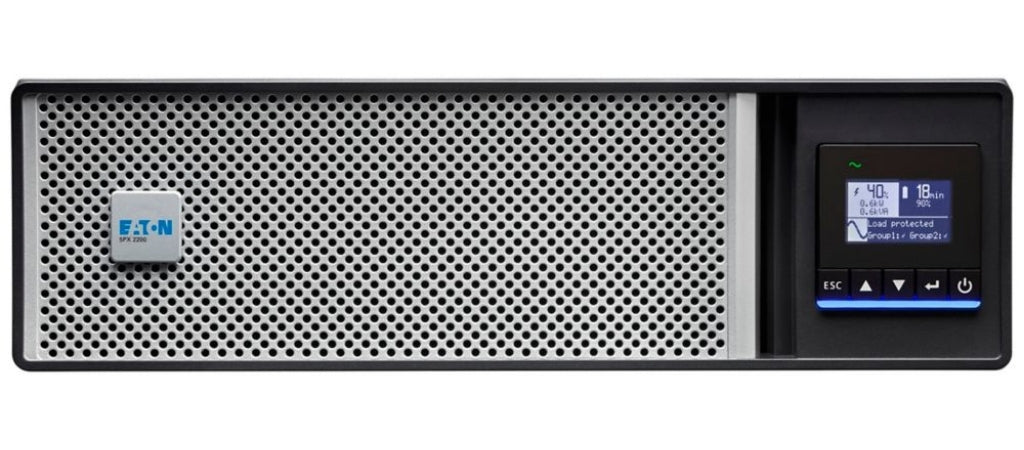

Eaton 5PX Gen2 3U 2200W/2200VA Desktop/Rackmount UPS Uninterruptible Power Supply – 5PX2200IRT3UG2BS
- Description
- Specifications
- Downloads
-
Eaton 5PX Gen2 3U 2200W/2200VA Desktop/Rackmount UPS Uninterruptible Power Supply
The Eaton 5PX2200IRT3UG2BS 5PX Gen2 3U Desktop/Rackmount Uninterruptible Power Supply provides Enterprise Networks and Edge IT equipment with best-in-class line-interactive power protection, maximising IT space and Service Continuity. The Eaton 5PX2200IRT3UG2BS offers powerful tools to monitor remotely, integrate with IT architecture and remotely deploy/maintain large installed UPS deployments.
Key Features
Includes rackmount kit.
Eight (8) IEC C13 and two (2) C19 output connections.
Features one (1) slot for network management card (sold separately).
Automatic Voltage Regulation (AVR).
Energy efficient, reduces energy and cooling costs.
Delivers clean sinewave output.
Provides more real power (watts) to protect more equipment with a Unity power factor (VA=W).
LCD display for real-time status and measurements.
Long backup time with up to four (4) optional EBM (sold separately, see accessories tab.)
Meter energy consumption (down to the managed outlet groups).
Versatile design for rack or tower installation.
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat).
Features one (1) USB port and one (1) serial port.Ease of Operation
The innovative graphical LCD display makes configuration of the 5PX2200IRT3UG2BS easy and intuitive. The UPS offers an easy start-up configuration wizard to simplify your UPS setup process. Remote management and firmware upgrades are available with an Eaton NETWORK-M2 Gigabit network management card (sold separately). Advanced battery management and hot-swappable battery enables ease of maintenance and flexibility.Efficiency
The 5PX2200IRT3UG2BS delivers 11% more power to connected servers than other UPS thanks to its unity power factor capability. It is Energy Star 2.0 certified for maximum efficiency across the full operating range. Energy is metered for each individual outlet group and is visible directly on the display and through Eaton’s Intelligent Power Manager.Secure and Resilient
Prioritise connected devices for maximum uptime of essential services. Easily manage power switching and disaster recovery with load segment control. Advanced virtualisation capabilities make the Eaton 5PX2200IRT3UG2BS perfect for Enterprise and Edge IT applications. -
Category Details Design Certification IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm Display type LCD Safety IEC/EN 62040-1, UL1778, CSA22.2 Rack capacity 3U LED indicators Yes Product colour Black Form factor Rackmount/Tower Weight & Dimensions Depth 483 mm Height 129 mm Width 438 mm Weight 27.5 kg Features Output power capacity 2200 kVA Input operation voltage (min) 160 V UPS topology Line-Interactive Input frequency 47/70 Hz Input operation voltage (max) 294 V Waveform Pure sine Output power 2200 W Noise level 40 dB Power protection features Overdischarge Technical Details Sustainability compliance Yes Sustainability certificates CE, ENERGY STAR Other Features Nominal output voltage 230 V Output connections 8 x IEC C13 (10A) 2 x IEC C19 (16A) Ports & Interfaces USB port Yes Serial ports quantity 1 AC outlet types C13 coupler, C19 coupler Serial interface Yes Power plug C20 coupler Serial interface type RS-232 Operational Conditions Operating temperature (T-T) 0 – 40 °C Battery Automatic battery test Yes Hot-swap battery Yes Logistics Data Harmonized System (HS) code 85078000 Packaging Data Management card included No - Eaton 5PX Gen2 3U 2200W/2200VA Desktop/Rackmount UPS User Manual Downloads
