Eaton 5P 770W/1150VA Desktop UPS Uninterruptible Power Supply
The Eaton 5P1150IBS 5P Desktop Uninterruptible Power Supply is an energy efficient line-interactive UPS with advanced LCD and energy metering features.
Key Features
Graphical LCD display
Meter energy consumption providing kWh values through the LCD and Eaton’s power management software
Load segment control enables prioritised shutdowns of non-essential equipment during outages
Serial and USB connectivity, plus an extra slot for an optional communication card (including SNMP/ Web card or relay contact card, sold separately)
Provides up to 97% efficiency, reducing cooling and utility costs
When operating in battery mode the 5P1150IBS provides a high quality output signal for any sensitive equipment connected
Eaton ABM battery management technology uses an innovative three-stage charging technique that extends batteries by up to 50%.
Batteries can be hot-swapped without ever having to shut down connected equipmentAdjustable tolerance and sensitivity
Manageability

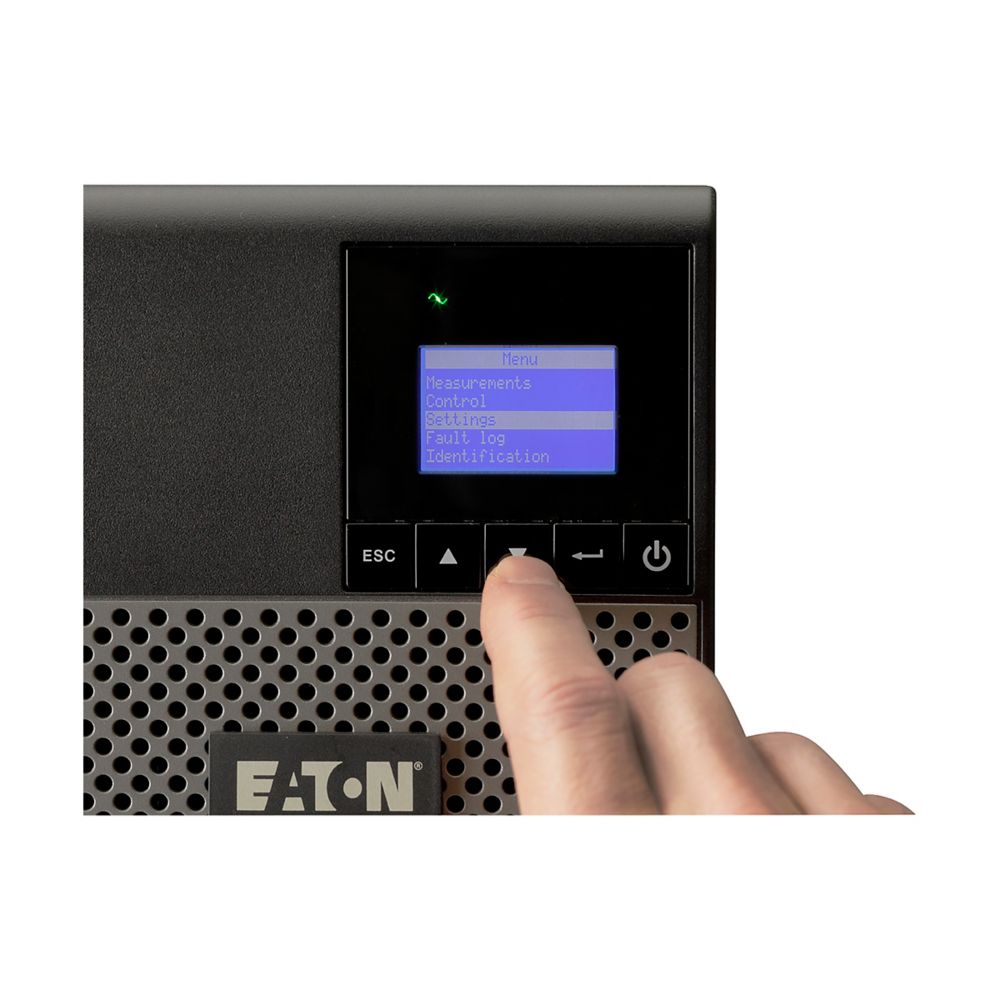

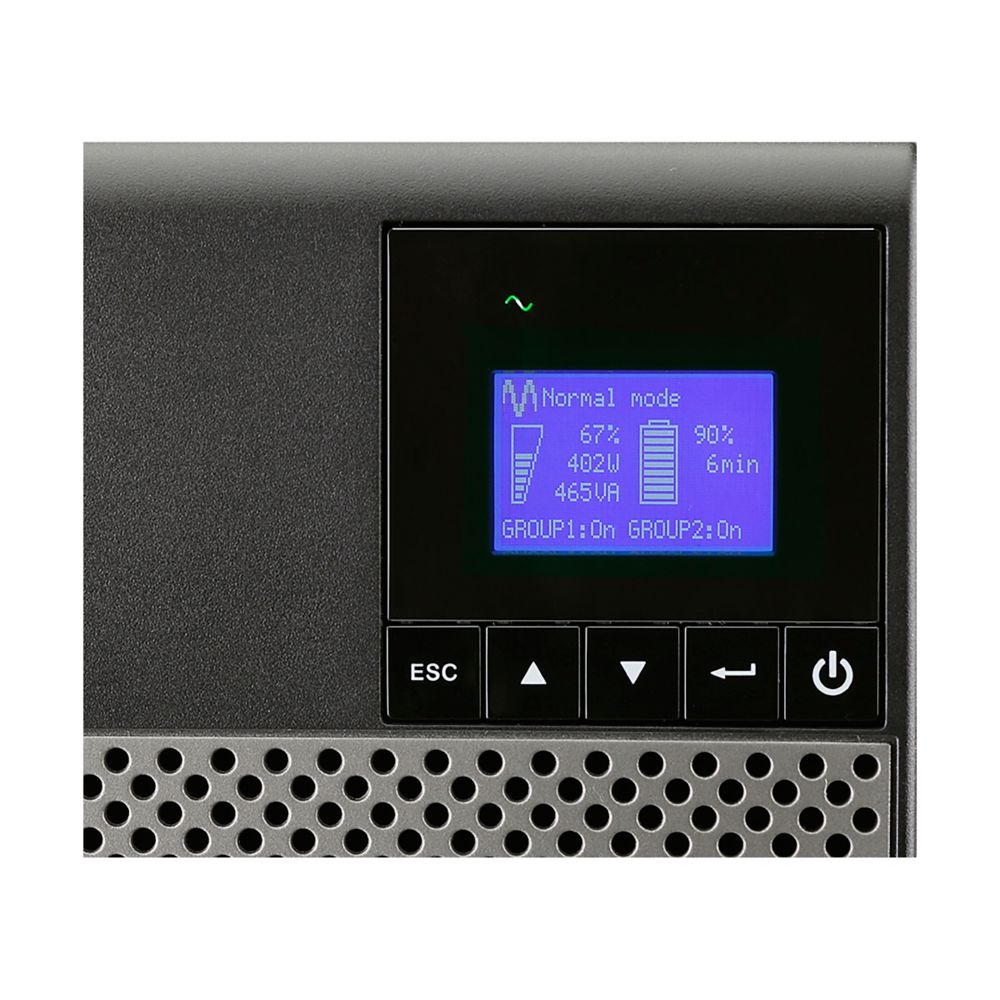

Graphical LCD display
Provides clear information on the UPS’s status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys.
Meter energy consumption
Providing kWh values through the LCD and Eaton’s power management software.
Load segment control
Enables prioritised shutdowns of non-essential equipment during outages in order to maximise battery runtime for critical devices. Load segment control can also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups.
Serial and USB connectivity
Plus an extra slot for an optional communication card (including SNMP/ Web card or relay contact card, sold separately). Eaton’s Intelligent Power Software Suite compatible with all major OS including virtualisation software such as VMware and Hyper-V is included with each UPS.Performance and Efficiency
Energy efficient UPS
With an optimised electrical design, the 5P1150IBS provides up to 97% efficiency, reducing cooling and utility costs.
Pure sinewave output
When operating in battery mode the 5P1150IBS provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
Adjustable tolerance and sensitivity
Users can maximise useful battery life by widening the input voltage window or adjustable input waveform sensitivity (via the LCD or software) to adapt the UPS to a specific environment (like Genset).Availability and Flexibility
Stronger, longer battery life
Eaton ABM battery management technology uses an innovative three-stage charging technique that extends batteries by up to 50%.
Hot-swappable batteries
Batteries can be hot-swapped without ever having to shut down connected equipment. With an optional, hot-swap maintenance bypass module, you can even replace the entire UPS. -
General Device Type UPS – external Colour Black, silver Power Device UPS Technology Line interactive Input Voltage AC 200/208/220/230/240 V Input Voltage Range AC 160 – 294 V Input Voltage Range (Adjustable) AC 150 – 294 V Frequency Provided 50/60 Hz Frequency Required 47 – 70 Hz Input Connectors 1 x power IEC 60320 C14 Power Output Connectors Details 8 x power IEC 60320 C13 Output Voltage AC 200/208/220/230/240 V + 6% / – 10% – 50/60 Hz Max Electric Current 10 A Power Capacity 770 Watt / 1150 VA Output Waveform Sinewave Efficiency 97% Battery Quantity 2 Technology Lead Acid Voltage Provided 12 V Capacity 9 Ah Features Maintenance free Networking Remote Management Interface RS-232, USB Expansion / Connectivity Interfaces 1 x management (RS-232) – RJ-45 1 x management (USB) – 4 pin USB Type B Expansion Slots 1 (total) / 1 (free) x Communication slot Miscellaneous Included Accessories BS cord 10A Cables Included USB cable – external Serial cable – external 2 x power cable (IEC) – external Features Advance Battery Management (ABM), LCD display, Automatic Voltage Regulation (AVR), remote ON/OFF function, automatic shut down, hot-swappable batteries Compliant Standards TUV, UL 1778, IEC 62040-2, cTUVus, EN 62040-2, EAC, IEC 62040-1, EN 62040-1 Manufacturer Warranty Service & Support Limited warranty – electrical components and functions – 3 years Limited warranty – batteries – 2 years Environmental Parameters Humidity Range Operating 0 – 90% (non-condensing) Sound Emission 40 dB Dimensions & Weight Width 23 cm Depth 43 cm Height 33 cm Weight 11 kg - Eaton 5P 770W/1150VA Desktop UPS Uninterruptible Power Supply DataSheet Downloads
