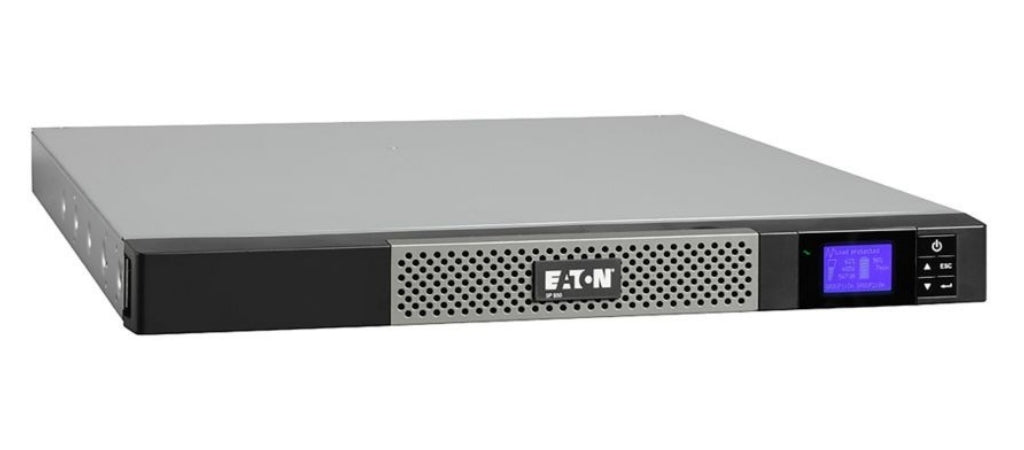

Eaton 5P 1U 770W/1150VA Rackmount UPS Uninterruptible Power Supply
Manageability

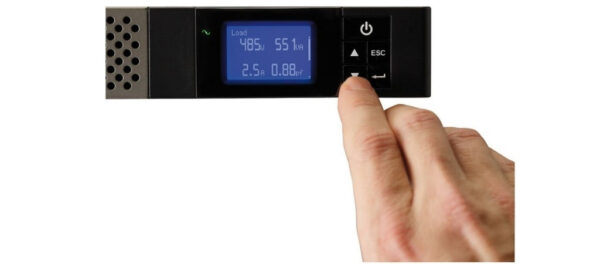

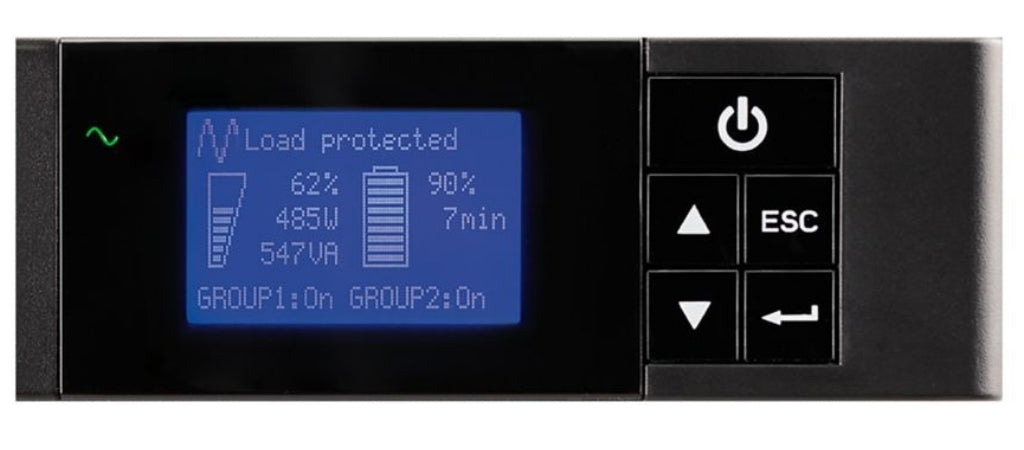

The graphical LCD display provides clear information on the UPS’s status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys. Load segment control enables prioritized shutdowns of nonessential equipment during outages in order to maximize battery runtime for critical devices. Load segment control can also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups.Performance and efficiency
Energy efficient UPS:with an optimized electrical design, the 5P provides up to 98% efficiency, reducing cooling and utility costs.Pure sinewave output
When operating in battery mode, the 5P provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.Adjustable tolerance and sensitivity
Users can maximize useful battery life by widening the input voltage window or adjustable input waveform sensitivity (via the LCD or software) to adapt the UPS to a specific environment (like Genset).Stronger, longer battery life

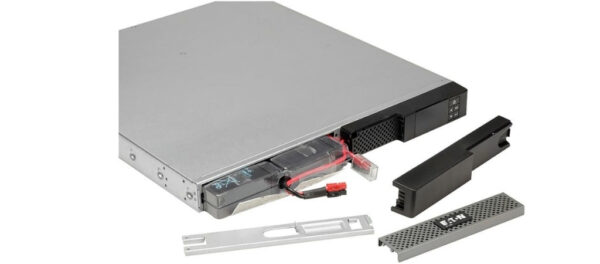

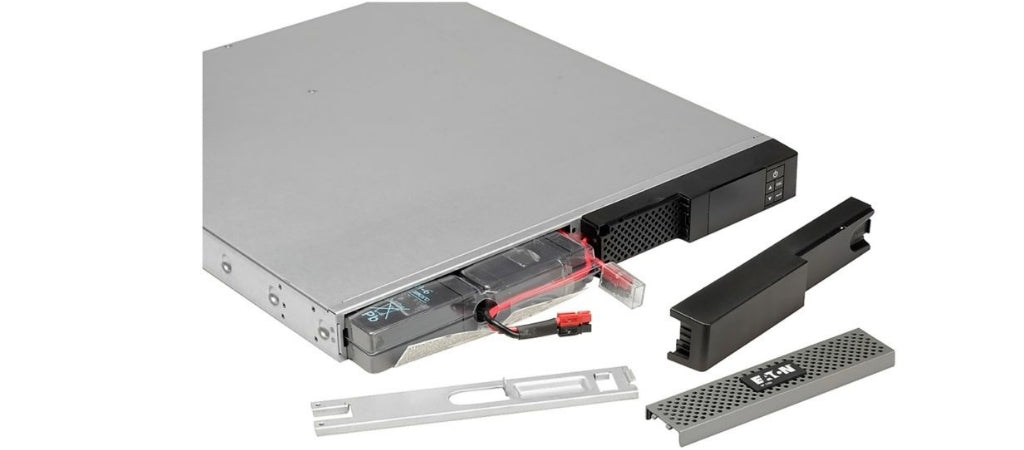

Eaton ABM battery management technology uses an innovative three-stage charging technique that extends batteries by up to 50%. -
General Information Product Type Line-interactive UPS Manufacturer Part Number 5P1150IRBS Manufacturer Website Eaton Power Quality Manufacturer Eaton Corporation Product Name 5P 1150VA Rack-mountable Line-interactive UPS Product Series 5P Brand Name Eaton Physical Characteristics Weight (Approximate) 11 kg Form Factor Rack-mountable Rack Height 1U Height 160 mm Width 600 mm Depth 540 mm Color Family Multicolor Battery Information Battery Chemistry Lead Acid Hot Swappable Yes Battery Capacity 9000 mAh Number of Batteries 2 Backup/Run Time (Half Load) 11.50 Minute Backup/Run Time (Full Load) 4 Minute Battery Characteristics Maintenance-free Replaceable Battery Yes DC System Voltage 12 V DC Power Description Input Voltage 230 V AC Output Voltage 200 V AC, 208 V AC, 230 V AC, 220 V AC, 240 V AC Waveform Type Sine Wave Input Voltage Range 160 V – 294 V Output Frequency 60 Hz Input Frequency 70 Hz Load Capacity (VA) 1.15 kVA Interfaces/Ports Serial Port Yes USB (HID Compliant) Port Yes Warranty Additional Warranty Information 2 years on battery Limited Warranty 3 Years Controls/Indicators Status Indicators Multilingual graphical LCD display Miscellaneous Package Contents 5P 1150VA Rack-mountable Line-interactive UPS, Rack-mounting Kit, Cable Locking System, USB Cable, Serial Cable, 2 x IEC-IEC Cables, Quickstart Guide, Safety Instructions, BS Input Cord - Eaton 5P 1U 770W/1150VA Rackmount UPS Uninterruptible Power Supply User Manual Downloads
