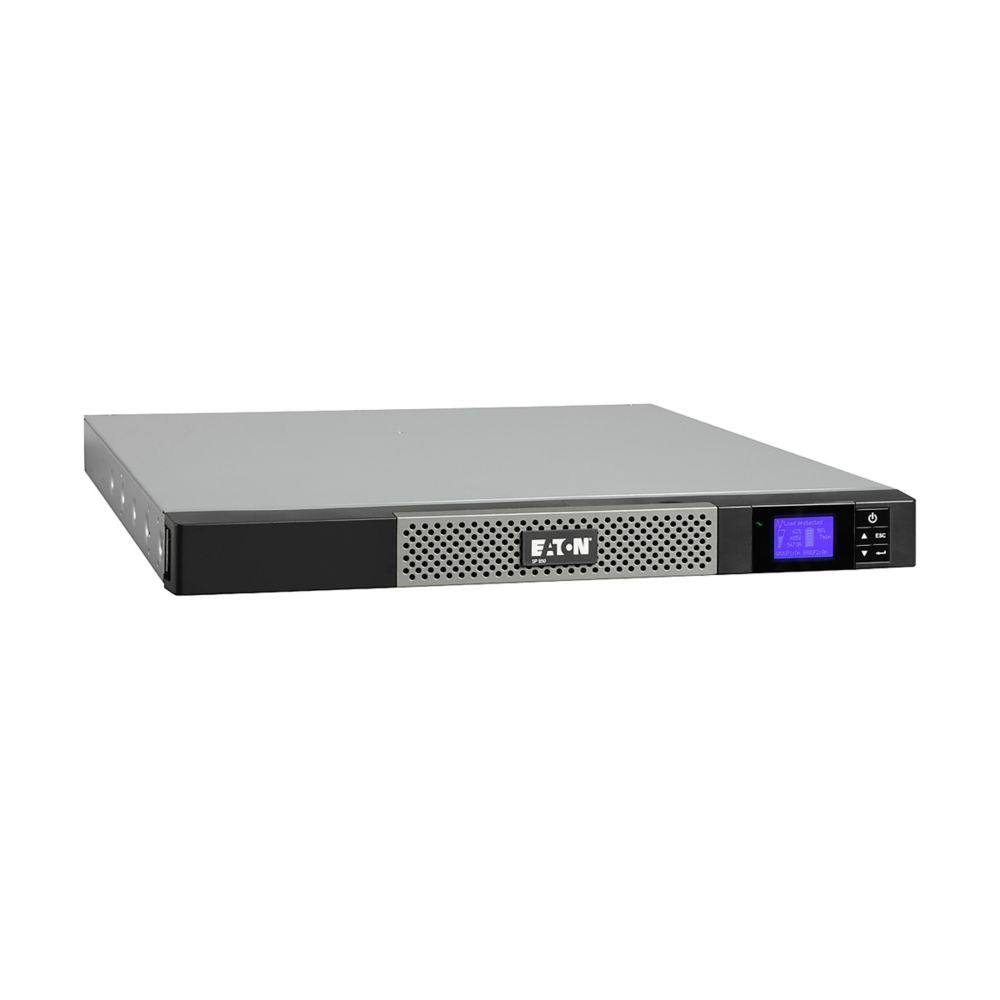

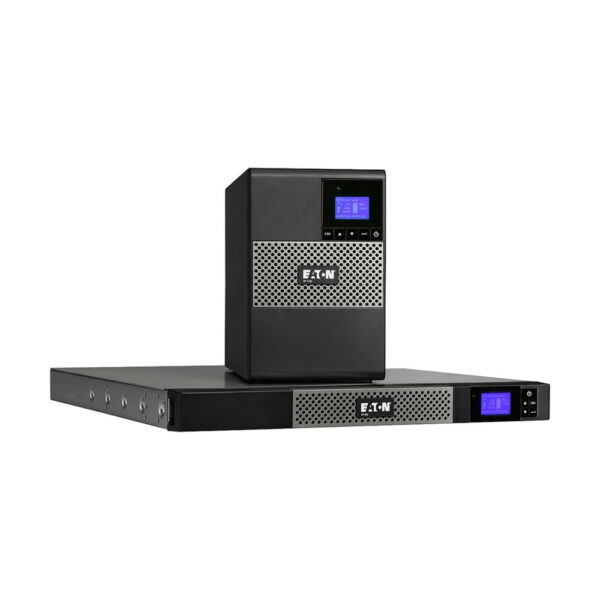

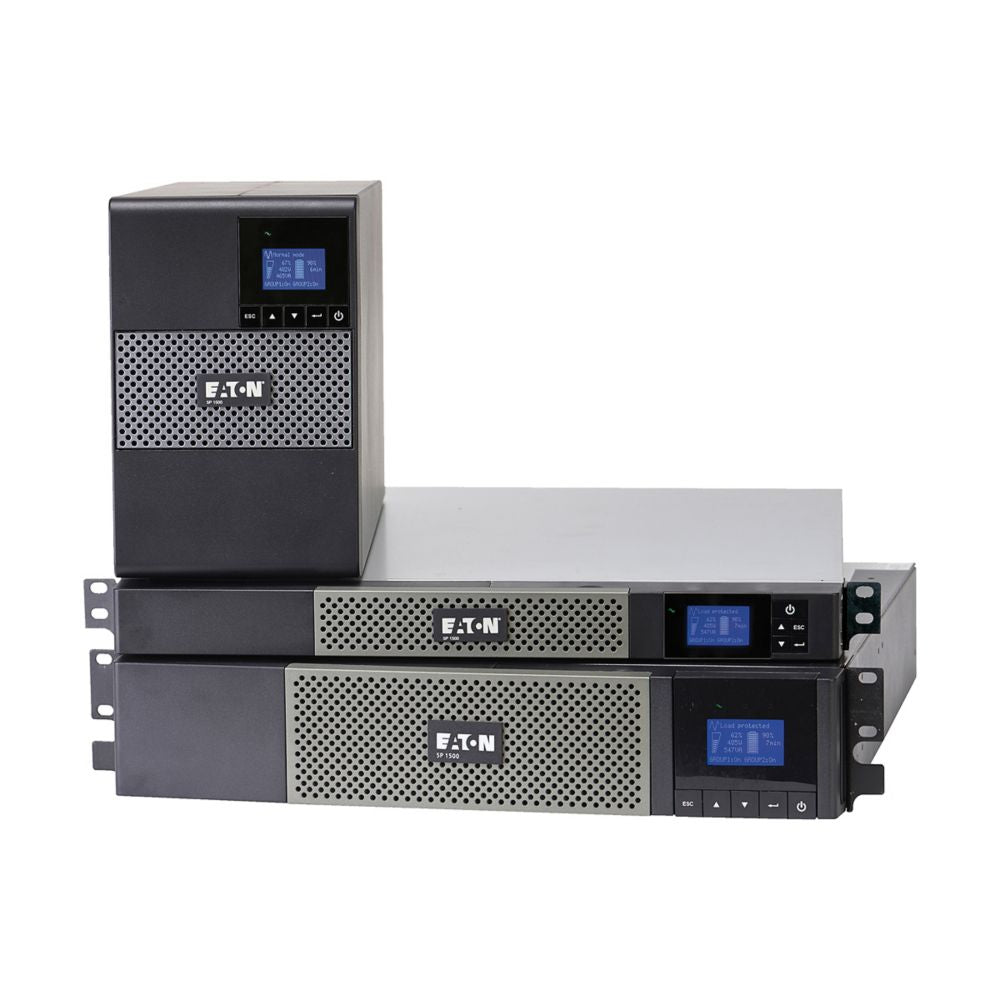

Eaton 5P 1550i VA Rack 1U Rackmount UPS Uninterruptible Power Supply – 5P1550IRBS
- Description
- Specifications
- Downloads
-
Eaton 5P 1550i VA Rack 1U Rackmount UPS Uninterruptible Power Supply
Manageability

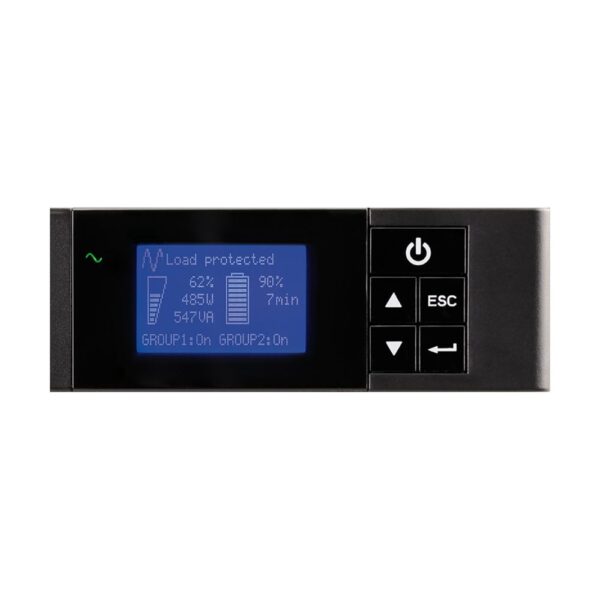

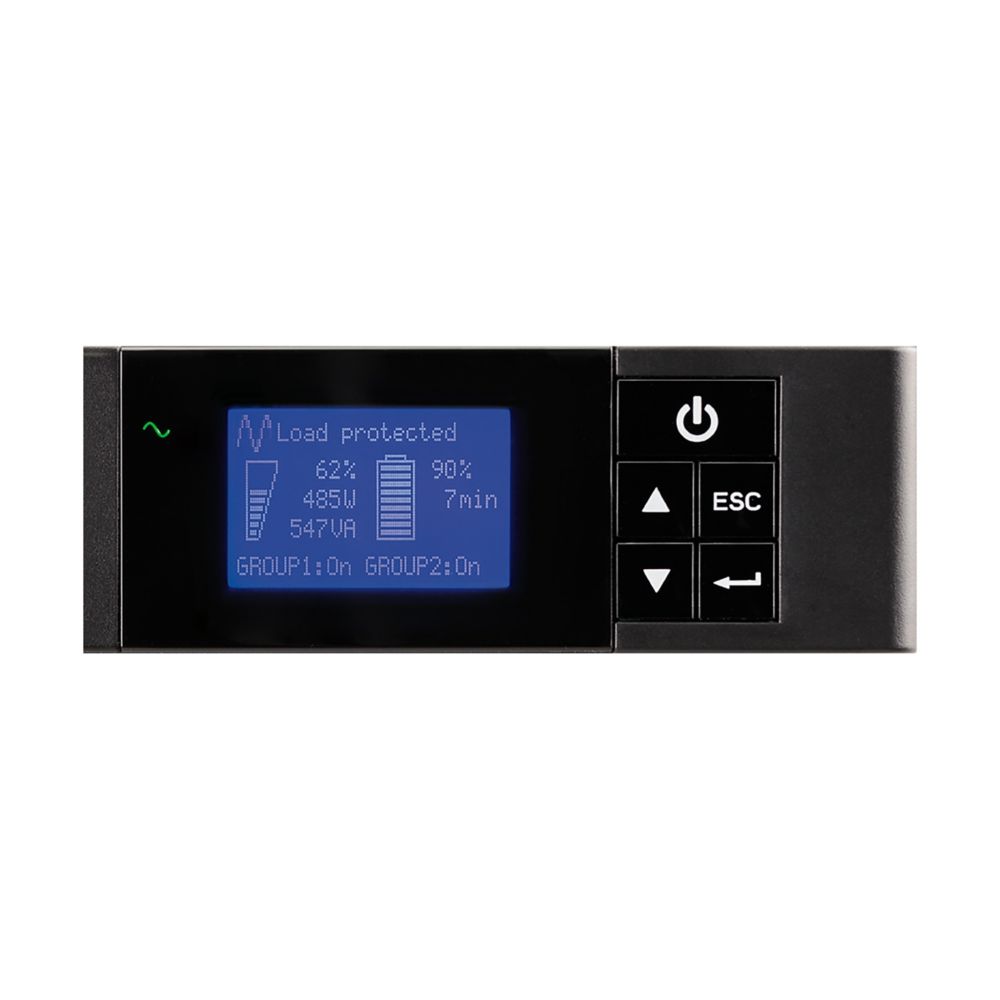

The graphical LCD display provides clear information on the UPS’s status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys. Load segment control enables prioritized shutdowns of nonessential equipment during outages in order to maximize battery runtime for critical devices. Load segment control can also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups.Performance and efficiency
Energy efficient UPS:with an optimized electrical design, the 5P provides up to 98% efficiency, reducing cooling and utility costs.Pure sinewave output
When operating in battery mode, the 5P provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.Adjustable tolerance and sensitivity
Users can maximize useful battery life by widening the input voltage window or adjustable input waveform sensitivity (via the LCD or software) to adapt the UPS to a specific environment (like Genset).Stronger, longer battery life
Eaton ABM battery management technology uses an innovative three-stage charging technique that extends batteries by up to 50%. -
Category Details General Device Type UPS – rack-mountable Height (Rack Units) 1U Rack Size 19″ Colour Black, silver Power Device UPS Technology Line interactive Input Voltage AC 200/208/220/230/240 V Input Voltage Range AC 160 – 294 V Input Voltage Range (Adjustable) AC 150 – 294 V Frequency Provided 50/60 Hz Frequency Required 47 – 70 Hz Input Connectors 1 x power IEC 60320 C14 Power Output Connectors Details 6 x power IEC 60320 C13 Output Voltage AC 200/208/220/230/240 V + 6% / – 10% – 50/60 Hz Max Electric Current 10 A Power Capacity 1100 Watt / 1550 VA Output Waveform Sinewave Efficiency 97% Battery Quantity 3 Technology Lead Acid Voltage Provided 12 V Capacity 9 Ah Run Time (Up To) 4 min at full load 8 min at 70% load 13 min at 50% load Features Maintenance free Networking Remote Management Interface RS-232, USB Expansion / Connectivity Interfaces 1 x management (RS-232) – RJ-45 1 x management (USB) – 4 pin USB Type B Expansion Slots 1 (total) / 1 (free) x Communication slot Miscellaneous Included Accessories BS cord 10A Cables Included USB cable – external Serial cable – external 2 x power cable (IEC) – external Features Advance Battery Management (ABM), LCD display, Automatic Voltage Regulation (AVR), remote ON/OFF function, automatic shut down, hot-swappable batteries Compliant Standards TUV, UL 1778, IEC 62040-2, cTUVus, EN 62040-2, EAC, IEC 62040-1, EN 62040-1 Manufacturer Warranty Service & Support Limited warranty – electrical components and functions – 3 years Limited warranty – batteries – 2 years Environmental Parameters Min Operating Temperature 0 °C Max Operating Temperature 35 °C Humidity Range Operating 0 – 90% (non-condensing) Sound Emission 40 dB Dimensions & Weight Width 43.8 cm Depth 55.4 cm Height 4.32 cm Weight 19.4 kg - Eaton 5P 1550i VA Rack 1U Rackmount UPS Uninterruptible Power Supply DataSheet Downloads
