DynaScan DS861LR4 86” 3500 nits 4K UHD High Brightness Display

DynaScan DS861LR4

86” 3500 nits 4K UHD High Brightness Display

• Description
• Specifications
• Warranty
• Download

• Ultra High Brightness LCDs

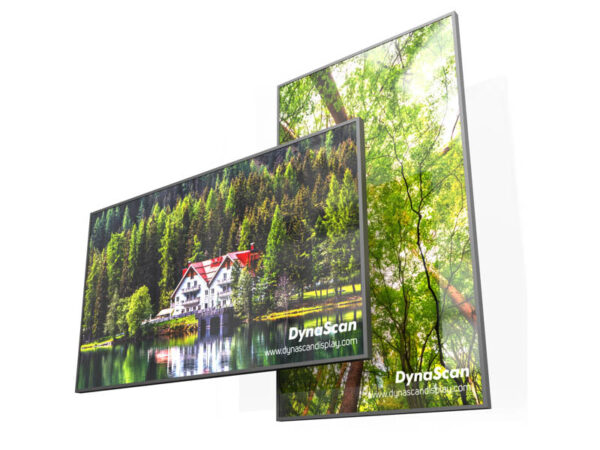

  Measuring 86 inches, the DS861LR4 is the largest high-brightness professional LCD offering from DynaScan. The display features 4K UHD resolution with a high brightness LED backlight producing a 3500 nits sunlight-viewable image. Designed for large-scale display applications in bright environments such as outdoor enclosures and storefront windows, each screen is TrueColor™ calibrated for remarkable color reproduction.



  SUNLIGHT VIEWABLE IMAGE

  LOCAL DIMMING LED BACKLIGHT

  4K UHD RESOLUTION

  TRUECOLOR™ CALIBRATED

  BUILT-IN MEDIA PLAYER

  INTEL® SDM READY

  Sunlight Viewable
  Designed for large-scale display applications in bright environments such as outdoor enclosures and storefront windows, the DS861LR4 features a high-brightness LED backlight producing a 3500 nits sunlight-viewable image.

  TrueColor™ Calibrated
  Each screen is individually color-calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true, natural white, but also accurately reproduces brand colors, skin tones, and colorways.

  Auto Brightness Control
  Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.

  Ultra HD 4K Resolution
  With 4K Ultra HD resolution, the DS861LR4 provides a super sharp image for easy-to-read text and incredible detail.

  Built-In Media Player
  An integrated Android™ media player with wireless connectivity offers users the freedom to select from the array of various media software solutions on the market or use the bundled DynaScan DSM365 application for local video playback, playlist creation, and content scheduling.

  Intel® SDM Ready
  An Intel® SDM slot to accept an Intel® Smart Display Module (sold separately). Supporting a variety of modern x64 operating systems, Intel® SDM delivers the same level of intelligence and interoperability as the Open Pluggable Specification, but in a smaller form factor. Compatible with both the Intel® Small (Intel® SDM–S) and Intel® SDM Large (Intel® SDM–L) form factors.

• PANEL
  LCD Panel Size	85.6″
  Native Resolution	3840 x 2160
  Brightness	3500 nits
  Color Depth	10 bits
  Contrast Ratio	3000:1
  Response Time (Typ.)	8 ms
  Viewing Angle	178° / 178°
  Light Life Time (Typ.)	100,000 hrs
  Blackening Defect Free	Up to 110°C (230°F)
  Polarized Sunglass Support	Yes

  POWER
  Power Supply	Internal
  Rated Voltage	100 ~ 240 V, 50 Hz / 60 Hz
  Power On Mode (Typ./ Max)	750 W / 1300 W
  Power Saving Mode	< 1 W

  MECHANICAL SPECS
  Bezel Width (T/B/L/R)	Even Bezel 17.8 mm
  Cabinet Color	Black
  Dimension (LxHxD)	1935.8 x 1106.8 x 79.0 mm
  Monitor Weight	77 kg
  Orientation	Portrait / Landscape
  VESA Mounting	600 x 400 mm
  Carrying Handles	Yes

  USER INTERFACE
  Language	English
  Support SNMP (Up to V3.0)	Yes
  Image Retention Proof	Yes
  Auto Orientation Sensor	Yes
  Ambient Light Sensor	Yes
  Power On/Off Scheduling	Yes
  OSD Menu Rotation	Yes

  EXPANSION SLOT FOR INTEL® SDM
  SDM Slot	SDM-S (support with DynaScan extended board) & SDM-L Compatible (Not included)
  Power Support	Up to 45 W

  INPUT
  HDMI 2.1 (HDCP 2.3)	x2 (2160p)
  DisplayPort 1.2	x1
  USB 3.0	x1
  Micro SD Slot	x1

  OUTPUT
  Audio	x1

  EXTERNAL CONTROL
  RS-232	In x1
  RJ-45	x2 (LAN)
  ETK Port (Thermal)	x1
  ESK Port (IR, Ambient)	x1

  INTERNAL PLAYER
  Operating System	Android 8.0
  Processor	Dual-core A73 and dual-core A53
  Clock Speed	1.5 GHz
  Main Memory Interface	DDR4, 2G
  Storage	Internal: 16GB eMMC Flash External: Support Micro SD, 128GB(FAT32)
  Multimedia	4K 10bits VP9/H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8)
  Wireless Function	Yes

  ENVIRONMENT
  Operating Temperature	0° C ~ 45° C
  Storage Temperature	-20° C ~ 60° C
  Humidity	10% ~ 80% RH Non-condensing

  CERTIFICATION
  CE	Yes
  FCC	Yes
  RoHS	Yes

• DynaScan’s warranty obligations are limited to the terms set forth below:

  DynaScan warrants its professional LCD display product delivered new to the original purchaser against defects in materials and workmanship for THREE (3) YEARS from the date of original purchase.

  If a product is found to be defective in material and workmanship during the Limited Warranty Period, DynaScan will, at its sole option, (a) repair the product at no charge with new or reconditioned parts, or (b) replace the product with a functionally equivalent product. A replacement part or product assumes the remaining warranty of the original part or product, or NINETY (90) DAYS from the date of replacement or repair, whichever provides a longer coverage. When a part or product is replaced, any replacement item becomes your property and the replaced item becomes DynaScan’s property.
