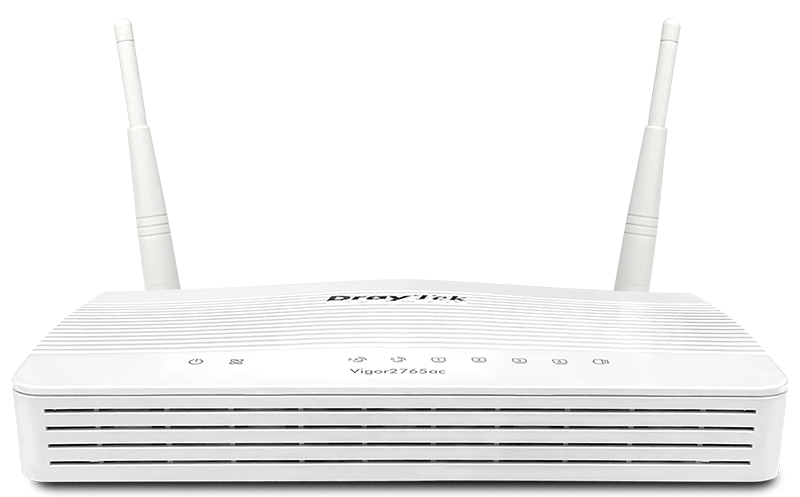

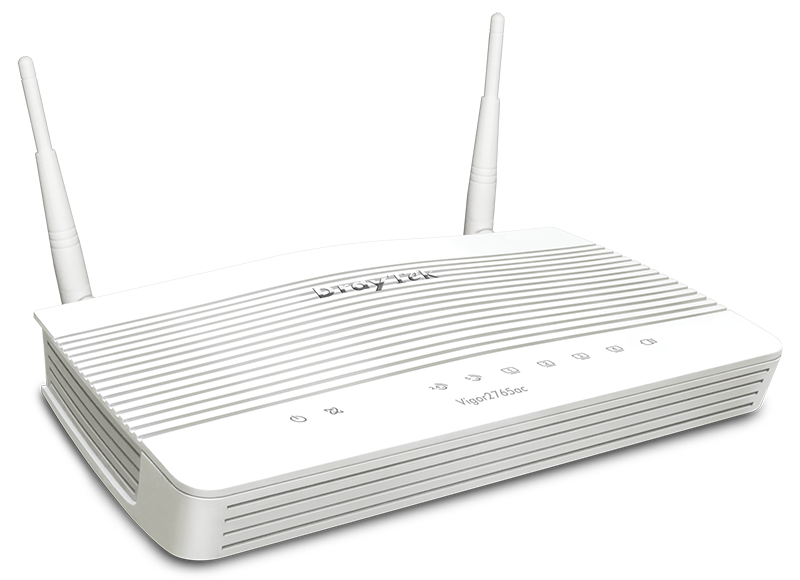

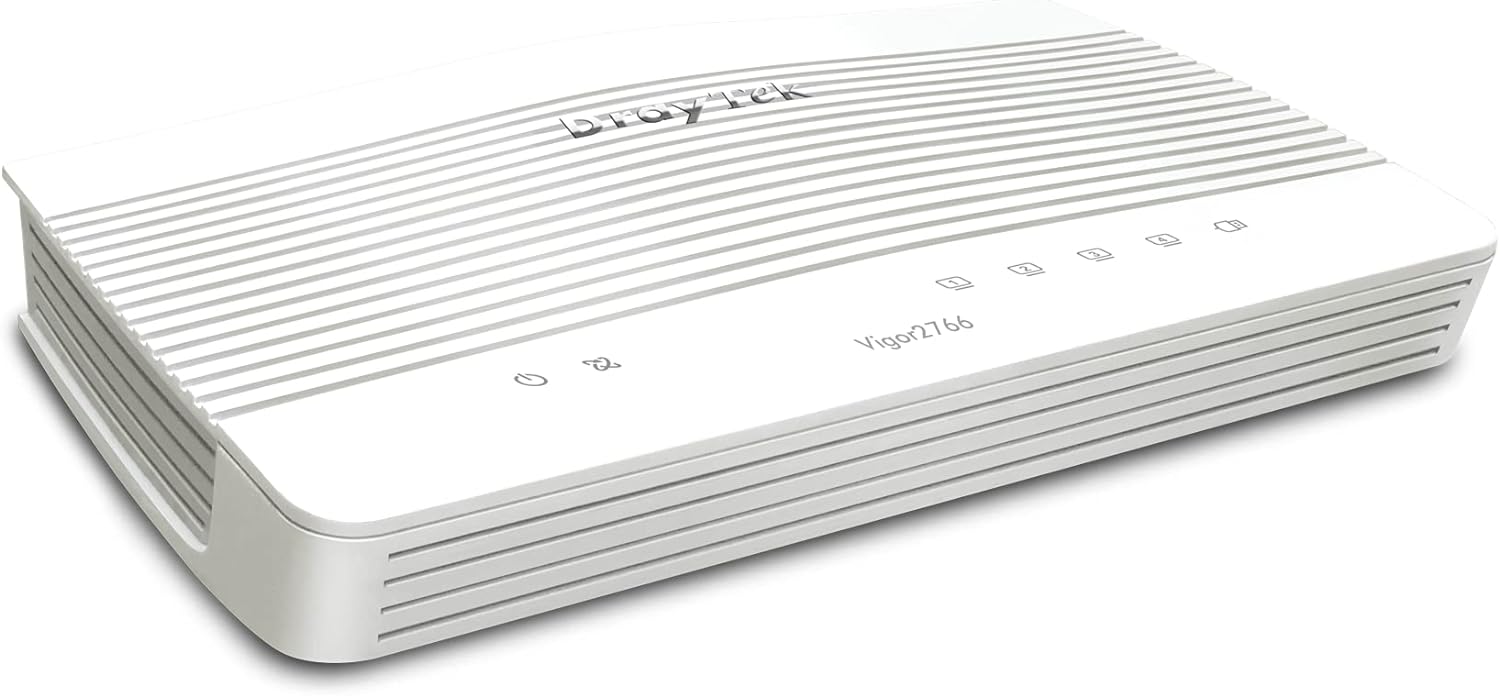

DrayTek Vigor Triple-WAN G.Fast/VDSL2/ADSL2+ WiFi 5 Router
The Ideal SoHo VPN Router for G.Fast, VDSL and Gigabit Fibre
The Vigor 2766 series is DrayTek’s G.Fast / VDSL and Ethernet router that is ideal for Small Office and Home Office networks. Featuring powerful Firewall and Content Filtering, configurable Quality of Service and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband.Incorporating Wireless and VoIP features in ‘2766ac’ and ‘2766Vac’ models, the Vigor 2766 series provide a reliable, highly integrated and reliable network solution for SoHo environments.
G.Fast, VDSL and Ethernet Router
Connect the Vigor 2766 to Ultrafast G.Fast and Superfast VDSL2 FTTC with integrated DSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.AC1300 Wireless with Mesh
Connect DrayTek VigorAP Access Points to the router in a wireless Mesh. DrayTek’s Self-Optimising Mesh ensures access points are always connecting through the best path to your Router.Packed With Features
Configure DrayTek’s rich feature set to fit your network with Route Policy, Quality of Service, VPN Matcher, DrayDDNS and more.Powerful SoHo VPN Router
Connect remote locations with 2 VPN tunnels for Remote Dial-In User Teleworker and Dial-Out LAN to LAN VPN. Up to 200Mbps IPsec performance, with SSL and OpenVPN support.4 Gigabit LAN Ports with VLANs
Attach Computers, Servers and Network Attached Storage. Use VLANs to provide a fully separated Guest network, with up to 4 LAN subnets.VigorACS Central Management
Use the VigorACS central management platform to manage, monitor and configure the Vigor 2766 series routers remotely across multiple locations. -
Category Specifications Physical Interfaces WAN1 G.Fast / VDSL2 / VDSL2 35b / ADSL2+, RJ-11 WAN2/LAN Switchable Port 1x Gigabit Ethernet (1G/100M/10M), RJ-45 WAN3 USB 2.0 Port for 3G/4G Modem (not included) LAN Ports 4x Gigabit Ethernet (1G/100M/10M), RJ-45 (3x with WAN2 enabled) USB Ports 2x USB 2.0 Port for USB storage, thermometer or Printer Wireless Antennas 2x Removable (wireless models) Wireless Button On / Off / WPS Reset Button Recessed Factory Reset Antenna Specifications Wireless Antennas 2x External Dipole 5GHz Gain 4 dBi 2.4GHz Gain 2 dBi Performance Router Performance 1.3Gb/s Max Sync Rate with G.Fast (dependent on ISP & Exchange equipment) Max Sync Rate 100 Mb/s with VDSL2, 300 Mb/s with VDSL2 35b NAT Throughput 950 Mb/s for Ethernet WAN with Hardware Acceleration VPN Throughput 150 Mb/s IPsec (AES256), 80 Mb/s SSL VPN Concurrent VPN Tunnels Max. 2 Internet Connection Hardware Acceleration Yes WAN Data Budget Yes Dynamic DNS DrayDDNS – with automated LetsEncrypt Certificates G.Fast, VDSL & ADSL2+ Features Auto Detection Yes Compliance Compliant with Openreach SIN 527 & SIN 498 Standards Supported G.Fast, VDSL, ADSL2+ Wireless Features (‘ac’ models) Wireless Standard AC1300 – 11ac ‘Wave 2’ Dual Band Wireless Frequency Bands 2.4GHz, 5GHz Wireless Security WPA2, WPA3 Firewall & Content Filtering Firewall Policy IP-based Firewall Content Filtering Application Content Filter, URL Content Filter, DNS Keyword Filter NAT Features NAT Types Supported NAT Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP, ALG VPN Features VPN Protocols IPsec, IKEv1, IKEv2, SSL VPN, OpenVPN, PPTP, L2TP VPN Pass-Through PPTP, L2TP, IPsec Management Local Service HTTP, HTTPS, Telnet, SSH, FTP, TR-069 Firmware Upgrade TFTP, HTTP, TR-069 Two-Level Admin Yes Router Central Management Features AP Management 2 VigorAP access points DrayTek Mesh Support Up to 7 VigorAP access points Operating Requirements Temperature Range 0 °C ~ 45 °C Humidity 10% ~ 90% (non-condensing) Power Consumption 19.8 Watts maximum Dimensions Width 207mm Depth 131mm Height 39mm Warranty Warranty Period Two (2) Years RTB Optional Coverage VigorCare Enhanced Warranty Available -
Description Downloads DrayTek Vigor Triple-WAN G.Fast/VDSL2/ADSL2+ WiFi 5 Router DataSheet Downloads
