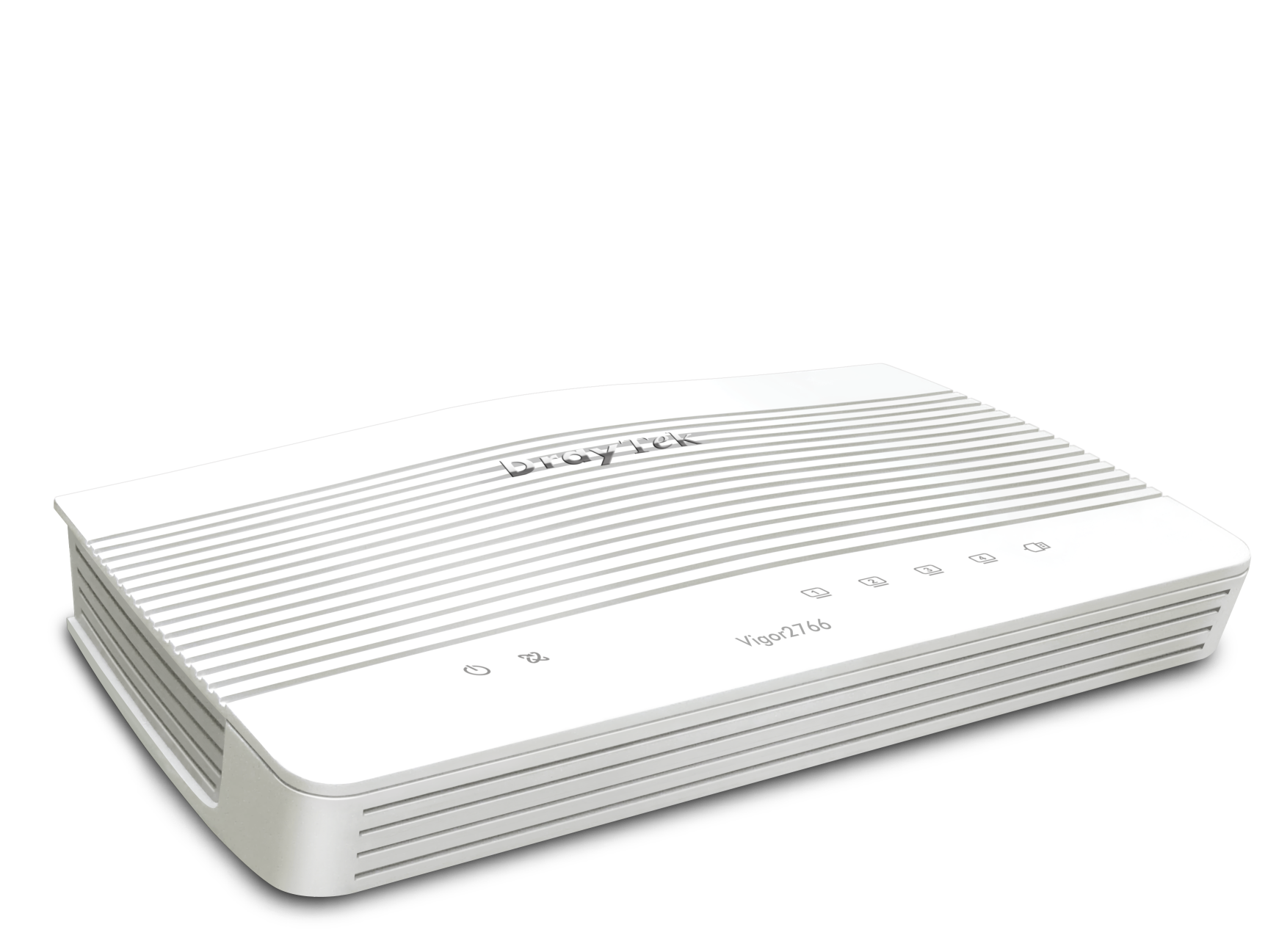

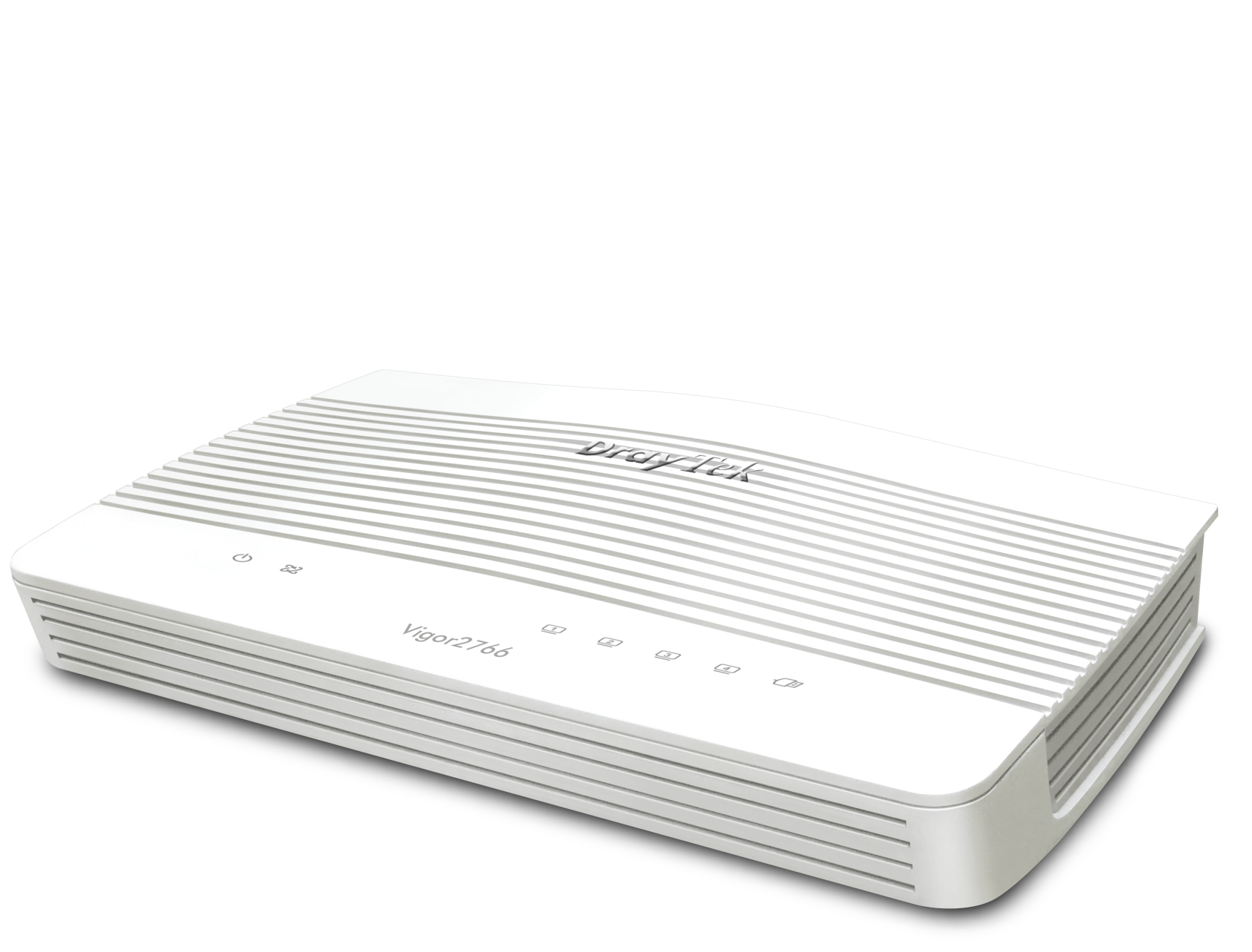

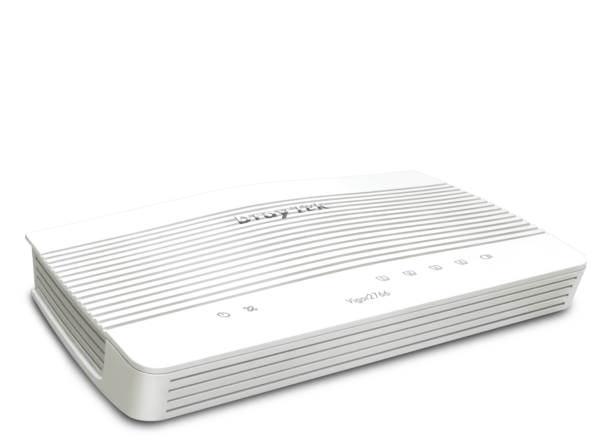

DrayTek Vigor 2766 ADSL or VDSL SoHo Router/Firewall
G.Fast, VDSL and Ethernet Router
The Vigor 2766 is a G.Fast, VDSL or Ethernet WAN router with Gigabit performance, allowing you to make full use of DrayTek’s advanced feature set, with Quality of Service, VPN and Content Filtering. Connect the Vigor 2766 to Superfast Fibre with its integrated G.Fast and VDSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.
Either connection, or a 4G USB modem can be used as the primary or Failover connections, so that if the main Internet connection goes down, the Vigor 2766 can use its backup connections to guarantee reliable Internet access and VPN connectivity.

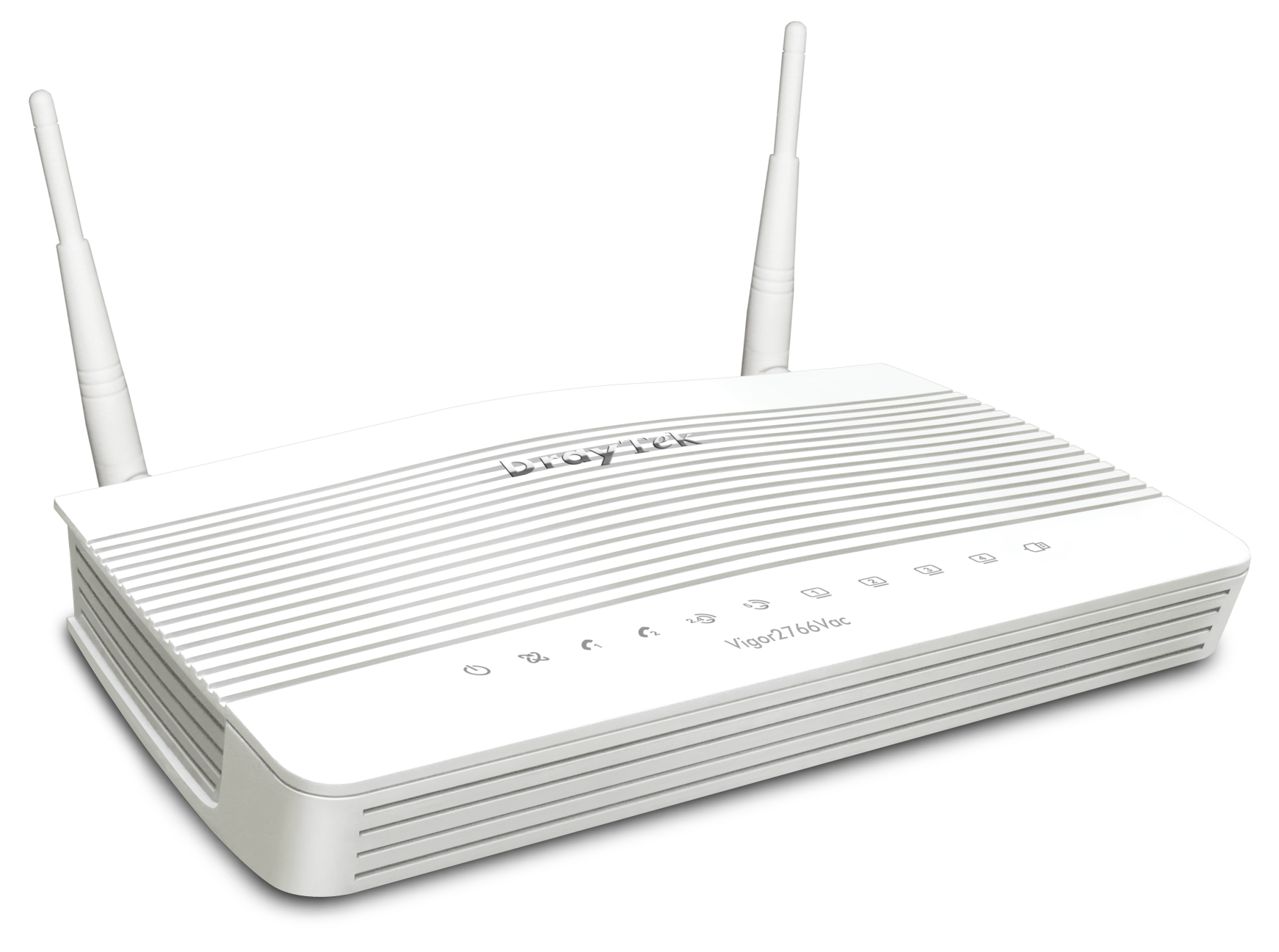

With integrated 802.11ac wireless, to provide fast and expansive wireless coverage to your network’s computers and devices.Route Policy – Routing Management for WAN & VPN
The Vigor 2766 series provides full policy-based control of where and how outbound traffic is routed with Route Policy, to send traffic through VPN services and alternative LAN gateways:VPN Routing
Send all or select traffic through VPN services.
Hostname Routing
Route access to individual websites, Internet domains (i.e. www.bbc.co.uk) and hostnames through a VPN tunnel or a specific WAN.
Service Routing
Push specific services or ports, such as DNS, through a set WAN, an alternative Gateway or VPN Tunnel.
Failover & Failback
Extensive control of Failover with multiple Failover rules and paths. Manage how connections are moved back to the primary connection, after a failover has occurred with Failback settings.Powerful SoHo VPN Router
DrayTek’s Vigor routers feature extensive VPN (Virtual Private Networking) capabilities. The Vigor 2766 series is no exception, its VPN capabilities are well suited to SoHo (small office, home office) environments. A VPN enables you to link remote offices and branch offices back to HQ, or home-based/mobile teleworkers back to your office.
The Vigor 2766 allows you to make full use of Fibre broadband with VPN. Up to 150 Mbps of IPsec VPN throughput for fast and secure connections, to VPN services and other offices.
Connect 2 VPN tunnels concurrently to access remote resources securely. Connect the Vigor 2766 in a branch office or home office to a head office for seamless access to network resources.It supports all common industry standard VPN protocols, for it to connect to VPN services, link remote offices and handle connections from all types of VPN clients. Supporting IPsec IKEv1 & IKEv2 protocols with EAP and XAuth authentication, DrayTek’s SSL VPN and L2TP for both LAN to LAN and Dial-In teleworker VPNs. In addition, teleworkers can connect to the router with OpenVPN.
User management for Dial-In Teleworkers is managed through the router’s web interface, with mOTP 2-factor authentication available for IPsec, L2TP and SSL VPN Teleworker connections.Connecting Remote Sites with LAN to LAN VPN
Supporting up to 2 concurrently active VPN tunnels and 150 Mbps of IPsec VPN throughput, the Vigor 2766 series is ideal as a branch-office or home-office router, to connect with a head office router such as the Vigor 3910.Once connected, they have access to your office/remote resources through a secure encrypted tunnel allowing remote desktop, file sharing and seamless access to other resources and devices.
DrayTek SSL VPN for Dial-In Teleworkers & LAN to LAN
Connect up to 2 DrayTek SSL VPN tunnels. These encrypted tunnels securely link teleworkers or remote DrayTek Vigor routers back to your main office using SSL/TLS technology – similar to the HTTPS security that’s used for most secure websites on the internet such as on-line banking and shopping services.Teleworkers can connect with a secure SSL VPN tunnel to the DrayTek Vigor 2766, using the free DrayTek Smart VPN Client app. Available for Windows, macOS, Apple iOS (iPad, iPhone) and Android devices.
Connect VPNs from behind NAT with DrayTek’s VPN Matcher
A typical requirement for connecting a VPN tunnel between two points is that the VPN server must be directly accessible on the public Internet. Sometimes this can be achieved with NAT Port Forwarding if the router is located behind another router, but if the router is connected to 4G Mobile Broadband or is behind Carrier-Grade NAT (CG-NAT), connecting to that VPN server may be impossible.DrayTek’s new VPN Matcher service helps DrayTek routers behind NAT to allow Dial-In Teleworkers to connect, or connect two DrayTek VPN routers that are behind NAT and could not normally establish a VPN tunnel.
4 Gigabit LAN Ports with VLANs
The Vigor 2766 series provides 4 Gigabit LAN ports for wired links to Computers, Servers and Network Attached Storage.4 LAN subnets and VLANs allow the Vigor 2766 to provide a guest network fully separate from internal network data. Or any other configuration that can use 4 subnets, whether that’s 4 wireless networks with different IP ranges, or a separate LAN subnet for printers and server. Each network can have its own Content Filtering, Firewall, Quality of Service and Route Policy configurations.
The router has full support for 802.1Q VLAN tagging, so that these subnets can be passed to other devices that support VLAN tags, such as the DrayTek VigorSwitch G1080 8-port switch, for additional network ports.
The Wireless LAN also links to these VLANs, making the same Guest & Private networks possible simply using different wireless SSIDs. Or connect up a DrayTek VigorAP wireless access point, such as the VigorAP 903 to do the same, spanning the router’s own wireless and any connected wireless APs.
Designed for Central Management
The Vigor 2766 series can be centrally managed along with VigorAP’s and switches, with the VigorACS central management platform.This scalable solution provides visibility, control and reporting of your entire DrayTek product estate, ideal for dealers/SIs managing customers’ devices or any user who wants to know what’s going on with their devices. VigorACS also provides features like automated/bulk firmware updates, VPN management and alarms for connectivity or other issues.
Robust & Comprehensive IPv4 / IPv6 Firewall
Security is always taken seriously with DrayTek routers. The firewall protects against attacks including DoS (Denial of Service) attacks, IP-based attacks and access by unauthorised remote systems. Wireless, Ethernet and VPN are also protected by various protection systems.The DrayTek object-based firewall enables you to create combinations of Firewall rules and Content Filtering to suit a home or small office environment, applying Content Filtering to the whole network, only specified devices or just the network that guests can connect to.
The Vigor 2766 supports both IPv4 and IPv6 with Dual-Stack IPv4/IPv6. Advanced networking features, such as the object-based Firewall, Quality of Service, Content Filtering and VLANs support both IPv4 and IPv6 networks.
Web Content Filtering with DNS Filter
The content control features of the Vigor 2766 allow you to set restrictions on web site access, blocking download of certain file or data types, blocking specific web sites with whitelists or blacklists, blocking IM/P2P applications or other potentially harmful or wasteful content. Restrictions can be per user, per PC or universal and according to time schedules.Content filtering can also block sites using HTTPS/SSL where URLs are encrypted (and normal routers cannot block).
Using the GlobalView service, you can block whole categories of web sites (e.g. gambling, adult sites etc.), subject to an annual subscription, which is continuously updated with new or changed site categorisations or sites which have become compromised (such as infected with Malware). A free 30-day trial is included with your new router.
DrayDDNS – DrayTek Dynamic DNS Address
DrayTek provides a free Dynamic DNS address to each Vigor 2766 router, allowing you to link the router’s current IP address to a memorable “drayddns.com” hostname, such as “vigor2766.drayddns.com”.
This address automatically updates whenever the Internet connection’s IP changes, so if one WAN’s IP address allocation is dynamic, or the IP changes when switching from the primary WAN connection to a backup, you can easily locate and access your Vigor 2766 router. Just use the hostname to access the router’s VPN services, management and any other services you have made accessible through the router.The Vigor 2766 can also authenticate your DrayDDNS hostname with free SSL/TLS certificates provided by LetsEncrypt, the router manages and automates the certificate process. Keeping the certificate up to date and ready for use with SSL VPN and other services.
Quality of Service with App QoS
Prioritise latency-sensitive applications on your network with Quality of Service.
App QoS simplifies setting up Quality of Service significantly, simply select which applications or services to prioritise, such as Zoom and Skype.Use 4 separate queues to give priority to servers & PCs (IP address), services such as VoIP or DNS, or packet tagging used by IP phones with 802.1p and DSCP support
Auto Voice VLAN allows the router to automatically prioritise VoIP calls as they pass through the router without additional configuration.
Control throughput with Bandwidth Limit, by setting speed limits for all clients individually, groups of IPs, or a shared bandwidth limit for a whole subnet, such as a Guest network.
Multi-Purpose USB Ports
The Vigor 2766 has two USB ports which can be used for 4G/LTE modem, USB temperature sensor, storage, or a printer for shared access.Connect a USB 4G/LTE modem to the Vigor 2766 and use mobile broadband as your Internet connectivity. That can be your primary connection or the router can switch over to 4G, in the case of ADSL2/VDSL/G.Fast outage so that you’re always connected.
Use your Vigor 2766 as a network attached storage (NAS) by connecting a USB flash drive or hard drive. With Windows networking (SMB) & FTP connectivity to allow Windows, Apple, Android and Linux devices to access the router’s storage, locally and through VPN.
Central AP Management
The Vigor 2766 can manage and aid in setting up VigorAP access points, connected locally to the router. This enables you to centrally control, manage and administer multiple AP devices installed around your home or office, through the router’s web interface for local or remote setup:Monitor Status information
View Traffic Graphs
Provision Wireless Configurations (with Auto Provisioning)
Manage Access Control Lists (blacklist / whitelist for wireless client MAC addresses)
Track the usage of each AP over time
View Event Logs
View Temperature Sensor graphs
Load Balance APs – automatically move clients off of busy access points onto nearby, less busy access points
Backup and restore AP configurations
Perform VigorAP firmware upgrades remotely through the router
The DrayTek router operating as the wireless controller can provision DrayTek VigorAP access points with Central AP Management profiles configured on the router, with an option to Auto Provision – auto configuring newly installed VigorAP access points with the Auto Provisioning profile, upon initial connection to the DrayTek Vigor router’s network. -

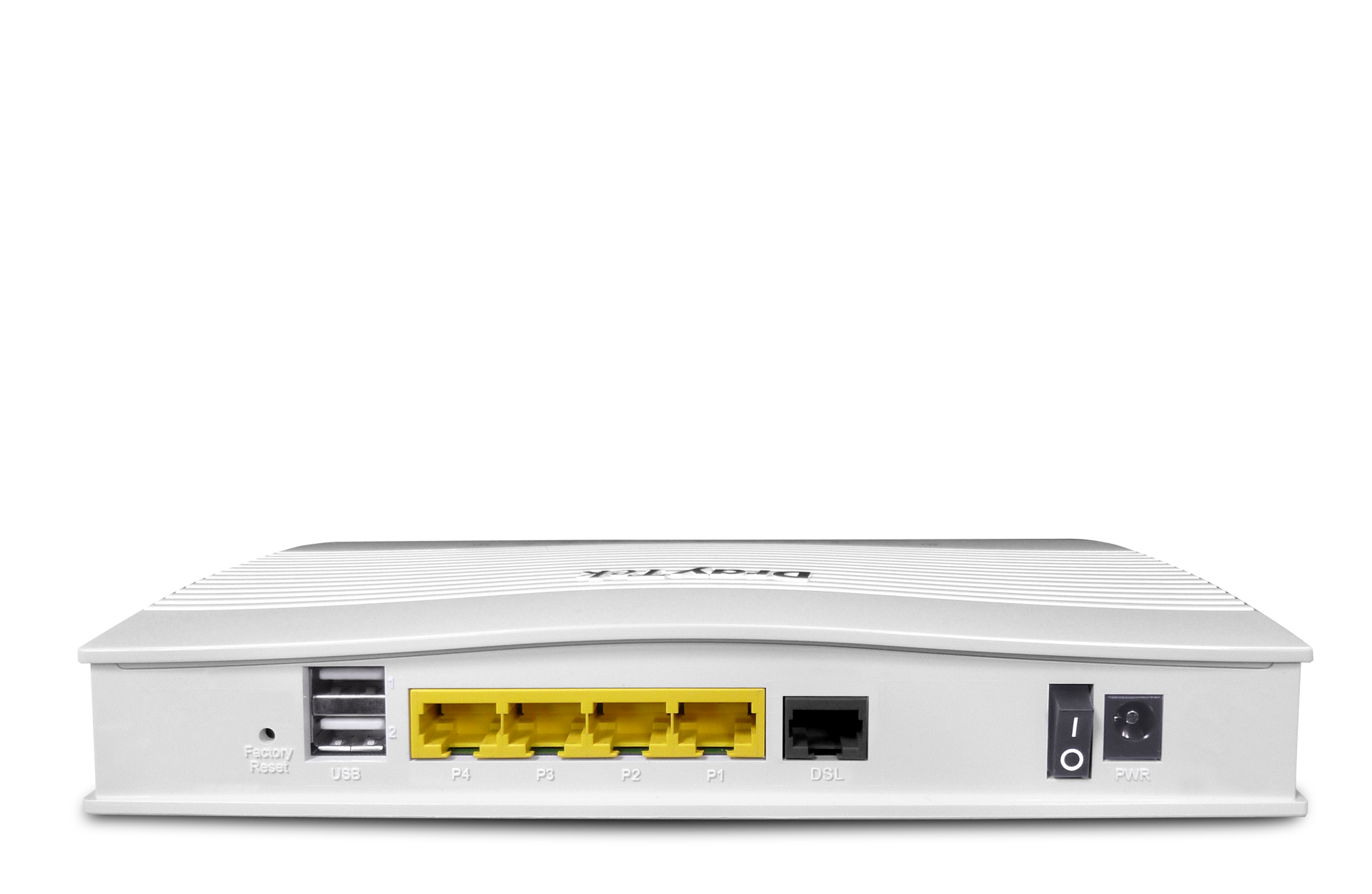

Category Description Physical Interfaces WAN1 G.Fast / VDSL2 / VDSL2 35b / ADSL2+, RJ-11 WAN2/LAN Switchable Port 1x Gigabit Ethernet (1G/100M/10M), RJ-45 WAN3 USB 2.0 Port for 3G/4G Modem (not included) LAN Ports 4x Gigabit Ethernet (1G/100M/10M), RJ-45 (3x with WAN2 enabled) USB Ports 2x USB 2.0 Port for USB storage, thermometer, or Printer Factory Reset Button Recessed Factory Reset button Performance Router Performance 1.3Gb/s Max Sync Rate with G.Fast (dependent on ISP & Exchange equipment) 100 Mb/s Max Sync Rate with VDSL2 300 Mb/s Max Sync Rate with VDSL2 35b 950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration 700 Mb/s NAT Throughput per WAN without Hardware Acceleration 50,000 NAT Sessions VPN Performance 150 Mb/s IPsec (AES256) VPN Throughput 80 Mb/s SSL VPN Throughput Max. 2 Concurrent VPN Tunnels Internet Connection Hardware Acceleration 802.1p/q Multi-VLAN Tagging Multi-VLAN/PVC Connection Detection PPP, ARP Detect, Ping Detect WAN Data Budget Dynamic DNS DrayDDNS – with automated LetsEncrypt Certificates Full Feature-set Hardware Acceleration IPv4 Connection Types PPPoE / PPPoA, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN) IPv6 Connection Types DSL & Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel USB 4G/LTE Modem: TSPC, AICCU G.Fast, VDSL & ADSL2+ Features BT Infinity Option 1 & Option 2 Compatible Compliant with Openreach SIN 527 & SIN 498 Auto Detection of G.Fast, VDSL, and ADSL line modes Support for G.INP & Vectoring G.Fast Standards: ITU-T G.9700, G.9701 G.Fast Profile: 212MHz & 106MHz VDSL Standards: ITU-T G.993.1 VDSL ITU-T G.993.2, G.997.1 VDSL2 Band Plan: G.998, G.997 Annex A, Annex B, Annex C VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b OLR, UPBO, DPBO Supported US0 Supported Loop Diagnostic Mode DSL Forum WT-114 ADSL2 Standards: ITU-T G.992.3 ADSL2 ITU-T G.992.5 ADSL2+ ATM Protocols: RFC-2684/RFC-1483 Multiple Protocol over AAL5 RFC-2516 PPP over Ethernet RFC-2364 PPP over AAL5 Support for RFC4638 for MTU up to 1500 Firewall & Content Filtering IP-based Firewall Policy User-based Time Quota DoS Attack Defence Spoofing Defence Content Filtering Application Content Filter URL Content Filter DNS Keyword Filter Web Features Web Category Filter (requires GlobalView subscription) NAT Features NAT Port Redirection Open Ports Port Triggering DMZ Host UPnP ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323 VPN Pass-Through PPTP, L2TP, IPsec LAN Management 802.1q Tag-based, Port-based VLAN Up to 4 LAN Subnets Up to 8 VLANs DHCP Server Multiple IP Subnet Custom DHCP Options Bind-IP-to-MAC DHCP Pool Count up to 253 addresses per subnet Wired 802.1x Port Authentication Port Mirroring Local DNS Server Conditional DNS Forwarding Networking Features Policy-based Routing Protocol, IP Address, Port, Domain/Hostname, Country DNS Security (DNSSEC) Local RADIUS server SMB File Sharing (Requires external USB storage) Multicast IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour Compatible with IPTV and ISP Video on Demand services (YouView, Sky Q) Routing Features IPv4 & IPv6 Static Routing, Inter-VLAN Routing VPN Features 2 Concurrent active VPN Tunnels LAN-to-LAN – Dial-Out VPN Client Teleworker-to-LAN – Dial-In VPN Server User Authentication Local, mOTP IKE Authentication Pre-Shared Key and Digital Signature (X.509) Encryption MPPE, DES, 3DES, AES (128/192/256) Authentication SHA-256, SHA-1 Dead Peer Detection (DPD) IPsec NAT-Traversal (NAT-T) Virtual IP Mapping Resolve VPN IP subnet/range conflicts DHCP over IPsec DrayTek VPN Matcher Connect to a VPN router that’s behind NAT/CG-NAT VPN Protocols IPsec IKEv1, IKEv2, IKEv2 EAP IPsec-XAuth DrayTek SSL VPN OpenVPN PPTP for legacy applications L2TP, L2TP over IPsec Bandwidth Management IP-based Bandwidth Limit IP-based Session Limit Quality of Service (QoS) Classify via TOS, DSCP, 802.1p, IP Address, Service Type 4 Priority Queues App QoS VoIP Prioritization Class-based Outbound Traffic Tagging: DSCP & IP Precedence Management Local Service HTTP, HTTPS, Telnet, SSH, FTP, TR-069 Config File Export & Import Import Config from Vigor 2762, 2765 Auto Backup Config to USB Storage Firmware Upgrade via TFTP, HTTP, TR-069 2-Level Administration Privilege Access Control Features Access List, Brute Force Protection Syslog SMS, E-mail Notification Alert SNMP v1, v2c, v3 Managed by VigorACS Router Central Management Features AP Management 2 VigorAP access points Operating Requirements Wall or Shelf Mountable Temperature Operating 0 °C ~ 45 °C Storage -25 °C ~ 70 °C Humidity 10% ~ 90% (non-condensing) Power Consumption 18 Watts maximum Operating Power DC 12V (via external PSU, supplied) Power Requirements 220-240VAC Dimensions Width 207mm Depth 131mm Height 39mm Warranty Warranty Two (2) Years RTB Optional VigorCare Enhanced Warranty Available VigorCare A3 3 Year Subscription: VCARE-A3 VigorCare A5 5 Year Subscription: VCARE-A5 Box Contents Vigor 2766 router Quick Start Guide Screws & wall plugs for wall mounting 2m Cat-5e RJ-45 Network Cable 2x Detachable Wireless LAN Antennas ‘ac’ models DC 12V Power Supply with UK Plug -
