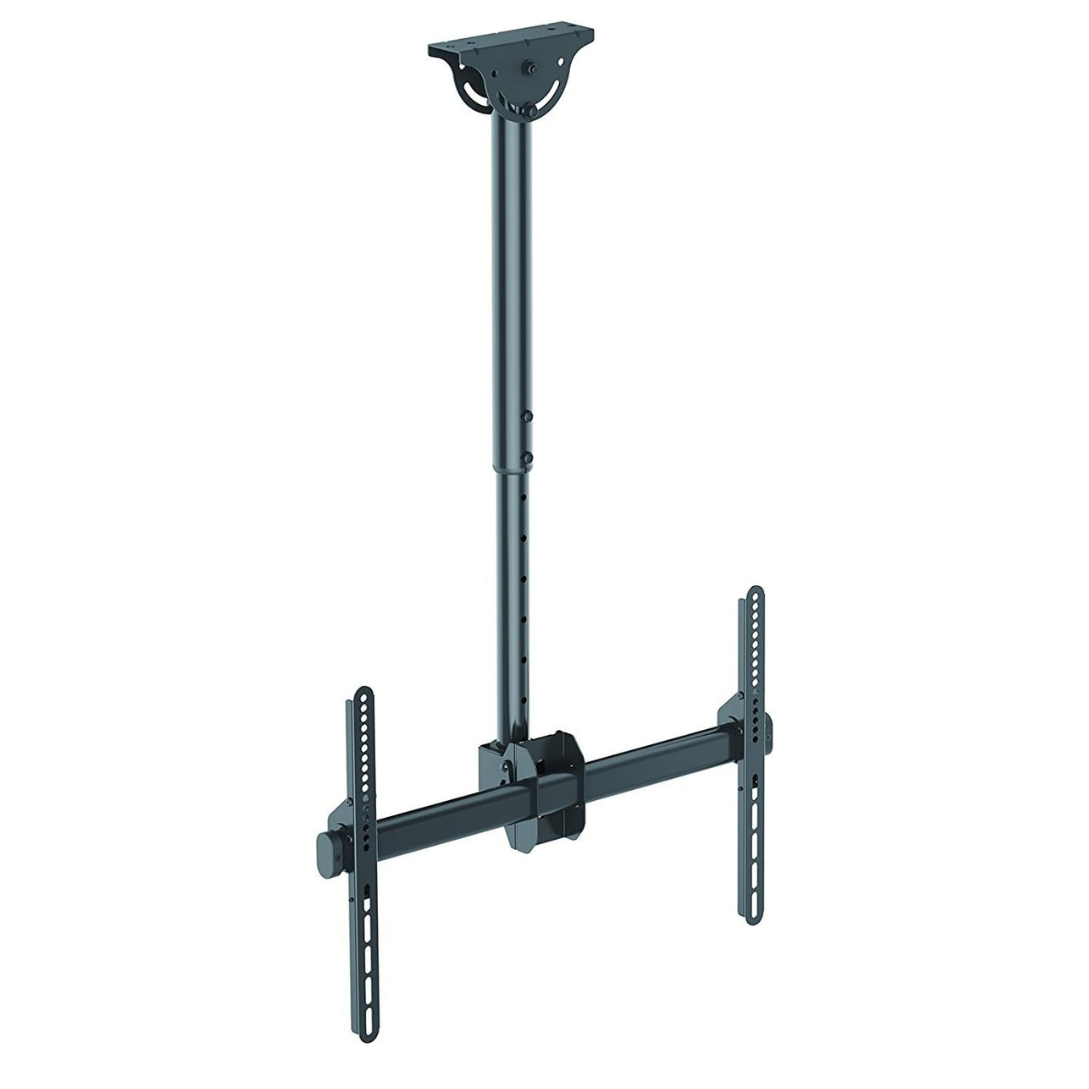

Digital Signage Telescopic Ceiling Mount 32″-70″ TV Screen | DSC600

Digital Signage Telescopic Ceiling Mount 32″-70″ TV Screen | DSC600

• Description
• Specifications
• Warranty

• Tilting range of -25° to 0°
  Full swivel range of 360°
  Level adjustment of -3° to +3°
  Suitable for most 32″-70” screens
  Maximum VESA pattern: 600x400mm
  Maximum weight capacity: 50kg/110lbs
  Total height range: 560 mm to 3110m (adjustable – with extension poles)

• Mount Type	Tilting Telescopic Ceiling TV Mount
  Mounting Pattern	Universal
  Material	Steel
  Material Finish	Powder Coated
  Recommended Screen Size	32″-70″
  Weight Capacity	50kg/110lbs
  Load Tested	3 times weight capacity approved
  Maximum Hole Pattern	605x405mm
  Maximum VESA Pattern	600×400
  Compatible VESA Patterns	200×200, 400×200, 300×300, 400×400, 600×400
  Tilt	-20° to +5°
  Swivel	360°
  Level Adjustment	-3° to +3°
  Rotation	0°
  Profile	560mm minimum – 3110mm maximum with ext pole.
  Column Rotation	-90°, -60° to +60°. +90°

• Warranty
  5-year warranty.
