Dell USB Type C Docking Station for Notebook | DELL-WD19S180W
Dell USB Type C Docking Station for Notebook-DELL-WD19S180W
Dell USB Type C Docking Station for Notebook – 3.0 Displays Supported – 4K, Full HD, QHD – 3840 x 2160 – 6 x USB Ports – USB Type-A – USB Type-C – 1 x HDMI Ports – HDMI – 2 x DisplayPorts – DisplayPort – Gigabit Ethernet – Windows 10, Windows 11, Ubuntu, Linux Boost your PC’s power on the world’s most powerful and first modular dock with a future-ready design.
WD19S 180W is a simplified version of WD19 180W without 3.5mm ports.
- Description
- Specifications
-
Industry Standard Compatibility
The WD19S dock offers the greatest compatibility across Dell Commercial laptops. WD19S is also compatible with notebooks from other manufacturers such as HP and Lenovo which support industry standards for USB-C docking.
For functional limitations with notebooks from other manufactures in comparison to Dell Commercial notebooks, please see this support article.
Power your connections
Power your day:
Dell ExpressCharge allows you to charge up to 80% in one hour, making it the most efficient way to manage the workday.
Energize your workload:
Get more done, even faster with Dell ExpressCharge Boost – a feature that provides up to a 35% charge in just 20 minutes.
Unmatched charging:
Increase your power delivery by up to 30% more than standard USB-C on our fastest charging family of docks, delivering 130W of power with the 180W adapter.
Built for the future
Mix and match:
Evolve as your needs change with our most versatile dock. The future-ready design lets you swap out modules with ease if you need to do field replacements or upgrade your systems.
Ultimate connectivity:
USB-C connectivity makes it easier than ever to deliver power, data, audio and video in one convenient cable, no matter what system you use. Plus, with support for dual FHD or a single QuadHD monitor, you can connect to everything you need.
Clean and clutter-free:
Stay productive by mounting your dock behind your monitor or under your desk with the optional, secure VESA mount, that offers the complete flexibility with the built-in one-meter cable.
Information in a flash:
With data transfer speeds of up to 10Gbps, you can stay productive when connected to all your devices.
Optimize your workspace
Smooth and seamless:
Work without disruptions utilizing a single firmware on our most manageable docks ever. Plus, with Dell Client Command Suite and Microsoft System Center Configuration Manager, you can quickly and easily update your firmware without rebooting your dock.
Secure manageability:
Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN and more, it’s easier than ever to stay productive while managing your dock.

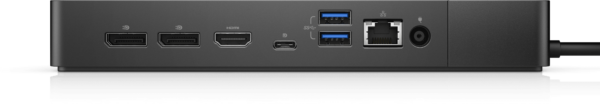

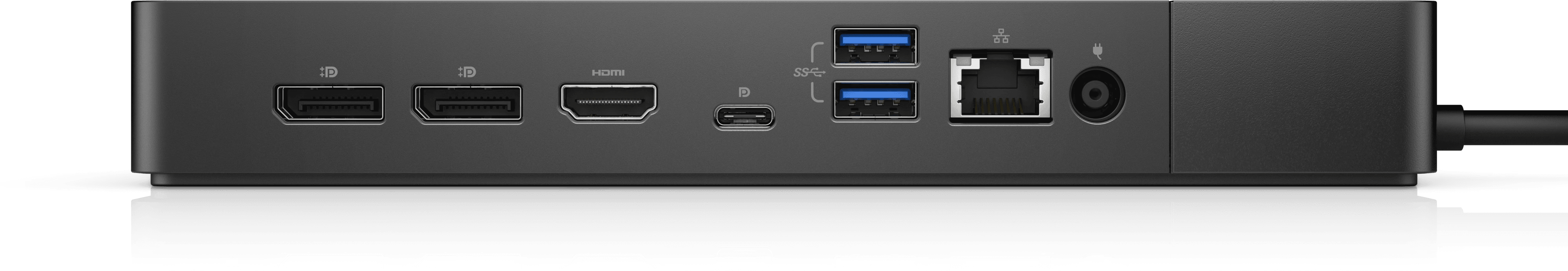

Ports & Slots:
1. USB-C 3.1 Gen 2 | 2. USB-A 3.1 Gen 1 with PowerShare | 3. DisplayPort 1.4 | 4. HDMI 2.0b | 5. USB-C Multifunction DisplayPort | 6. Dual USB-A 3.1 Gen 1 | 7. Gigabit Ethernet RJ45 | 8. Power In -
Category Details Miscellaneous Kensington Security Slot: Yes Network & Communication Ethernet Technology: Gigabit Ethernet Warranty Additional Warranty Information: 3 years (upsell up to 5 years) Physical Characteristics Weight (Approximate): 585.1 g Height: 205 mm Width: 90 mm Depth: 29 mm General Information Product Type: Docking Station Manufacturer Part Number: DELL-WD19S180W Manufacturer Website: Dell UK Packaged Quantity: 1 Manufacturer: Dell Technologies Product Name: Docking Station Brand Name: Dell Software Operating System Supported: Linux, Ubuntu, Windows 10, Windows 11 Technical Information Device Supported: Notebook Number of Displays Supported: 3.0 Supported Resolutions: 3840 x 2160, Full HD, 4K, QHD Screen Mode Supported: Full HD, 4K, QHD Interfaces/Ports Host Interface: USB Type C HDMI: Yes Number of HDMI Ports: 1 DisplayPort: Yes Total Number of USB Ports: 6 Number of DisplayPorts: 2 USB Type-C: Yes USB Type-C Detail: 1 x MFDP USB-C, 2 x USB-C 3.1 Gen 2 Number of USB 3.1 Gen 1 Type-A Ports: 3 USB Type-A: Yes
