Dell USB-C Mobile Adapter | DELL-DA300

• Description
• Specifications
• Downloads

• Dell USB-C Mobile Adapter | DELL-DA300


  USB-C Mobile Adapter, HDMI/ VGA/ DisplayPort/ RJ-45, Black
  Featuring the widest variety of port options available, the Dell USB-C Mobile Adapter – DA300 offers seamless video, network, and data connectivity, in a compact design.

  Most comprehensive, compact 6-in-1 USB-C adapter
  Featuring the widest variety of port options available including HDMI, DP, VGA, Ethernet, USB-C and USB-A, the Dell USB-C Mobile Adapter – DA300 offers seamless videoi, network, and data connectivity, in a neat, compact design.

  Crisp 4K resolution at 60Hz and fast SuperSpeed USB 10 Gbps data transfer rate
  Connect to high resolution displays without compromising on performance, thanks to the USB-C Mobile Adapter’s ability to support 4K resolution at 60Hz. Simply plug in your PC to a monitor or projector via DisplayPort or HDMI 2.0. Using legacy video ports is also a breeze with the adapter’s readily available VGA port.
  The USB-C and USB-A downstream ports let you connect other supported peripherals and enjoy faster file transfers with SuperSpeed USB 10Gbps data transfer speeds.


  Innovative design

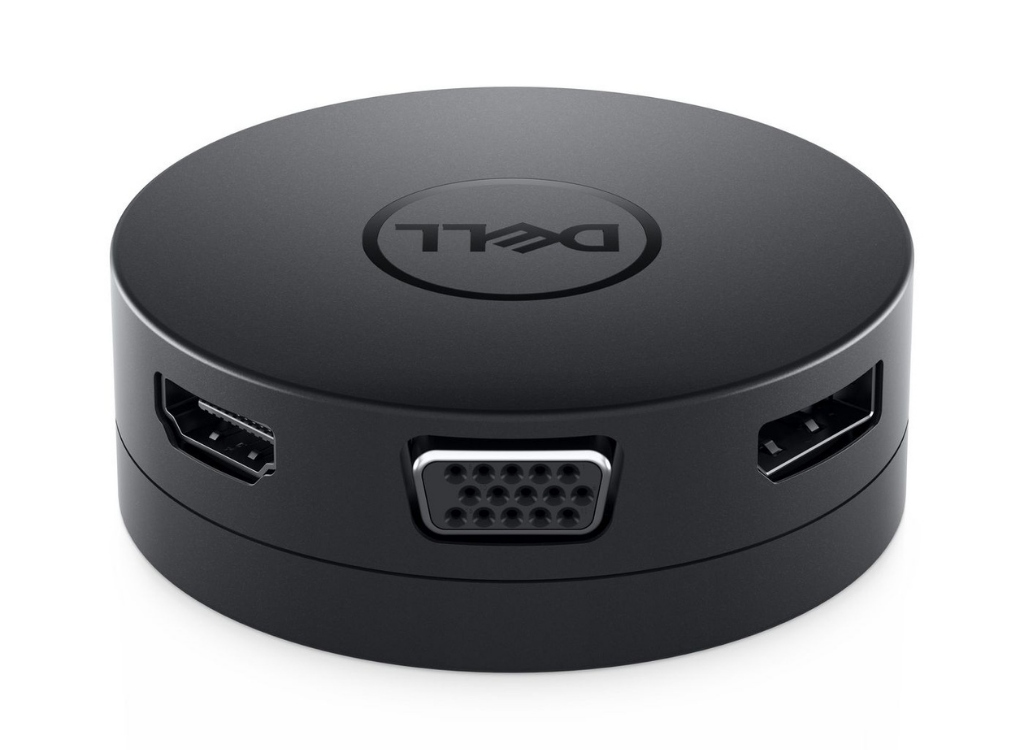

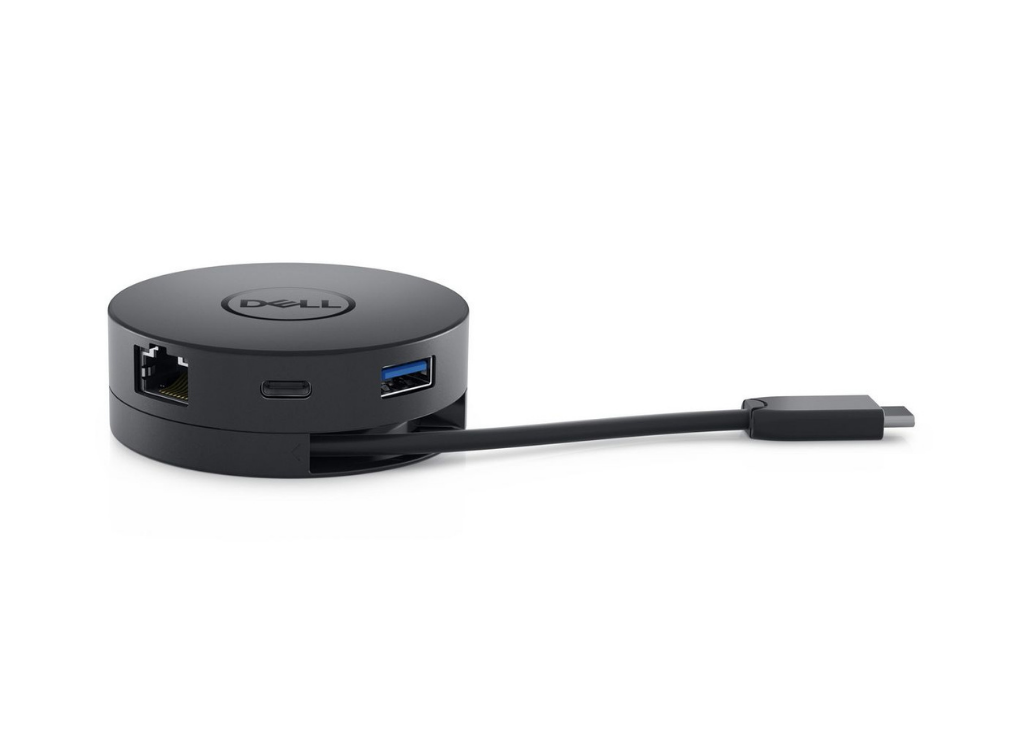

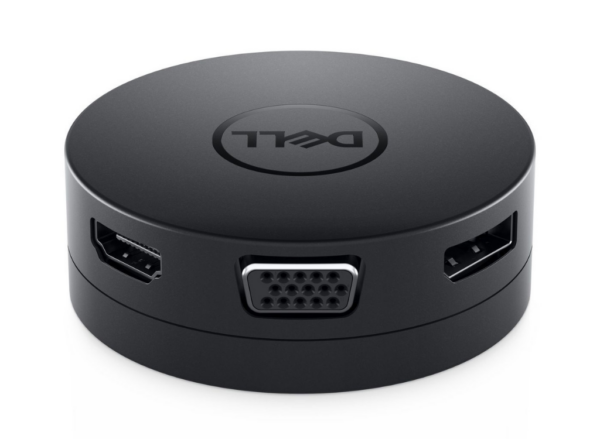

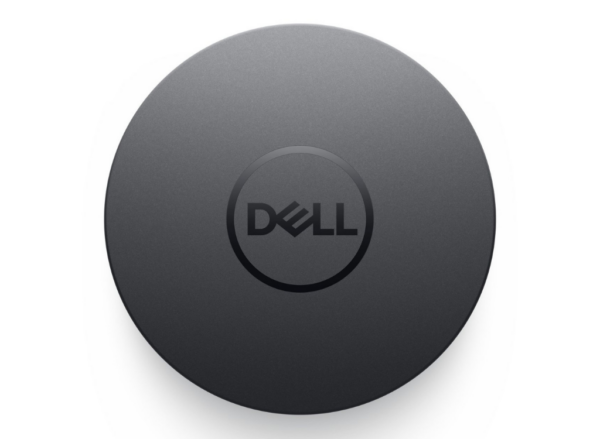

  The small, round-shaped adapter fits neatly in your bag, while the concealed cable can be extended or retracted by rotating the top and bottom cover of the adapter, for easy storage. The longer coaxial cable offers flexibility to connect to various form factors from clamshells to 2-in-1s to detachables, providing enhanced signal quality for stable connectivity wherever your busy day takes you.

  Easy plug and play. Best with Dell systems
  Easy to use, the adapter is ready to go when you plug it in – no installation of external drivers is necessary. Pair your adapter with Dell systems to enjoy Business Class features such as MAC address pass-through, PXE Boot, and Wake-On-LAN. It works with most operating systems, including Windows and MAC.

• Category	Details
  Legal Information
  EU ECCN Code	N/A
  UNSPSC Code	43211615
  US ECCN Code	EAR99
  Logistics Data
  Harmonized System (HS) code	84733020
  Network
  Ethernet LAN	Yes
  Ethernet LAN (RJ-45) ports	1
  Ethernet LAN data rates	10/100/1000 Mbit/s
  Wake-on-LAN ready	Yes
  Other Features
  USB data transfer rates	10000/480 Mbit/s
  Package Dimensions (Verified)
  Depth Verified	9.8 cm
  Gross Weight Verified	0.15 kg
  Height Verified	4.5 cm
  Width Verified	12.2 cm
  Packaging Content
  Quick start guide	Yes
  User guide	Yes
  Packaging Data
  Quantity per pack	1 pc(s)
  Performance
  Brand compatibility	Dell
  Card reader integrated	No
  Compatibility	Latitude 5280, 5480, 5580, XPS 9365 2-in-1, Precision 5520, Latitude 7280, Precision 3520, Latitude 7480, Precision 7520, Latitude 5289 2-in-1, Latitude 7285 2-in-1, Latitude 7380, Latitude 7389 2-in-1, Precision 7720, Inspiron 15 5000 Series (5570), Latitude 7490, Latitude 7390, Latitude 5490, Latitude 5590, Latitude 5290, Latitude 7290, Inspiron 13 7000 Series (7373), Inspiron 15 7000 Series (7573), Inspiron 17 5000 Series (5770), Inspiron 13 7000 Series (7370), Inspiron 15 7000 Series (7570), XPS 13 9370, Latitude 5290 2 In 1, Latitude 3490, Latitude 3390 2 In 1, Latitude 3590, Chromebook 5190, XPS 15 (9575), XPS 15 (9560), Vostro 15 (7570)
  Maximum digital resolution	3840 x 2160 Pixels
  Number of displays supported	2
  Plug and Play	Yes
  Product colour	Black
  Ports & Interfaces
  Connectivity technology	Wired
  DisplayPorts quantity	1
  HDMI ports quantity	1
  HDMI version	2.0
  Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
  Microphone in	No
  USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
  USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
  USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
  USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
  USB connector type	USB Type-A
  VGA (D-Sub) ports quantity	1
  Power
  Power source type	USB
  Product Dimensions
  Net Weight (Product, kg)	0.14 kg
  Product Depth	69.8 cm
  Product Height	2.45 cm
  Product Width	6.98 cm
  Software
  Mac compatibility	Yes
  Windows operating systems supported	Windows 10/Windows 7/Windows 8/Windows 8.1
  Technical Details
  Harmonized System (HS) code	84733020
  Vendor Information
  Brand Name	Dell
  Warranty	1 Year(s)
