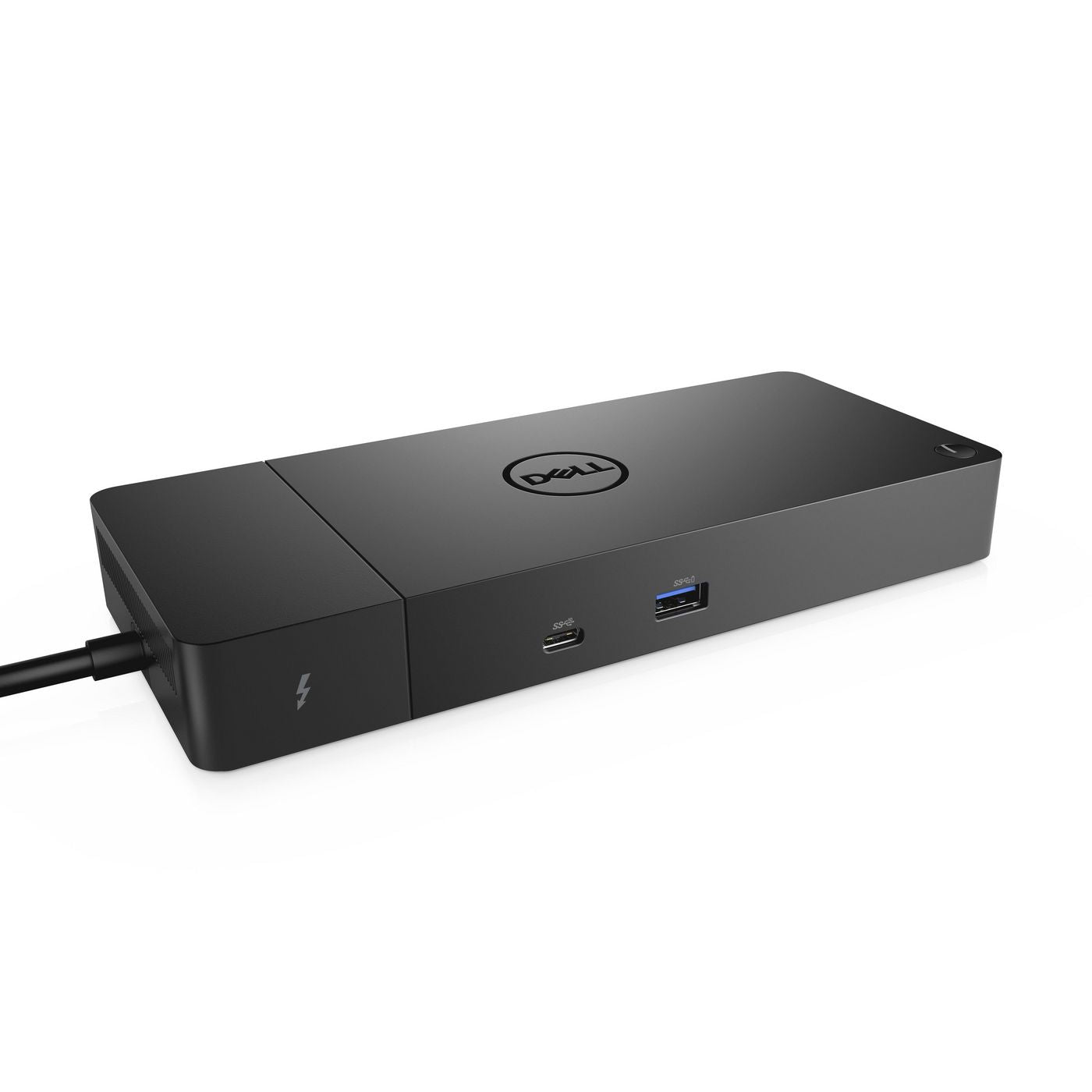

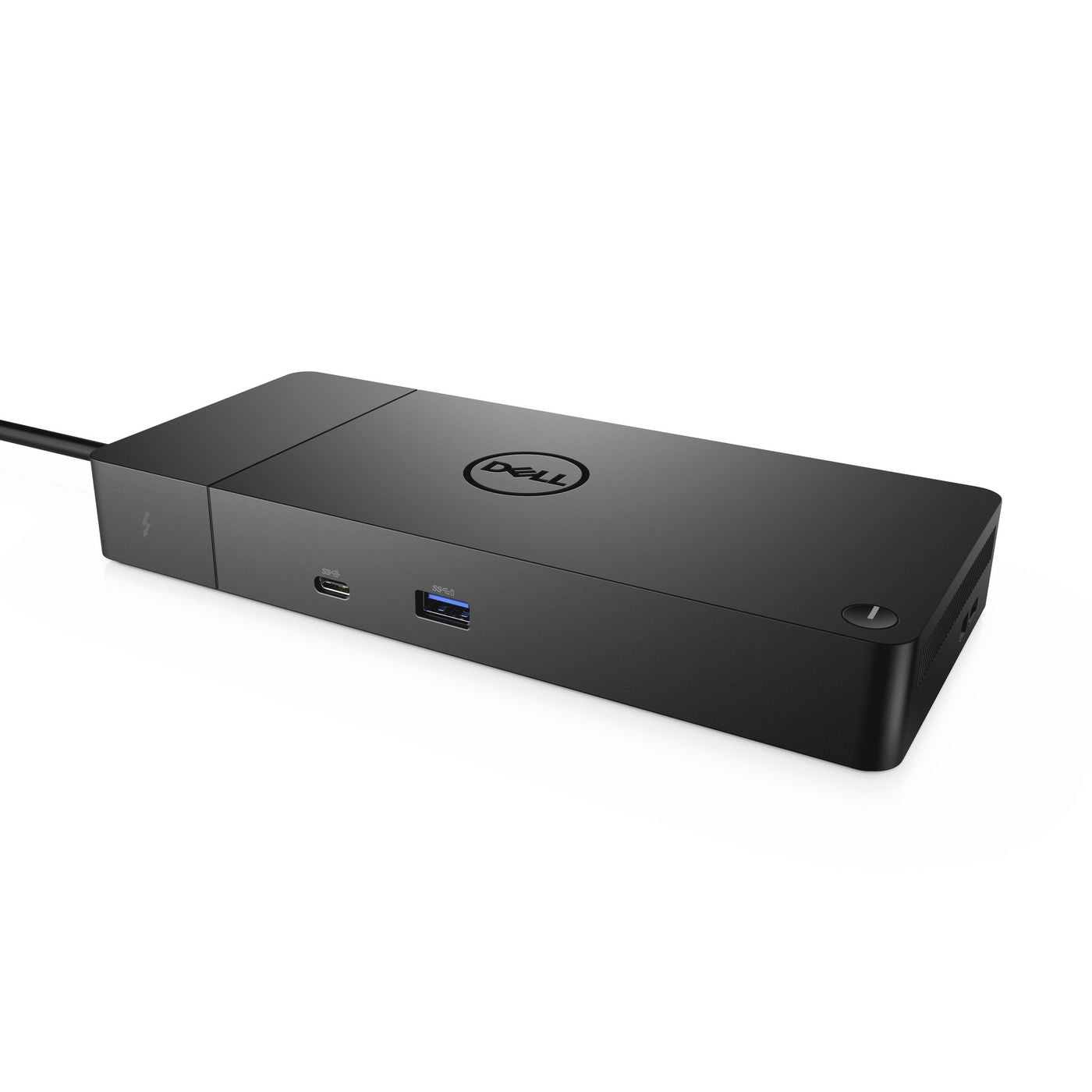

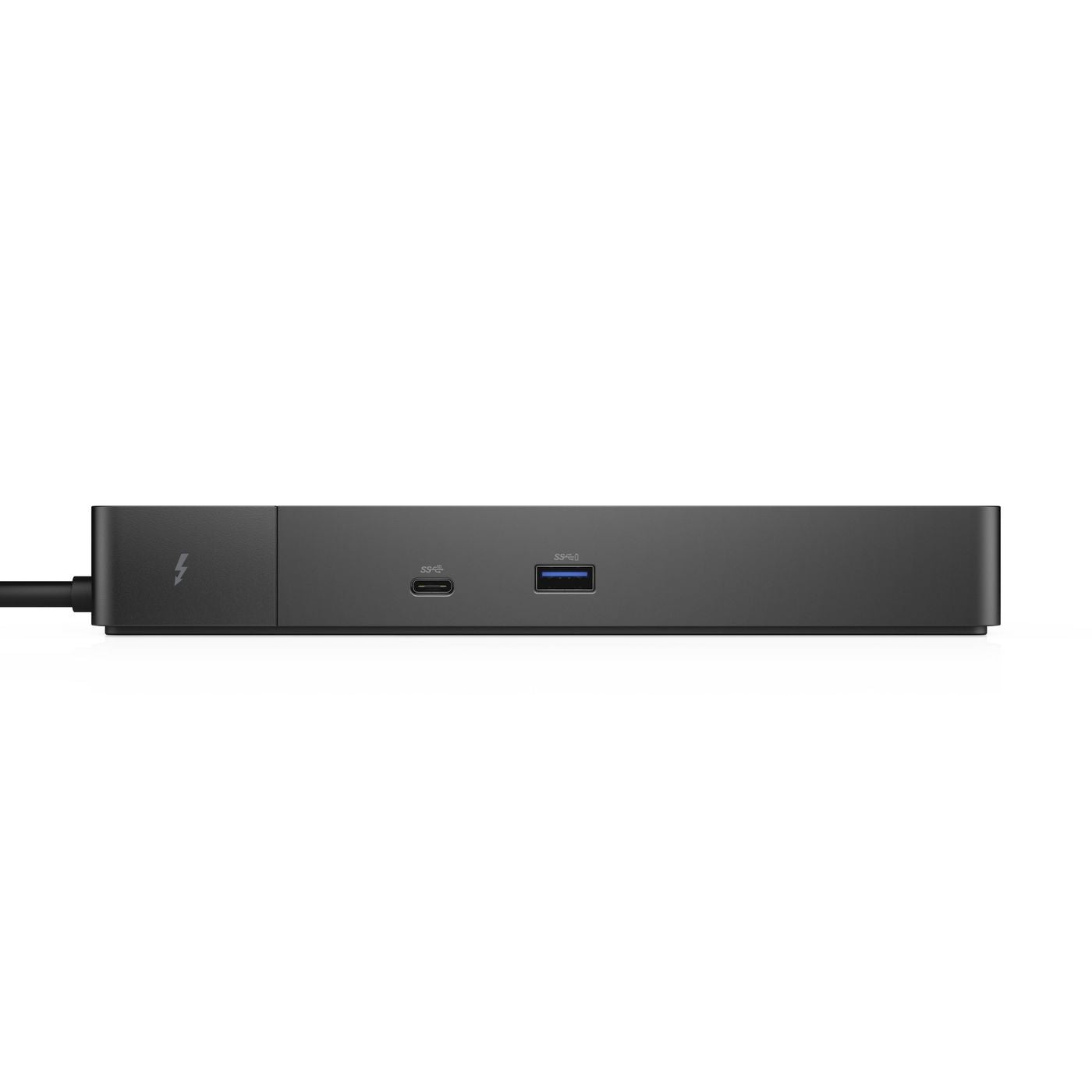

Dell USB 3.1 Gen2 Type-C, 3 x USB A 3.1 Docks | WD19TBS

• Description
• Specifications
• Downloads

• Dell USB 3.1 Gen2 Type-C, 3 x USB A 3.1 Docks | WD19TBS


  Boost your PC’s power with ExpressCharge Boost on the world’s most powerful and first modular Thunderbolt dock with a future-ready design. WD19TBS is a simplified version of WD19TB without 3.5mm ports.

• Category	Details
  Legal Information
  UNSPSC Code	43211615
  Logistics data
  Harmonized System (HS) code	84733020
  Network
  Ethernet LAN	Yes
  Ethernet LAN (RJ-45) ports	1
  Ethernet LAN data rates	1000 Mbit/s
  Operational conditions
  Operating relative humidity (H-H)	10 – 80 %
  Operating temperature (T-T)	0 – 35 °C
  Storage relative humidity (H-H)	5 – 90 %
  Storage temperature (T-T)	-20 – 60 °C
  Package dimensions
  Depth (package, cm)	31.5 cm
  Gross Weight (Package, kg)	3 kg
  Height (package, cm)	6.2 cm
  Width (package, cm)	30 cm
  Packaging data
  Quantity per pack	1 pc(s)
  Performance
  Card reader integrated	No
  LED indicators	Yes
  Maximum digital resolution	5120 x 2880 Pixels
  On/off switch	Yes
  Product colour	Black
  VESA mounting	Yes

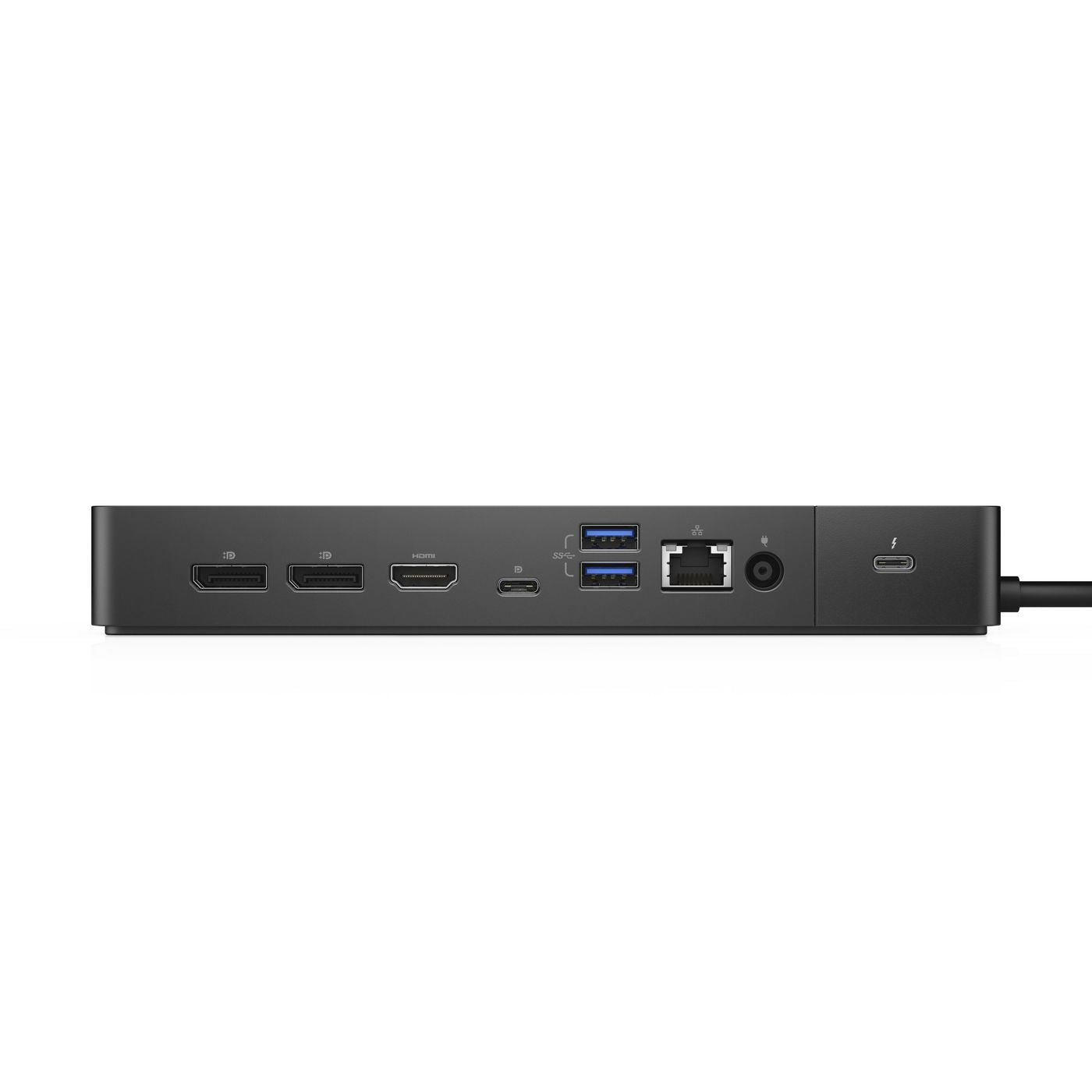

  Ports & interfaces
  Connectivity technology	Wired
  DC-in jack	Yes
  DisplayPort version	1.4
  DisplayPorts quantity	2
  HDMI ports quantity	1
  HDMI version	2.0
  Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
  Microphone in	No
  PowerShare	Yes
  Thunderbolt 3 ports quantity	1
  USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
  USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
  Power
  AC input frequency	50 – 60 Hz
  AC input voltage	120 – 230 V
  Power cable length	0.8 m
  Power source type	DC
  Power supply	180 Watt
  Product dimensions
  Net Weight (Product, kg)	2.9 kg
  Product Depth	9 cm
  Product Height	2.9 cm
  Product Width	20.5 cm
  Software
  Linux operating systems supported	Yes
  Windows operating systems supported	Windows 10/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 IOT Core/Windows 10 IoT Enterprise/Windows 10 Pro/Windows 10 Pro x64/Windows 10 x64
  Technical details
  Harmonized System (HS) code	84733020
  Vendor information
  Brand Name	Dell
  Warranty
  Warranty	1 Year(s)
