Dell Universal Dock Thunderbolt Black | DELL-UD22

• Description
• Specifications
• Downloads

• Dell Universal Dock Thunderbolt Black | DELL-UD22


  Experience the ultimate universal dock, equipped with 10 ports, for any USB-C notebook.





• Feature	Details
  Legal Information
  UNSPSC Code	43211615
  Logistics data
  Harmonized System (HS) code	84733020
  Network
  Ethernet LAN	Yes
  Ethernet LAN (RJ-45) ports	1
  Ethernet LAN data rates	10/100/1000 Mbit/s
  Operational conditions
  Operating relative humidity (H-H)	10 – 80 %
  Operating temperature (T-T)	0 – 35 °C
  Storage relative humidity (H-H)	5 – 90 %
  Storage temperature (T-T)	-20 – 60 °C
  Package dimensions
  Gross Weight (Package, kg)	0.5 kg
  Packaging content
  AC adapter included	Yes
  Cables included	USB Type-C
  Quick start guide	Yes
  Performance
  Cable lock slot	Yes
  Card reader integrated	No
  LED indicators	Yes
  Maximum digital resolution	5120 x 2880 Pixels
  Maximum VESA mount	100 x 100 mm
  Product colour	Black
  VESA mounting	Yes

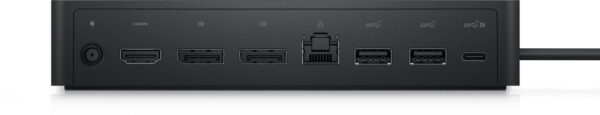

  Ports & interfaces
  Connectivity technology	Docking
  DC-in jack	Yes
  DisplayPort version	1.4
  DisplayPorts quantity	2
  HDMI ports quantity	1
  HDMI version	2.0
  Host interface	Thunderbolt
  Microphone in	No
  Number of USB ports with PowerShare support	2
  PowerShare	Yes
  USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports	4
  USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports	2
  USB Power Delivery	Yes
  USB Power Delivery revision	3.0
  USB Power Delivery up to	96 Watt
  USB Type-C DisplayPort Alternate Mode	Yes
  Power
  AC input frequency	50 – 60 Hz
  AC input voltage	100 – 240 V
  Input current	2.5 A
  Output current	6.67 A
  Output voltage	19.5 V
  Power source type	DC
  Power supply	130 Watt
  Product dimensions
  Net Weight (Product, kg)	0.416 kg
  Product Depth	16.6 cm
  Product Height	3.2 cm
  Product Width	7.6 cm
  Software
  Linux operating systems supported	Ubuntu 20.04 LTS
  Mac operating systems supported	MacOS
  Other operating systems supported	ChromeOS
  Windows operating systems supported	Windows 10/Windows 11
  Vendor information
  Brand Name	Dell
  Warranty	1 Year(s)
