Dell UltraSharp U2424HE 24″ Class Full HD 120 Hz IPS LED Monitor | DELL-U2424HE
- Description
- Specifications
- Downloads
-
Dell UltraSharp U2424HE 24″ Class Full HD 120 Hz IPS LED Monitor
World’s first 4-star certified monitor for eye comfort
Experience a new level of comfort and productivity.
Unparalleled visual comfort
Ambient Light Sensor: A built-in Ambient light sensor intelligently optimises brightness and colour temperature based on your surroundings.
Improved ComfortView Plus: Reduces harmful blue light emissions to <35%, for all-day comfort without sacrificing colour accuracy.
A smoother visual experience: A 120Hz refresh rate delivers less flicker, more seamless scrolling and smoother motion than 60Hz monitors.
Work vibrantly
Vivid colour: Enjoy 1.07 billion colours and a wide colour coverage across industry standards, including 85% DCI-P3, 100% sRGB and 100% BT.709. Get colour calibration accuracy of Delta E < 2 (average) (sRGB, BT.709).
Stable connection: Enable fast Ethernet with speeds of up to 2.5GbE.
Streamline your workflow: A single USB-C cable transmits data and video signals while delivering up to 90W of power.
Men using Dell products at a table in front of him.
Reach peak productivity: Connect to two PC sources and Auto KVM will seamlessly switch controls over to the second connected PC. Use KVM (keyboard, video and mouse) features to control both PCs with a single keyboard and mouse.
Dell products.
Extend your connectivity: Connect to more with DisplayPort 1.4, HDMI (HDCP 1.4)(supports up to FHD 1920 x 1080 120Hz TMDS as specified in HDMI 1.4), USB-A and USB-C ports that provide speeds of up to 10Gbps.
Dell U2424HE UltraSharp Monitor.
Connect with ease: Simply plug in accessories and devices with a quick access USB-A port and a USB-C port that delivers up to 15W of power.
Expand your perspective
Experience uncompromised picture quality by daisy chaining two monitors.
Designed for comfort

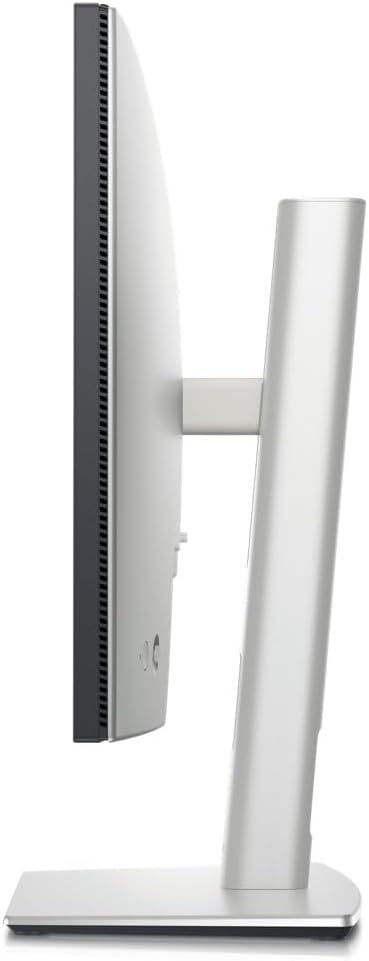

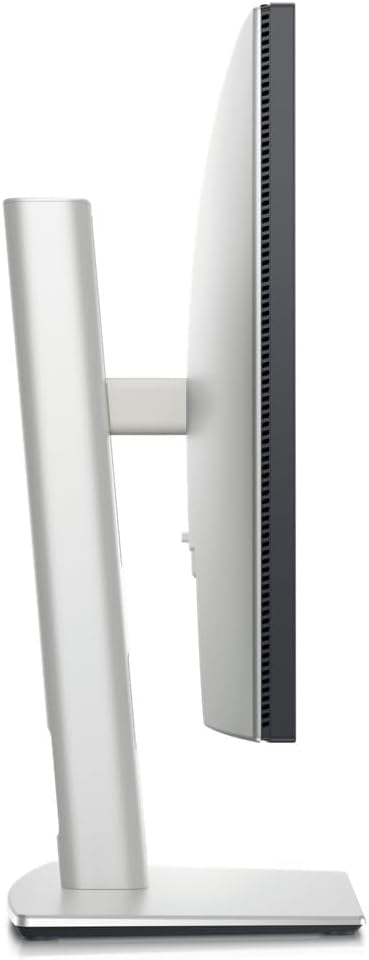

Fit your work style: Tilt, swivel, pivot and adjust the height of your monitor to work your way.
Stay focused on your work: Our InfinityEdge screen provides a virtually borderless experience.
Work beautifully: A premium platinum silver finish enhances any workspace.
Dell Display Manager
Easy management. Next-level productivity.
Improved multitasking: Organize your screen with Easy Arrange and save profiles with Easy Arrange Memory.
Easy navigation: Share a single keyboard, mouse and monitor between multiple PCs with USB KVM wizard. Quickly switch between PCs with the quick-access menu or hot keys.
Smooth deployment: Manage your fleet of monitors with features that are automatic, comprehensive and compatible with several tools.
Convenient customization: Quickly access your favorite features and functions with the menu launcher and hot keys.
Green thinking for today and tomorrow
Environmental standards: This monitor uses 85% PCR (post-consumer recyclable) plastic and 90% recycled aluminum in the design. It meets the latest environmental standards such as EnergyStar® and TCO Certified Edge and is EPEAT® Gold registered.
Eco-conscious packaging: Dell monitors ship in boxes made with 100% renewable content that is also 100% recyclable.
Energy conservation: Save energy with PowerNap, a feature that dims or puts your monitor to sleep when not in use.
Advanced sustainability: Dell Technologies is committed to reducing environmental impact throughout the product lifecycle.
Operating System
This monitor is compatible with multiple operating systems including Windows and macOS®.
Connectivity Options
Ports & Slots
1. Security lock slot (based on Kensington Security Slot™)
2. Power connector
3. HDMI (HDCP 1.4)(supports up to FHD 1920 x 1080 120Hz TMDS as specified in HDMI 1.4)
4. DisplayPort 1.4
5. Stand lock
6. USB Type-C upstream port (Video + Data). Alternate mode with DisplayPort 1.4, power delivery up to 90W.
7. DisplayPort 1.4 (out)
8. USB Type-C upstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2)
9. 2x USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2)
10. Audio line out
11. USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2)
12. RJ45 port
13. USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with BC1.2 power charging
14. USB Type-C downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with power charging (15W)
Cables Included
1. Power cable
2. DisplayPort 1.4 cable – 1.8 m
3. USB Type-A to USB Type-C Gen 2 cable – 1.0 m
4. USB Type-C to USB Type-C Gen 2 cable – 1.0 m -
Category Specification Technical Information Diagonal Viewing Size 604.70 mm / 23.80 inches Preset Display Area (H x V) 527.04 mm x 296.46 mm / 20.75″ x 11.67″ / 156,246.27 mm² (242.15 inches²) Panel Type IPS Display Screen Coating Anti-Glare with 3H hardness Maximum Preset Resolution 1920 x 1080 at 120 Hz Viewing Angle 178° vertical / 178° horizontal Pixel Pitch 0.2745 mm x 0.2745 mm Pixel Per Inch (PPI) 92.53 Contrast Ratio 1000:1 (typical) Aspect Ratio 16:9 Backlight Technology LED Edgelight System Brightness 250 cd/m² (typical) Response Time 8 ms (Normal) / 5 ms (Fast) HDR Ready No Ambient Light Sensor Yes, auto brightness and color temperature adjustment Color Support 16.7 million colors Color Gamut 100% sRGB, 100% BT.709, 85% DCI-P3, Delta E < 2 (average) (sRGB and BT.709) Interfaces DisplayPort 1 x DisplayPort version 1.4 (DRR for Microsoft Windows) (HDCP 1.4) (supports up to FHD 1920 x 1080 120 Hz) HDMI 1 x HDMI (HDCP 1.4) (supports up to FHD 1920 x 1080 120Hz TMDS as per specified in HDMI 1.4) DisplayPort Out 1 x DisplayPort 1.4 (Out) with MST (HDCP 1.4) USB Type-C Upstream (Video & Data) 1 x USB Type-C upstream port (Alternate mode with DisplayPort 1.4, Power Delivery PD up to 90 W) USB Type-C Upstream (Data Only) 1 x USB Type-C upstream port (data only, 10 Gbps USB 3.2 Gen2) USB Type-A Downstream 3 x USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) Audio Line Out 1 x Audio line out RJ45 Port 1 x RJ45 port Quick Access USB Type-C 1 x USB Type-C downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with power charging (15W) Quick Access USB Type-A 1 x USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with BC1.2 power charging Adjustability Height 150 mm Tilt -5°/+21° Swivel -45°/+45° Pivot -90°/+90° PbP / PiP No Keyboard, Video and Mouse (KVM) Yes Daisy Chain Availability Yes Audio Output 1 x Audio line-out Built-in Speaker No Security Security Lock Slot Security lock slot (cable lock sold separately) Anti-theft Stand Lock Slot Anti-theft stand lock slot (to lock stand to monitor using screw) Compliant Standards ENERGY STAR certified monitor, EPEAT registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country. RoHS RoHS-compliant TCO Certified TCO Certified & TCO Certified Edge BFR/PVC Free BFR/PVC free monitor (excluding external cables) Arsenic-Free Arsenic-free glass and Mercury-free for the panel only Flat Panel Mount Interface VESA mounting holes (100 mm x 100 mm – behind attached VESA Cover) What’s Included Monitor, Stand Riser, Stand Base, Quick setup guide, Safety, Environmental and Regulatory Information, Factory calibration report Cables Included 1 x Power cable, 1 x DisplayPort 1.4 cable – 1.8 m, 1 x USB Type-C to USB Type-C Gen 2 cable – 1 m, 1 x USB Type-A to USB Type-C Gen 2 cable – 1 m Voltage Required 100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 2.2 A (typical) Power Consumption On Mode 14.5 W Max 210.0 W Standby 0.5 W Off Mode 0.3 W Networked Standby Mode 1.5 W Dell Display Manager Compatibility Yes, Easy Arrange, Other key features Temperature Range Operating: 0°C to 40°C (32°F to 104°F), Non-operating: –20°C to 60°C (–4°F to 140°F) – Storage and Shipping Humidity Range Operating: 10% to 80% (non-condensing), Non-Operating: 5% to 90% (non-condensing) – Storage and Shipping Altitude Operating: 5000 m (16404 ft) max, Non-Operating: 12192 m (40000 ft) max Physical Characteristics Height with Stand Compressed: 364.00 mm, Extended: 496.53 mm Width with Stand 538.64 mm Depth with Stand 181.75 mm Height without Stand 311.21 mm Width without Stand 538.64 mm Depth without Stand 49.10 mm Weight (Panel Only) 3.98 kg Weight (with Stand) 5.91 kg Weight (with Packaging) 8.45 kg Warranty 3-Year Advanced Exchange Service and Premium Panel Exchange -
