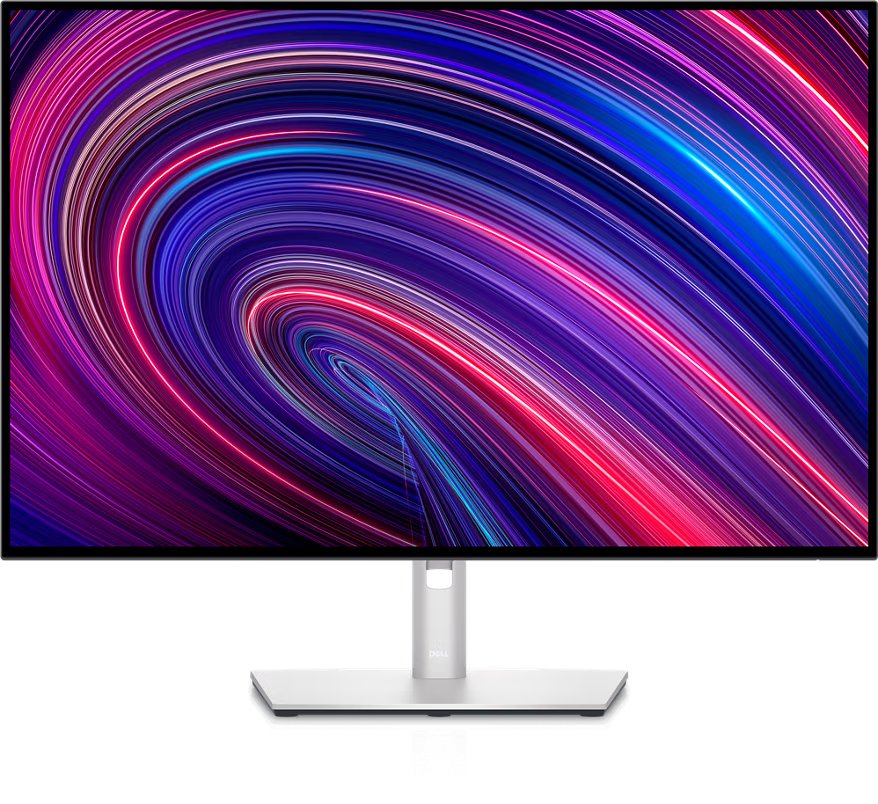

Dell U3023E
UltraSharp 30″ WQXGA 60Hz USB-C Hub Monitor
Brilliant visuals
See more. Scroll less:
Expand your view with this 30-inch WQXGA 16:10 monitor boasting 11% more screen real estate than a QHD 16:9 monitor.
True color:
See 1.07 billion colors across a wide spectrum with 95% DCI-P3 and 100% sRGB color coverage.
Enhanced eye comfort:
ComfortView Plus—an always-on, built-in low blue light screen—reduces potentially harmful blue light emissions without compromising color.
Beautiful view:
Experience an edge-to-edge view with this sleek monitor featuring a virtually borderless InfinityEdge display and a premium platinum silver finish.
ComfortView Plus
DCI-P3
Power Sync
Stay connected
Jumpstart productivity:
Wake up and power your laptop with a Power Sync feature.
Connect to it all:
Streamline your workspace with extensive connectivity ports including USB-C (up to 90W power delivery), RJ45 (Ethernet), DP1.4, and quick-access ports: USB 10Gbps and USB-C (up to 15W charging).
Network ready:
Get enhanced manageability with MAC Address pass-through, PXE Boot, and Wake-on-LAN conveniently built in.
Peak productivity
Expand your productivity:
With Display Stream Compression technology, you can daisy chain two monitors using a single DP cable. As a bonus, you can boost productivity by up to 21% with a dual monitor setup.
Made to multitask:
Connect up to two PCs, and Intelligent Auto KVM detects that second PC and seamlessly switches controls over. You can display content from both PCs with Picture-by-Picture (PbP) and Picture-in-Picture (PiP), and use KVM (Keyboard, Video, and Mouse) to control both PCs.
Professional adjustability

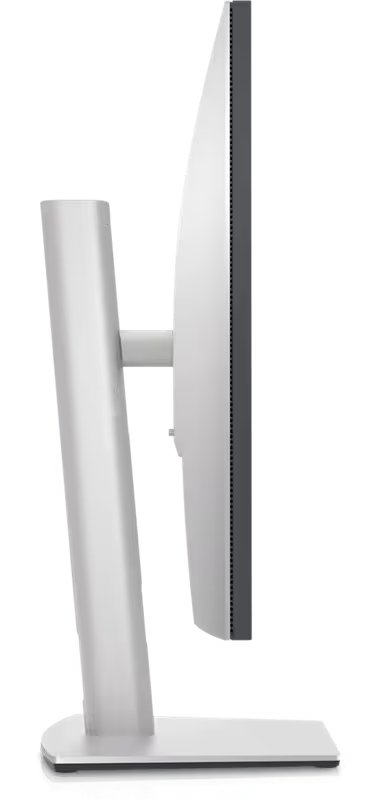

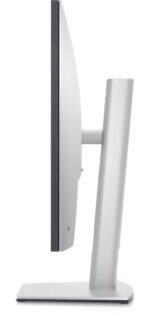

Experience made-for-you comfort by tilting, swiveling, pivoting, and adjusting the height of your monitor (150mm max).
Dell Display Manager
Productive at every level:
Easy Arrange allows you to easily tile multiple applications across one or more screens with 38 pre-set window partitions and the ability to personalize up to five windows, giving you improved multitasking abilities.
Seamless transitions:
The auto-restore feature remembers where you left off, so applications will go back to where you left them, even after you’ve unplugged.
The key to convenience:
Shortcut keys can save you even more time, letting you easily configure your display management settings so you can get to work faster.
More ways to manage:
Asset management reports allow IT managers to quickly capture and track monitor information as well as configure multiple monitors at once through a single setup.
Expanded compatibility:
With support for multiple operating systems, Dell Display Manager helps you stay productive however you work.
Green thinking for today and tomorrow
Environmental standards:
This monitor uses 85% PCR (Post-consumer Recyclable) plastic in the design meets the latest environmental standards such as EnergyStar® and TCO Certified Edge, and is registered EPEAT® Gold.
Eco-conscious packaging:
Designed with the environment in mind, Dell commercial monitors come in 100% recyclable cardboard packaging.
Energy conservation:
Save energy with PowerNap, a feature that dims or puts your monitor to sleep when it’s not in use.
Advancing sustainability:
Dell Technologies is committed to reducing environmental impact throughout the product lifecycle. Read more about our commitment to sustainability and our 2030 Social Impact goals here, and our product’s carbon footprint

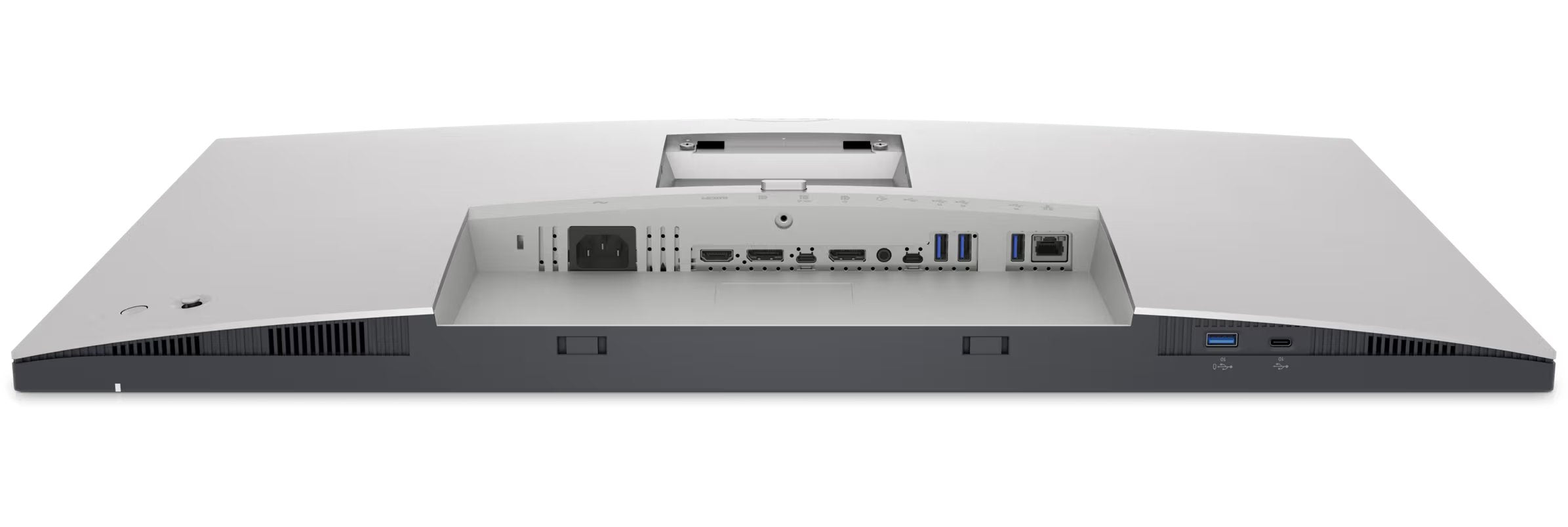

Ports & Slots
1. Security lock slot (based on Kensington Security SlotTM)
2. Power connector
3. HDMI port
4. DisplayPort in
5. USB-C port
6. DP port (out)
7. Audio line-out port
8. USB-C upstream port
9. (3) Superspeed USB 10Gbps (USB 3.2 Gen2)
10. RJ45
11. Super speed USB 10Gbps (USB 3.2 Gen2)
12. USB-C downstream port
13. Stand lock
14. Dell soundbar mounting slots
Cables Included:
1. Power cable
2. DisplayPort 1.8 M cable (DisplayPort to DisplayPort)
3. USB-C Gen2 1.0 M cable (A to C)
4. Type-C 1.0 M cable (C-C cable) -
General Display Type LED-backlit LCD monitor Energy Class Class F Diagonal Size 30″ Built-in Devices USB 3.2 Gen 2/USB-C hub USB Power Delivery 90 Watt Panel Type IPS Aspect Ratio 16:10 Native Resolution WQXGA 2560 x 1600 at 60 Hz Pixel Pitch 0.2505 mm Pixel Per Inch 101.4 Brightness 350 cd/m² Contrast Ratio 1000:1 / 1000:1 (dynamic) Colour Support 1.07 billion colours Colour Gamut 100% sRGB, 95% DCI-P3 Response Time 8 ms (grey-to-grey normal); 5 ms (grey-to-grey fast) Horizontal Viewing Angle 178° Vertical Viewing Angle 178° Screen Coating Anti-glare, 3H Hard Coating Backlight Technology LED backlight Features Mercury free, arsenic-free glass, Delta E<2 calibration Dimensions (WxDxH) With stand (lowest position) 65.59 cm x 23 cm x 47.27 cm Weight 11.13 kg Connectivity Interfaces HDMI (HDCP 1.4), DisplayPort 1.4, DisplayPort output, USB-C upstream/DisplayPort 1.4 Alt Mode with Power Delivery (power up to 90W, HDCP 2.2), USB-C 3.2 Gen 2 upstream, USB-C 3.2 Gen 2 downstream (power up to 15W), 3 x USB 3.2 Gen 2 downstream, USB 3.2 Gen 2 downstream with Battery Charging 1.2, Audio line-out (mini-jack), LAN (RJ-45) Mechanical Display Position Adjustments Height, pivot (rotation), swivel, tilt Tilt Angle -5°/+21° Swivel Angle -30°/+30° Height Adjustment 150 mm VESA Mounting Interface 100 x 100 mm Miscellaneous Features Security lock slot (cable lock sold separately), VESA interface support, halogen free Cables Included 1 x Power cable, 1 x DisplayPort cable (DP to DP) – 1.8 m, 1 x Super speed USB (Type-A to Type-C), 1 x Type-C (C-C cable) – 1 m Compliant Standards RoHS, BFR-free, PVC-free Power Input Voltage AC 100-240 V (50/60 Hz) Power Consumption (On mode) 26.6 W Power Consumption SDR (On mode) 26.6 kWh/1000h Power Consumption (Max) 210 Watt Power Consumption Stand by 0.3 Watt Power Consumption (Off Mode) 0.2 Watt On / Off Switch Yes Dimensions & Weight With stand (lowest position) Width: 65.59 cm, Depth: 23 cm, Height: 47.27 cm, Weight: 11.13 kg Without stand Width: 65.59 cm, Depth: 5.3 cm, Height: 41.86 cm, Weight: 6.48 kg Dimensions & Weight (Shipping) Shipping Weight 15.05 kg Environmental Standards EPEAT Compliant EPEAT Gold ENERGY STAR Certified Yes Manufacturer Warranty Bundled Services 3-Year Advanced Exchange Service and Premium Panel Exchange Environmental Parameters Min Operating Temperature 0 °C Max Operating Temperature 40 °C Humidity Range Operating 10 – 80% (non-condensing) -
The limited hardware warranty for Dell monitors purchased independently of a computer lasts for the time period indicated on your packing slip, invoice, receipt, or other sales documentation. Dell monitors certified according to TCO Certified Displays will have a 3-year base warranty with an extended warranty of up to two years, as indicated on the accompanying packing slip, invoice, receipt, or other sales documentation.
