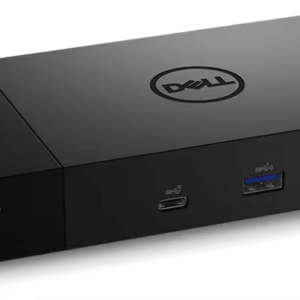

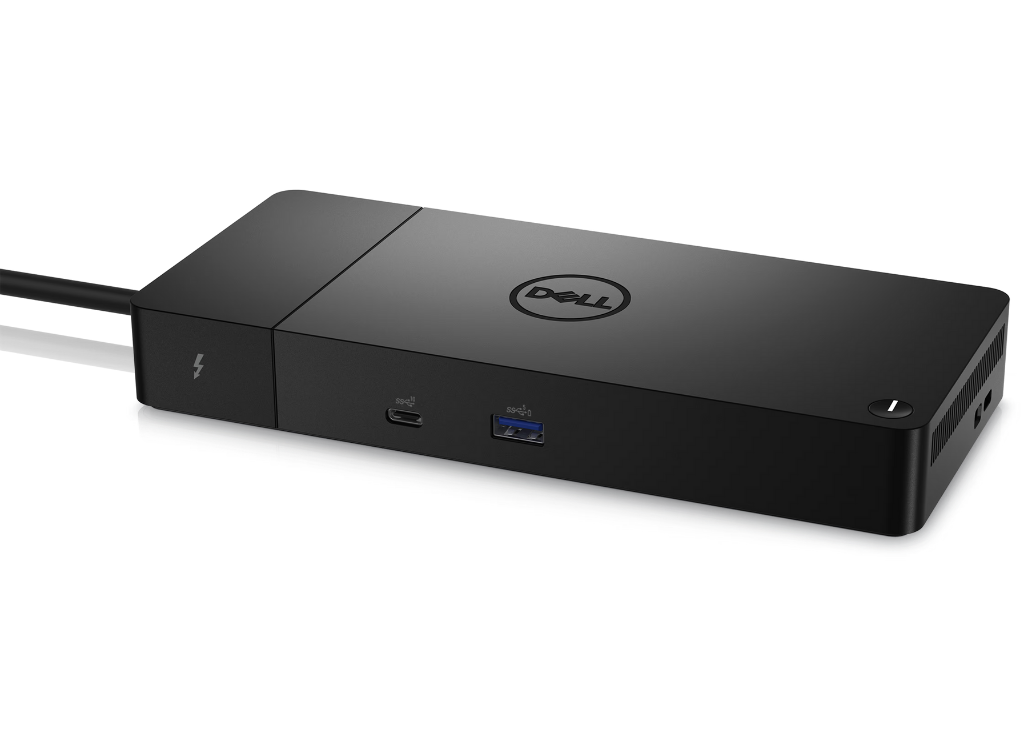

Dell Thunderbolt Laptop Computer Dock | WD22TB4

• Description
• Specifications

• Dell Thunderbolt Laptop Computer Dock | WD22TB4


  ExpressCharge technology
  You’ll experience power delivery of up to 130W on Dell devices with ExpressCharge technology that enables:

  80% charge in one hour​
  35% charge in just 20 minutes


  Future-made design
  Swappable module lets you upgrade with ease to meet the needs of your IT environment.
  Upgrade to get the latest in connectivity with not one but two Thunderbolt™ 4 ports for even more flexibility.


  Multiply productivity
  Connect displays and peripherals to your system with a single cable for ultimate productivity.
  Thunderbolt™ 4 dock with the highest number of ports connects multiple 4K displays and Thunderbolt peripherals allowing you to not compromise with your work setup. Get the maximum from your peripherals with data transfer of 40 GB/s.


  Intelligent and simple management
  Work without disruption: Firmware updates can be completed in five to seven minutes without needing to reboot the system.

  Easier for IT: Dell Client Command Suite and Microsoft System Center Configuration Manager offers a smoother firmware update experience. You can also streamline deployment and management with a single firmware.

  Easier upgrades: Modularity allows for simple field replacement of the power cable or connectivity module.

  Better support: Inventory management got easier since each has its own service tag, allowing IT to push firmware updates only to certain dock.

  Secure manageability: Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN, and more, it’s easier than ever to stay productive while managing your dock.

  Industry standard compatibility
  Dell Thunderbolt™ Dock – WD22TB4 offers wide compatibility across Dell Commercial laptops. It is is also compatible with notebooks from other manufacturers which support industry standards for Thunderbolt™ docking. For functional limitations with notebooks from other manufactures in comparison to Dell Commercial notebooks, please see this support article.

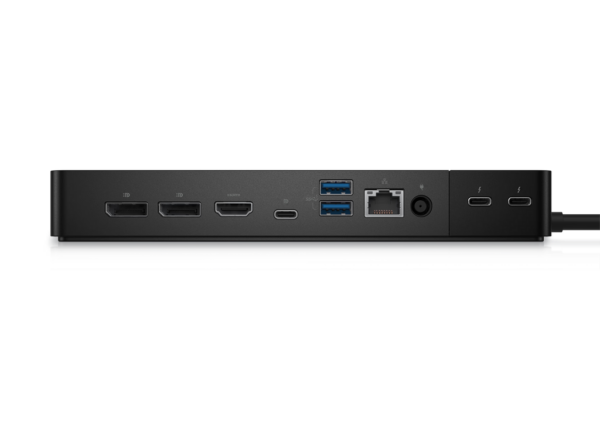

  Connectivity Options
  Ports & Slots:

  1. USB-C 3.2 Gen 2
  2. USB-A 3.2 Gen 1 with PowerShare
  3. DisplayPort 1.4 (2)
  4. HDMI 2.0
  5. USB-C Multifunction DisplayPort
  6. USB-A 3.2 Gen 1 port (2)
  7. Gigabit Ethernet RJ45
  8. Power In
  9. Thunderbolt™ 4 (2)

• Category	Details
  General	Product Type
  	Docking station
  Width	20.5 cm
  Depth	9 cm
  Height	2.9 cm
  Weight	650 g
  Video	Max Resolution Details
  	5K – 60 Hz (Single Display)
  	4K – 60 Hz (Quad Display)
  Networking	Data Link Protocol
  	Ethernet, Fast Ethernet, Gigabit Ethernet
  Expansion / Connectivity	Interfaces
  	2 x DisplayPort – 20 pin DisplayPort (1.4)
  	1 x HDMI – 19 pin HDMI 2.0
  	2 x Thunderbolt 4
  	2 x USB 3.2 Gen 1 – 9 pin USB Type A
  	1 x USB-C 3.2 Gen 2/DisplayPort 1.4
  	1 x USB-C 3.2 Gen 2
  	1 x Ethernet 1000 – RJ-45
  	1 x USB 3.2 Gen 1 with PowerShare
  Miscellaneous	Cables Included
  	1 x Thunderbolt 4 cable – 0.8 m
  Features	Security lock slot (cable lock sold separately), wake on LAN, LED indicator, modular design, MAC address pass-through, 130W power delivery to Dell systems, up to 4 monitors support, 90W power delivery to non-Dell systems, wireless vPro, High Bit Rate 3 (HBR3), High Bit Rate 2 (HBR2)
  Security Slot Type	Noble Wedge security slot / Kensington security slot
  Compliant Standards	DisplayPort 1.4
  Power	Power Device
  	Power adapter
  Voltage Required	AC 100-240 V (50/60 Hz)
  Power Provided	130W (Dell systems)
  	90W (non-Dell systems)
  System Requirements	OS Required
  	Windows 10, Windows 11, Ubuntu 20.04 or later
  Manufacturer Warranty	Bundled Services
  	3 years Advanced Exchange Service and Limited Hardware Warranty
