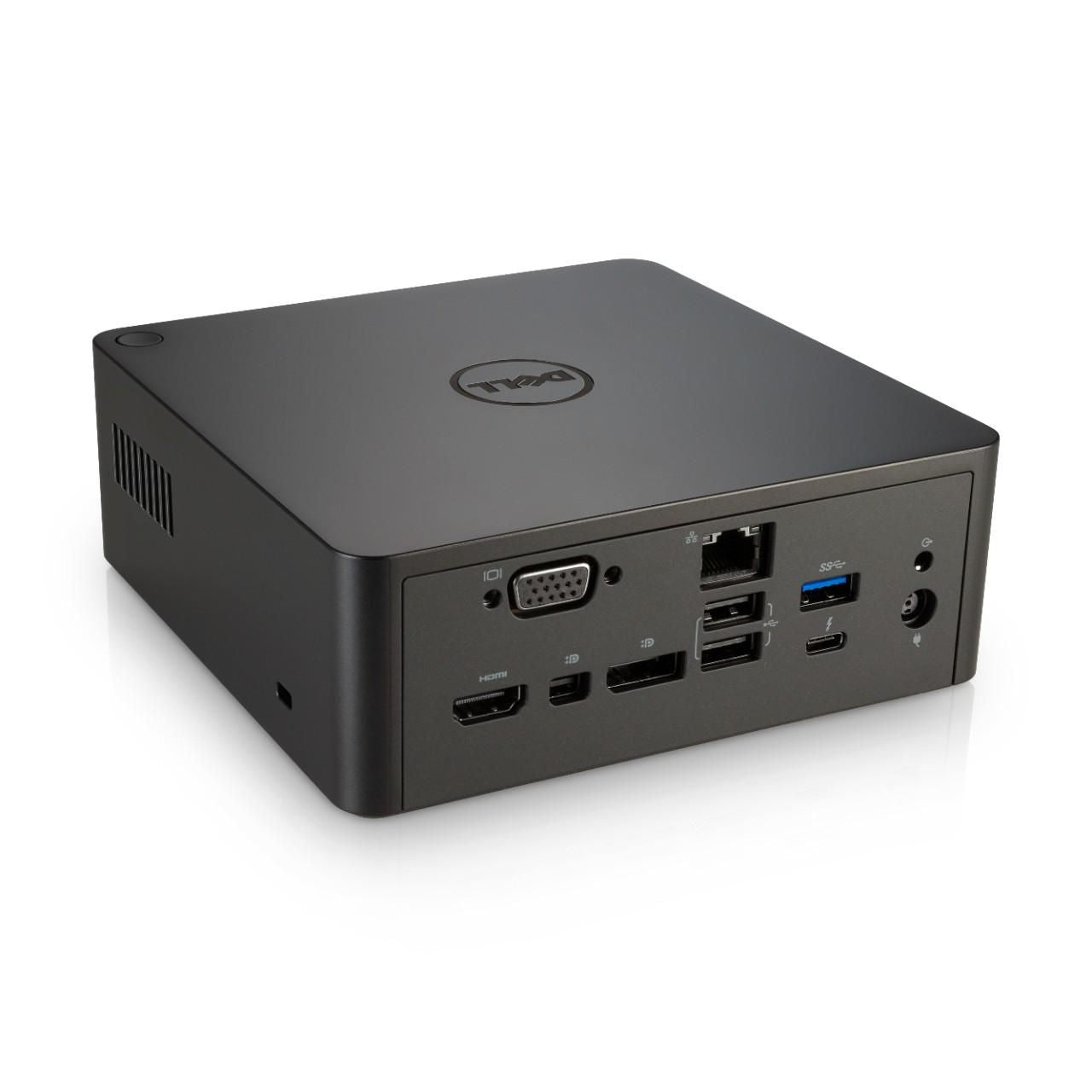

Dell Thunderbolt Docking Station | 452-BCNU

• Description
• Specifications

• Dell Thunderbolt Docking Station | 452-BCNU

  One dock. One cable. Ultimate Performance.
  The Dell Thunderbolt™ Dock TB16 -240W with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.

  Small footprint and big flexibility
  The Dell Thunderbolt™ Dock TB16 -240W is small in size—just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports, enhancing productivity.

  One source for power
  The Dell Thunderbolt™ Dock TB16 -240W can provide power to your laptop (at 19.5V) and can also provide up to 60W of power to attached Thunderbolt™ 3 peripherals. Dell Precision, Latitude or XPS notebooks with a Thunderbolt™ 3 port can receive up to 130W of power.

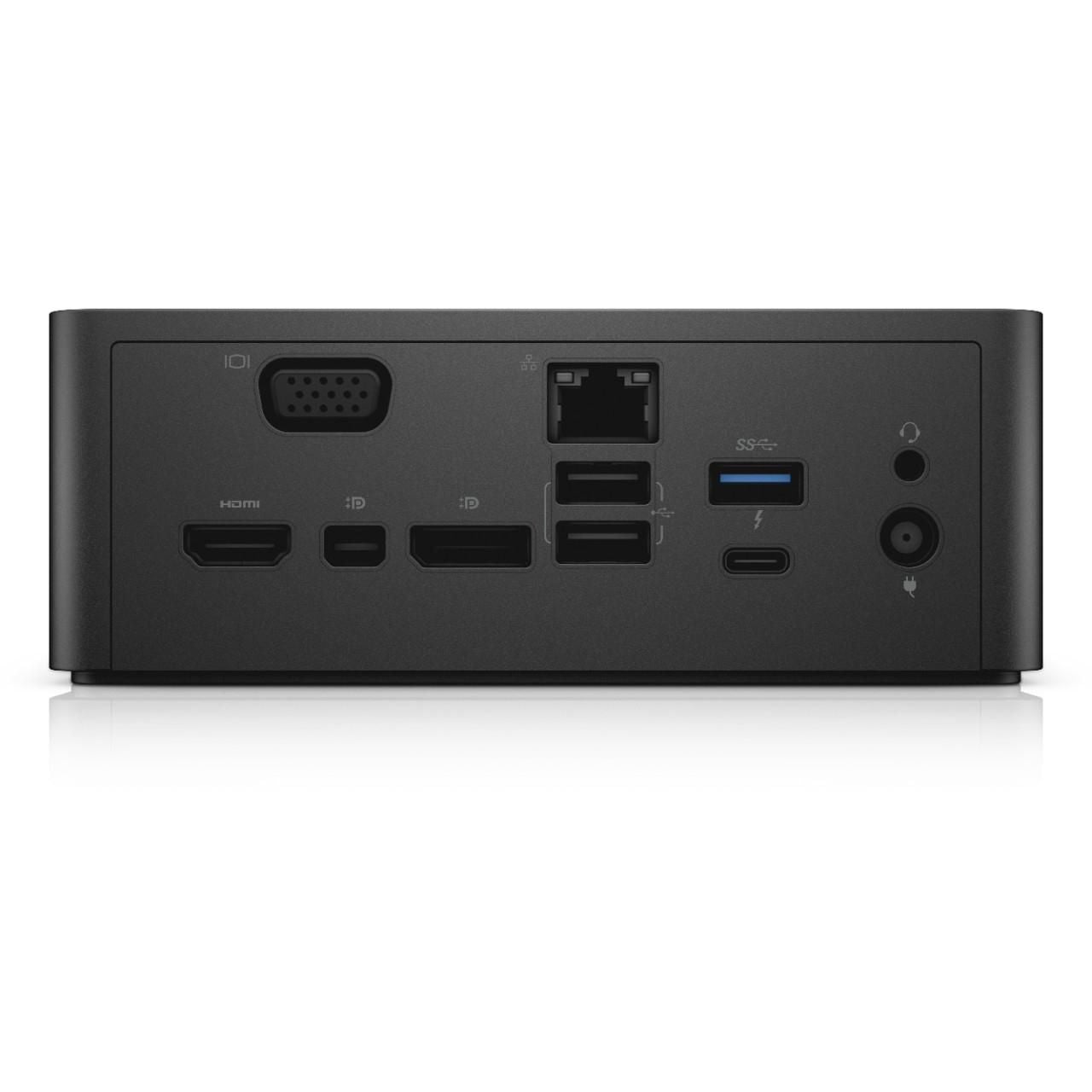

  Connections and Features:
  – Supports 3 displays
  – Two USB 2.0 ports
  – Three USB 3.0 ports
  – Thunderbolt 3 (USB-C) port
  – Speaker output (rear)
  – Combo audio (front)
  – Gigabit Ethernet
  – Kensington Lock Slot
  – 7.4 mm DC-IN Power Input

  This product is compatible with the following systems:
  – XPS 13 (9350)
  – XPS 15 (9550)
  – XPS 12 (9250)
  – Precision 15 7000 Series (7510)
  – Precision 17 7000 Series (7710)
  – Precision 15 3000 Series (3510)
  – Precision 15 5000 Series (5510)
  – XPS 13 (9360)
  – XPS 9560
  – Precision 5520
  – Precision 3520

• Category	Details
  Network
  Ethernet LAN	Yes
  Ethernet LAN (RJ-45) ports	1
  Ethernet LAN data rates	10/100/1000 Mbit/s
  Package dimensions
  Gross Weight (Package, kg)	5 kg
  Packaging content
  AC adapter included	Yes
  Cables included	USB Type-C
  Manual	Yes
  Performance
  Brand compatibility	Dell
  Card reader integrated	No
  Compatibility	XPS 13 (9350), XPS 15 (9550), XPS 12 (9250), Precision 15 7000 Series (7510), Precision 17 7000 Series (7710), Precision 15 3000 Series (3510), Precision 15 5000 Series (5510), XPS 13 (9360), XPS 9560, Precision 5520, Precision 3520
  LED indicators	Yes
  Product colour	Black
  Ports & interfaces
  Combo headphone/mic port	Yes
  Connectivity technology	Wired
  DC-in jack	Yes
  DisplayPorts quantity	1
  HDMI ports quantity	1
  Headphone connectivity	3.5 mm
  Headphone outputs	1
  Host interface	Thunderbolt 3
  Line-out	Yes
  Mini DisplayPorts quantity	1
  Thunderbolt 3 ports quantity	1
  USB 2.0 ports quantity	2
  USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports	3
  USB connector type	USB Type-A
  VGA (D-Sub) ports quantity	1
  Power
  AC input frequency	50 – 60 Hz
  AC input voltage	120-230 V
  Power consumption (max)	240 Watt
  Power source type	AC
  Product dimensions
  Net Weight (Product, kg)	4.5 kg
  Product Depth	14.5 cm
  Product Height	5.1 cm
  Product Width	14.5 cm
  Software
  Windows operating systems supported	Yes
  Technical details
  Harmonized System (HS) code	84733020
  Vendor information
  Brand Name	Dell
  Warranty	1 Year(s)
