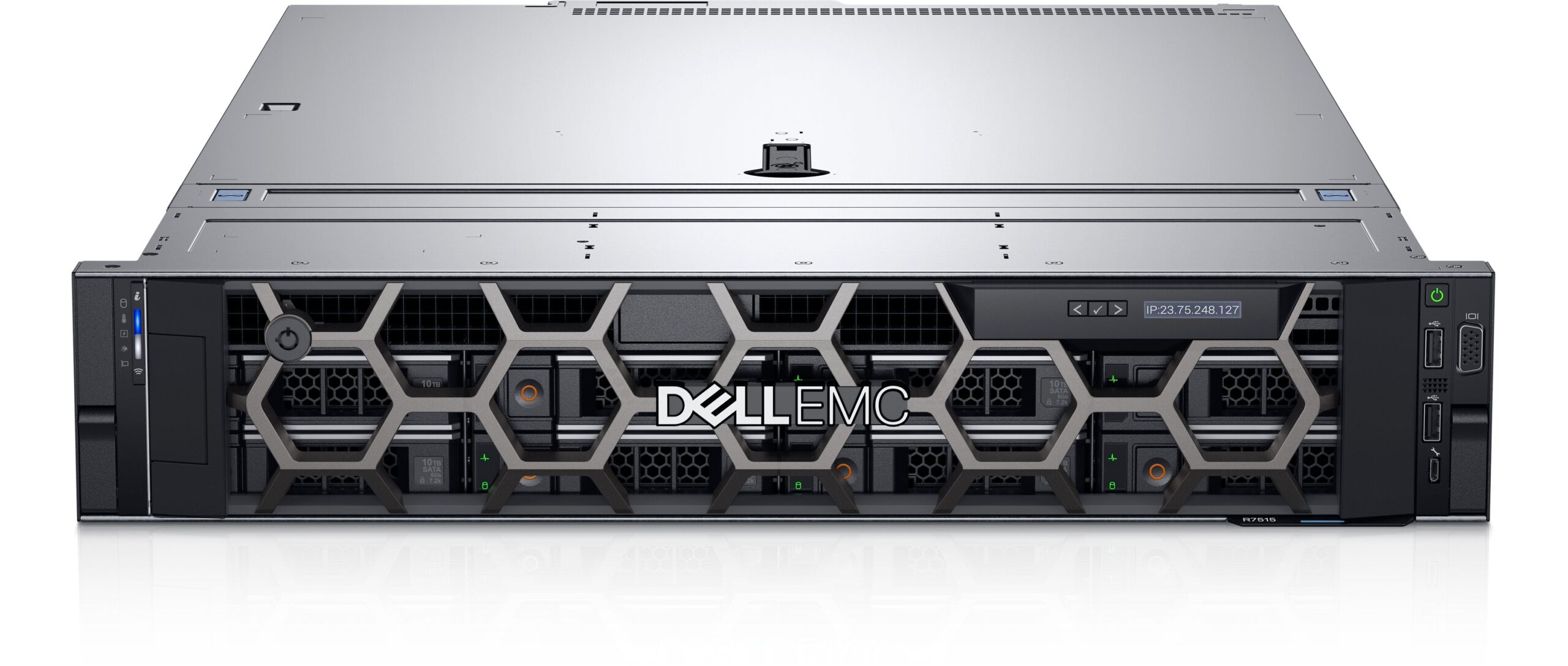

• DELL PowerEdge R7515 3 GHz 16 GB Rack (2U) AMD EPYC 750 W DDR4-SDRAM Server


  Powerful performance and scalability
  The Dell EMC PowerEdge R7515 is a single-socket 2U server designed to handle workloads like software-defined storage, virtualization and data analytics.

  Virtualize your applications with confidence
  The single-socket/2U design of the R7515 creates a flexible platform that can handle both traditional and emerging applications. The R7515 has vSAN Ready Node solutions that have been configurated, tested, and certified, removing the hassle and guesswork of provisioning. The balanced R7515 has room for up to 4x GPUs and 2x PCIe Gen4, enabling many data intensive applications.


  Deliver breakthrough performance, innovation and density
  Software has started to define the data center, which is why a platform design should scale for application performance. The PowerEdge R7515 is a storage dense server with GPU configurations for scalable virtualized environments. High-level specifications:
  Direct connect SAS/SATA/NVMe for vSAN Ready Nodes
  High core count performance for highest VM density in a single-socket design
  Multi-die architecture offers low latency and floating-point performance for big data and containers


  OpenManage systems management
  The Dell EMC OpenManage systems management portfolio helps tame the complexity of your IT environment with tools and solutions to discover, monitor, manage, update, and deploy your PowerEdge infrastructure.


  Intelligent Automation
  PowerEdge and OpenManage solutions integrate tools across the portfolio to help organizations automate the server lifecycle, optimize operations, and scale efficiently.


  Built-in security
  Dell EMC PowerEdge servers are made with a cyber resilient architecture that builds in security at every phase of the product lifecycle, from the silicon root of trust and secured component verification, to signed firmware and drift detection, to BIOS recovery.

• Category	Feature	Details
  Processor	Processor Manufacturer	AMD
  	Processor Family	AMD EPYC
  	Processor Model	7302P
  	Processor Frequency	3 GHz
  	Processor Boost Frequency	3.3 GHz
  	Processor Cores	16
  	Processor Cache	128 MB
  	Number of Processors Installed	1
  Memory	Internal Memory	16 GB
  	Internal Memory Type	DDR4-SDRAM
  	Buffered Memory Type	Registered (buffered)
  	Memory Ranking	2
  	Memory Slots	16x DIMM
  	Memory Clock Speed	3200 MHz
  	Memory Layout (Slots x Size)	1 x 16 GB
  	Memory Data Transfer Rate	3200 MT/s
  	Maximum Internal Memory	2 TB
  Storage	Total Storage Capacity	480 GB
  	Number of SSDs Installed	1
  	SSD Capacity	480 GB
  	SSD Interface	SATA III
  	SSD Size	2.5″
  	Supported SSD Sizes	3.5″
  	Number of SSDs Supported	8
  	RAID Support	Yes
  	Supported RAID Controllers	PERC H740P
  	Hot-Plug Support	Yes
  Graphics	On-Board Graphics Card	No
  	On-Board Graphics Card Model	Not available
  Network	LAN Controller	Broadcom 5720
  	Ethernet LAN	Yes
  	Cabling Technology	10/100/1000Base-T(X)
  	Ethernet Interface Type	Gigabit Ethernet
  	Ethernet LAN (RJ-45) Ports	2
  Ports & Interfaces	USB 2.0 Ports Quantity	2
  	USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity	2
  	VGA (D-Sub) Ports Quantity	2
  	Serial Ports Quantity	1
  Design	Chassis Type	Rack (2U)
  	Product Colour	Black
  Performance	Remote Administration	iDRAC9, Enterprise 15G
  Software	Operating System Installed	No
  	Compatible Operating Systems	Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
  Power	Redundant Power Supply (RPS) Support	Yes
  	Power Supply	750 W
  	Number of Redundant Power Supplies Supported	2
  	Number of Redundant Power Supplies Installed	1
  	Power Cable Length	2 m
  	Power Cable Connector 1	C13 coupler
  	Power Cable Connector 2	C14 coupler
  	Power Cable Current	10 A
  Operational Conditions	Operating Temperature (T-T)	10 – 35 °C
  	Storage Temperature (T-T)	-40 – 65 °C
  	Operating Relative Humidity (H-H)	8 – 80%
  	Storage Relative Humidity (H-H)	5 – 95%
  	Operating Altitude	0 – 3048 m
  	Non-Operating Altitude	0 – 12000 m
  Logistics Data	Harmonized System (HS) Code	84714100
  Weight & Dimensions	Width	482 mm
  	Height	86.8 mm
  Other Features	Drive Bays	8
  	Bytes per Sector	512
