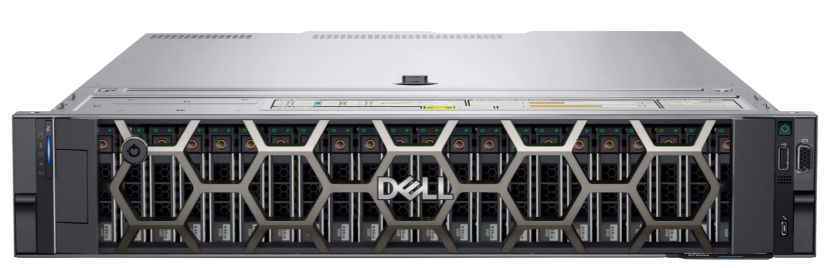

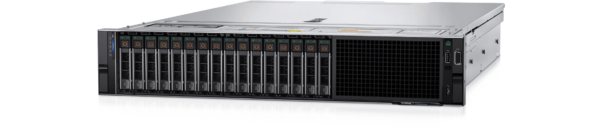

Dell PowerEdge R750xs 60KKP Rack Server

Dell PowerEdge R750xs 60KKP Rack Server

• Description
• Specifications
• Downloads

• Dell PowerEdge R750xs 60KKP Rack Server

  Features
  Xeon Gold 2.10 ghz processor delivers the performance to explore new things, expand your excitement and experience.
  480 GB SSD provides performance and superior data storage for storing a variety of files including media, documents and more.
  480 GB SSD provides you with sufficient space to store your data and files.
  Tower form factor requires minimal configuration and can be easily customised and upgraded to ensure maximum efficiency.
  Tetracosa-core (24 Core) processor core efficiently handles data to ensure quicker transfer of information with maximum usability.
  36 MB cache memory for convenient and quick access to the information to ensure maximum productivity.
  2 processors supported for enhanced, dependable system performance with maximum usability.
  3rd Gen server generation offer more threads, higher clocks, thus giving an optimal and faster system performance.
  RAID provides efficient data redundancy in the case of a drive failure to ensure maximum dependability.
  With 32 GB memory, you can multitask between applications smoothly.

  Your innovation engine
  The Dell EMC PowerEdge R750xs is a 2U, dual-socket, feature-optimized server with an ideal selection of CPU, I/O and storage performance for scale-out.

  Purpose-built 2U for growing scale-out solutions
  The Dell EMC PowerEdge R750xs with 3rd Generation Intel® Xeon® Scalable processors is designed for virtualization, medium VM density or VDI, and software-defined storage node workloads.
  Supports up to 32 cores per CPU, and up to 16x DDR4 RDIMMs at up to 3200 MT/s
  Built for fast growing solutions with an optimal footprint and up to 24 drives for SDS deployments
  Manage with iDRAC9 Enterprise, OpenManage Enterprise and Plugins, iDRAC Direct, and Quick Sync 2.0
  Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools for on-premises, edge and cloud environments

  OpenManage systems management
  The Dell Technologies OpenManage systems management portfolio helps tame the complexity of your IT environment with tools and solutions to discover, monitor, manage, update, and deploy your PowerEdge infrastructure.

  Dell Technologies offers complete end-to-end services
  Optimising the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.

• Category	Specification
  Chipset	Chipset Manufacturer: Intel
  Display & Graphics	Graphics Controller Manufacturer: No
  Network & Communication	Ethernet Technology: 10 Gigabit Ethernet
  Warranty	Additional Warranty Information: 3Y Basic Onsite
  Security Features	Cryptographically signed firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ, Country of Origin: Poland
  Controllers	Controller Type: Serial ATA/600, RAID Supported: Yes, Controller Model: PERC H755
  I/O Expansions	Riser Card: Riser config 4, Half Length, Low Profile, 1×16 + 1×4 slots, 1 CPU, Number of Total Expansion Bays: 8, Number of 3.5″ Bays: 8, Number of LFF Bays: 8
  Operating System	Operating System Supported: Ubuntu Server, Windows Server, Citrix XenServer, Red Hat Enterprise Linux, SuSE Linux Enterprise Server
  Physical Characteristics	Form Factor: Rack-mountable, Rack Height: 2U, Height: 86.8 mm, Width: 482 mm, Depth: 721.6 mm
  Software	Operating System Supported: SuSE Linux Enterprise Server, Red Hat Enterprise Linux, Citrix XenServer, Windows Server, Ubuntu Server
  Power Description	Plug/Connector Type: C13/C14, Number of Power Supplies Supported: 2, Number of Power Supplies Installed: 1, Redundant Power Supply: No, Hot Swappable Power Supply: Yes, Maximum Power Supply Wattage: 800 W
  Storage	Optical Drive Type: No, Solid State Drive Interface: Serial ATA/600, Solid State Drive Configuration: 1 x 480GB (2 x 480GB), Total Solid State Drive Capacity: 480 GB, Number of Solid State Drives: 1
  Interfaces/Ports	VGA: Yes, Number of Network (RJ-45) Ports: 2, Network (RJ-45): Yes, Remote Management: Yes, Number of USB 2.0 Ports: 2, Number of VGA Ports: 2, Remote Management Controller: iDRAC9, Enterprise 15G
  General Information	Product Type: Server, Manufacturer Part Number: 60KKP, Manufacturer Website Address: Dell Technologies, Manufacturer: Dell Technologies, Product Model: R750xs, Product Name: PowerEdge R750xs, Product Line: PowerEdge, Brand Name: Dell EMC
  Memory	Error Checking: ECC, Maximum Memory Supported: 1 TB, Signal Processing: Registered (Buffered), Standard Memory: 32 GB, Memory Technology: DDR4 SDRAM, Number of Total Memory Slots: 16, Number of Occupied Memory Slots: 1, Memory Clock Speed: 3.20 GHz
  Processor	Cache: 36 MB, Processor Speed: 2.10 GHz, Processor Type: Xeon Gold, Processor Model: 5318Y, Processor Core: Tetracosa-core (24 Core), Processor Manufacturer: Intel, Number of Processors Supported: 2, Processor Generation: 3rd Gen
  Processor & Chipset	Cache: 36 MB, Processor Speed: 2.10 GHz, Processor Type: Xeon Gold, Processor Model: 5318Y, Processor Core: Tetracosa-core (24 Core), Processor Manufacturer: Intel, Chipset Manufacturer: Intel, Number of Processors Supported: 2, Processor Generation: 3rd Gen

• Description	Downloads
  Dell PowerEdge R750xs Spec Sheet	Downloads
  Dell PowerEdge R750xs Technical Guide	Downloads
