DELL OptiPlex 7010 Pius i5-13500T MFF Intel® Core™ i5 16 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black
- Description
- Specifications
- Downloads
-
DELL OptiPlex 7010 Pius i5-13500T MFF Intel® Core™ i5 16 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black
Operating system
Available with Windows 11.Intelligence meets simplicity
Intelligent desktops for every workstyle.Find your OptiPlex in just two steps: Select your form factor, then choose the right features for the job.
Simplified management: Our new OptiPlex desktops with 13th Gen Intel® core processors feature one BIOS for All-in-Ones and one BIOS across Towers, Small Form Factors and Micro Form Factors.
Ultra compact with unbelievable power
Expandable memory
Up to 32GB DDR4 means more multitasking capabilities and smoother transitions between applications.
Supports 4 displays
iGFX support for up to 4 simultaneous displays with up to 4K resolution.
Modern standby
Stay connected while consuming less power.
Look sleek, save space
Compact design: Get maximum productivity with minimal footprint.Expandable storage: Up to 1 M.2 SSD offers fast and reliable high-speed data storage.
Cut the cords: Easily pair Dell Premier wireless devices with one-click pairing.
Simplify, simplify, simplify: Enjoy minimal cables and easy management of device and monitor with our optional Single Cable Type-C Power Delivery (PD) solution.
Take your pick: Choose from six custom mounting options to fit your workspace needs with the most flexible OptiPlex form factor.
Stunning views: Experience 5K resolution with optional DisplayPort.
Enhancements that lead to advancements
One BIOS
New OptiPlex desktops with 13th Gen Intel® core processors feature one BIOS across Towers, Small Form Factors and Micro Form Factors.
13th Gen Intel® Core™ processors
Engineered to increase your productivity.
Dell Optimizer Built-in AI
Intuitive, personalized productivity.
OptiPlex 30th Anniversary
30 years of desktop innovation.
Flexible IT
Seamless startup: Prepared with out-of-box Remote BIOS Management and HDD Wipe.Easy on IT: Intel vPro® platform options deliver modern management capabilities and hardware-enhanced security.
Save time: Tool-less chassis provides easy access for service, maintenance, and upgrades.
Power virtual desktops (VDI) with premium devices: New Micro available with Dell Cloud Client Workspace solutions designed for seamless and secure access to virtual workspaces.
Smart and secure
Part of the Dell Trusted Devices portfolio: OptiPlex offers protection before-, below-, and above-the-OS ensuring a comprehensive defense framework to evolving threats.Part of the Dell Cloud Client Workspace portfolio: Instantly connect to virtual workspaces with OptiPlex Micro, now available as a thin client solution. Confidently access VDI environments with versatile thin client software, such as Windows10 IoT Enterprise. All powered by Cloud Client Workspace.
Dell Optimizer
Intelligence built around you: Automatically personalise and boost the performance of your system and its entire ecosystem with Dell Optimizer, an AI-based optimization software that learns and responds to the way you work.Personalised Performance: Intelligence and machine learning elevate productivity by automatically personalizing performance features across your entire ecosystem, making them the Dell’s most intelligent PCs.
Intelligent Collaboration: Get the Dell’s most intelligent collaboration experience with smart audio conferencing, connectivity and productivity features – all in one software.
Safe, secure and manageable: We ensure optimization and data collection follows a stringent process to keep your information safe. Any data we do gather is analyzed locally on your system to improve your personal PC experience.
Advancing Sustainability
OptiPlex was our first product to be made with recycled plastic in 2007 and the first to use materials from our closed-loop supply chain in 2014. OptiPlex Micro desktops contain up to 59% recycled material, including closed-loop and ocean-bound plastic.These products are also EPEAT Gold registered and Energy Star certified.

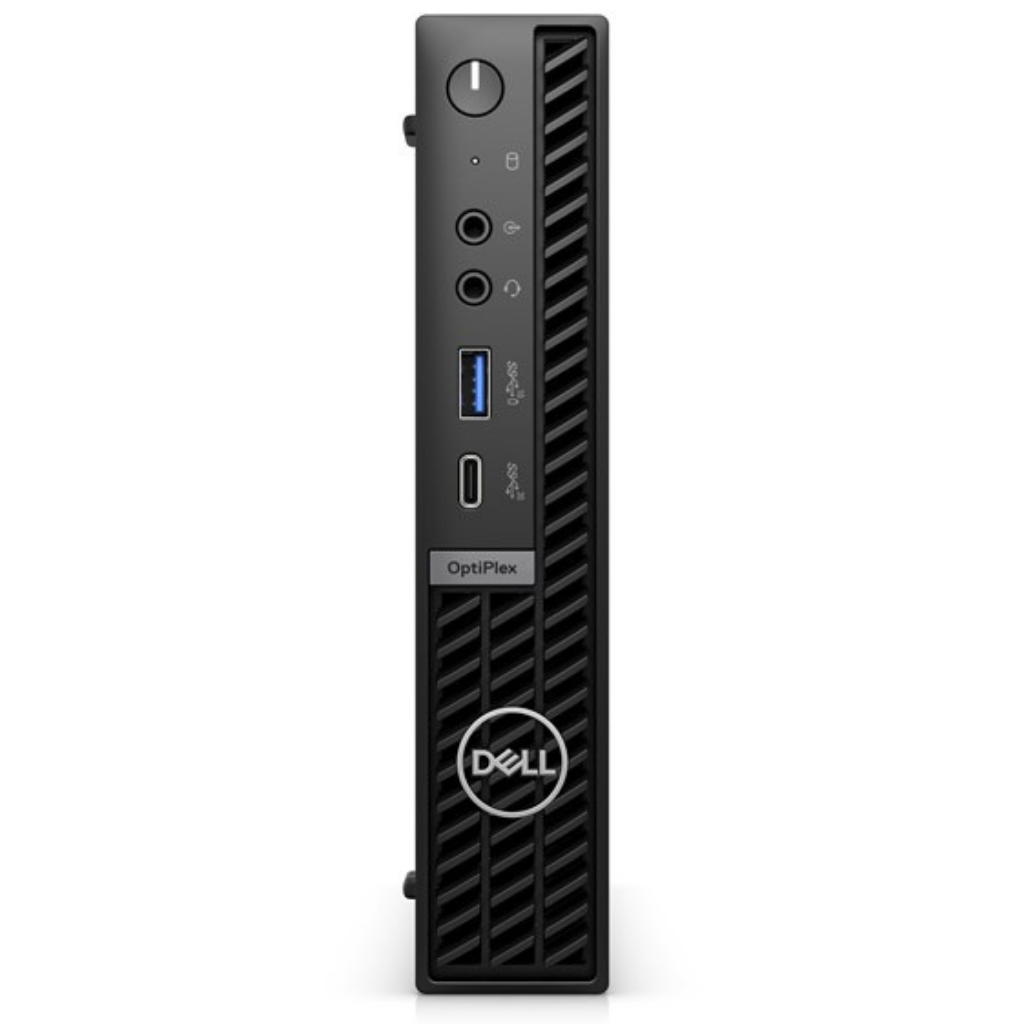

Ports & Slots
1. Power Button
2. Hard Drive Activity Light
3. Line In
4. Universal Audio Port
5. USB 3.2 Type-A Gen 2 with Power Share
6. USB 3.2 Type-C Gen 2×2
7. Knock out slot for optional module
8. RJ45 Ethernet Port
9. Knock out slot for optional module
10. USB 3.2 Type-A Gen 2 (2)
11. USB 3.2 Type-A Gen 1 with Smart Power On
12. Kensington security-cable slot and Padlock ring
13. DP 1.4a (3)
14. Power Connector
Dimensions & Weight
1. Width: 36 mm (1.43 in.)
2. Depth: 178 mm (7.01 in.)
3. Height: 182 mm (7.17 in.)
Volume: 1.2 L
Starting Weight: 1.07 kg(2.36 lbs.) -
Component Details Processor Intel® Core™ i5 Processor generation 13th gen Intel® Core™ i5 Processor model i5-13500T Processor cores 14 Processor boost frequency 4.6 GHz Performance-core Max Turbo Frequency 5.2 GHz Performance-core base frequency 1.6 GHz Efficient-core base frequency 1.2 GHz Performance-core boost frequency 4.6 GHz Efficient-core boost frequency 3.2 GHz Processor cache 24 MB Processor cache type Smart Cache Bus type DMI4 Memory Internal memory 16 GB Maximum internal memory 64 GB Internal memory type DDR5-SDRAM Memory layout (slots x size) 1 x 16 GB Memory slots 2x SO-DIMM Memory clock speed 4800 MHz Storage Total storage capacity 256 GB Storage media SSD Number of storage drives installed 1 Total SSDs capacity 256 GB Number of SSDs installed 1 SSD capacity 256 GB SSD interface PCI Express SSD form factor M.2 SSD performance class 35 Graphics On-board GPU manufacturer Intel On-board graphics card model Intel UHD Graphics 770 Network Ethernet LAN Yes Ethernet LAN data rates 10, 100, 1000 Mbit/s Cabling technology 10/100/1000Base-T(X) Wi-Fi Yes Top Wi-Fi standard Wi-Fi 6E (802.11ax) Wi-Fi standards 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) WLAN controller manufacturer Intel WLAN controller model Intel Wi-Fi 6E AX211 Antenna type 2×2 Bluetooth Yes Ports & interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3 USB 3.2 Gen 2×2 Type-C ports quantity 1 PowerShare Yes Number of USB ports with PowerShare support 1 DisplayPorts quantity 3 DisplayPort version 1.4a Ethernet LAN (RJ-45) ports 1 Line-out Yes Line-in Yes Combo headphone/mic port Yes DC-in jack Yes Design Chassis type MFF Placement supported Horizontal/Vertical Cable lock slot Kensington Product colour Black Performance Motherboard chipset Intel Q670 Audio chip Realtek ALC3246-CG Audio system High Definition Audio Built-in speaker(s) No Number of speakers 1 Product type Mini PC Software Operating system installed Windows 11 Pro Operating system architecture 64-bit Operating system language Multilingual Processor special features CPU configuration (max) : 1 Power Power supply 130 W Power supply input voltage 100 – 240 V Power supply input frequency 50 – 60 Hz Operational conditions Operating temperature (T-T) 10 – 35 °C Storage temperature (T-T) -40 – 65 °C Operating relative humidity (H-H) 20 – 80% Storage relative humidity (H-H) 5 – 95% Operating altitude -15.2 – 3048 m Non-operating altitude -15.2 – 10668 m Operating vibration 0.26 G Non-operating vibration 1.37 G Non-operating shock 105 G Sustainability Doesn’t contain PVC/BFR Weight & dimensions Width 36 mm Depth 178 mm Height 182 mm Packaging content Display included No Mouse included Mouse included on selected markets only Mouse connectivity Wireless Keyboard included Keyboard included on selected markets only Keyboard connectivity Wireless Input device model KM5221W Cables included AC Power cable length 1.8 m - 88HPH : Datasheet
