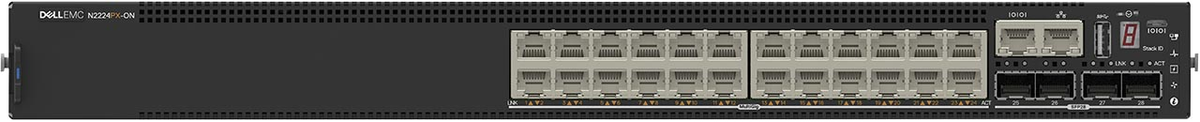

• DELL N2224PX-ON Managed L3 Network Switches


  Modernize your campus access network
  Purpose-built industry’s first 24 and 48 port Multi-Gig and Multi-Gig 60W PoE switches for modern workloads and greater employee productivity.

• Feature	Details
  HS Code	85176990
  Multicast Support	Yes
  Power over Ethernet	Yes
  Switch Layer	L3
  Switch Type	Managed
  Power Consumption	1050 W
  Power Supply	Included
  Rack Mounting	Yes
  Form Factor	1U
  Color	Black
  Access Control List	Yes
  IGMP Snooping	Yes
  Authentication	RADIUS
  Operating Temp	0 – 45 °C
  Storage Temp	-40 – 65 °C
  Humidity (Op/Storage)	0-95% / 0-85%
  Weight	6.67 kg
  Dimensions (HxWxD)	43.4 x 434.1 x 400.1 mm
  MAC Address Table	32,000 entries
  Switching Capacity	160 Gbps
  Forwarding Rate	667 Mpps
  Packet Buffer Memory	4 MB
  Static Routes	256
  USB 2.0 Ports	1
  Gigabit Ethernet Ports	24
  QSFP+ Module Slots	2
  SFP28 Ports	4
  Networking Standards	IEEE 802.3at, IEEE 802.3bt
  VLANs Supported	4096
  Other Features	Full Duplex, Port Mirroring, VLAN
