Dell Broadcom 5720 DP 1Gb Network Interface Card | 540-BBGY

• Description
• Specifications

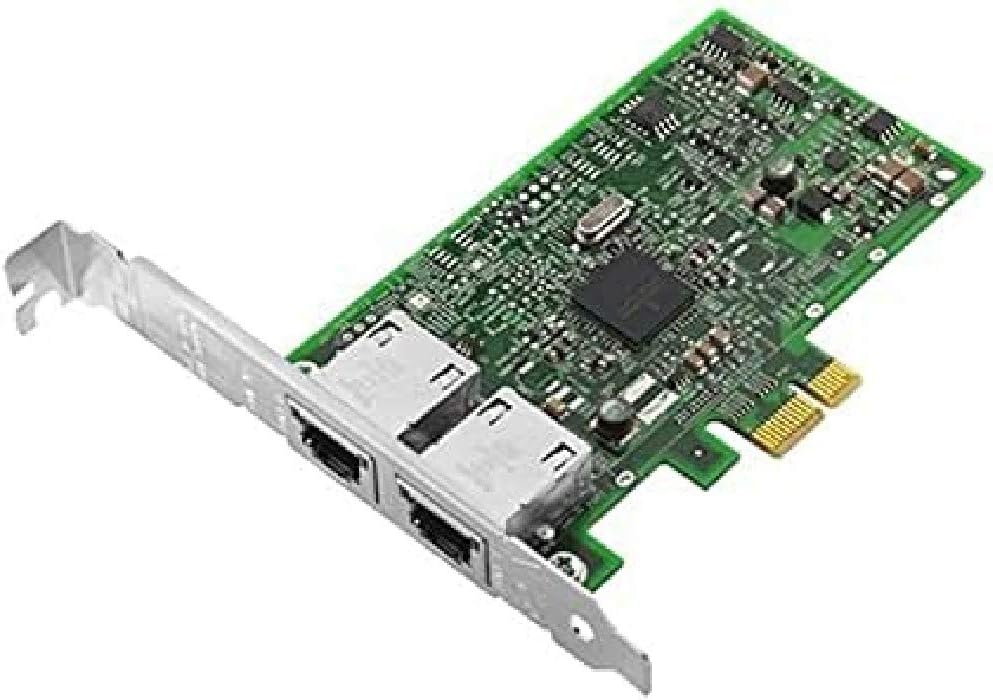

• Dell Broadcom 5720 DP 1Gb Network Interface Card


  Broadcom 5720 DP 1Gb Network Interface Card – Kit
  The BROADCOM™ 5720 DP 1Gb PCIe Network Interface Card from Dell™ is responsible for connecting your desktop and server to your network. Its Remote management support enables you to maximize management resources. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.
  – Features a compact design
  – Ideal for high-performance network applications

  This product is compatible with the following systems:
  – PowerEdge R220
  – PowerEdge R320
  – PowerEdge R420
  – PowerEdge R430
  – PowerEdge R520
  – PowerEdge R530
  – PowerEdge R620
  – PowerEdge R630
  – PowerEdge R720
  – Poweredge R720xd
  – PowerEdge R730
  – PowerEdge R730XD
  – PowerEdge R820
  – PowerEdge R920
  – PowerEdge T20
  – PowerEdge T320
  – PowerEdge T420
  – PowerEdge T430
  – PowerEdge T620
  – PowerEdge T630
  – PowerEdge VRTX
  – PowerVault DX6104 CSN
  – PowerVault DX6104 SCN
  – PowerVault DX6104 SN.

• Category	Details
  Design	Internal, Green
  Compatible Products	Dell PowerEdge R220, R320, R420, R430, R520, R530, R620, R30, R720, R720xd, R730, R730XD, R820, R920, T20, T320, T420, T430, T620, T630, VRTX, PowerVault DX6104 CSN, DX6104 SCN, DX6104 SN
  Component for	Server
  Recommended Usage	Server
  Legal Information	EU ECCN Code: N/A
  	UNSPSC Code: 43201404
  	US ECCN Code: 5A991
  Logistics Data	HS Code: 85176990
  Network	Cabling Tech: 10/100/1000BaseT(X)
  	Ethernet LAN: Yes
  	LAN Data Rates: 10/100/1000 Mbit/s
  	LAN Controller: Broadcom BCM5720
  	Max Data Rate: 1000 Mbit/s
  	Standards: IEEE 802.3
  Package Dimensions	Depth: 16.9 cm
  	Width: 24.2 cm
  	Height: 6.5 cm
  	Gross Weight: 0.17 kg
  Ports & Interfaces	Connectivity: Wired & Wireless
  	Ethernet Ports: 2 x RJ-45
  	Host Interface: PCI Express
  	Interface: Ethernet
  Product Dimensions	Net Weight: 0.07 kg
  System Requirements	Linux Supported: Yes
  	Windows Supported: Yes
  Vendor Information	Brand: Dell
  Categories	Server, Computer & Printer Parts, System Components, Networking Cards
