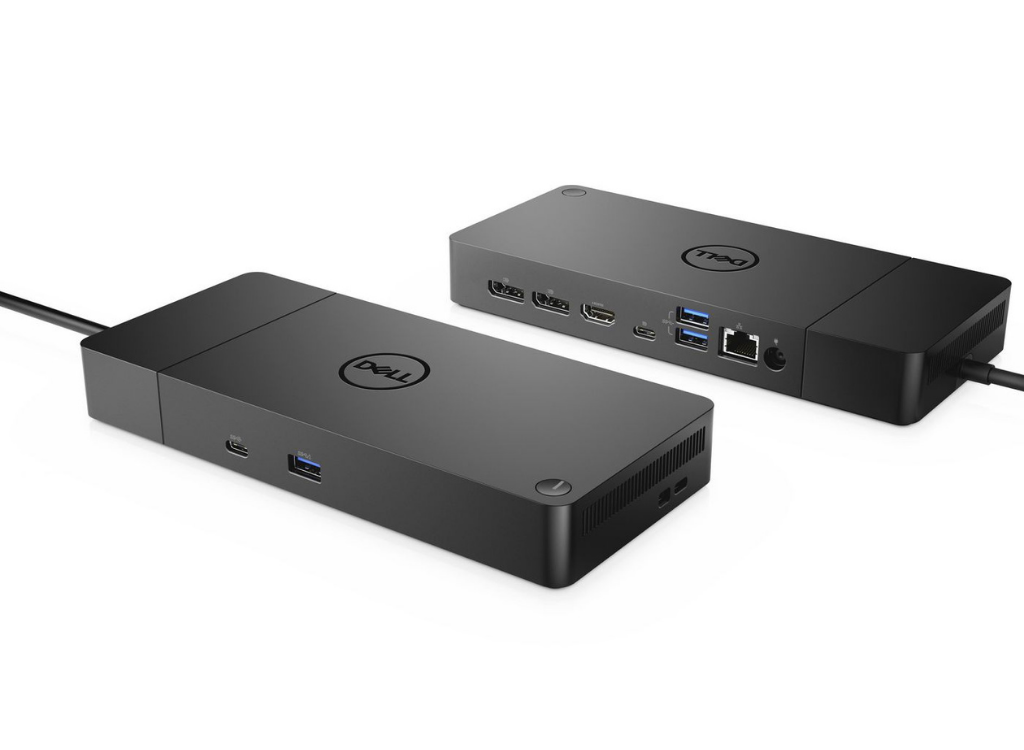

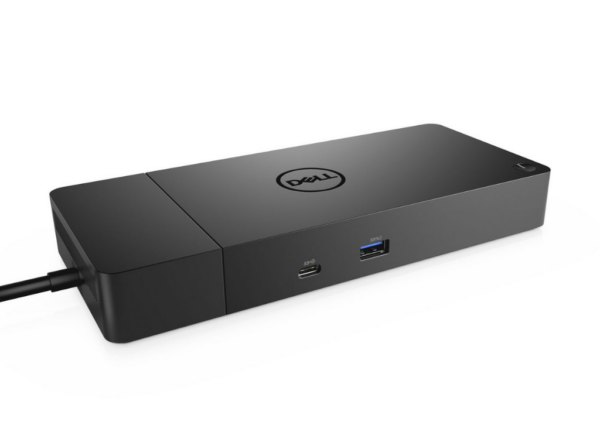

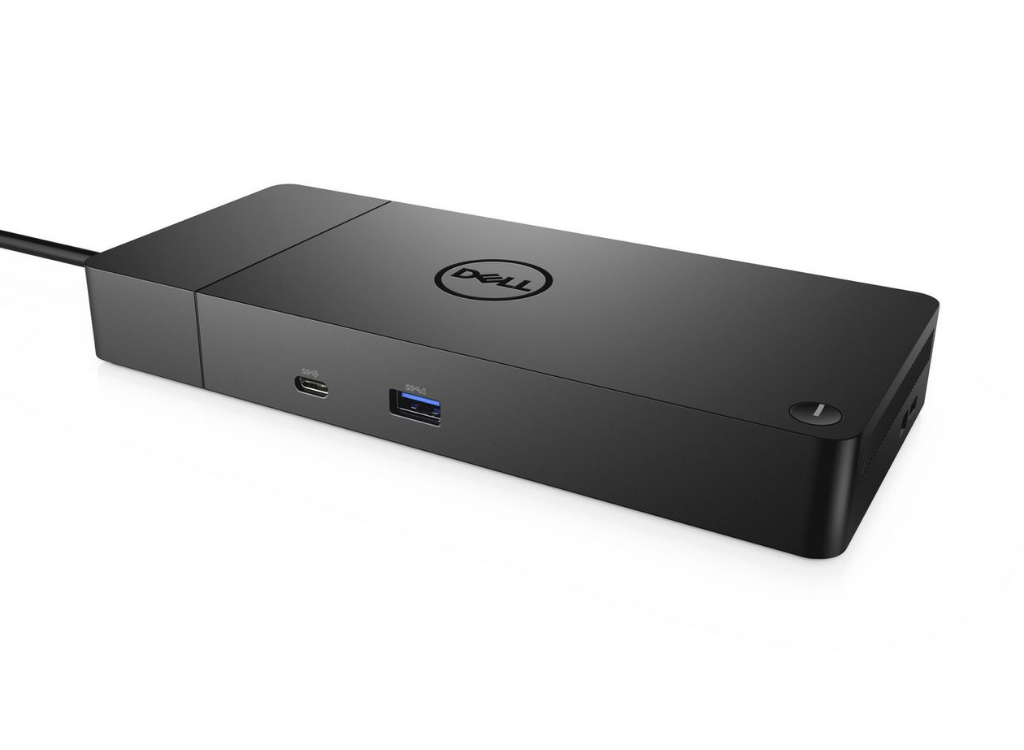

Dell 130W USB-C Docking Station | 210-AZBX

• Description
• Specifications
• Downloads

• Dell 130W USB-C Docking Station | 210-AZBX

  Boost your PC’s power on the world’s most powerful and first modular USB-C dock with a future-ready design.

• Category	Details
  Carbon footprint	Carbon emissions (End-of-Life)
  	-2 kg of CO2e
  Carbon emissions (Logistics)	7 kg of CO2e
  Carbon emissions (Manufacturing)	26 kg of CO2e
  Carbon emissions (Use)	6 kg of CO2e
  Total carbon emissions (w/o Use phase)	30 kg of CO2e
  Total carbon footprint	36 kg of CO2e
  Legal Information	EU ECCN Code
  	N/A
  UNSPSC Code	43211615
  US ECCN Code	EAR99
  Logistics data	Harmonized System (HS) code
  	84733020
  Network	Ethernet LAN
  	Yes
  Ethernet LAN (RJ-45) ports	1
  Ethernet LAN data rates	10/100/1000 Mbit/s
  Operational conditions	Operating relative humidity (H-H)
  	10 – 80 %
  Operating temperature (T-T)	0 – 35 °C
  Storage relative humidity (H-H)	5 – 90 %
  Storage temperature (T-T)	-20 – 60 °C
  Package dimensions	Depth (package, cm)
  	29 cm
  Gross Weight (Package, kg)	2 kg
  Height (package, cm)	6.2 cm
  Width (package, cm)	30 cm
  Packaging data	Quantity per pack
  	1 pc(s)
  Performance	Card reader integrated
  	No
  LED indicators	Yes
  Maximum digital resolution	5120 x 2880 Pixels
  On/off switch	Yes
  Product colour	Black
  VESA mounting	Yes
  Ports & interfaces	Connectivity technology
  	Wired
  DC-in jack	Yes
  DisplayPort version	1.4
  DisplayPorts quantity	2
  HDMI ports quantity	1
  HDMI version	2.0
  Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
  Microphone in	No
  USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports	3
  USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports	2
  Power	AC input frequency
  	50 – 60 Hz
  AC input voltage	120 – 230 V
  Power cable length	1 m
  Power source type	DC
  Power supply	130 Watt
  Product dimensions	Net Weight (Product, kg)
  	1.9 kg
  Product Depth	9 cm
  Product Height	2.9 cm
  Product Width	20.5 cm
  Software	Linux operating systems supported
  	Yes
  Windows operating systems supported	Windows 10/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 IOT Core/Windows 10 IoT Enterprise/Windows 10 Pro/Windows 10 Pro x64/Windows 10 x64
  Vendor information	Brand Name
  	Dell
  Warranty	3 Year(s)
