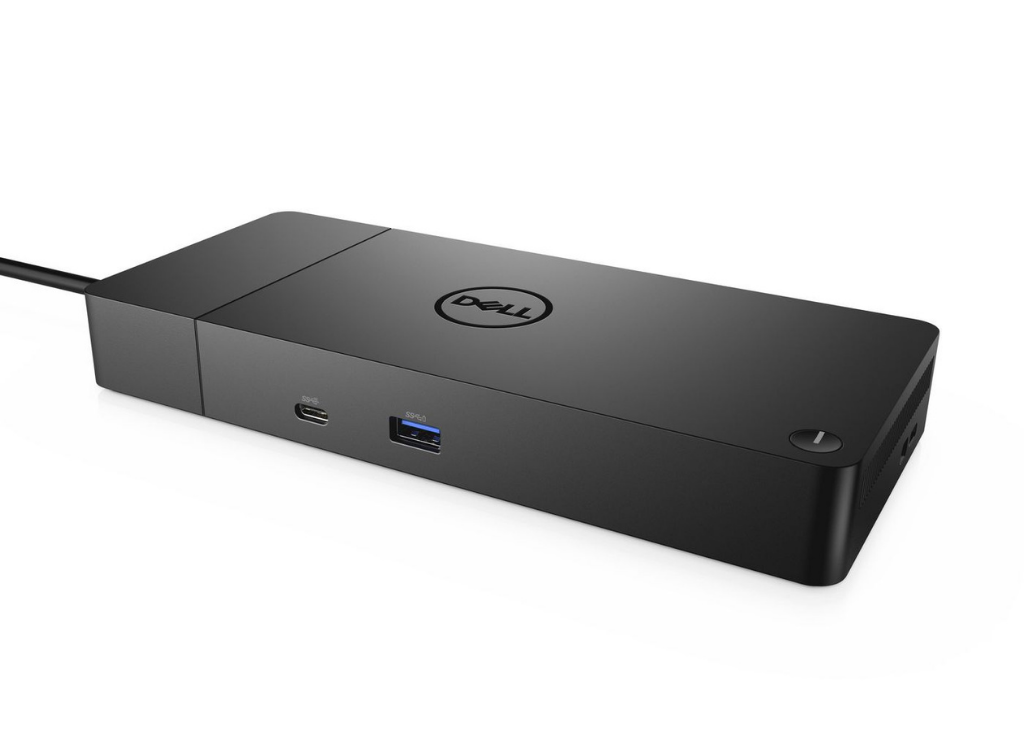

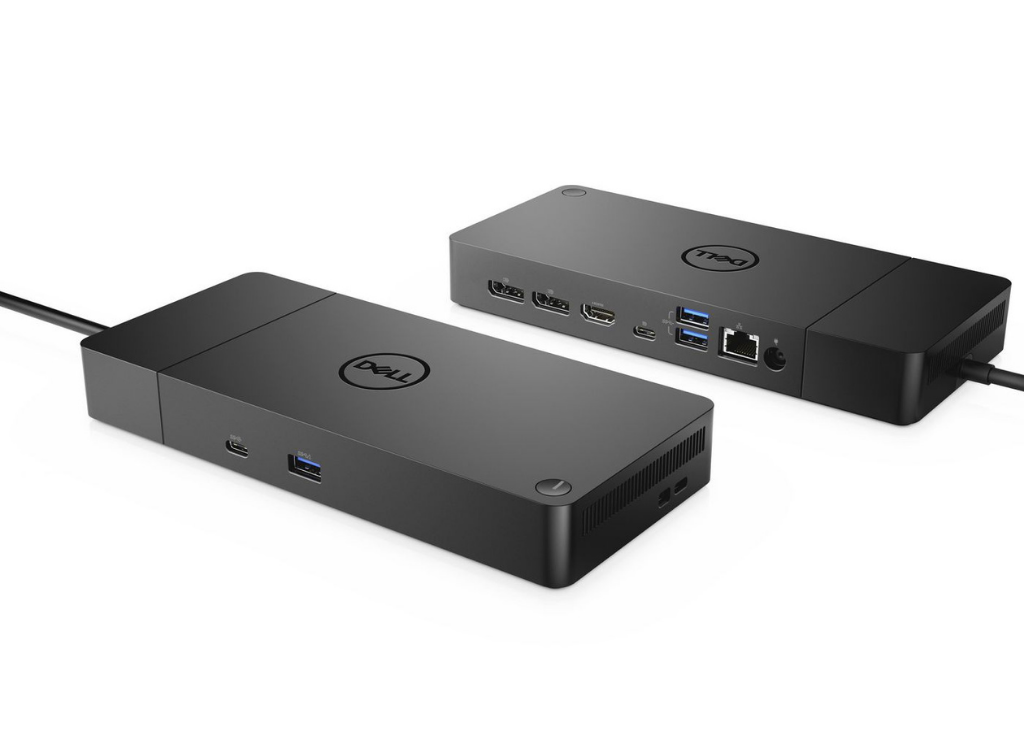

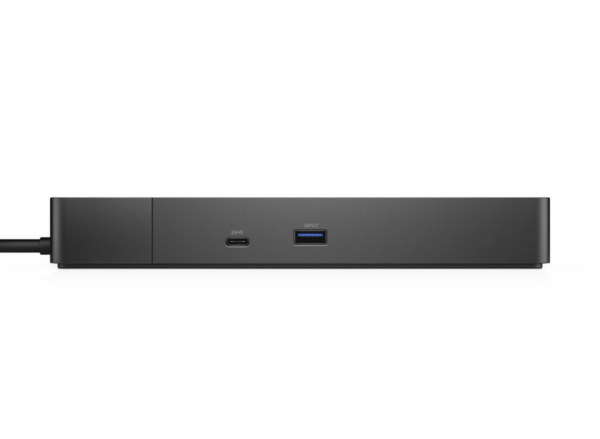

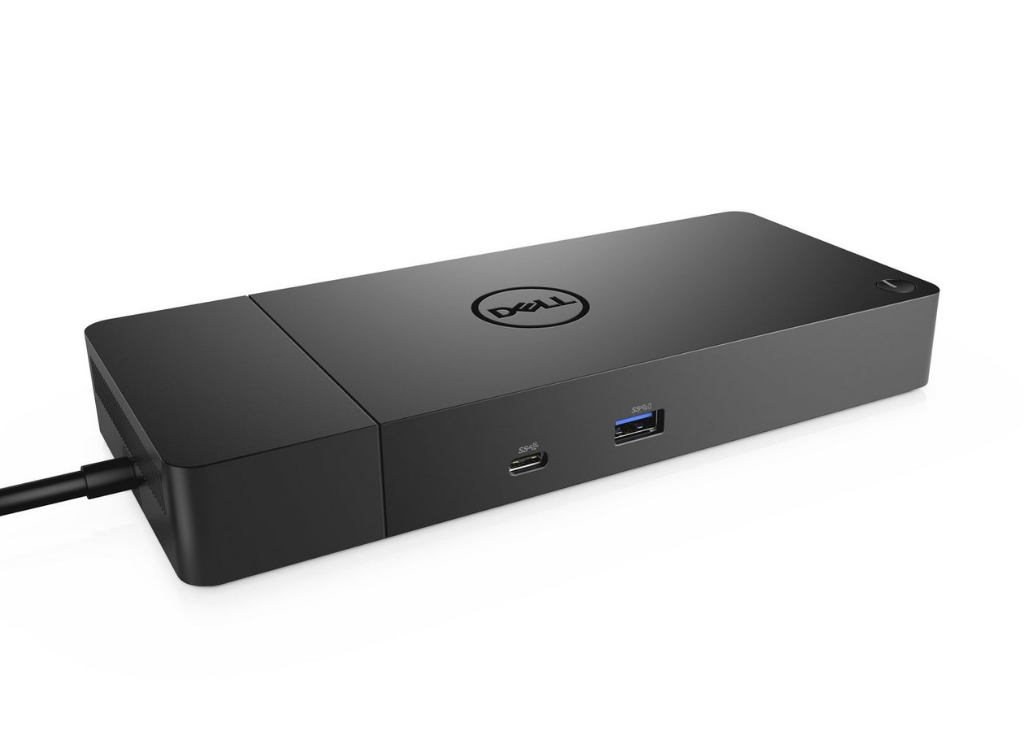

• Dell 130W USB-C Dock | WD19S130W


  Boost your PC’s power on the world’s most powerful and first modular USB-C dock with a future-ready design.





• Category	Details
  Carbon Footprint
  Carbon emissions (End-of-Life)	-2 kg of CO2e
  Carbon emissions (Logistics)	7 kg of CO2e
  Carbon emissions (Manufacturing)	26 kg of CO2e
  Carbon emissions (Use)	6 kg of CO2e
  Total carbon emissions (w/o Use phase)	30 kg of CO2e
  Total carbon footprint	36 kg of CO2e
  Legal Information
  UNSPSC Code	43211615
  Logistics Data
  Harmonized System (HS) code	84733020
  Network
  Ethernet LAN	Yes
  Ethernet LAN (RJ-45) ports	1
  Ethernet LAN data rates	10/100/1000 Mbit/s
  Operational Conditions
  Operating relative humidity (H-H)	10 – 80 %
  Operating temperature (T-T)	0 – 35 °C
  Storage relative humidity (H-H)	5 – 90 %
  Storage temperature (T-T)	-20 – 60 °C
  Package Dimensions
  Depth (package, cm)	29 cm
  Gross Weight (Package, kg)	5 kg
  Height (package, cm)	6.2 cm
  Width (package, cm)	30 cm
  Packaging Data
  Quantity per pack	1 pc(s)
  Performance
  Card reader integrated	No
  LED indicators	Yes
  Maximum digital resolution	5120 x 2880 Pixels
  On/off switch	Yes
  Product colour	Black
  VESA mounting	Yes
  Ports & Interfaces
  Connectivity technology	Wired
  DC-in jack	Yes
  DisplayPort version	1.4
  DisplayPorts quantity	2
  HDMI ports quantity	1
  HDMI version	2.0
  Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
  Microphone in	No
  USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
  USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
  Power
  AC input frequency	50 – 60 Hz
  AC input voltage	120 – 230 V
  Power cable length	1 m
  Power source type	DC
  Power supply	130 Watt
  Product Dimensions
  Net Weight (Product, kg)	5 kg
  Product Depth	9 cm
  Product Height	2.9 cm
  Product Width	20.5 cm
  Software
  Linux operating systems supported	Yes
  Windows operating systems supported	Windows 10/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 IOT Core/Windows 10 IoT Enterprise/Windows 10 Pro/Windows 10 Pro x64/Windows 10 x64
  Vendor Information
  Brand Name	Dell
  Warranty	1 Year(s)
