• DataVideo SDI to USB 3.0 Capture Box

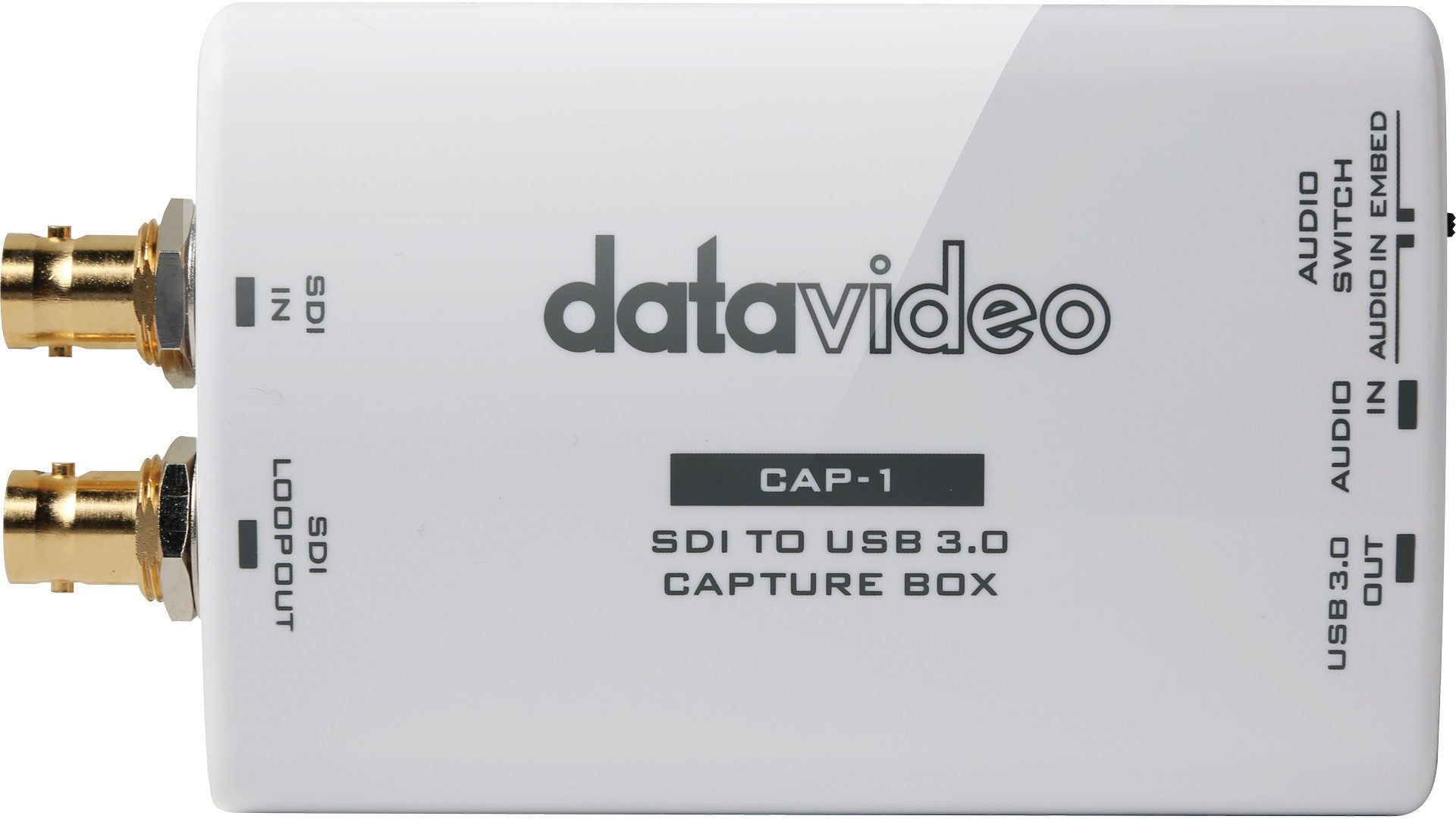

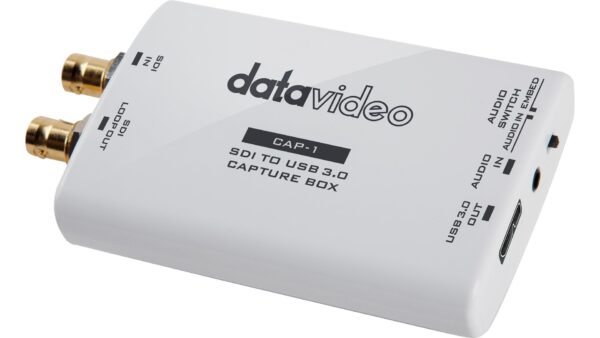

  CAP-1 SDI to USB 3.0 Capture Box
  CAP-1 SDI to USB 3.0 Capture Box is an SDI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system. It features stereo line in external audio, which can be switched as SDI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing.

  SDI to USB 3.0 Capture Box
  This new capture device takes 3G-SDI in with embedded or external audio and converts to USB 3.0 to connect your AV signal directly to your computer for streaming, recording or video conferencing. The USB compliant CAP-1 is ideal to use with any SDI equipped camera or switcher and it’s plug-n-play design requires no drivers to install. Stream from your SDI source directly to YouTube, Facebook or popular conferencing services such as Zoom, SKYPE, Teams or GotoMeeting.

  USB 3.0 Interface
  No external power is needed. Power source from USB connection.

  Plug-and-Play
  Support UVC. Operations with video format (resolution and frame rate) auto-detection capability. Scalable video resolution. Connect to video conference platform


  Compatible with various operating systems
  Support Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
  Linux: VLC, OBS
  Mac OS X: OBS, Quicktime player, VLC, Facetime

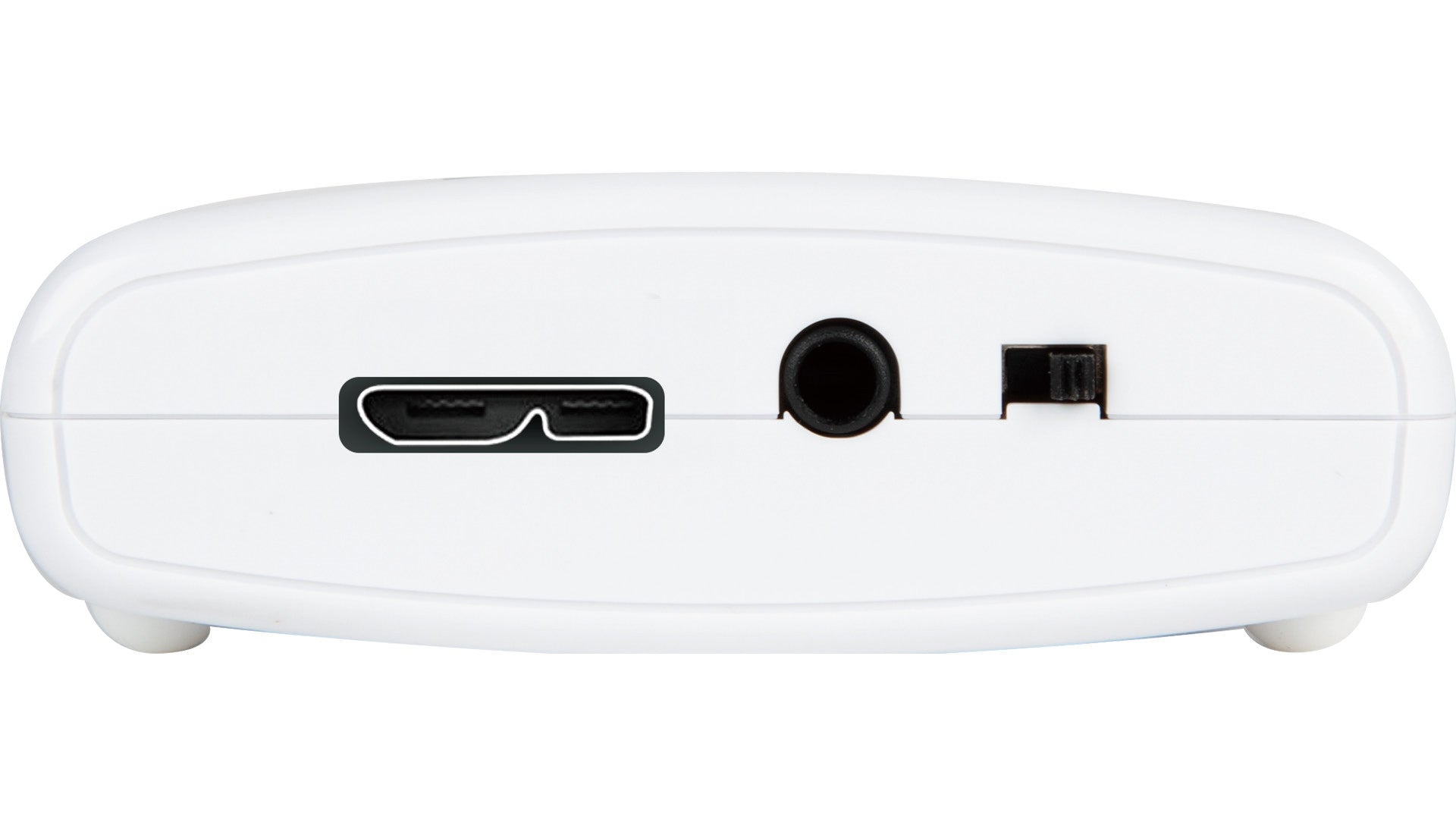

  Stereo line in external audio

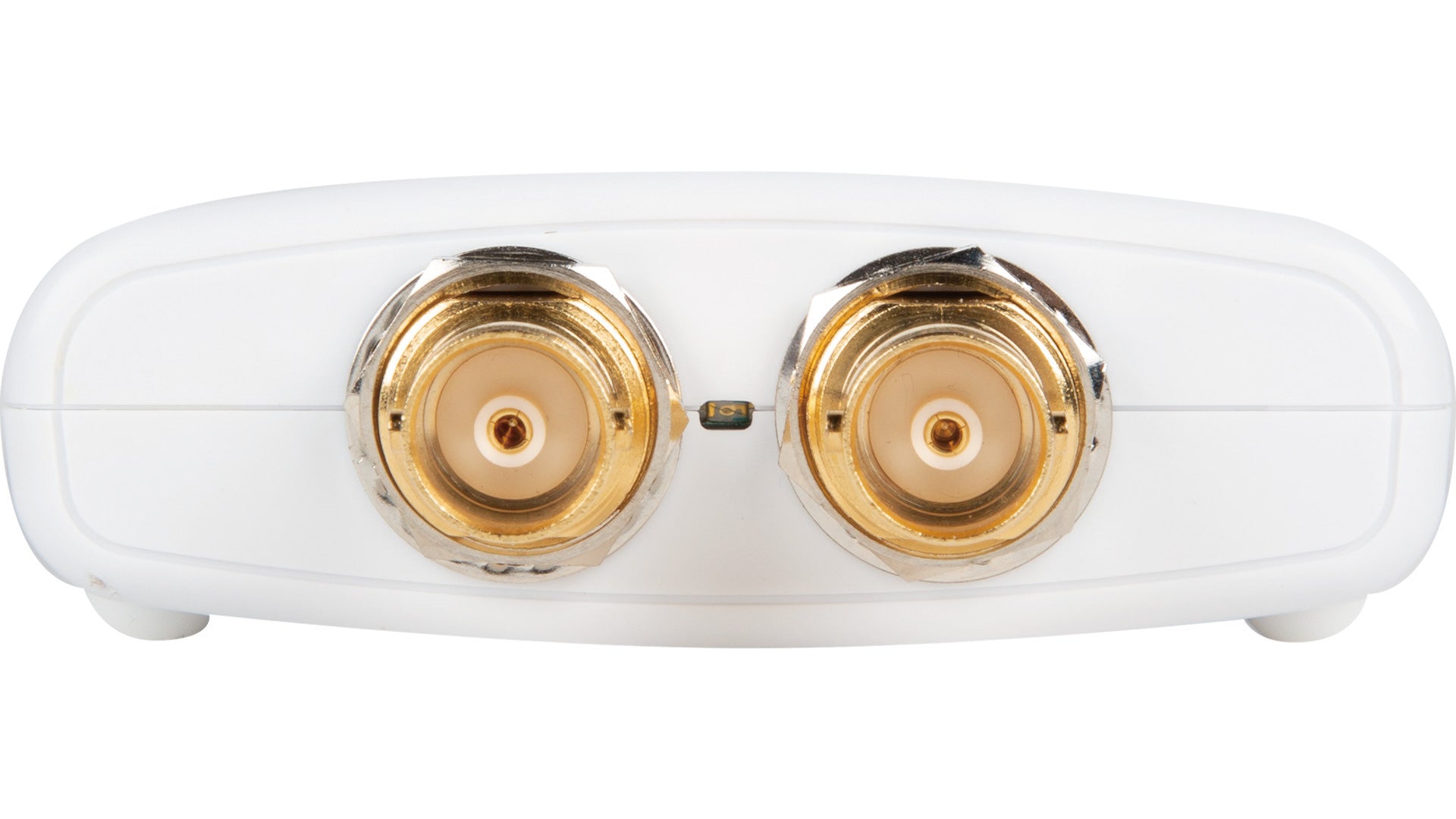

  SDI Loop-out for monitoring or recording the video source.
  Switched as SDI embedded audio or external Mini-Jack audio.

• Feature	Specification
  Model Number	CAP-1
  Input	1x HD/3G-SDI
  Output	1x USB 3.0 (Micro B), 1x SDI loopthrough
  Input Video Bandwidth	150MHz (pixel clock rate)
  Output Video Bandwidth	Up to 350Mbps (USB)
  Supported Input Formats	1920x1080p 60/59.94/50/30/29.97/25/24/23.976, 1920x1080i 60/59.94/50, 1280x720p 60/59.94/50
  Supported Output Formats	1920x1080p 60/59.94/50/30/29.97/25/24/23.976, 1920x1080i 60/59.94/50, 1280x720p 60/59.94/50
  Audio Input	SDI Embedded Audio & 3.5 mm stereo in
  Audio Format	2-Channel, 16-bit PCM
  Capture Video Format	YUY2 (USB3.0), MJPG (USB2.0/3.0)
  Firmware Update	Via USB Port
  Software Compatibility	Windows: Amcap, Google Plus Hangouts, OBS, Skype, VLC, Xsplit Broadcaster, Zoom.us; Linux: VLC, OBS; Mac OS X: OBS, Quicktime player, VLC, Facetime
  Supported OS	Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64), OS X (10.10 or above), Linux Ubuntu 14.04
  Power Supply	Via USB
  Power Consumption	3W
  Operation Temperature	0~40°C
  Storage Temperature	-20~60°C
  Humidity	20~90% RH (no condensation)
  Minimum System Requirement	Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64); OS X (10.10 or above); Linux Ubuntu 14.04; PC: Intel® Core™ i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher; Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher; 4GB RAM or higher
  Dimension (LxDxH)	121 x 68 x 23 mm
  Weight	92g
  What’s in the Box	1 x CAP-1, 1 x USB 3.0 Cable
