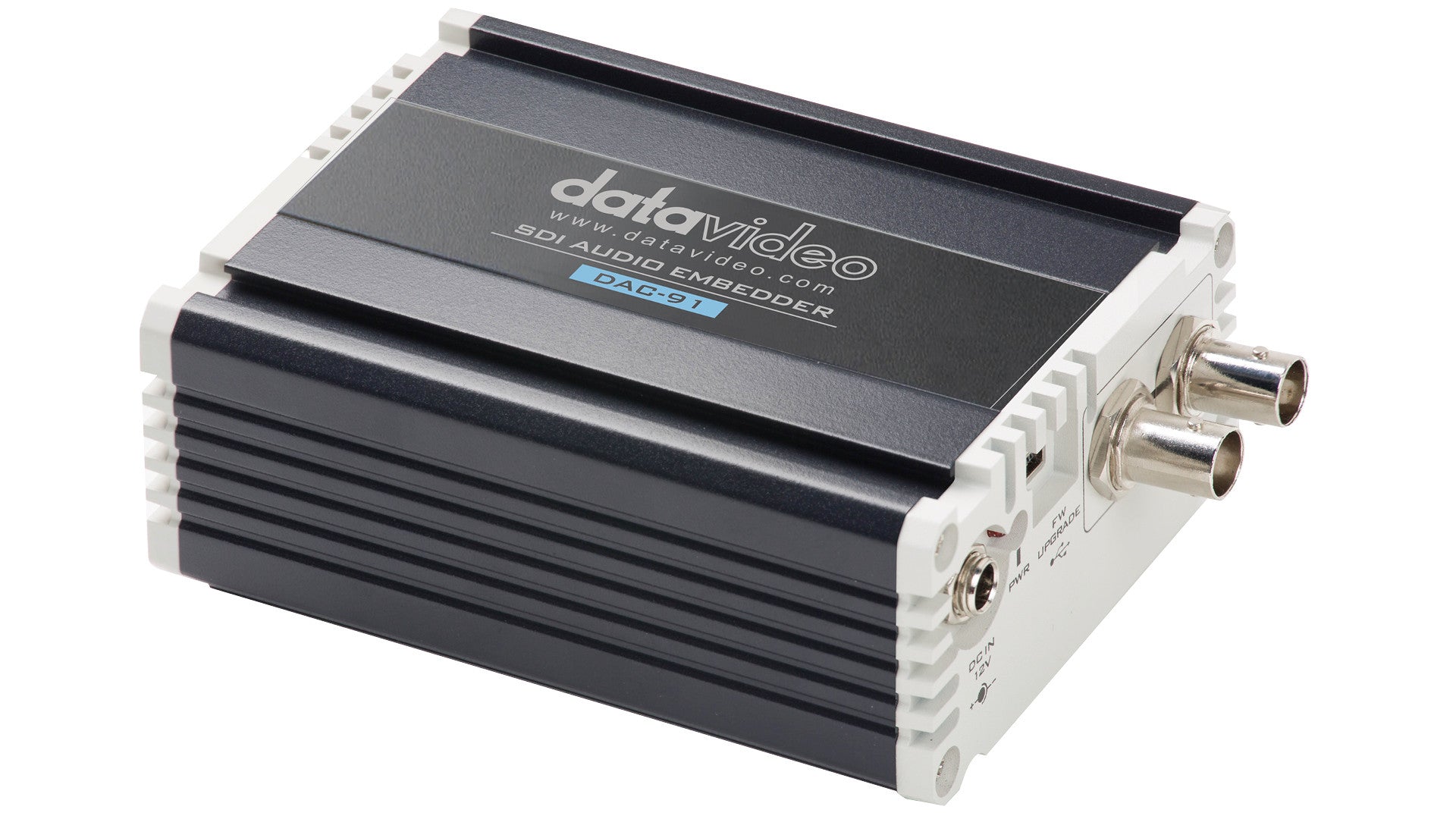

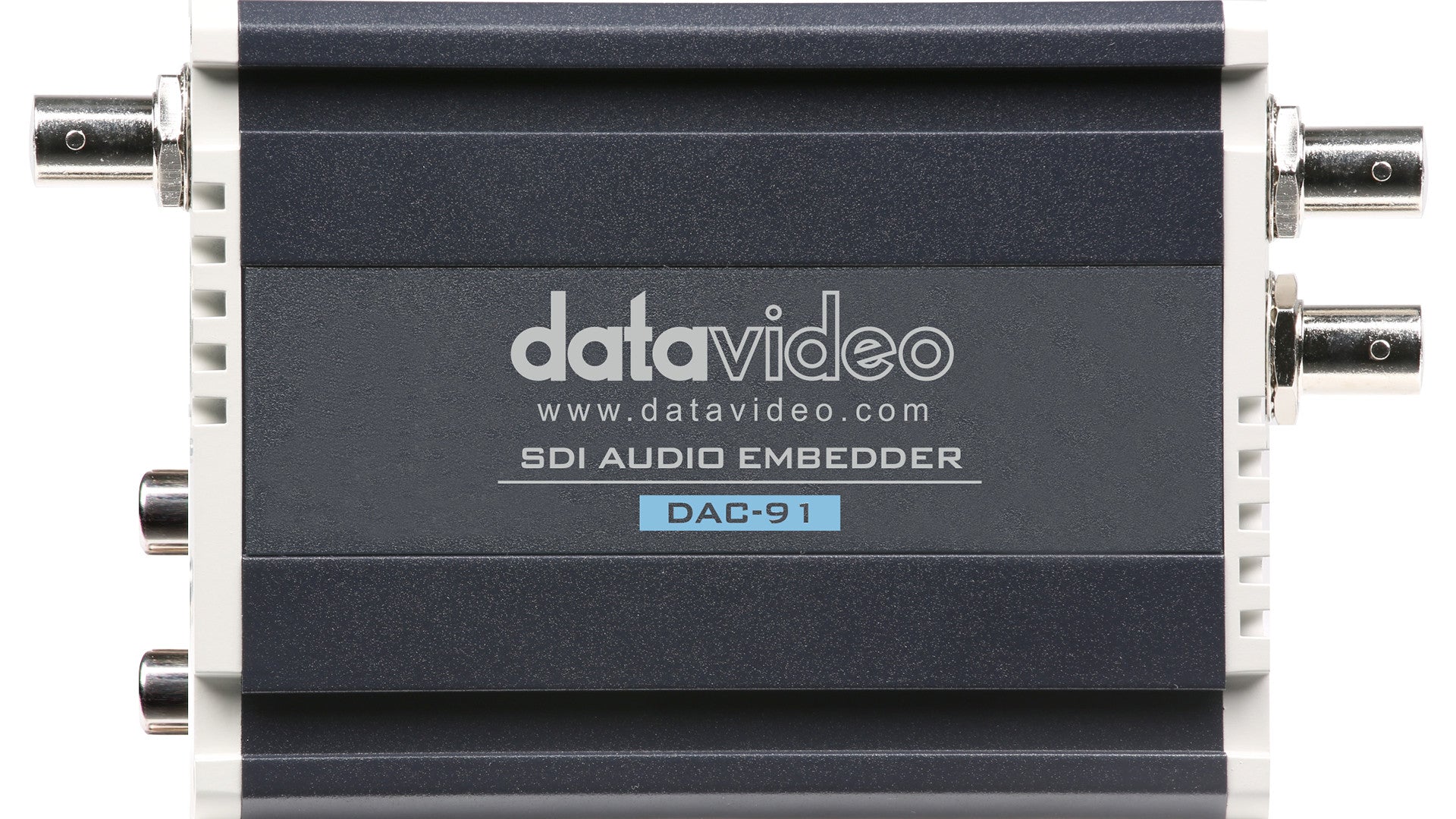

• DataVideo SDI Audio Embedder


  Auto detects SD, HD and 3G signals
  Allow users to embed 2 channels of analogue audio into SDI video signal.
  It features 3G/HD/SD-SDI to support up to 1080p/60 video format, automatically detecting and switching between the different formats and provides mini XLR and RCA audio connectors for inputting analogue audio.

  Auto sets compatible formats to embed external sound sources to SDI output
  Embed Audio into an SDI Signal

  Supports SMPTE and EBU
  Audio level indicator display
  Audio level adjustment

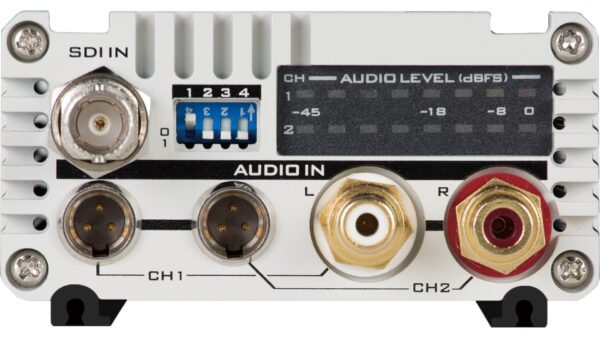

  4 x Analogue Audio inputs (Mini XLR x 2, RCA x 2)
  The Audio box also has audio level adjustment by using the built-in DIP switches.

  Aluminum Alloy and Heavy Duty Design
  Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

• Feature	Description
  Model Number	DAC-91
  Conversion	Audio Embedder
  Video Inputs	3G/HD/SD-SDI x 1
  Loop Through	—-

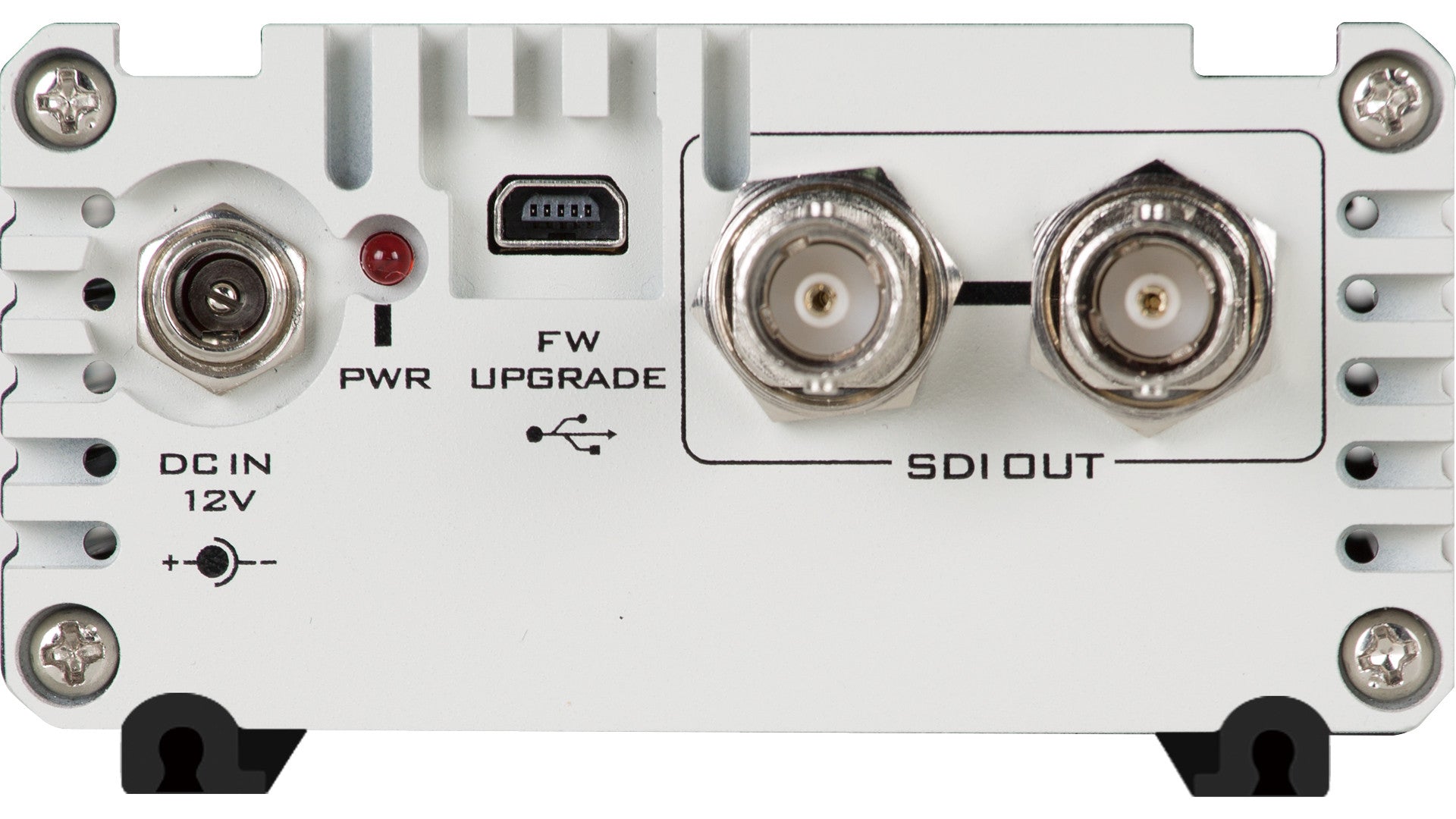

  Video Outputs	3G/HD/SD-SDI x 2
  Audio Inputs	Mini XLR (balanced) x 2, RCA (unbalanced) x 2
  Audio Outputs	—-
  Audio Format Selection	SMPTE, EBU
  Audio Gain	Yes
  Supported Video Input Formats	—-
  Output Resolutions	—-
  Equalizer	—-
  Reclock	—-
  SDI Cable Drive	—-
  Updates and Configuration	Mini USB x 1
  Dimension (LxWxH)	112 x 85 x 45 mm
  Weight	0.4 kg
  Operating Temp. Range	0~40 °C
  Power	DC 12V, 0.5A
  What’s in the Box	1 x DAC-91, 1 x AD Switch DC 12V, 2 x Mini XLR to female XLR cable

• Description	Downloads
  DataVideo SDI Audio Embedder | DAC-91 Instruction Manual	Downloads
