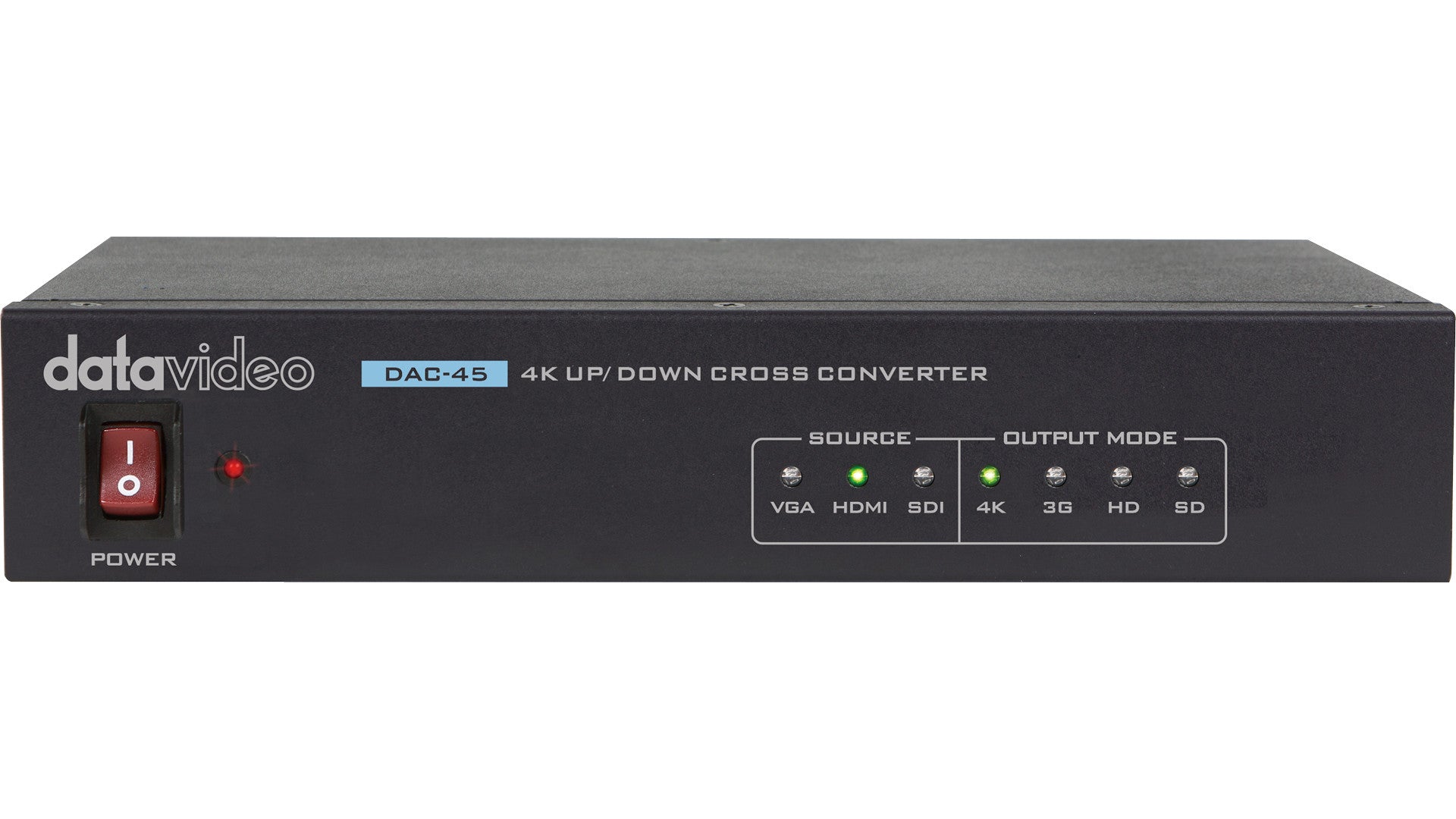

DataVideo 4K Up/Down Cross Converter
4K Up Conversion
With built-in super resolution engine, users can now up-convert from SD 480 resolution all the way to 4K resolution with excellent image quality and sharpness.
External audio embedding.
RCA inputs allow audio to be embedded to the output of the video signal.
Supports 3G-SDI Level A/B
With the 3G-SDI system, it supports both 3G-SDI Level A/B input.
Wide range conversion for great compatibility
Supports VGA/HDMI/SDI to 4K HDMI/3G-SDI multi-format up/down/cross conversion.
Built-in De-interlacer and Interlacer (I/P conversion)
Supports I/P conversion to avoid the dense misaligned horizontal lines on the video.
Reference input (Black Burst and Tri-Level Sync.)
Supports Black Burst and Tri-Level Sync for all inputs.
Adjustment of HDMI color space
The DAC CENTER software allows adjustment of HDMI color space. Support of various resolutions and HDMI color space allow consumer laptops to be used in a professional workflow
Easy installation on the rack
Available RMK-1 rack allows two DAC-45 to be racketed in a 19” rack. -

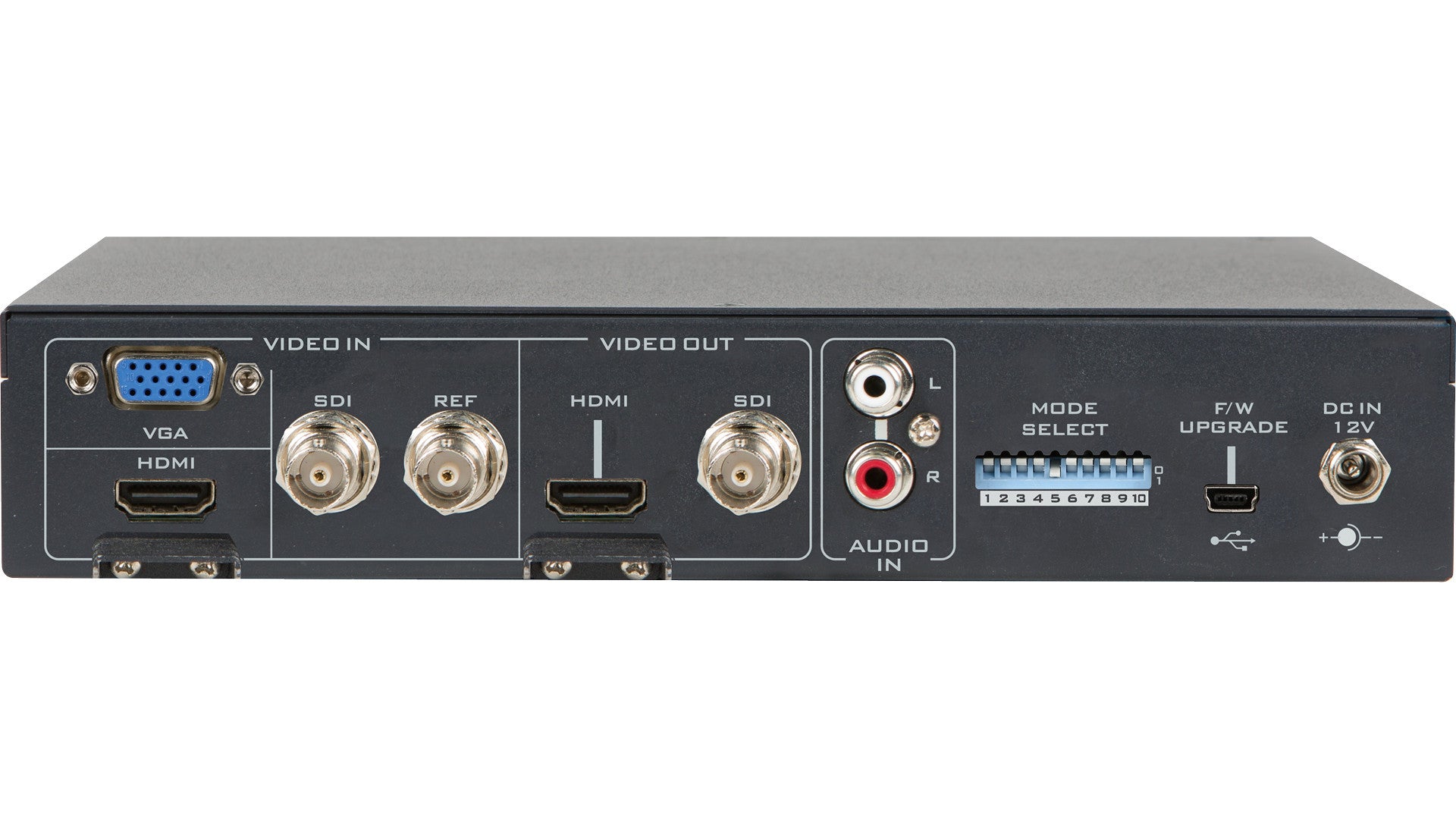

Model Number DAC-45 Conversion VGA/HDMI/SDI to 4K HDMI/3G-SDI Multi-format Up/Down/Cross Yes Video Inputs 1x VGA, 1x HDMI, 1x HD/SD-SDI, 1x Reference Input Loop Through —- Video Outputs 1x SDI, 1x HDMI Audio Inputs 2x RCA (Unbalanced Audio L/R), 2x SDI/HDMI Audio embedded Audio Outputs SDI embedded audio up to 8CH, 48KHz, PCM audio; HDMI embedded audio up to 8CH, 48KHz, PCM audio Audio Format Selection —- Audio Gain —- Supported Video Input Formats 2160p, 1080p, 1080psf, 1080i, 720p, 625i, 576p, 576i, 525i, 480p, 480i, 1920×1080, 1280×720, 1600×1200, 1400×1050, 1366×768, 1280×1024, 1024×768, 800×600 Output Resolutions 2160p, 1080p, 1080psf, 1080i, 720p, 625i, 576p, 576i, 525i, 480p, 480i Equalizer Yes Reclock Yes SDI Cable Drive Yes Updates and Configuration Mini USB x 1 Dimension (LxWxH) 220 x 143 x 42 mm Weight 1 kg Operating Temp. Range 0~40 °C Power DC 12V, 9.4W What’s in the Box 1 x DAC-45, 1 x AD Switch DC 12V -
